Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Tata Hitachi
2WD
₹ 29-34 Lakhs
₹ 29-34 Lakhs
Cummins 47 HP
0.26 m³
1.1 m³
4700 mm
2690 mm
7940 Kg

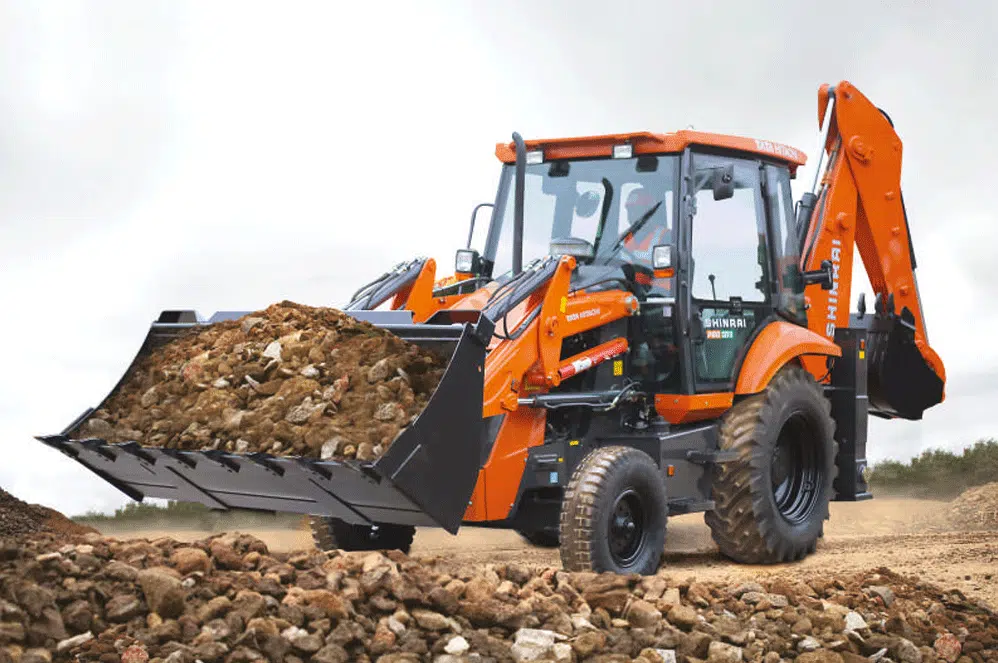

Built for heavy-duty applications, the Tata Hitachi Shinrai Pro backhoe loader offers exceptional strength, precision, and efficiency in material handling and excavation.
Looking for the best price on a Tata Hitachi Shinrai Pro backhoe loader? Connect with authorized dealers today for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Cummins 4B3.3T-35.1-C
100 L
215 Nm @ 1320 RPM
28 km/hr
105 L/min @ 1950 RPM
6050 mm
NA
3305 mm
6040 mm
2130 mm
6026 kgf
5722 kgf
1 Yr. / 2000 hr.
Optional
Standard
Equipped with a high-performance, fuel-efficient engine designed to maximize productivity while minimizing fuel consumption.
Delivers optimal torque and horsepower, ensuring superior digging, loading, and lifting performance.
Engineered to comply with strict emission norms, reducing environmental impact while maintaining powerful output.
Features an advanced cooling system to prevent overheating, enhancing engine life and long-term durability.
Provides low operating costs by reducing fuel wastage and improving overall efficiency, making it ideal for extended operations.
Load-sensing hydraulic system adjusts power distribution efficiently, ensuring smooth and precise operations.
Offers high hydraulic flow capacity, improving the digging, lifting, and material-handling capabilities of the machine.
Quick response time and superior hydraulic force help reduce cycle time, increasing worksite productivity.
Heavy-duty hydraulic cylinders ensure high durability and withstand tough working conditions.
Designed with enhanced hydraulic efficiency, optimizing fuel usage while delivering maximum power for challenging tasks.
Built with a reinforced boom and dipper, ensuring long-term durability and strength for heavy-duty tasks.
Heavy-duty chassis and undercarriage provide superior stability and endurance in demanding conditions.
Manufactured using high-grade steel components, enhancing the machine’s lifespan and reliability in tough terrains.
The robust axle and suspension system improve load handling, offering better maneuverability on uneven surfaces.
Designed to withstand harsh working environments while requiring minimal structural maintenance, reducing overall ownership costs.
Ergonomically designed cabin provides a spacious and comfortable workspace for operators, reducing fatigue during long shifts.
Features an adjustable seat with intuitive controls, allowing for seamless operation and improved efficiency.
Excellent visibility with strategically placed mirrors and powerful lighting ensures enhanced safety during night operations.
ROPS/FOPS compliant cabin offers maximum protection, preventing injuries in case of rollovers or falling objects.
Equipped with low noise and vibration reduction technology, ensuring a smooth and stress-free working experience.
Compatible with various attachments, including buckets, hydraulic breakers, and augers, expanding operational flexibility.
Quick coupler system allows for easy and fast attachment changes, minimizing downtime and boosting productivity.
Ideal for construction, agriculture, mining, and infrastructure projects, making it a versatile investment.
Engineered for excavation, trenching, loading, and material handling, providing a wide range of use cases.
Designed to perform efficiently on different terrains, including muddy, rocky, and uneven surfaces, ensuring adaptability across job sites.
Easy access to service points simplifies maintenance tasks, reducing downtime and ensuring consistent performance.
Extended service intervals lower maintenance costs while improving operational efficiency.
Equipped with heavy-duty filters and an advanced lubrication system, enhancing machine durability and reducing wear and tear.
Features a real-time performance monitoring system, allowing operators to track machine health and avoid unexpected failures.
Backed by reliable after-sales service and support, ensuring smooth and uninterrupted operations for businesses.
Equipped with a high-performance, fuel-efficient engine designed to maximize productivity while minimizing fuel consumption.
Delivers optimal torque and horsepower, ensuring superior digging, loading, and lifting performance.
Engineered to comply with strict emission norms, reducing environmental impact while maintaining powerful output.
Features an advanced cooling system to prevent overheating, enhancing engine life and long-term durability.
Provides low operating costs by reducing fuel wastage and improving overall efficiency, making it ideal for extended operations.
Load-sensing hydraulic system adjusts power distribution efficiently, ensuring smooth and precise operations.
Offers high hydraulic flow capacity, improving the digging, lifting, and material-handling capabilities of the machine.
Quick response time and superior hydraulic force help reduce cycle time, increasing worksite productivity.
Heavy-duty hydraulic cylinders ensure high durability and withstand tough working conditions.
Designed with enhanced hydraulic efficiency, optimizing fuel usage while delivering maximum power for challenging tasks.
Built with a reinforced boom and dipper, ensuring long-term durability and strength for heavy-duty tasks.
Heavy-duty chassis and undercarriage provide superior stability and endurance in demanding conditions.
Manufactured using high-grade steel components, enhancing the machine’s lifespan and reliability in tough terrains.
The robust axle and suspension system improve load handling, offering better maneuverability on uneven surfaces.
Designed to withstand harsh working environments while requiring minimal structural maintenance, reducing overall ownership costs.
Ergonomically designed cabin provides a spacious and comfortable workspace for operators, reducing fatigue during long shifts.
Features an adjustable seat with intuitive controls, allowing for seamless operation and improved efficiency.
Excellent visibility with strategically placed mirrors and powerful lighting ensures enhanced safety during night operations.
ROPS/FOPS compliant cabin offers maximum protection, preventing injuries in case of rollovers or falling objects.
Equipped with low noise and vibration reduction technology, ensuring a smooth and stress-free working experience.
Compatible with various attachments, including buckets, hydraulic breakers, and augers, expanding operational flexibility.
Quick coupler system allows for easy and fast attachment changes, minimizing downtime and boosting productivity.
Ideal for construction, agriculture, mining, and infrastructure projects, making it a versatile investment.
Engineered for excavation, trenching, loading, and material handling, providing a wide range of use cases.
Designed to perform efficiently on different terrains, including muddy, rocky, and uneven surfaces, ensuring adaptability across job sites.
Easy access to service points simplifies maintenance tasks, reducing downtime and ensuring consistent performance.
Extended service intervals lower maintenance costs while improving operational efficiency.
Equipped with heavy-duty filters and an advanced lubrication system, enhancing machine durability and reducing wear and tear.
Features a real-time performance monitoring system, allowing operators to track machine health and avoid unexpected failures.
Backed by reliable after-sales service and support, ensuring smooth and uninterrupted operations for businesses.
Product specification of Tata Hitachi Shinrai Pro Backhoe Loader
Model
Cummins 4B3.3T-35.1-C
Type
Turbo-charged, Water Cooled, 4-Cycle Diesel Engine, 4 Cylinders
Gross Power
47 HP (35.1 kW) @ 2200 RPM
Max Torque
215 Nm @ 1320 RPM
Displacement
3.261 L
Battery
12 V / 130 Ah
Alternator
120A
Type
Equipped with Carraro-make synchro-shuttle transmission.
Type
Hydraulic actuation with priority for smooth control.
Working Pressure
NA
Inner Wheels Braked - Outside Loader Bucket
11730 mm
Inner Wheels Braked - Outside Wheels
8600 mm
Inner Wheels not Braked - Outside Loader Bucket
NA
Inner Wheels not Braked -Outside Wheels
NA
Service
Oil-immersed wet disc, hydraulic-actuated with independent pedals for better control in narrow spaces
Parking
Hand operated disc brake on the rear axle.
Front
9 x 16.16 PR
Rear
16.9 x 28, 12 PR
Forward- 1st gear
5 km/hr
Reverse- 1st gear
5 km/hr
Forward- 2nd Gear
7 km/hr
Reverse- 2nd Gear
7 km/hr
Forward- 3rd gear
16 km/hr
Reverse- 3rd gear
Not recommended
Forward- 4th gear
28 km/hr
Reverse- 4th gear
37.5 km/hr
Type
Intelligent optimum Hydraulic system, Variable Displacement Pump with Electric Displacement Control and Load Sense to optimize fuel consumption
Maximum Pump Flow
105 L/min @ 1950 RPM
System Pressure
265 bar
Rear axle
Rear heavy-duty carraro axle high brake torque
Front axle
Heavy-duty, non-powered axle
Fuel Tank
100 L
Engine Coolant
13 L
Engine Oil
11 L
Hydraulic Tank
65 L
Hydraulic System
NA
Transmission
20 L
Rear Axle
17.5 L
Maximum Digging Depth
4700 mm
Reach-Ground Level to Rear Wheel Centre
6880 mm
Reach-Ground Level to Slew Centre
5440 mm
Reach at Full Height to Slew Centre
2001 mm
Side Reach to Centre Line of Machine
6050 mm
Maximum Working Height
6050 mm
Maximum Load Over Height
4200 mm
Bucket Rotation Angle
180°
Bucket Digging force
6026 kgf
Arm Digging force
3087 kgf
Maximum Lift Capacity
NA
Standard Bucket Capacity
0.26 m³
Standard Bucket Width
752 mm
Dump Height
2690 mm
Load Over Height
3305 mm
Pin Height
3550 mm
Pin Forward Reach
360 mm
Reach at Ground
1620 mm
Maximum Reach at Full Height
1332 mm
Maximum Reach at Full Height - Bucket Dumped
840 mm
Below Ground Level Dig Depth
75 mm
Rollback at Ground
45°
Dump Angle
45°
Shovel Breakout Force
5722 kgf
Loader Arm Breakout Force
5139 kgf
Maximum Payload
1800 kg
Standard Shovel Capacity
1.1 m³
Machine Weight
7940 kg
Overall Length
6040 mm
Wheelbase
2130 mm
Slew Centre to Rear Axle Centre
1370 mm
Minimum Ground Clearance
320 mm
Slew Ground Clearance
485 mm
Height of Cabin
2940 mm
Overall Height
3530 mm
Track width - Rear
1710 mm
Track width - Front
1900 mm
Width Over Bucket
2354 mm
The Tata Hitachi Shinrai Pro backhoe loader price in india ranges between ₹ 29-34 lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.
You can buy the Tata Hitachi Shinrai Pro backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.
Yes, the Tata Hitachi Shinrai Pro backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.
The mileage of the Tata Hitachi Shinrai Pro backhoe loader typically ranges between 3.5 to 5 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.
The Tata Hitachi Shinrai Pro backhoe loader is powered by a Cummins 4B3.3T-35.1-C diesel engine, delivering 47 HP (35.1 kW) @ 2200 rpm.
The weight of the Tata Hitachi Shinrai Pro backhoe loader is approximately 7940 kg. The weight may vary slightly depending on specific configurations and attachments.
The Tata Hitachi Shinrai Pro backhoe loader has a 100 litres diesel fuel tank, providing extended operation time without frequent refueling.
The Tata Hitachi Shinrai Pro backhoe loader has a lifting capacity of NA making it ideal for versatile applications.
The Tata Hitachi Shinrai Pro backhoe loader has a maximum digging depth of 4700 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The loader bucket capacity of the Tata Hitachi Shinrai Pro is 1.1 cubic meters (m³).
The backhoe bucket capacity of the Tata Hitachi Shinrai Pro is 0.26 cubic meters (m³).
The Tata Hitachi Shinrai Pro backhoe loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.
The Tata Hitachi Shinrai Pro backhoe loader features a synchro – shuttle transmission with 4 forward and 4 reverse speeds.
You can find genuine spare parts for the Tata Hitachi Shinrai Pro backhoe loader at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.
Note: Uncheck if you're not interested in finance or insurance deals.
A joint venture between Tata Motors Limited (40%) and Hitachi Construction Machinery Company Limited (60%), Tata Hitachi provides world-class construction equipment to address India’s infrastructure and mining needs.
Focused on developing global products to suit Indian working conditions, the organization’s product lineup includes a wide range of excavators, backhoe loaders, wheel loaders, and rigid dump trucks. Tata Hitachi has two plants at Dharwad (Karnataka) and Kharagpur (West Bengal). The plants epitomize world-class manufacturing and state-of-the-art technology.
Product Portfolio: Excavators, Backhoe Loaders, Wheel Loaders
