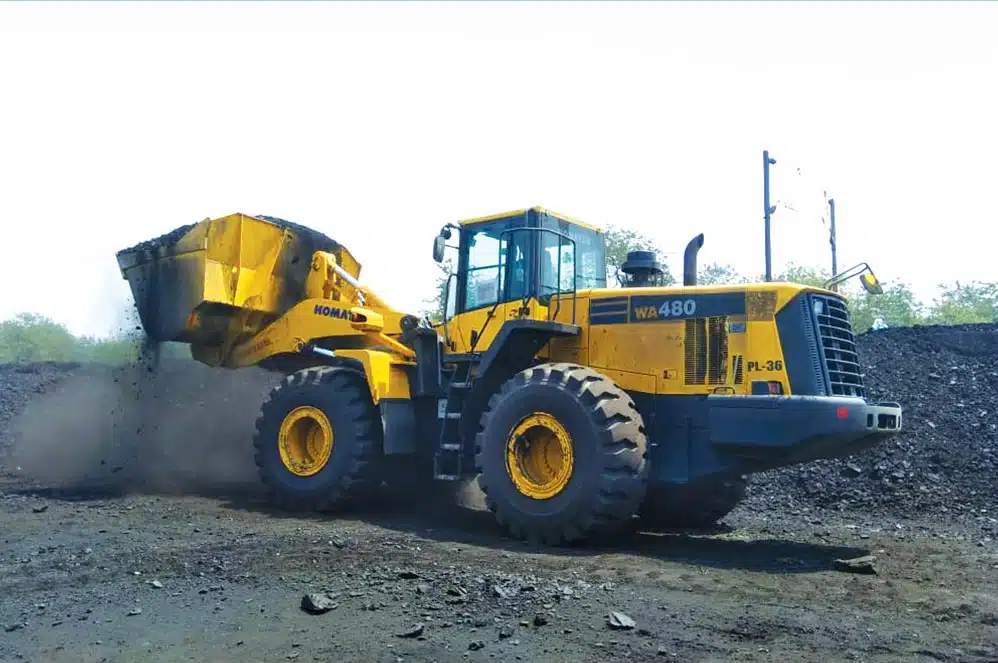

    Komatsu WA480-6A Wheel Loader

    Komatsu WA480-6A Wheel Loader price
    desi machines komatsu wa480 6a wheel loader 1
    desi machines komatsu wa480 6a wheel loader 1

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      L&T Komatsu

    • Type

      Medium (15-30 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Engine

      Komatsu 300 HP

    • featIcon2 (1) alt
      Bucket

      3.8 – 6.1 m³

    • icon alt1
      Weight

      25155 kg

    • Fwd. Speed

      36.3 km/h

    • dumping height loader
      Dump Height

      3205 mm

    • tipping load
      Tipping Load

      17125 kg

    Quick Overview:

    With enhanced load capacity, the Komatsu WA480-6A Wheel Loader meets the rigorous demands of India’s construction and mining sectors.

    Connect With Us:

    Get the best price for the Komatsu WA480-6A wheel loader from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Komatsu SAA6D125E-5

    Max Torque

    NA

    Fuel Tank

    413 L

    Hydraulic System

    260 L/min

    grounding
    Min. Ground Clearance

    525 mm

    desi machines payload
    Payload

    NA

    360 degree
    Steering Angle

    ±35°

    Drive Type

    4-wheel drive (4WD)

    Wheelbase

    3450 mm

    Tyres

    26.5-25 tires

    down
    Max. Breakout Force

    212 kN

    Overall Length

    9170 mm

    Medal Image
    Warranty

    1 Yr. / 3000 hr.

    air-conditioner-alt
    AC Cabin

    Optional

    GPS Tracking
    GPS

    Standard

    Features

    Engine Performance

    Engine Performance

    • Powered by a high-performance Komatsu SAA6D125E-5 engine, delivering strong output for demanding construction tasks.

    • Equipped with a dual-mode engine power select system to optimize fuel efficiency and performance based on workload.

    • Integrated with a large-capacity torque converter and shift timing select system for smoother and more efficient power transmission.

    Advanced Hydraulic System

    Advanced Hydraulic System

    • Uses a variable displacement piston pump paired with a Closed-Center Load Sensing System (CLSS) for precise hydraulic control.

    • Supports high-efficiency loading operations by delivering consistent hydraulic flow during multi-function operations.

    • Customized power modes and engine autoDesigned to provide superior lifting and breakout performance, ensuring productivity in material handling tasks. idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.

    Efficient Load Handling Capacity

    Efficient Load Handling Capacity

    • Built to handle heavy-duty applications with ease, thanks to its powerful hydraulic and transmission systems.

    • Ideal for mid-to-large-scale projects involving bulk loading, transport, or quarry operations.

    • An optional lock-up torque converter improves traction and fuel economy during high-load carrying operations.

    Operator Comfort and Safety

    Operator Comfort and Safety

    • Features a low-noise, ROPS/FOPS-certified cab (ISO 3471/ISO 3449) for safety and fatigue-free operation.

    • Comes with fingertip control levers, electronic transmission lever, and a tilt/telescopic steering column for precise and comfortable control.

    • Offers easy entry and exit with a wide cab door and rear-hinged access, especially useful for frequent operator shifts.

    Durability and Reliability

    Durability and Reliability

    • Constructed using Komatsu-designed components and a sturdy mainframe for enhanced structural longevity.

    • Features maintenance-free, wet disc brakes and flat face O-ring sealed hoses for reliable and long-term performance.

    • The exterior is treated with cation electrodeposition primer and powder-coated paint, ensuring corrosion and weather resistance.

    Maintenance and Environmental Compatibility

    Maintenance and Environmental Compatibility

    • The Integrated Equipment Management Monitoring System (EMMS) offers real-time diagnostics and service alerts.

    • Gull-wing engine doors provide wide access for simplified maintenance tasks and inspections.

    • Certified to EPA Tier 3 and EU Stage 3A emission standards, with low fuel usage and reduced noise pollution.

    Engine Performance

    • Powered by a high-performance Komatsu SAA6D125E-5 engine, delivering strong output for demanding construction tasks.

    • Equipped with a dual-mode engine power select system to optimize fuel efficiency and performance based on workload.

    • Integrated with a large-capacity torque converter and shift timing select system for smoother and more efficient power transmission.

    Advanced Hydraulic System

    • Uses a variable displacement piston pump paired with a Closed-Center Load Sensing System (CLSS) for precise hydraulic control.

    • Supports high-efficiency loading operations by delivering consistent hydraulic flow during multi-function operations.

    • Customized power modes and engine autoDesigned to provide superior lifting and breakout performance, ensuring productivity in material handling tasks. idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.

    Efficient Load Handling Capacity

    • Built to handle heavy-duty applications with ease, thanks to its powerful hydraulic and transmission systems.

    • Ideal for mid-to-large-scale projects involving bulk loading, transport, or quarry operations.

    • An optional lock-up torque converter improves traction and fuel economy during high-load carrying operations.

    Operator Comfort and Safety

    • Features a low-noise, ROPS/FOPS-certified cab (ISO 3471/ISO 3449) for safety and fatigue-free operation.

    • Comes with fingertip control levers, electronic transmission lever, and a tilt/telescopic steering column for precise and comfortable control.

    • Offers easy entry and exit with a wide cab door and rear-hinged access, especially useful for frequent operator shifts.

    Durability and Reliability

    • Constructed using Komatsu-designed components and a sturdy mainframe for enhanced structural longevity.

    • Features maintenance-free, wet disc brakes and flat face O-ring sealed hoses for reliable and long-term performance.

    • The exterior is treated with cation electrodeposition primer and powder-coated paint, ensuring corrosion and weather resistance.

    Maintenance and Environmental Compatibility

    • The Integrated Equipment Management Monitoring System (EMMS) offers real-time diagnostics and service alerts.

    • Gull-wing engine doors provide wide access for simplified maintenance tasks and inspections.

    • Certified to EPA Tier 3 and EU Stage 3A emission standards, with low fuel usage and reduced noise pollution.

    Specifications

    Product specification of Komatsu WA480-6A Wheel Loader

    ENGINE

    • Make

      Komatsu SAA6D125E-5

    • Type

      Water-cooled, 4-cycle

    • Aspiration

      Turbocharged, aftercooled, cooled EGR

    • Emission

      EPA Tier 3 / EU Stage IIIA

    • Max. Power

      300 HP (224 kW) @ 2000 rpm

    • Max Torque

      NA

    • Piston Displacement

      11.04 L

    • No. of Cylinders

      6 Cylinders

    • Battery

      12V x 2 / 136 Ah

    • Alternator

      24V / 50A

    POWER TRAIN

    • Transmission

      Full-Powershift, Contershaft Type

    • Drive Type

      4-wheel drive (4WD)

    • Torque Converter

      3-element, 1-stage, 1-phase

    BRAKES

    • Service

      Hydraulically actuated, wet multiple-disc brakes actuate on four wheels

    • Parking

      Wet multiple-disc brake

    STEERING SYSTEM

    • Type

      Articulated Type, Full-Hydraulic Power Steering

    • Steering Angle

      ±35°

    AXLE AND FINAL DRIVE

    • Front Axle Type

      Fixed, semi-floating

    • Rear Axle Type

      Center-pin support, semi-floating

    • Oscillation Angle

      ±13°

    SPEED

    • Top Forward Speed

      36.3 km/h

    • Top Reverse Speed

      37.4 km/h

    HYDRAULIC SYSTEM

    • System Type

      Closed-Center, Load-Sensing System

    • Pump Type

      Piston pump

    • Max. Pump Flow

      260 L/min

    • System Pressure

      343 bar

    SERVICE REFILL CAPACITIES

    • Fuel Tank

      413 L

    • Hydraulic System

      173 L

    • Engine Oil

      38 L

    • Cooling System

      61 L

    • Rear Axle Oil

      59 L

    • Front Axle Oil

      59 L

    • Hydraulic Tank

      NA

    • Transmission Oil

      65 L

    • DEF Tank

      NA

    DIMENSIONS

    • Overall Length With Bucket

      9170 mm

    • Wheel Base

      3450 mm

    • Height Over Cab

      3500 mm

    • Height Over Exhaust

      NA

    • Min. Ground Clearance

      525 mm

    • Width Over Tyres

      3010 mm

    • Wheel Tread

      2300 mm

    • Tyre Size

      26.5-25 tires

    PERFORMANCE

    • Bucket Capacity

      3.8 – 6.1 m³

    • Bucket Width

      3170 mm

    • Payload

      NA

    • Tipping Load Straight

      20030 kg

    • Tipping Load Full Turn

      17125 kg

    • Max. Breakout Force

      212 kN

    • Operating Weight

      25005 - 25155 kg

    • Maximum Dump Angle

      45°

    • Bucket Roll Back Angle Full Height

      NA

    • Bucket Roll Back At Carry

      NA

    • Bucket Roll Back At Ground Level

      NA

    • Dumping Height, Fully Raised

      3205 mm

    • Dumping Reach, Fully Raised

      1410 mm

    • Max. Hinge Pin Height

      4505 mm

    • Max. Digging Depth

      90 mm

    • Turning Radius Over Tyres

      NA

    • Turning Radius Over Bucket

      NA

    Frequently Asked Question

    01. What is the Komatsu WA480-6A wheel loader price in India?

    Ans.

    The Komatsu WA480-6A wheel loader price in India is available on request. To get the latest on-road price of the Komatsu WA480-6A based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

    02. Where can I buy the Komatsu WA480-6A wheel loader in India at the best price?

    Ans.

    You can buy the Komatsu WA480-6A wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Komatsu dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Komatsu WA480-6A price, compare dealer quotes, and enjoy expert assistance—all in one place.

    03. What is the engine power of the Komatsu WA480-6A wheel loader?

    Ans.

    The Komatsu WA480-6A wheel loader is powered by a Komatsu SAA6D125E-5 diesel engine, delivering 300 HP (224 kW) @ 2000 rpm.

    04. What is the operating weight of the Komatsu WA480-6A wheel loader?

    Ans.

    The operating weight of the Komatsu WA480-6A wheel loader ranges from 25005 to 25155 kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What is the fuel tank capacity of the Komatsu WA480-6A wheel loader?

    Ans.

    The Komatsu WA480-6A wheel loader has a 413 litres diesel fuel tank, providing extended operation time without frequent refueling.

    06. What is the bucket capacity of the Komatsu WA480-6A wheel loader?

    Ans.

    The bucket capacity of the Komatsu WA480-6A is 3.8 – 6.1 cubic meters (m³).

    07. What is the dump height of the Komatsu WA480-6A wheel loader?

    Ans.

    The Komatsu WA480-6A wheel loader provides a dump height of 3205 mm, ensuring smooth unloading and stockpiling operations.

    08. What is the warranty period of Komatsu WA480-6A wheel loader?

    Ans.

    The Komatsu WA480-6A wheel loader in India typically comes with a standard warranty of 1 year or 3000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    09. How many gears are available in the Komatsu WA480-6A wheel loader?

    Ans.

    The Komatsu WA480-6A wheel loader features a 4-wheel drive (4WD) system with a Full-Powershift & Countershaft Type transmission. It offers 4 forward and 4 reverse gears, enabling efficient operation at speeds up to 36.3 km/h.

    10. What are the key applications and uses of the Komatsu WA480-6A wheel loader?

    Ans.

    The Komatsu WA480-6A loader excels in demanding construction and mining tasks, delivering powerful material handling, smooth operation, and fuel savings for improved site productivity.

    11. Where can I find spare parts for the Komatsu WA480-6A wheel loader?

    Ans.

    You can find genuine spare parts for the Komatsu WA480-6A wheeled loader at authorized Komatsu dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
