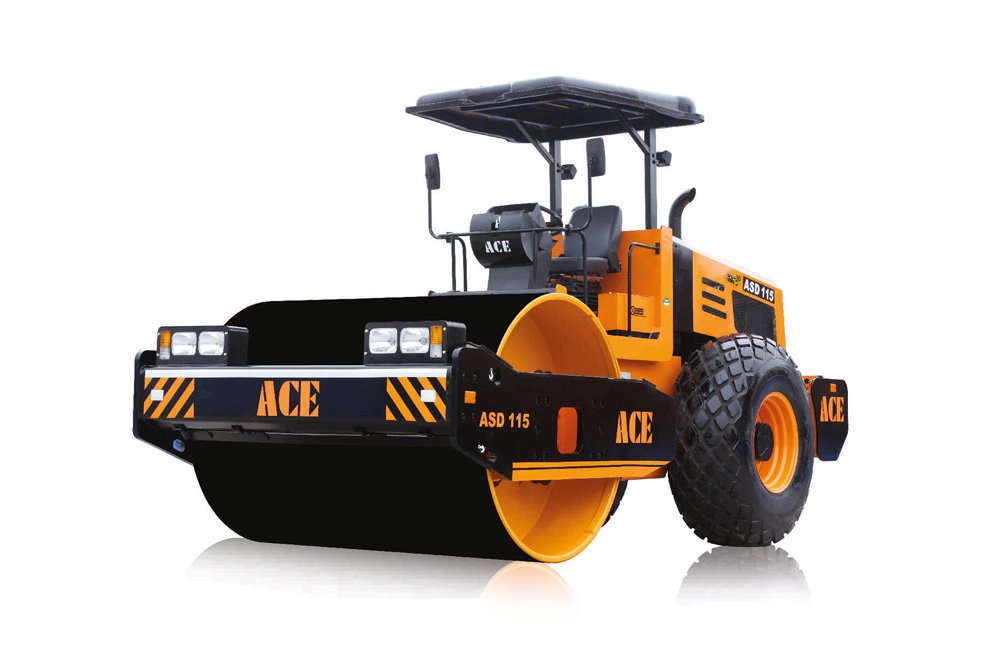

    ACE ASD 115 Compactor

    The ACE ASD 115-STD Vibratory Roller is a powerful single drum soil compactor made for road construction, highways, and large infrastructure projects. It handles loose soil, asphalt, and ground stabilization, ensuring uniform density and durability on every project. With ACE’s experience in manufacturing, the ASD 115-STD vibratory roller combines smart technology, high productivity, and low maintenance. ACE also provides soil compactors in the 10 to 12 ton range and tandem compactors from 3.5 to 9 tons, making it a trusted Indian brand known for efficient, cost-effective, and performance-driven road rollers across various applications.

    ACE ASD 115 Soil Compactor Roller | Desi Machines
    desi-machines-ace-asd-115-soil-compactor-gallery-1
    • Brand

      ACE

    • Type

      Soil Compactor

    • Operating Cost

      ₹ 32-34 Lakhs

    • Ex-Showroom Price

      ₹ 32-34 Lakhs

    • icon alt1
      Weight

      11000 kg

    • Drum Width

      2130 mm

    • Engine

      M&M 112 HP

    • Static Load

      30.52 kg/cm

    • CF - Hi/Low

      254/176 kN

    • Travel Speed

      0–29 km/hr

    Connect With Us:

    Looking for the best ACE ASD 115 Soil Compactor price in India? Connect with us today and unlock exclusive offers on this reliable road roller!

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights

    Engine Make

    M&M MCVCN C35TL112CE5

    Fuel Tank

    315 L

    Hydraulic Tank

    80 L

    Vibration Frequency

    40/33 Hz

    Nominal Amplitude

    1.85/0.8 mm

    Max Gradeability

    45%

    Steering Angle

    ±37°

    Turning Radius

    6050 mm

    Wheel Base

    2980 mm

    Tyre Size

    12 PR x 23.1 x 26

    Overall Length

    5400 mm

    Overall Width

    2285 mm

    Overall Height

    3100 mm

    GPS Tracking
    Telematics

    Optional

    Medal Image
    Warranty

    1 Year

    Features

    Powerful Mahindra Engine

    Powerful Mahindra Engine

    • Powerful Mahindra Engine generating 112 HP @ 2200 rpm meeting CEV Stage-V Emission norms.

    • High Torque, Fuel Efficient and High performance engine for any type of application.

    • 4 Cylinder water cooled turbo charged Diesel Engine with rated power 112 HP/83.5 kW @ 2200 rpm.

    • Engine designed for reliable compaction performance under tough Indian working conditions.

    Heavy Duty Axle

    Heavy Duty Axle

    • Heavy duty rear axle with limited slip differential for smooth torque transfer suitable for tough Indian working conditions.

    • Provides two speed range for fast inter site movements, improving efficiency and reducing downtime.

    • Drum drive offers better traction and compaction in loose soil condition and hilly areas.

    • Durable axle system ensures reliable torque delivery for challenging compaction applications.

    Advanced Hydraulic System

    Advanced Hydraulic System

    • Closed loop, high pressure hydraulic system ensures high productivity with better performance and reliability.

    • Hydrostatic drive, infinitely variable planetary axle with limited slip differential for seamless power transmission.

    • Travel:Variable displacement axial piston pump and constant displacement motor.

    • Vibration:Variable displacement axial piston pump and constant displacement motor.

    High Compaction Performance

    High Compaction Performance

    • High Drum weight ensures Higher Static Linear Load for best compaction with minimum no. of passes.

    • Dual Frequency generates 40/33 Hz (vibrations per seconds) on high & low modes respectively.

    • Dual amplitude mode of 1.85/0.8 mm generates greater force and results in quick compaction for different material & layers.

    • High centrifugal force helps in unmatched performance and high productivity in minimum possible time.

    Operator Comfort & Safety

    Operator Comfort & Safety

    • Vibration proof operator platform for minimum fatigue during long working periods.

    • Adjustable operator seat, lockable console cover, rear view mirror and large canopy for ease of operation.

    • Good all around visibility (1 meter by 1 meter) provides safe and efficient operation.

    • Newly designed engine hood providing easy access from ground level for daily maintenance checks and serviceability.

    Electricals & Reliability

    Electricals & Reliability

    • Ergonomically placed instrument cluster comprising of Engine oil pressure, Water temperature, Fuel gauge, RPM & Hour meter.

    • Sealed electrical connectors provide protection against dust & moisture for reliable operations.

    • Heavy duty tyre of size 23.1x26, 12 ply rating ensures adequate tyre life.

    • 16 nos. of vibration pads installed on drum for shock absorption. Ensures minimal vibration transfer to operator platform

    Powerful Mahindra Engine

    • Powerful Mahindra Engine generating 112 HP @ 2200 rpm meeting CEV Stage-V Emission norms.

    • High Torque, Fuel Efficient and High performance engine for any type of application.

    • 4 Cylinder water cooled turbo charged Diesel Engine with rated power 112 HP/83.5 kW @ 2200 rpm.

    • Engine designed for reliable compaction performance under tough Indian working conditions.

    Heavy Duty Axle

    • Heavy duty rear axle with limited slip differential for smooth torque transfer suitable for tough Indian working conditions.

    • Provides two speed range for fast inter site movements, improving efficiency and reducing downtime.

    • Drum drive offers better traction and compaction in loose soil condition and hilly areas.

    • Durable axle system ensures reliable torque delivery for challenging compaction applications.

    Advanced Hydraulic System

    • Closed loop, high pressure hydraulic system ensures high productivity with better performance and reliability.

    • Hydrostatic drive, infinitely variable planetary axle with limited slip differential for seamless power transmission.

    • Travel:Variable displacement axial piston pump and constant displacement motor.

    • Vibration:Variable displacement axial piston pump and constant displacement motor.

    High Compaction Performance

    • High Drum weight ensures Higher Static Linear Load for best compaction with minimum no. of passes.

    • Dual Frequency generates 40/33 Hz (vibrations per seconds) on high & low modes respectively.

    • Dual amplitude mode of 1.85/0.8 mm generates greater force and results in quick compaction for different material & layers.

    • High centrifugal force helps in unmatched performance and high productivity in minimum possible time.

    Operator Comfort & Safety

    • Vibration proof operator platform for minimum fatigue during long working periods.

    • Adjustable operator seat, lockable console cover, rear view mirror and large canopy for ease of operation.

    • Good all around visibility (1 meter by 1 meter) provides safe and efficient operation.

    • Newly designed engine hood providing easy access from ground level for daily maintenance checks and serviceability.

    Electricals & Reliability

    • Ergonomically placed instrument cluster comprising of Engine oil pressure, Water temperature, Fuel gauge, RPM & Hour meter.

    • Sealed electrical connectors provide protection against dust & moisture for reliable operations.

    • Heavy duty tyre of size 23.1x26, 12 ply rating ensures adequate tyre life.

    • 16 nos. of vibration pads installed on drum for shock absorption. Ensures minimal vibration transfer to operator platform

    Specifications

    Product specification of ACE ASD 115 Compactor

    ENGINE

    • Model

      M&M MCVCN C35TL112CE5

    • Type

      CEV-V, 4 Cylinder, Water-cooled turbocharged diesel engine

    • Max Power

      112 HP (83.5 kW) @ 2200 rpm

    • Battery

      12V, 130AMP

    COMPACTION

    • Static Linear Load

      30.52 kg/cm

    • Nominal Amplitude (High/Low)

      1.85/0.8 mm

    • Vibration Frequency (High/Low Amplitude)

      40/33 Hz

    • Centrifugal Force (High/Low Amplitude)

      254/176 kN

    DRIVETRAIN

    • Transmission Type

      Hydrostatic drive, infinitely variable planetary axle with limited slip differential

    • Max Gradeability

      45%

    • Working Speed

      0–29 km/hr

    • Travel Speed

      0–29 km/hr

    HYDRAULIC SYSTEM

    • Travel System

      Variable displacement axial piston pump and constant displacement motor

    • Vibration System

      Variable displacement axial piston pump and constant displacement motor

    BRAKES

    • Service

      Closed loop hydrostatic brakes on forward/reverse lever

    • Parking/Emergency

      Spring applied/hydraulically released multi disc brake on drum drive gear reducer & rear axle

    SERVICE CAPACITIES

    • Fuel Tank

      315 L

    • Hydraulic Tank

      80 L

    • Engine Crank Case

      13.5 L

    • Coolant

      13 L

    • Adblue/ DEF tank

      20 L

    STEERING

    • Type

      Hydrostatic Steering

    • Steering Angle

      ±37°

    • Oscillation

      ±10°

    • Turning Radius, Outside

      6050 mm

    • Turning Radius, Inside

      3950 mm

    WEIGHT

    • Operating Weight

      11000 kg

    DIMENSIONS

    • Overall Length

      5400 mm

    • Overall Width

      2285 mm

    • Overall Height

      3100 mm

    • Wheelbase

      2980 mm

    • Drum Diameter

      1530 mm

    • Drum Width

      2130 mm

    • Drum Shell Thickness

      25 mm

    • Ground Clearance

      450 mm

    • Curb Clearance

      NA

    • Tyre Size

      23.1 x 26, 12 PR

    Frequently Asked Question

    01. What is the price of the ACE ASD 115 compactor in India?

    Ans.

    The ACE ASD 115 compactor price in India ranges between ₹ 32 – 34 Lakhs. The final ACE ASD 115 on-road price in India may vary based on state taxes, dealer location, and optional features.

    02. Where can I buy the ACE ASD 115 compactor in India?

    Ans.

    You can buy the ACE ASD 115 Soil compactor from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the road roller you want, or contact us directly for expert assistance and competitive pricing.

    03. What is the operating weight of the ACE ASD 115 compactor?

    Ans.

    The operating weight of the ACE ASD 115 compactor is approximately 11000 kg. The weight may vary slightly depending on specific configurations and attachments.

    04. What is the drum width of the ACE ASD 115 compactor?

    Ans.

    The drum width of the ACE ASD 115 compactor is 2130 mm.

    05. What is the engine power of the ACE ASD 115 compactor?

    Ans.

    The ACE ASD 115 compactor is powered by an M&M MCVCN C35TL112CE5 CEV-V engine, delivering 112 HP (83.5 kW) @ 2200 RPM.

    06. What is the fuel tank capacity of the ACE ASD 115 compactor?

    Ans.

    The ACE ASD 115 has a 315 litres diesel fuel tank, providing extended operation time without frequent refuelling.

    07. What is the turning radius of the ACE ASD 115 compactor?

    Ans.

    The ACE ASD 115 compactor has a turning radius of 6050 mm outer and 3950 mm inner.

    08. What type of steering is used in the ACE ASD 115 compactor?

    Ans.

    The ACE ASD 115 soil compactor uses hydrostatic steering.

    09. What is the warranty period of the ACE ASD 115 compactor?

    Ans.

    The ACE ASD 115 compactor typically comes with a 1-year standard warranty. The warranty covers defects from faulty materials or workmanship, but terms may vary. For accurate details, check with authorized dealers, OEMs, or visit the official brand website.

    10. Where can I find spare parts for the ACE ASD 115 compactor?

    Ans.

    You can find genuine spare parts for the ACE ASD 115 compactor at authorized ACE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers and assist you in getting the best deals based on your location. Fill out the form now to get the best offers on compactor spare parts.
