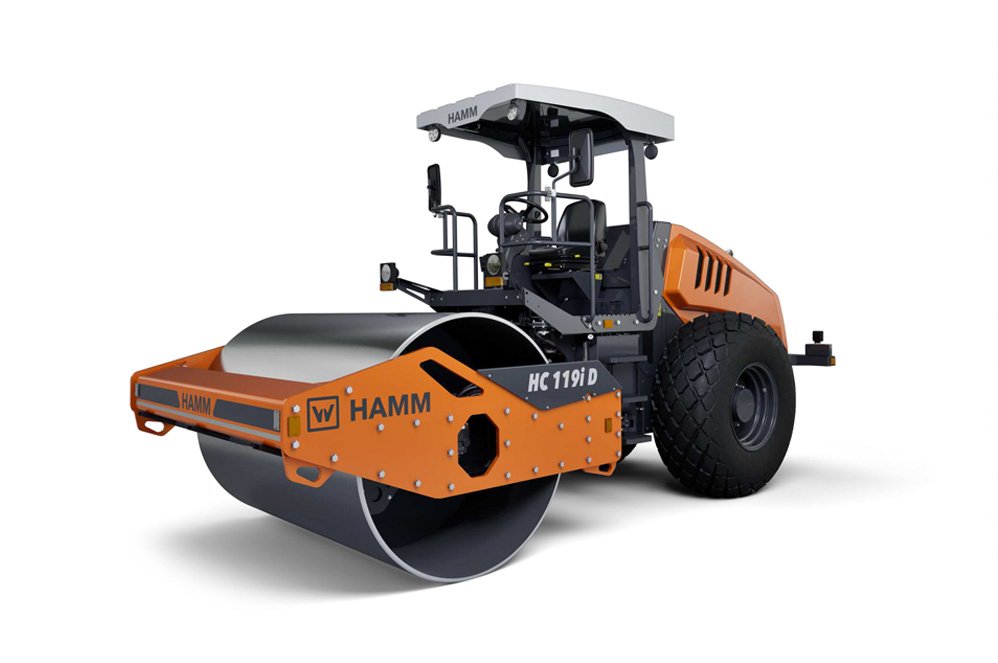

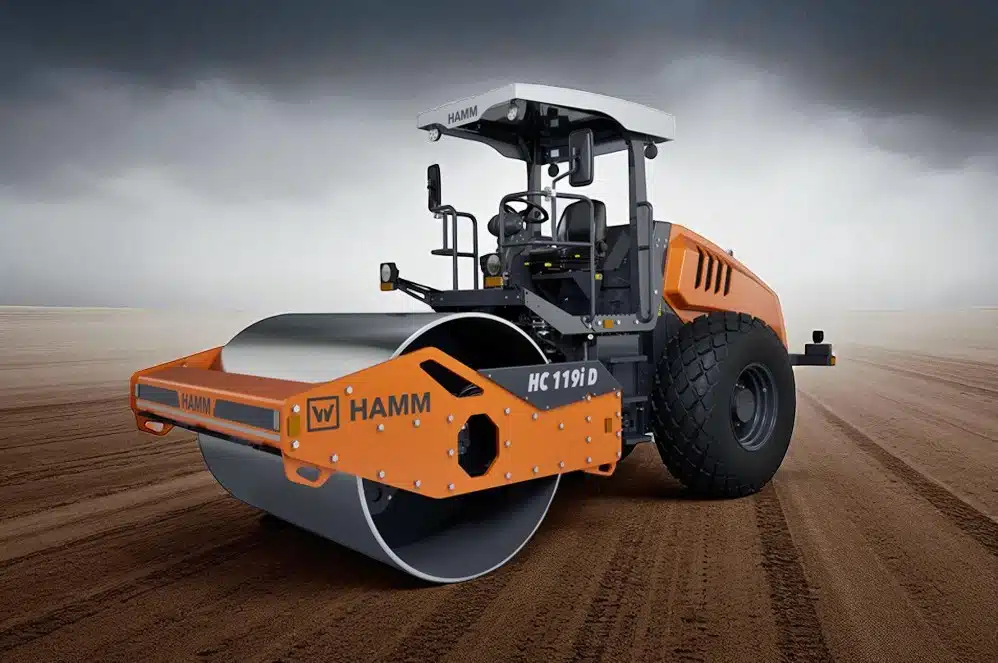

HAMM HC 119iD Compactor

The CEV Stage V engine offers excellent power and features an ECO mode for high performance and fuel efficiency.

The diesel engine, manufactured by ASHOK LEYLAND, model H4C510122, has 4 cylinders and delivers 74 kW/99.2 HP at 2200 rpm.

The exhaust gas after-treatment DOC-DPF-SCR system meets strict emission standards.

High torque engine is built for reliable productivity in challenging Indian working conditions.

This engine provides impressive compaction performance, achieving great results in fewer passes and completing compaction projects quickly.

The vibration frequency at levels I and II is 30/35 Hz, with amplitude measuring 1.93/0.85 mm, ensuring effective compaction of various materials.

The centrifugal force at levels I and II produces 241/145 kN, resulting in better soil strength with less operating time.

A static linear load of 29.1 kg/cm ensures dense and uniform compaction results.

The intuitive operation is language-neutral, making it easy for operators to handle with minimal training.

The dashboard features displays, indicator lights, and switches for clear visibility and control.

The driver's platform has single-side access and is vibration-isolated for comfort, reducing operator fatigue.

The seat offers length adjustment and a single drive lever for ergonomic operation.

The 3-point articulation allows for even weight distribution and a great on-centre feel, ensuring balanced handling.

Hydrostatic steering with a +/- 33° steering angle provides precise operation in narrow spaces.

The pendulum angle of +/- 10° boosts stability and maneuverability on uneven terrain.

Adjustable scraper and hose protection at the front improve reliability and durability.

The tiltable engine hood allows for easy maintenance and servicing access from the ground.

The battery isolation switch increases safety during servicing and downtime.

The emergency stop feature ensures the safety of both the operator and the machine in critical situations.

Hose protection helps safeguard hydraulic lines, extending the machine's life.

Padfoot shells are available for cohesive soil compaction tasks.

A speedometer offers accurate monitoring of working and travel speeds.

The John Deere Operations Center connectivity option enables fleet monitoring and digital integration.

An automatic vibration system increases efficiency while reducing operator input.
