The comparisons provided are based on the technical specifications published by the respective OEMs on their official websites and brochures. Please confirm these details directly with the OEMs before macking any final decision.
| Key Highlights | Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|
| Particulars | Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|
In comparing the Hyundai HX380L with the Sany SY390C-10HD GraMa, we have two high-powered excavators tailored for heavy-duty applications. The Hyundai model boasts a larger bucket capacity and slightly lesser ground pressure, which may improve efficiency in certain operations, whereas the Sany model offers a more powerful engine and increased digging force which could be vital in highly demanding tasks.
Your choice between the Hyundai HX380L and Sany SY390C-10HD GraMa should depend on specific job requirements. If needing a larger bucket capacity and fuel efficiency is critical, the Hyundai could be the way to go. On the other hand, if raw power, digging force, and tracking performance are your priority, the Sany model may be more suitable. Assess the needs of your project to make an informed decision.
| Brand | SANY | Hyundai |
|---|---|---|
| Type | Large (25-50 Ton) | Large (25-50 Ton) |
| Operating Cost | ₹ 1.2-1.23 Crore | ₹ 1.24- 1.26 Crore |
| Price | ₹ 1.2-1.23 Crore | ₹ 1.24- 1.26 Crore |
| Weight | 37500 Kg | 37200 Kg |
| Bucket | 1.4 m³ | 2.10 m³ |
| Max Digging Depth | 7155 mm | 6820 mm |
| Engine | Isuzu 284 HP | Hyundai 260 HP |
| Warranty | 1 Yr. / 2500 hr. | 1 Yr. / 2000 hr. |
| Boom | 6500 mm | 6450 mm |

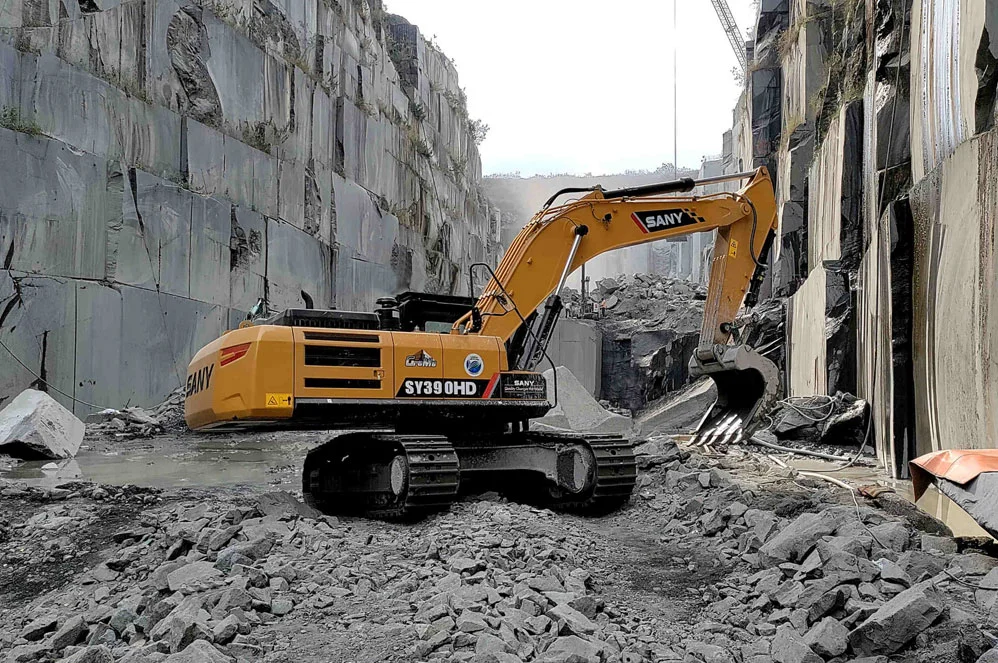

| Quick Overview: | Ideal for mining and heavy engineering, Sany SY390C-10HD GraMa large excavator is engineered with high-load capacity and innovative technology. |

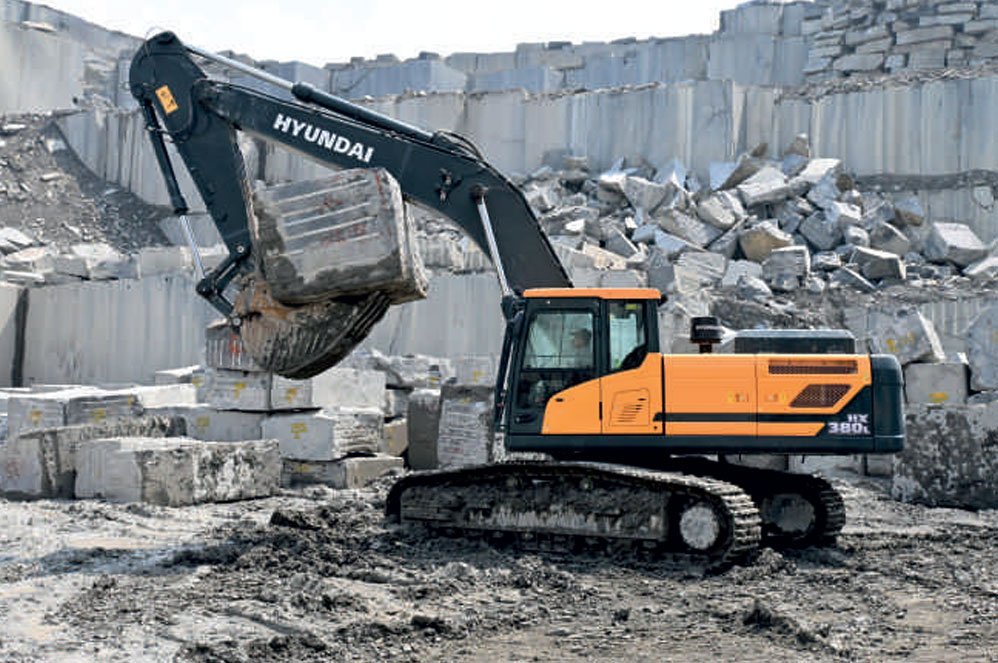

Large excavator comprising enhanced durability and high capacity, Hyundai’s HX380L is fabricated for mining and earthmoving. |
| Agency review | Get the best price for the Sany SY390C-10HD GraMa Large Excavator from authorized dealers. Contact us now for exclusive deals! |
Get the best price for the Hyundai HX380L Large Excavator from authorized dealers. Contact us now for exclusive deals! |
In comparing the Hyundai HX380L with the Sany SY390C-10HD GraMa, we have two high-powered excavators tailored for heavy-duty applications. The Hyundai model boasts a larger bucket capacity and slightly lesser ground pressure, which may improve efficiency in certain operations, whereas the Sany model offers a more powerful engine and increased digging force which could be vital in highly demanding tasks.
Your choice between the Hyundai HX380L and Sany SY390C-10HD GraMa should depend on specific job requirements. If needing a larger bucket capacity and fuel efficiency is critical, the Hyundai could be the way to go. On the other hand, if raw power, digging force, and tracking performance are your priority, the Sany model may be more suitable. Assess the needs of your project to make an informed decision.
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Brand | |
| SANY | Hyundai |
| Type | |
| Large (25-50 Ton) | Large (25-50 Ton) |
| Price | |
| ₹ 1.2-1.23 Crore | ₹ 1.24- 1.26 Crore |
| Weight | |
| 37500 Kg | 37200 Kg |
| Bucket | |
| 1.4 m³ | 2.10 m³ |
| Max Digging Depth | |
| 7155 mm | 6820 mm |
| Engine | |
| Isuzu 284 HP | Hyundai 260 HP |
| Warranty | |
| 1 Yr. / 2500 hr. | 1 Yr. / 2000 hr. |
| Boom | |
| 6500 mm | 6450 mm |
| Quick Overview: | |
Ideal for mining and heavy engineering, Sany SY390C-10HD GraMa large excavator is engineered with high-load capacity and innovative technology. |
Large excavator comprising enhanced durability and high capacity, Hyundai’s HX380L is fabricated for mining and earthmoving. |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Engine Make | Isuzu 6HK1 | Hyundai - HM8.3 |
| Fuel Tank | 690 L | 600 L |
| Engine Displacment | 7.79 L | 8.3 L |
| Under Carriage | 5100 mm | 4940 mm |
| Hydraulic System | NA | 414 L |
| Arm | 2800 mm | 2650 mm |
| Max Digging Reach | 10750 mm | 10710 mm |
| Fuel Consumption | NA | NA |
| Overall Width | 3190 mm | 3190 mm |
| Overall Length | 11425 mm | 11340 mm |
| Bucket Digging Force | 235 kN | 215.7 kN |
| Tailswing Radius | 3610 mm | 3570 mm |
| Track Shoe Width | 600 mm | 600 mm |
| AC Cabin | Standard | Standard |
| GPS | Standard | Standard |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Engine Make | |
| Isuzu 6HK1 | Hyundai - HM8.3 |
| Fuel Tank | |
| 690 L | 600 L |
| Engine Displacment | |
| 7.79 L | 8.3 L |
| Under Carriage | |
| 5100 mm | 4940 mm |
| Hydraulic System | |
| NA | 414 L |
| Arm | |
| 2800 mm | 2650 mm |
| Max Digging Reach | |
| 10750 mm | 10710 mm |
| Fuel Consumption | |
| NA | NA |
| Overall Width | |
| 3190 mm | 3190 mm |
| Overall Length | |
| 11425 mm | 11340 mm |
| Bucket Digging Force | |
| 235 kN | 215.7 kN |
| Tailswing Radius | |
| 3610 mm | 3570 mm |
| Track Shoe Width | |
| 600 mm | 600 mm |
| AC Cabin | |
| Standard | Standard |
| GPS | |
| Standard | Standard |
| 3615 | 3535 | |
| Model | Isuzu 284 HP | Hyundai 260 HP |
| Fuel | Diesel | Diesel |
| Type | 6 Cylinder , CRDI , Electronic Injection | 4 Cycle , 6 Cylinder , Charge Air Cooled , direct injection , Mechanical Control Diesel Engine , Turboharged , Water Cooled |
| Rated Engine Power | 284 HP (212 kW) @ 2000 rpm | 260 HP (194 kW) @ 2200 rpm |
| Maximum Torque | 1080 N.m @ 1500 rpm | 1150 N.m @1300 rpm |
| Piston Displacement | 7.79 L | 8.3 L |
| Alternator | 50A | 24V / 90A |
| Battery | 2 x 12V | 160 Ah , 2 x 12V |
| Starting Motor | 24V - 5.0 kW | NA |
| NA | NA | |
| No of Top rollers | 2 | 2 |
| No of bottom rollers | 9 | 8 |
| Track Shoes (Each Side) | 49 | 48 |
| Track Guard | 3 | 2 |
| Track Shoe width | 600 mm | 600 mm |
| Ground bearing pressure | 68.8 kPa | 69.6 kPa |
| Track Tensioning | Grease | Grease |
| Gradeability | 70 °/ 35% | 35 ° / 70% |
| Travel Speed-Low | 3.5 Km/h | 3.1 Km/h |
| Travel Speed-High | 5.5 Km/h | 5.0 Km/h |
| Max Tracking Force | 320 kN | 313.9 kN |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Hydraulic pump | 2 Variable Displacement Axial Piston Pumps | Variable Displacement Tandem Axis Piston Pumps |
| Maximum Flow | 2 x 320 L/min | 2 x 315 L/min |
| Pilot Pump | 1 Gear Pump | Gear Pump |
| Implement Circuit | 34.3 MPa | 34.3 MPa |
| Swing Circuit | 30 MPa | 29.4 MPa |
| Travel circuit | 34.3 MPa | 34.3 MPa |
| Pilot circuit | 3.9 MPa | 3.9 MPa |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Travel | 2 Axial Piston; Two Speed Motors | Two speed axial pistons motor with brake valve & parking brake |
| Swing | Oil Disk Brake Per Motor | Axial piston motor with automatic brake |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Fuel tank | 690 L | 600 L |
| Engine Coolant | 28 L | 25 L |
| Engine oil | 36 L | 26.5 L |
| Hydraulic system | NA | 414 L |
| Hydraulic tank | 380 L | 210 L |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Operating Weight | 37500 Kg | 37200 Kg |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Boom length | 6500 mm | 6450 mm |
| Arm length | 2800 mm | 2650 mm |
| Max Digging Reach | 10750 mm | 10710 mm |
| Max Digging Reach on ground | NA | 10580 mm |
| Max digging depth | 7155 mm | 6820 mm |
| Max digging height | 9920 mm | 10190 mm |
| Max Dump Height | 7010 mm | 7120 mm |
| Max vertical wallcut depth | 5125 mm | 6320 mm |
| Min swing radius | 4390 mm | 4620 mm |
| Max Height at Min Swing radius | 8930 mm | NA |
| Max height (above ground) | NA | NA |
| Dig depth (below ground) | NA | NA |
| Bucket Digging Force | 235 kN | 215.7 kN |
| Arm Digging Force | 210 kN | 184.4 kN |
| Swing Speed | 8.8 rpm | 11.2 rpm |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Dozer Type | NA | NA |
| Dozer Length | NA | NA |
| Digging depth for ground level | NA | NA |
| Approach Angle | NA | NA |
| Width | NA | NA |
| Height | NA | NA |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Bucket Capacity | 1.4 m³ | 2.10 m³ |
| Sany SY390C-10HD GraMa | Hyundai HX380L | |
| Overall Length | 11425 mm | 11340 mm |
| Overall width | 3190 mm | 3190 mm |
| Overall Height | 3825 mm | 3760 mm |
| Overall Height of Cab | 3440 mm | 3160 mm |
| Upper Width | 3230 mm | 2980 mm |
| Track Lengh on Ground | 4140 mm | 4030 mm |
| Undercarriage overall length | 5100 mm | 4940 mm |
| Tailswing radius | 3610 mm | 3570 mm |
| Min Ground clearance | 550 mm | 500 mm |
| Track gauge | 2590 mm | 2590 mm |
| Width over tracks | 3190 mm | NA |
| Track Height | NA | NA |
| Counterweight Clearance | NA | 1200 mm |
| Track Shoe Width | 600 mm | 600 mm |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Model | |
| Isuzu 284 HP | Hyundai 260 HP |
| Fuel | |
| Diesel | Diesel |
| Type | |
| 6 Cylinder , CRDI , Electronic Injection | 4 Cycle , 6 Cylinder , Charge Air Cooled , direct injection , Mechanical Control Diesel Engine , Turboharged , Water Cooled |
| Rated Engine Power | |
| 284 HP (212 kW) @ 2000 rpm | 260 HP (194 kW) @ 2200 rpm |
| Maximum Torque | |
| 1080 N.m @ 1500 rpm | 1150 N.m @1300 rpm |
| Piston Displacement | |
| 7.79 L | 8.3 L |
| Alternator | |
| 50A | 24V / 90A |
| Battery | |
| 2 x 12V | 160 Ah , 2 x 12V |
| Starting Motor | |
| 24V - 5.0 kW | NA |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| No of Top rollers | |
| 2 | 2 |
| No of bottom rollers | |
| 9 | 8 |
| Track Shoes (Each Side) | |
| 49 | 48 |
| Track Guard | |
| 3 | 2 |
| Track Shoe width | |
| 600 mm | 600 mm |
| Ground bearing pressure | |
| 68.8 kPa | 69.6 kPa |
| Track Tensioning | |
| Grease | Grease |
| Gradeability | |
| 70 °/ 35% | 35 ° / 70% |
| Travel Speed-Low | |
| 3.5 Km/h | 3.1 Km/h |
| Travel Speed-High | |
| 5.5 Km/h | 5.0 Km/h |
| Max Tracking Force | |
| 320 kN | 313.9 kN |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Hydraulic pump | |
| 2 Variable Displacement Axial Piston Pumps | Variable Displacement Tandem Axis Piston Pumps |
| Maximum Flow | |
| 2 x 320 L/min | 2 x 315 L/min |
| Pilot Pump | |
| 1 Gear Pump | Gear Pump |
| Implement Circuit | |
| 34.3 MPa | 34.3 MPa |
| Swing Circuit | |
| 30 MPa | 29.4 MPa |
| Travel circuit | |
| 34.3 MPa | 34.3 MPa |
| Pilot circuit | |
| 3.9 MPa | 3.9 MPa |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Fuel tank | |
| 690 L | 600 L |
| Engine Coolant | |
| 28 L | 25 L |
| Engine oil | |
| 36 L | 26.5 L |
| Hydraulic system | |
| NA | 414 L |
| Hydraulic tank | |
| 380 L | 210 L |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Operating Weight | |
| 37500 Kg | 37200 Kg |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Boom length | |
| 6500 mm | 6450 mm |
| Arm length | |
| 2800 mm | 2650 mm |
| Max Digging Reach | |
| 10750 mm | 10710 mm |
| Max Digging Reach on ground | |
| NA | 10580 mm |
| Max digging depth | |
| 7155 mm | 6820 mm |
| Max digging height | |
| 9920 mm | 10190 mm |
| Max Dump Height | |
| 7010 mm | 7120 mm |
| Max vertical wallcut depth | |
| 5125 mm | 6320 mm |
| Min swing radius | |
| 4390 mm | 4620 mm |
| Max Height at Min Swing radius | |
| 8930 mm | NA |
| Max height (above ground) | |
| NA | NA |
| Dig depth (below ground) | |
| NA | NA |
| Bucket Digging Force | |
| 235 kN | 215.7 kN |
| Arm Digging Force | |
| 210 kN | 184.4 kN |
| Swing Speed | |
| 8.8 rpm | 11.2 rpm |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Dozer Type | |
| NA | NA |
| Dozer Length | |
| NA | NA |
| Digging depth for ground level | |
| NA | NA |
| Approach Angle | |
| NA | NA |
| Width | |
| NA | NA |
| Height | |
| NA | NA |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Bucket Capacity | |
| 1.4 m³ | 2.10 m³ |
| Sany SY390C-10HD GraMa | Hyundai HX380L |
|---|---|
| Overall Length | |
| 11425 mm | 11340 mm |
| Overall width | |
| 3190 mm | 3190 mm |
| Overall Height | |
| 3825 mm | 3760 mm |
| Overall Height of Cab | |
| 3440 mm | 3160 mm |
| Upper Width | |
| 3230 mm | 2980 mm |
| Track Lengh on Ground | |
| 4140 mm | 4030 mm |
| Undercarriage overall length | |
| 5100 mm | 4940 mm |
| Tailswing radius | |
| 3610 mm | 3570 mm |
| Min Ground clearance | |
| 550 mm | 500 mm |
| Track gauge | |
| 2590 mm | 2590 mm |
| Width over tracks | |
| 3190 mm | NA |
| Track Height | |
| NA | NA |
| Counterweight Clearence | |
| NA | 1200 mm |
| Track Shoe Width | |
| 600 mm | 600 mm |
