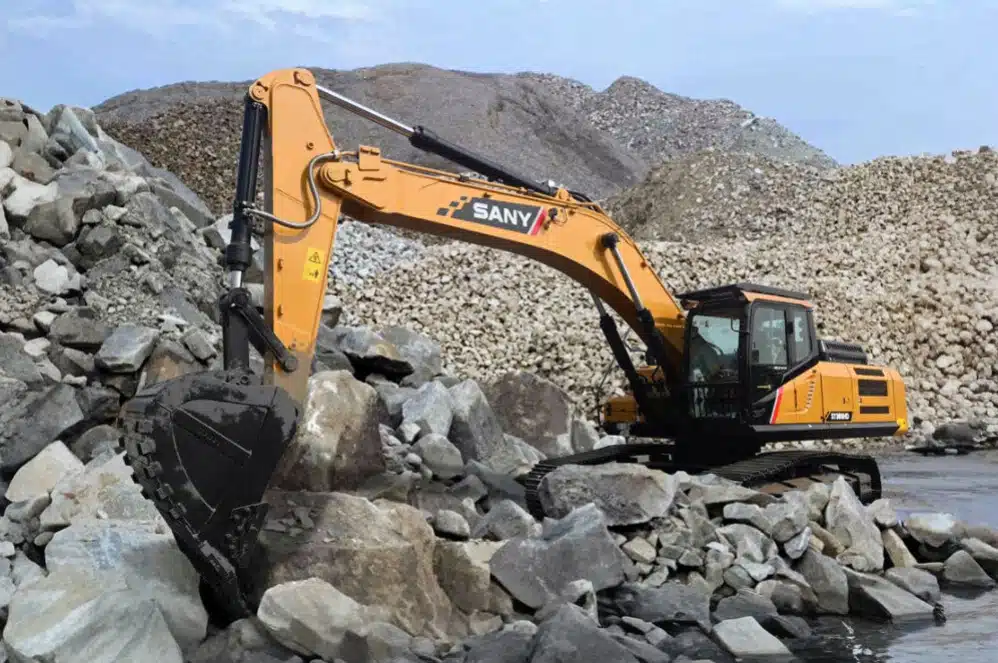

The Sany SY380C-10HD large excavator features advanced systems and precision control, making it perfect for mining and earthmoving.
36000 Kg
1.4 - 3.5 m³
7050 mm
Isuzu 284 HP
1 Yr. / 2500 hr.
6500 mm
₹ 1.25-1.28 Crore
₹205,165/ Month
Check Availability
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fill the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Isuzu GH-6HK1X
690 L
7.79 L
5065 mm
2 x 320 L/min
2900 mm
10780 mm
NA
3190 mm
11530 mm
235 kN
3560 mm
600 mm
Standard
Standard
SY380C-10HD is built with a well-renowned Isuzu 6HK1X Electronic injection engine and optimum synchronization with an advanced positive flow hydraulic system offering best-in-class output & fuel efficiency
The most advanced world-class quality methods are adopted like, optimization design of structural members, stress tests, research of welds & plates, endurance test, 100% UT detection for key components.
The overall reliability & durability of the machine is improved comprehensively.
With superior attention to severe working conditions of this class, smart provisions are made for easy and simplified maintenance that results in high machine uptime.
Maintenance space for key aggregates compartment is increased by 20-30% and made machine maintenance easy.
In allusion to severe operating conditions, FOPS/ROPS cab and newly developed dust control & noise reduction technology are used so that safety is improved by 5-times as compared to the general cab.
Fully adjustable wider suspension seat, keyless engine ignition & 10” informative user-friendly display, auto climate control high capacity air-conditioning system make this machine more premium as compared to competitor models within a segment.
By improving safety and heat dissipation capability, using an efficient filtration system and corrosion-resistant coating, the adaptability of SY380C-10HD to challenging working conditions is improved.
Model
Isuzu GH-6HK1X
Fuel
Diesel
Type
Electronic Injection, 6 Cylinder, Four Stroke, Turbo Charged, Inter Cooling & Water Cooled
Rated Engine Power
284 HP (212 kW) @ 2000 rpm
Maximum Torque
1080 N.m @ 1500 rpm
Piston Displacement
7.79 L
Alternator
70A
Battery
2 x 12V
Starting Motor
24V - 5.0 kW
No of Top Rollers
2
No of Bottom Rollers
9
Track Shoes (Each Side)
49
Track Guard
3
Track Shoe Width
600 mm
Ground Bearing Pressure
65 kPa
Track Tensioning
Grease
Gradeability
70% / 35°
Travel Speed-Low
3.5 Km/h
Travel Speed-High
5.5 Km/h
Max Tracking Force
320 kN
Hydraulic Pump
2 Variable Displacement Axial Piston Pumps
Maximum Flow
2 x 320 L/min
Pilot Pump
1 Gear Pump
Implement Circuit
34.3 MPa
Swing Circuit
26 MPa
Travel Circuit
34.3 MPa
Pilot Circuit
3.9 MPa
Travel
2 Axial Piston Motor with Parking Brake
Swing
1 Axial Piston Motor with Swing Holding Brake
Fuel Tank
690 L
Engine Coolant
NA
Engine Oil
36 L
Hydraulic System
NA
Hydraulic Tank
380 L
Operating Weight
36000 Kg
Boom Length
6500 mm
Arm Length
2900 mm
Max. Digging Reach
10780 mm
Max. Digging Reach on Ground
NA
Max. Digging Depth
7050 mm
Max. Digging Height
9890 mm
Max. Dumping Height
6920 mm
Max. Vertical Wallcut Depth
NA
Min. Swing Radius
NA
Max. Height at Min Swing Radius
8600 mm
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
235 kN
Arm Digging Force
180 kN
Swing Speed
9.5 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
1.4 - 3.5 m³
Overall Length
11530 mm
Overall Width
3190 mm
Overall Height
3545 mm
Overall Height of Cab
3320 mm
Upper Width
3150 mm
Track Lengh on Ground
4140 mm
Undercarriage Overall Length
5065 mm
Tailswing Radius
3560 mm
Min. Ground Clearance
550 mm
Track Gauge
2590 mm
Width Over Tracks
3190 mm
Track Height
NA
Counterweight Clearence
NA
Track Shoe Width
600 mm
The Sany SY380C-10HD Excavator price in India ranges between ₹ 1.25 – 1.28 Crore. However, the exact price may vary depending on the location, dealer, taxes, and additional features.
You can buy the Sany SY380C-10HD excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Sany SY380C-10HD comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Sany SY380C-10HD excavator is approximately 36000 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Sany SY380C-10HD excavator is powered by a Isuzu GH-6HK1X engine, delivering 284 HP (212 kW) at 2000 rpm.
The Sany SY380C-10HD excavator has a maximum digging depth of 7050 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Sany SY380C-10HD Excavator ranges from 1.4 to 3.5 cubic meters (m³).
The Sany SY380C-10HD Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Sany SY380C-10HD excavator at authorized Sany dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Sany SY380C-10HD excavator has a 690 litres diesel fuel tank, providing extended operation time without frequent refueling.
