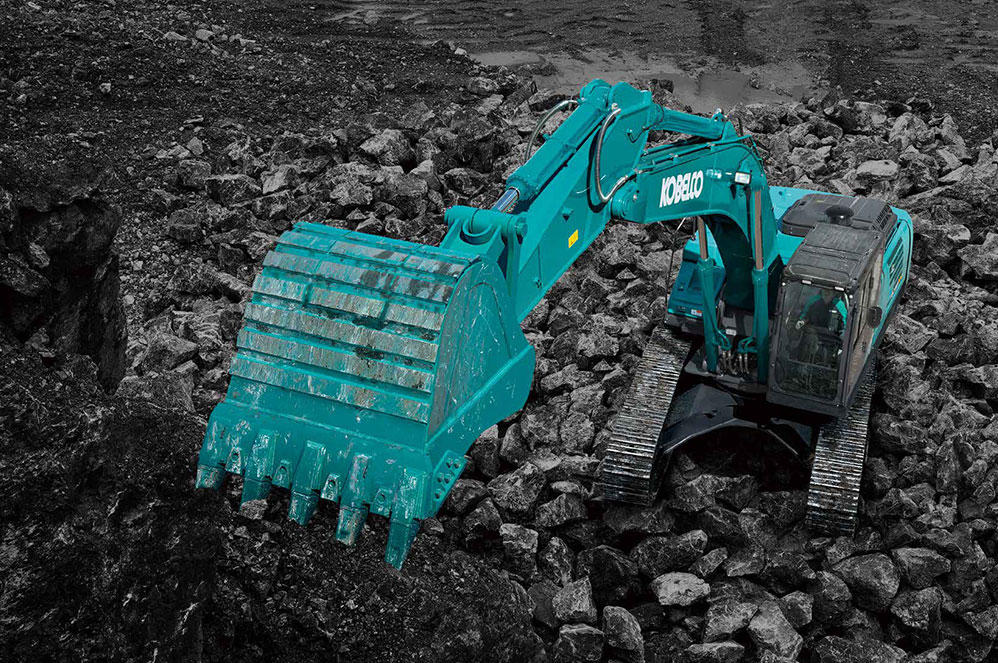

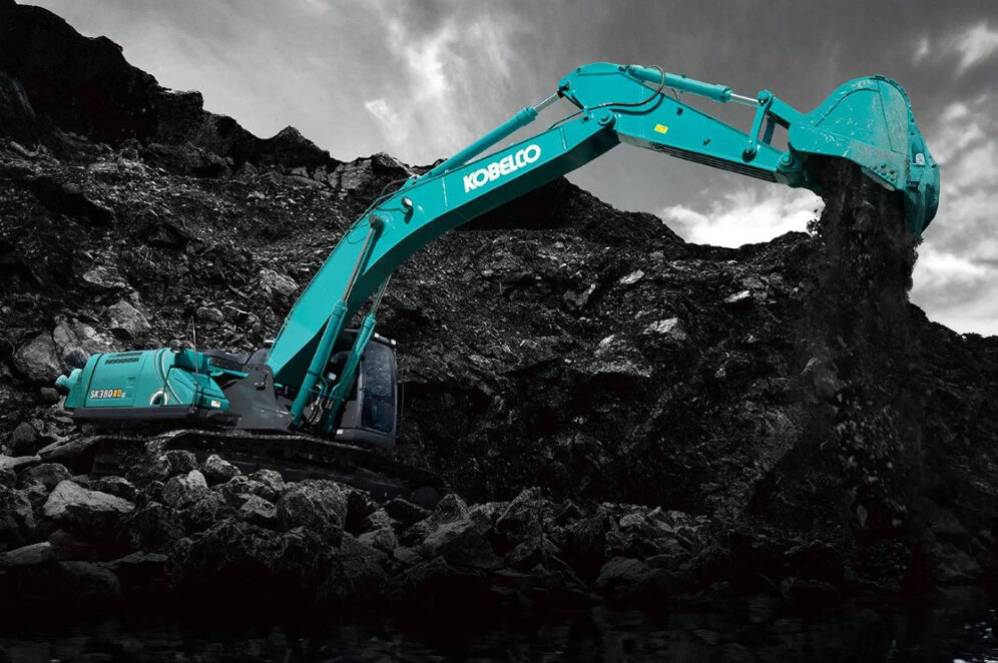

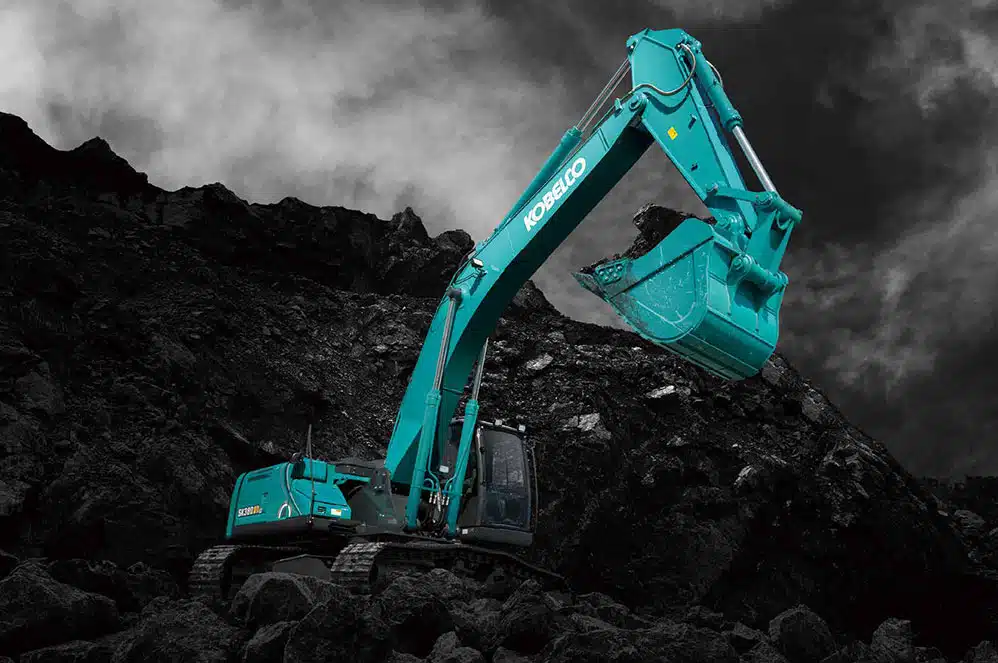

Kobelco SK380XDLC Excavator

The Kobelco SK380XDLC large excavator is durable and has a high capacity for mining and large-scale earthmoving.

  • icon alt1
    Weight

    37400 Kg

  • featIcon2 (1) alt
    Bucket

    1.6 - 2.3 m³

  • Digging Depth

    7560 mm

  • Engine

    HINO 280 HP

  • Warranty

    1 Yr. / 2500 hr.

  • Boom

    6500 mm

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights of Kobelco SK380XDLC

Engine Make

HINO J08E

Fuel Tank

503 L

Engine Displacement

7.684 L

Under Carriage

4970 mm

Hydraulic System

2 x 294 L/min

Arm

3300 mm

Max Digging Reach

11260 mm

Fuel Consumption

NA

Overall Width

3190 mm

Overall Length

11330 mm

Bucket Digging Force

229 kN

Tailswing Radius

3600 mm

Track Shoe Width

600 mm

air-conditioner-alt
AC Cabin

Standard

GPS Tracking
GPS

Standard

Features of Kobelco SK380XDLC

Performance

  • Newly developed XD (Xtra Durability) boom made of stronger plates

  • New big cross-section boom

  • Reinforced arm strength

  • Large, reinforced track guides

  • Improved filtration system

Reliability

  • Increased base plate thickness

  • Modified foot boss shape

  • Rock guards

  • Protective guards covering main upper machinery

  • Thick upper under covers

  • Reinforced guide frame

  • Double-support outer flange upper rollers

  • Lower frame underside cover to protect against damage

  • Increase track link size

  • Thicker steel plate for shoes

  • Reinforced travel motor cover

Fuel Efficiency

  • Arm regeneration system

  • Fuel efficient ECO-mode

Comfort & Safety

  • Larger cab for easy ingress & egress

  • More comfortable seat

  • Air conditioner louvers behind the seat

  • Super airtight cab

  • Low vibration

  • One-touch attachment mode switch

  • Convenient interior equipment

  • A lighter touch Lever for reducing operator fatigue

  • Rearview mirrors for wide view during operations

Maintenance

  • Spacious engine compartment for easy, on-the-spot maintenance

  • The layout allows for easy access from ground level

  • Special crawler frame for easy mud removal

  • Easy cleaning with detachable two-piece floor mat and a floor drain

  • Engine oil pan equipped with drain valve

  • Easy removal of internal and external air conditioner filters

Are you interested in buying Kobelco SK380XDLC Excavator

    Note: Uncheck if you're not interested in finance or insurance deals.

    Specifications of Kobelco SK380XDLC

    ENGINE

    • Model

      HINO J08E

    • Fuel

      Diesel

    • Type

      Direct injection, water-cooled, 4-cycle, 6-cylinder diesel engine with intercooler turbo-charger (Tier3-compliant engine)

    • Rated Engine Power

      280 HP (209 kW) @ 2100 rpm

    • Maximum Torque

      969 N.m @ 1600 rpm

    • Piston Displacement

      7.684 L

    • Alternator

      60A

    • Battery

      2 x 12V, 104 Ah

    • Starting Motor

      24V - 5 kW

    UNDERCARRIAGE

    • No of Top Rollers

      NA

    • No of Bottom Rollers

      NA

    • Track Shoes (Each Side)

      48

    • Track Guard

      NA

    • Track Shoe Width

      600 mm

    • Ground Bearing Pressure

      70 kPa / 53 kPa

    • Track Tensioning

      Grease

    • Gradeability

      70% (35 °)

    • Travel Speed-Low

      3.3 Km/h

    • Travel Speed-High

      5.6 Km/h

    • Max Tracking Force

      332 kN

    HYDRAULIC SYSTEM

    • Hydraulic Pump

      Two Variable displacement piston pumps

    • Maximum Flow

      2 x 294 L/min

    • Pilot Pump

      1 Gear pump

    • Implement Circuit

      34.3 MPa

    • Swing Circuit

      29.0 MPa

    • Travel Circuit

      34.3 MPa

    • Pilot Circuit

      5.0 MPa

    HYDRAULIC MOTORS

    • Travel

      Variable displacement piston pump

    • Swing

      Axial-piston mortor

    SERVICE CAPACITIES

    • Fuel Tank

      503 L

    • Engine Coolant

      35 L

    • Engine Oil

      28.5 L

    • Hydraulic System

      410 L

    • Hydraulic Tank

      245 L

    MACHINE WEIGHTS

    • Operating Weight

      37400 - 37800 Kg

    WORKING RANGE

    • Boom Length

      6500 mm

    • Arm Length

      3300 mm

    • Max. Digging Reach

      11260 mm

    • Max. Digging Reach on Ground

      11060 mm

    • Max. Digging Depth

      7560 mm

    • Max. Digging Height

      10540 mm

    • Max. Dumping Height

      7370 mm

    • Max. Vertical Wallcut Depth

      6480 mm

    • Min. Swing Radius

      4310 mm

    • Max. Height at Min Swing Radius

      NA

    • Max. Height (Above Ground)

      NA

    • Dig Depth (Below Ground)

      NA

    • Bucket Digging Force

      229 kN

    • Arm Digging Force

      165 kN

    • Swing Speed

      10 rpm

    DOZER BLADE

    • Dozer Type

      NA

    • Dozer Length

      NA

    • Digging Depth for Ground Level

      NA

    • Vertical Lift from Ground level

      NA

    • Approach Angle

      NA

    • Width

      NA

    • Height

      NA

    BUCKET

    • Bucket Capacity

      1.6 - 2.3 m³

    STATIC DIMENSIONS

    • Overall Length

      11330 mm

    • Overall Width

      3190 mm

    • Overall Height

      3430 mm

    • Overall Height of Cab

      3170 mm

    • Upper Width

      2980 mm

    • Track Lengh on Ground

      4050 mm

    • Undercarriage Overall Length

      4970 mm

    • Tailswing Radius

      3600 mm

    • Min. Ground Clearance

      500 mm

    • Track Gauge

      2590 mm

    • Width Over Tracks

      NA

    • Track Height

      NA

    • Counterweight Clearence

      1220 mm

    • Track Shoe Width

      600 mm / 800 mm

    Common Questions

    FAQs about Kobelco SK380XDLC

    What is the Kobelco SK380XDLC Excavator price in India?

    The Kobelco SK380XDLC Excavator price in India ranges between ₹ 1.19 – 1.22 Crore. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

    Where can I buy a Kobelco SK380XDLC excavator?

    You can buy the Kobelco SK380XDLC excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

    Does the Kobelco SK380XDLC Excavator come with financing and insurance options?

    Yes, the Kobelco SK380XDLC comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

    What is the operating weight of the Kobelco SK380XDLC excavator?

    The operating weight of the Kobelco SK380XDLC excavator is approximately 37400 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

    What type of engine is used in the Kobelco SK380XDLC excavator?

    The Kobelco SK380XDLC excavator is powered by a HINO J08E engine, delivering 280 HP (209 kW) at 2100 rpm.

    What is the maximum digging depth of the Kobelco SK380XDLC excavator?

    The Kobelco SK380XDLC excavator has a maximum digging depth of 7560 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

    What is the bucket capacity of the Kobelco SK380XDLC Excavator?

    The bucket capacity of the Kobelco SK380XDLC Excavator ranges from 1.6 to 2.3 cubic meters (m³).

    What is the warranty period for the Kobelco SK380XDLC excavator?

    The Kobelco SK380XDLC Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

    Where can I find spare parts for the Kobelco SK380XDLC excavator?

    You can find genuine spare parts for the Kobelco SK380XDLC excavator at authorized Kobelco dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

    What is the fuel tank capacity of the Kobelco SK380XDLC Excavator?

    The Kobelco SK380XDLC excavator has a 503 litres diesel fuel tank, providing extended operation time without frequent refueling.
