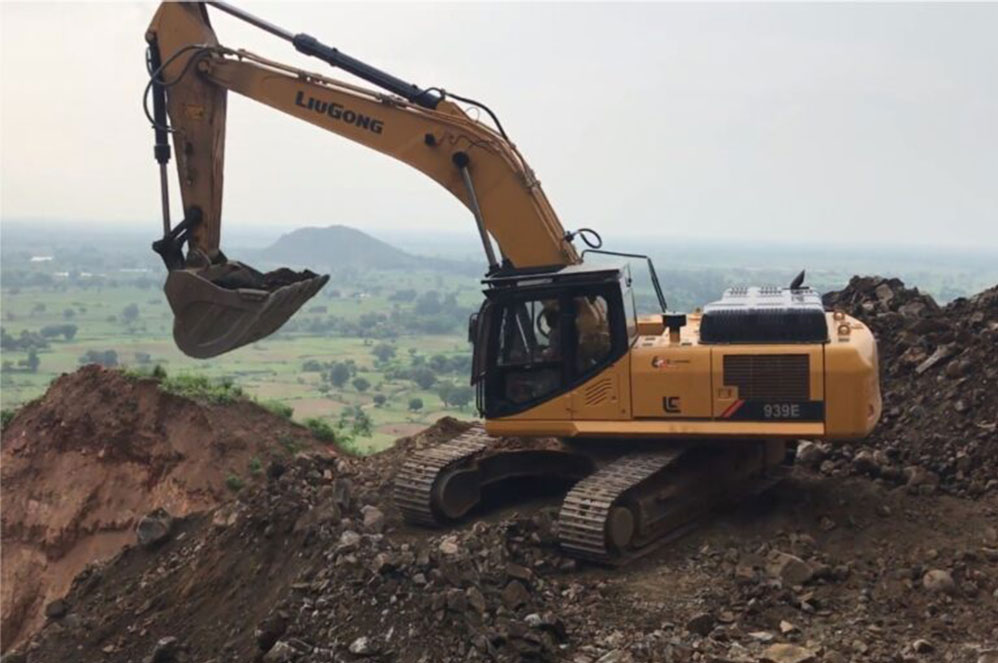

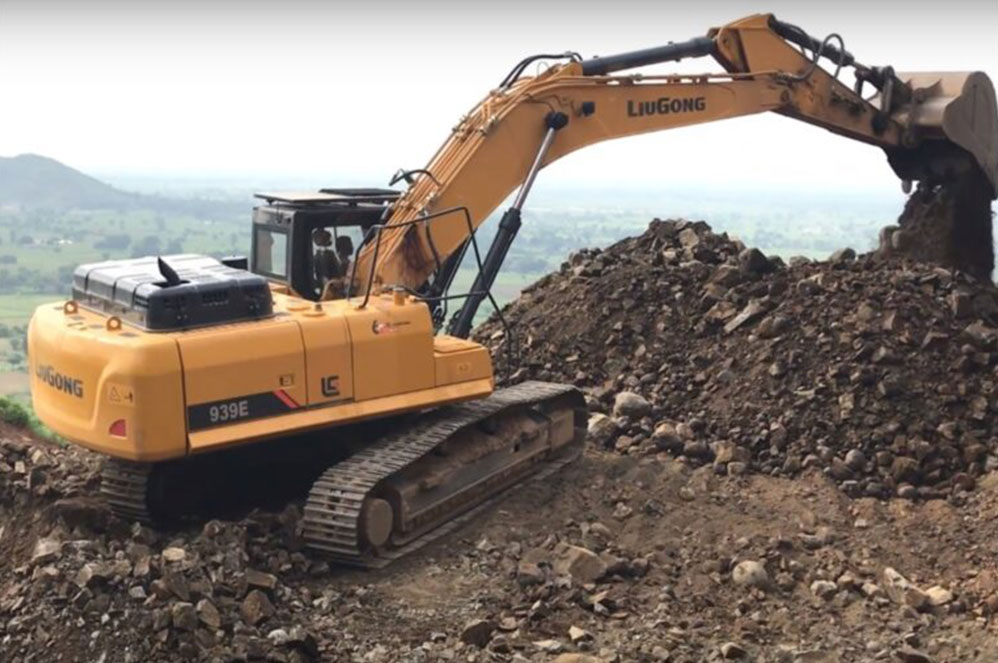

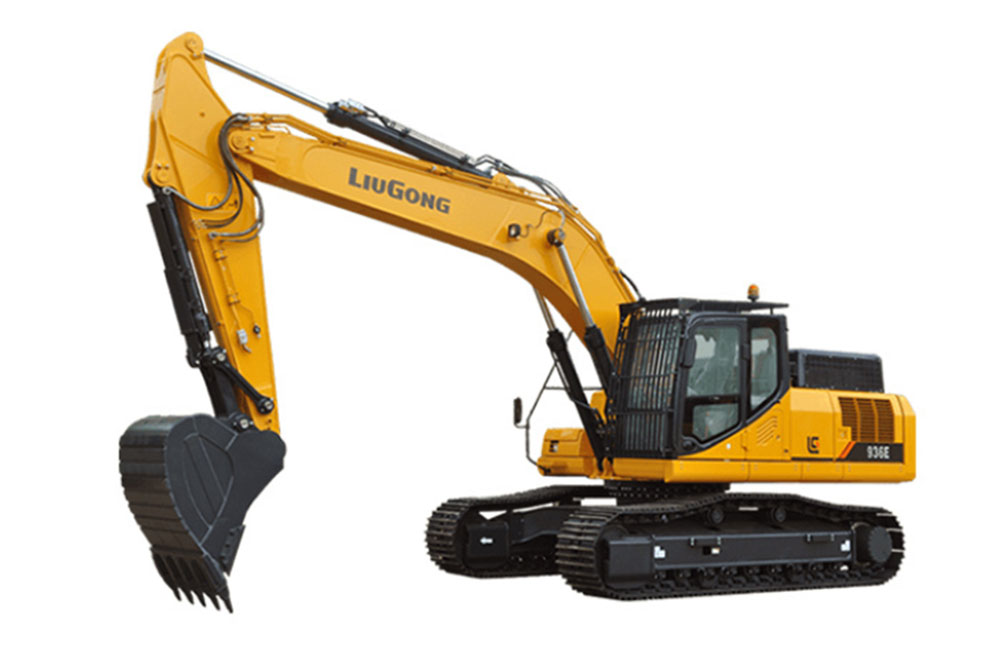

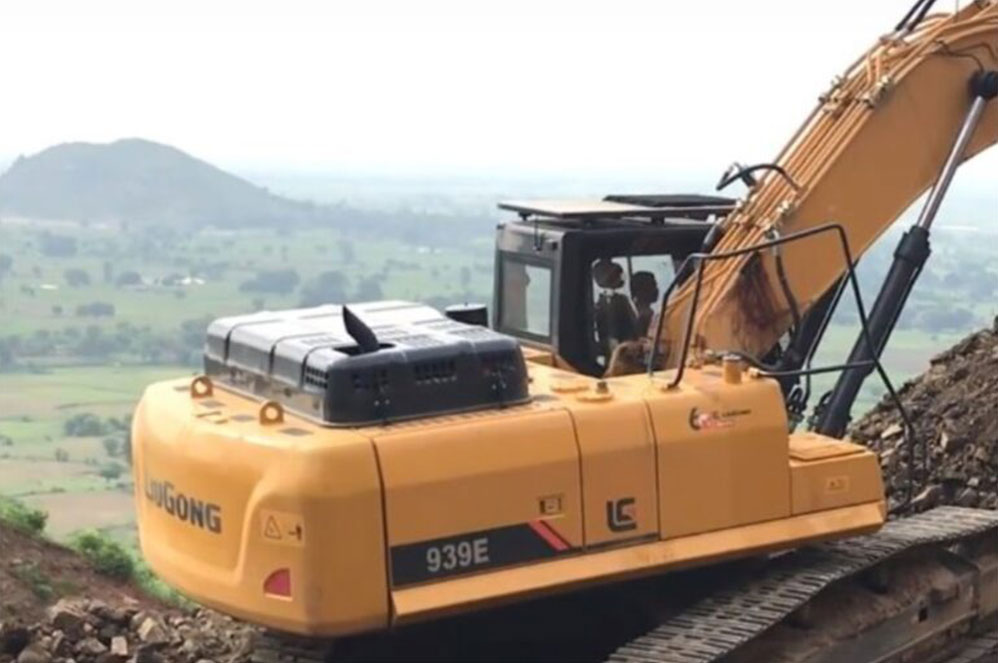

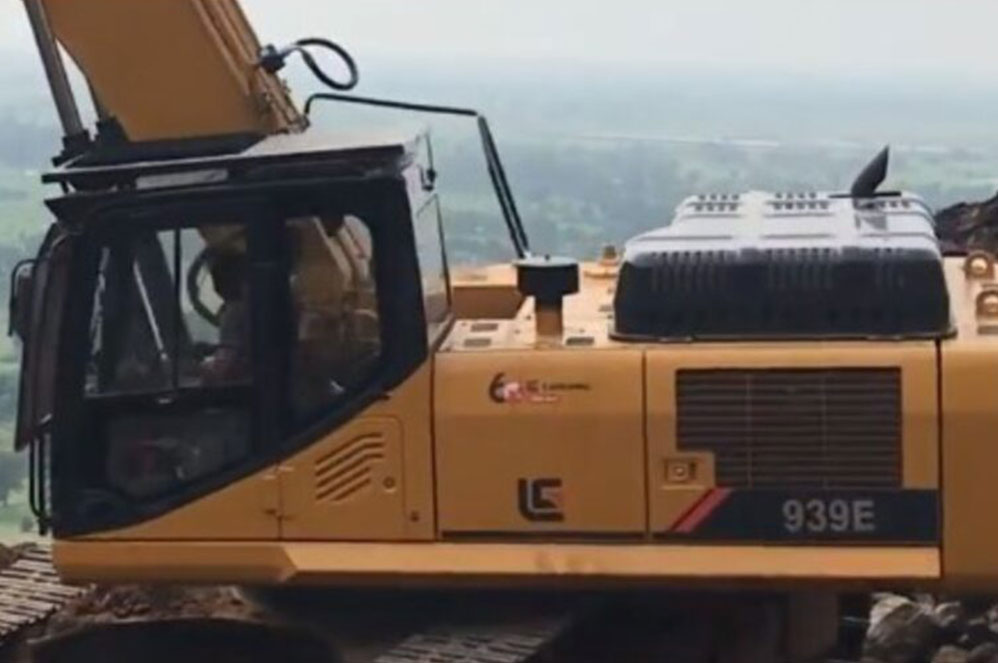

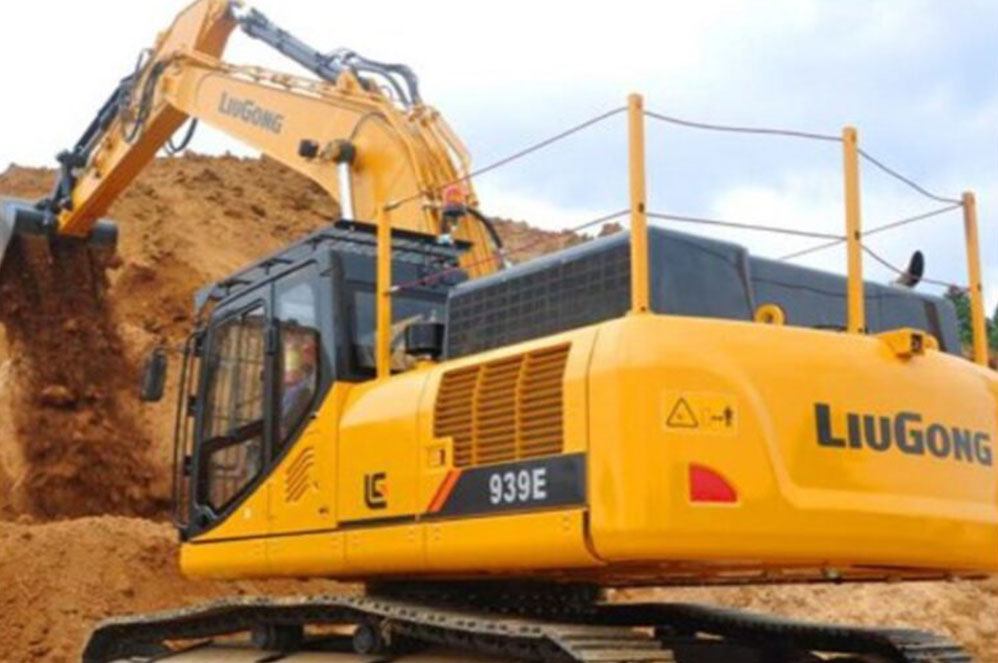

Equipped with high-load capacity and superior efficiency Liugong 939E large excavator is ideal for heavy engineering and mining.
LiuGong
Large (25-50 Ton)
Price Available Soon
Price Available Soon
35800 Kg
1.6 - 1.9 m³
6730 mm
Cummins 287 HP
1 Yr. / 2500 hr.
6400m
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fil the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Cummins QSL 9
620 L
8.9 L
4944 mm
2 x 300 L/min
2600 mm
10560 mm
NA
3190 mm
11350 mm
232 kN
3500 mm
600 mm
Standard
Optional
The E Series excavators are designed to get more work done, in a short period of time, featuring stronger boom, arm & bucket, more breakout forces, greater hydraulic flow, higher swing torque with liugong’s intelligent power control (IPC) system delivers excellent performance, without excess fuel consumption.
The LiuGong 939E is an easy to use, highly efficient, powerful machine with highest output in this class of excavators. The hydraulics have been fine tuned to perfectly match the engine characteristics to deliver astonishing efficiency.
The use of thick, high-tensile strengthened, stress-relieved steel plates, makes the structures on E-series excavators, extra strong & reliable.
The LiuGong 924E XD is an easy to use, highly efficient, powerful machine with highest output in this class of excavators. The hydraulics have been fine tuned to perfectly match the engine characteristics to deliver astonishing efficiency.
Machine availability enhanced, with use of world class reliable hydraulic components, engine designed to deliver high torque at low rpm, well designed rugged structures. Thereby making your work easier & faster throughout the operation. Easy visibility and accessibility to all service touch points from ground level, makes maintenance, safe, easy and fast.
Product specification of Liugong 939E Excavator
Model
Cummins QSL 9
Fuel
Diesel
Type
Tier III/ Stage IIIA, 6 Cylinders, Turbocharged CAC
Rated Engine Power
287 HP (214 kW) @ 2100 rpm
Maximum Torque
NA
Piston Displacement
8.9 L
Alternator
NA
Battery
NA
Starting Motor
NA
No of Top Rollers
2
No of Bottom Rollers
9
Track Shoes (Each Side)
48
Track Guard
NA
Track Shoe Width
600 mm
Ground Bearing Pressure
66.8 kPa
Track Tensioning
Grease
Gradeability
70% (35°)
Travel Speed-Low
3.4 Km/h
Travel Speed-High
5.5 Km/h
Max Tracking Force
320 kN
Hydraulic Pump
Two Varibale Displacement Piston Pump
Maximum Flow
2 x 300 L/min
Pilot Pump
Gear Pump
Implement Circuit
34.3 MPa
Swing Circuit
26.2 MPa
Travel Circuit
34.3 MPa
Pilot Circuit
3.9 MPa
Travel
Axial Piston Motor
Swing
Axial Piston Motor
Fuel Tank
620 L
Engine Coolant
35 L
Engine Oil
26 L
Hydraulic System
450 L
Hydraulic Tank
240 L
Operating Weight
35800 Kg
Boom Length
6400m
Arm Length
2600 mm
Max. Digging Reach
10560 mm
Max. Digging Reach on Ground
10350 mm
Max. Digging Depth
6730 mm
Max. Digging Height
9830 mm
Max. Dumping Height
6900 mm
Max. Vertical Wallcut Depth
4430 mm
Min. Swing Radius
4700 mm
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
232 kN
Arm Digging Force
210 kN
Swing Speed
10 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
1.6 - 1.9 m³
Overall Length
11350 mm
Overall Width
3190 mm
Overall Height
3800 mm
Overall Height of Cab
3318 mm
Upper Width
3163 mm
Track Lengh on Ground
4050 mm
Undercarriage Overall Length
4944 mm
Tailswing Radius
3500 mm
Min. Ground Clearance
532 mm
Track Gauge
2590 mm
Width Over Tracks
NA
Track Height
NA
Counterweight Clearence
1172 mm
Track Shoe Width
600 mm
The exact Liugong 939E Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.
You can buy the Liugong 939E excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Liugong 939E comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Liugong 939E excavator is approximately 35800 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Liugong 939E excavator is powered by a Cummins QSL 9 engine, delivering 287 HP (214 kW) at 2100 rpm.
The Liugong 939E excavator has a maximum digging depth of 6730 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Liugong 939E Excavator ranges from 1.6 to 1.9 cubic meters (m³).
The Liugong 939E Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Liugong 939E excavator at authorized Liugong dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Liugong 939E excavator has a 620 litres diesel fuel tank, providing extended operation time without frequent refueling.
LiuGong India is a leading player in the construction equipment industry. It’s a subsidiary of the globally renowned LiuGong Machinery Corporation. Established in India in 2002, the company offers a wide range of high-quality construction and material handling equipment, including excavators, wheel loaders, motor graders, and more. Its focus on innovation, reliability, and customer satisfaction has been a big contributor to LiuGong India, as it has been supporting diverse infrastructure projects across the country. LiuGong India’s extensive dealer network and dedicated after-sales service support customers well.
Product Portfolio : Excavators, Motor Graders, Wheel Loaders, Compactors
