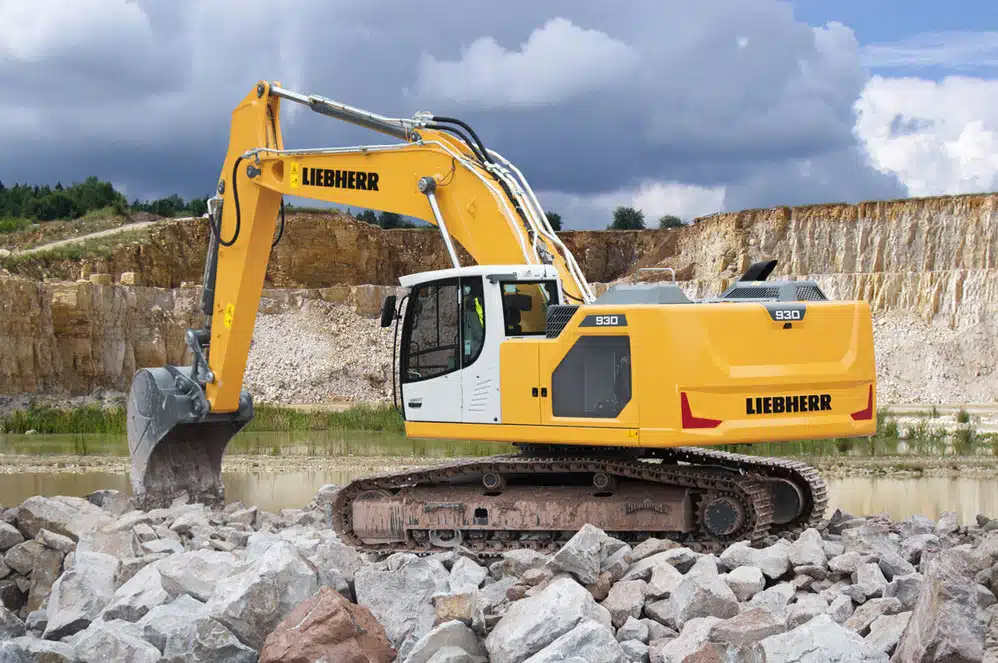

The Liebherr R 930 Litronic large excavator offers innovative functionality and reliability for heavy-duty construction and mining tasks.
Liebherr
Large (25-50 Ton)
Price Available Soon
Price Available Soon
30050 Kg
1.00 - 2.15 m³
7340 mm
Liebherr 245 HP
1 Yr. / 2500 hr.
6200 mm
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fil the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Liebherr D934 A7-23
620 L
7.0 L
4840 mm
2 x 265 L/min
3200 mm
NA
16.67 L/hour
3190 mm
10400 mm
204 kN
3200 mm
600 mm
Standard
Standard
Fully unobstructed all-round visibility – optional rear and side surveillance cameras
Tiltable console for easy and safe access to cab
Emergency exit via the rear cab window
Right window and windshield in laminated and tinted glass
Large choice of sticks
Longer lifespan of components thanks to a grouping of the lubrication points
Customized power modes and engine auto idle make this machine the best suitable to operate in stringent applications while delivering excellent fuel economy.
Safety check valves for hoist and stick cylinders (option)
Innovative servicing concept, with service points accessible from ground level
Engine oil, hydraulic oil and fuel levels visible on display
Spacious, air-conditioned work space
Mechanical seat with vertical suspension as standard
Easy-to-use high resolution 9" colour touchscreen
Completely retractable front cab window
LED lighting as standard
Liebherr engine equivalent to EU Stage IIIA and EPA Tier 3
Automatic engine idling / speed increase, controlled via joystick sensors
Robust, reliable X-frame undercarriage, easy to secure thanks to its integrated eyelets
Easy maintenance
Maintenance-free track chains and track rollers with lifetime lubrication
Product specification of Liebherr R 930 Litronic Excavator
Model
Liebherr D934 A7-23
Fuel
Diesel
Type
4 cylinder in-line, 4-stroke diesel Common-Rail Turbo-charged and after-cooler, Engine equivalent to EU Stage IIIA / EPA Tier 3: with EGR, Water-cooled and oil cooler, after-cooled and fuel cooled
Rated Engine Power
245 HP (180 kW) @ 1800 rpm
Maximum Torque
1255 Nm @1350 rpm
Piston Displacement
7.0 L
Alternator
24 V / 140 A
Battery
12 V, 2 x 135 Ah
Starting Motor
NA
No of Top Rollers
2
No of Bottom Rollers
9
Track Shoes (Each Side)
NA
Track Guard
NA
Track Shoe Width
600 mm
Ground Bearing Pressure
600 mm
Track Tensioning
Grease
Gradeability
NA
Travel Speed-Low
3.5 Km/h
Travel Speed-High
5.8 Km/h
Max Tracking Force
261 kN
Hydraulic Pump
Liebherr, variable displacement, swashplate double pump
Maximum Flow
2 x 265 L/min
Pilot Pump
NA
Implement Circuit
38.0 MPa
Swing Circuit
NA
Travel Circuit
NA
Pilot Circuit
NA
Travel
Liebherr swashplate motor with brake valves on both sides
Swing
Liebherr swashplate motor with integrated brake valve and torque control
Fuel Tank
620 L
Engine Coolant
NA
Engine Oil
NA
Hydraulic System
475 L
Hydraulic Tank
239 L
Operating Weight
30050 - 32200 Kg
Boom Length
6200 mm
Arm Length
3200 mm
Max. Digging Reach
NA
Max. Digging Reach on Ground
10600 mm
Max. Digging Depth
7340 mm
Max. Digging Height
10420 mm
Max. Dumping Height
7310 mm
Max. Vertical Wallcut Depth
NA
Min. Swing Radius
NA
Max. Height at Min Swing Radius
NA
Max. Height (Above Ground)
NA
Dig Depth (Below Ground)
NA
Bucket Digging Force
204 kN
Arm Digging Force
142 kN
Swing Speed
10.1 rpm
Dozer Type
NA
Dozer Length
NA
Digging Depth for Ground Level
NA
Vertical Lift from Ground level
NA
Approach Angle
NA
Width
NA
Height
NA
Bucket Capacity
1.00 - 2.15 m³
Overall Length
10400 mm
Overall Width
3190 mm
Overall Height
3400 mm
Overall Height of Cab
3150 mm
Upper Width
2990 mm
Track Lengh on Ground
3990 mm
Undercarriage Overall Length
4840 mm
Tailswing Radius
3200 mm
Min. Ground Clearance
505 mm
Track Gauge
2590 mm
Width Over Tracks
3190 mm
Track Height
1055 mm
Counterweight Clearence
1175 mm
Track Shoe Width
600 mm / 700 mm / 800 mm / 900 mm
The exact Liebherr R 930 Litronic Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.
You can buy the Liebherr R 930 Litronic excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.
Yes, the Liebherr R 930 Litronic comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.
The operating weight of the Liebherr R 930 Litronic excavator is approximately 30050 Kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Liebherr R 930 Litronic excavator is powered by a Liebherr D934 A7-23 engine, delivering 245 HP (180 kW) at 1800 rpm.
The Liebherr R 930 Litronic excavator has a maximum digging depth of 7340 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.
The bucket capacity of the Liebherr R 930 Litronic Excavator ranges from 1.00 to 2.15 cubic meters (m³).
The Liebherr R 930 Litronic Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.
You can find genuine spare parts for the Liebherr R 930 Litronic excavator at authorized Liebherr dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.
The Liebherr R 930 Litronic excavator has a 620 litres diesel fuel tank, providing extended operation time without frequent refueling.
The Liebherr R 930 Litronic excavator has an average fuel consumption of 16.67 litres per hour, depending on factors such as load, terrain, and operating conditions
