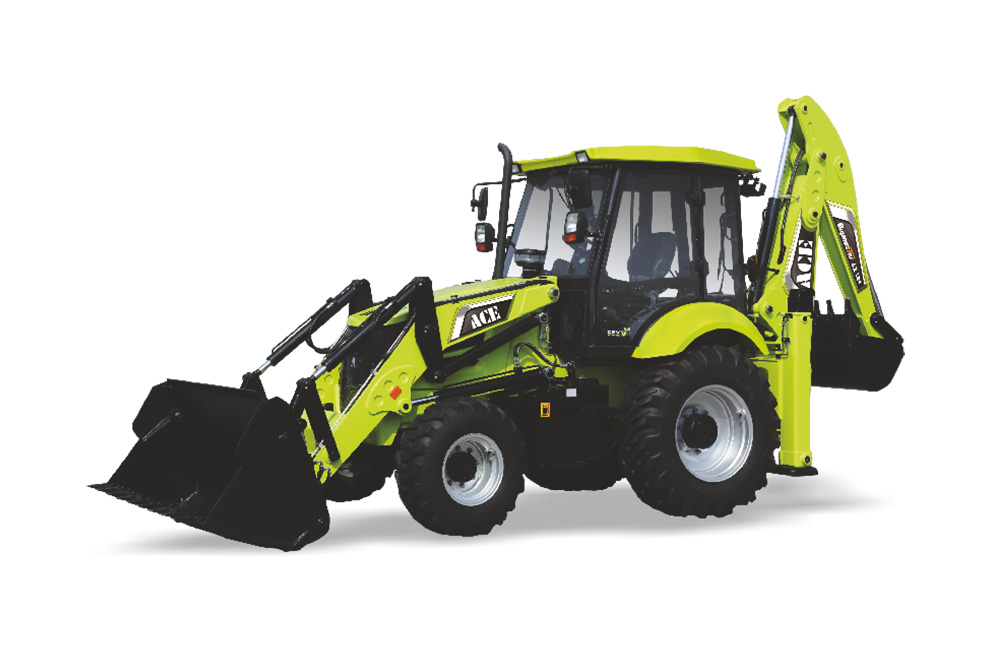

ACE AX 124 Backhoe Loader

The TATA 497 TCIC 4-cylinder turbocharged diesel engine provides 74 HP at 2200 rpm for reliable and efficient performance.

It produces strong 345 Nm torque, making it suitable for heavy digging, lifting, and loading tasks without sacrificing fuel efficiency.

This engine meets BS-V emission standards, supporting cleaner operations with less environmental impact and improved compliance with regulations.

The Mahindra engine variant offers 74.8 HP and 400 Nm torque, ensuring strong performance across construction and infrastructure projects.

The water-cooled turbocharged design ensures durability, better heat management, and a longer engine life in challenging working conditions.

It comes in 2WD and 4WD options to meet various terrain and application needs efficiently.

The synchro shuttle transmission with torque converter allows for smooth 4F/4R speed operation, improving maneuverability and control.

A single-switch forward-reverse feature boosts productivity in loader applications and simplifies handling in tight spots.

The rear rigid axle with CARRARO planetary drive provides stability under heavy loads and consistent traction.

The front axle in 4WD serves as both drive and steering axle, centrally pivoted for balanced performance.

Travel speed reaches up to 28 km/h for faster movement between job sites and improved operational efficiency.

Durable transmission components lower maintenance costs while maximizing uptime and service life.

The main pump flow is rated at 118 lpm, supporting quick and responsive loader and backhoe operations.

With a hydraulic relief pressure of 210 bar, it delivers strong breakout forces and lifting capacity under tough conditions.

Wet disc rear wheel brakes with hydraulic actuation and twin pedals ensure safe and controlled stopping.

The loader breakout force of 4950 kgf allows for excellent material handling and earthmoving performance.

The dipper tear-out force of 4000 kgf increases backhoe digging power in rocky or compact ground.

The hydraulic tank capacity of 80 liters supports extended hours of operation without overheating or decline in performance.

The loader bucket capacity is 1.1 cu.m. and the backhoe bucket is 0.24 cu.m., suitable for various tasks.

A maximum digging depth of 4.25 meters enables efficient trenching and excavation for utilities and foundations.

The load-over height of 3.34 meters and dump height of 2.76 meters are ideal for truck loading tasks.

The bucket rotation power reaches up to 175°, allowing precise soil discharge and maneuvering in tight work areas.

The maximum operating height is 5.47 meters, suitable for handling elevated job site demands.

Side shift and extending dipper options enhance reach and flexibility on complex job sites.

The spacious ROPS/FOPS enclosed cabin ensures operator safety, visibility, and comfort during long working hours.

The design allows for easy entry and exit, making it useful in situations where operators frequently start and stop.

Ergonomically arranged controls with hydrostatic steering make it easy to handle the machine and reduce fatigue.

A mechanical suspension seat, wide windows, and optional air conditioning improve operator productivity.

The dual pedal brake system provides better control and flexibility for operating the machine in congested areas.

Optional ACE Live telematics provide real-time machine monitoring, GPS tracking, and maintenance alerts.

The operating weight is 8040 kg for 2WD and 8190 kg for 4WD, ensuring strong handling on uneven sites.

The turning radius with brakes allows for operation in tight spaces, enhancing maneuverability in crowded urban areas.

With a ground clearance of 310 mm and slew clearance of 660 mm, the machine adapts well to different terrains.

Optional equipment includes a 6-in-1 bucket, rock breaker, extending dipper, air conditioning, and customizable colors.

Heavy-duty rear tires (14.00 x 25) support handling in rugged terrain with improved stability.

The electrical system features a 12V battery, negative earth setup, and alternator to reliably power critical components.
