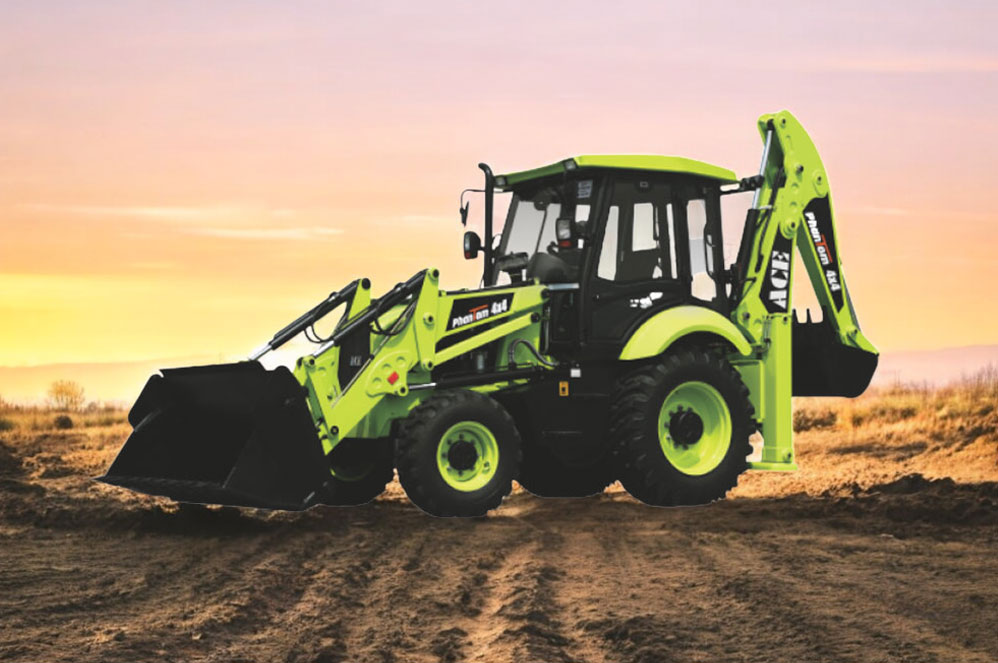

ACE Phantom 4WD N Backhoe Loader

By · ACE Backhoe Loader →

Price on request Last updated: Sep 2026

On-road price adds transportation, RTO registration, TCS, warranty, insurance & FOC (where applicable); non-standard configurations, attachments & accessories are priced separately — confirm with a quote.

The ACE Phantom 4WD N is a backhoe loader from ACE with a 96 HP engine and a 4600 mm dig depth. The price is available on request. Get the on-road price for a new unit here, or enquire for a used backhoe loader, a rental, an EMI plan or spare parts.

The Phantom 4WD N from ACE is a more powerful upgrade designed for high-demand work settings. It has a 96 HP engine with higher torque, allowing the machine to efficiently handle tougher digging and loading tasks. The 4WD setup improves stability and performance on rough terrain, making it suitable for large construction sites and ongoing operations. It is intended for contractors who need consistent output with minimal downtime. The ACE Phantom 4WD N backhoe loader price in India generally falls between ₹36 and 40 lakh, making it a worthwhile investment for those focused on productivity, durability, and long-lasting performance.

ACE Phantom range: which model is this?

The ACE Phantom range includes 3 models — choose by engine power and application:

ModelEngineBest for
ACE Phantom 2WD76 HPVersatile site work — power, speed and easy handling
ACE Phantom 4WD96 HP4WD grip and strong power for tougher job sites
ACE Phantom 4WD N (this page)96 HPHigher-torque upgrade for high-demand work settings
  • Engine

    Kirloskar 96 HP

  • featIcon2 (1) alt
    Bucket

    0.30 m³

  • shovel-icon1 alt
    Shovel

    1.1 m³

  • Digging Depth

    4600 mm

  • dumping height loader
    Dump Height

    2960 mm

  • icon alt1
    Weight

    8040 Kg

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

ACE Phantom range: which model is this?

The ACE Phantom range includes 3 models — choose by engine power and application:

ModelEngineBest for
ACE Phantom 2WD76 HPVersatile site work — power, speed and easy handling
ACE Phantom 4WD96 HP4WD grip and strong power for tougher job sites
ACE Phantom 4WD N (this page)96 HPHigher-torque upgrade for high-demand work settings

Key Highlights of ACE Phantom 4WD N

Engine Make

Kirloskar 4R1040TA (BS III)

Fuel Tank

150 L

Max Torque

400 Nm @ 1400 RPM

Max Speed

40 km/hr

Hydraulic System

118 L/min

Max Working Height

5800 mm

Excavator Max Lift Capacity

NA

Loader Load Over Height

3350 mm

Overall Length

6200 mm

Wheel Base

2180 mm

Bucket Digging Force

5700 kgf

Shovel Break Out Force

5200 kgf

Warranty

1 Year

air-conditioner-alt
AC Cabin

Optional

GPS Tracking
GPS

Standard

Specifications of ACE Phantom 4WD N

ENGINE

  • Model

    Kirloskar 4R1040TA (BS III)

  • Type

    4 Cylinder water cooled turbo charged diesel engine

  • Gross Power

    96 HP (71.5 kW) @ 2200 RPM

  • Max Torque

    400 Nm @ 1400 RPM

  • Displacement

    NA

  • Battery

    12 V

  • Alternator

    Suitable Alternator

TRANSMISSION

  • Type

    Synchro shuttle transmission with torque converter & synchronised gear box.

STEERING

  • Type

    Hydrostatic steering for reliability and better control.

  • Working Pressure

    NA

STEERING TURNING CIRCLE

  • Inner Wheels Braked - Outside Loader Bucket

    3500 mm

  • Inner Wheels Braked - Outside Wheels

    NA

  • Inner Wheels not Braked - Outside Loader Bucket

    4400 mm

  • Inner Wheels not Braked -Outside Wheels

    NA

BRAKES

  • Service

    Hydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin for better control.

  • Parking

    Mechanically actuated disc brakes for parking .

TYRES

  • Front

    12.5 / 80 - 18 - 12 PR

  • Rear

    16.90 - 28 - 12 PR

SPEED

  • Forward- 1st gear

    NA

  • Reverse- 1st gear

    NA

  • Forward- 2nd Gear

    NA

  • Reverse- 2nd Gear

    NA

  • Forward- 3rd gear

    NA

  • Reverse- 3rd gear

    NA

  • Forward- 4th gear

    40 km/hr

  • Reverse- 4th gear

HYDRAULICS

  • Type

    NA

  • Maximum Pump Flow

    118 L/min

  • System Pressure

    225 bar

AXLES

  • Rear axle

    Rigid axle with CARRARO planetary drive.

  • Front axle

    Drive & steer Axle, Centrally pivoted.

SERVICE CAPACITIES

  • Fuel Tank

    150 L

  • Engine Coolant

    NA

  • Engine Oil

    11.5 L

  • Hydraulic Tank

    90 L

  • Hydraulic System

    NA

  • Transmission

    17 L

  • Rear Axle

    3 L

EXCAVATOR PERFORMANCE

  • Maximum Digging Depth

    4600 mm

  • Reach-Ground Level to Rear Wheel Centre

    6800 mm

  • Reach-Ground Level to Slew Centre

    5500 mm

  • Reach at Full Height to Slew Centre

    2780 mm

  • Side Reach to Centre Line of Machine

    5590 mm

  • Maximum Working Height

    5800 mm

  • Maximum Load Over Height

    3350 mm

  • Bucket Rotation Angle

    175°

  • Bucket Digging force

    5700 kgf

  • Arm Digging force

    NA

  • Maximum Lift Capacity

    NA

  • Standard Bucket Capacity

    0.30 m³

  • Standard Bucket Width

    NA

LOADER PERFORMANCE

  • Dump Height

    2960 mm

  • Load Over Height

    3350 mm

  • Pin Height

    3630 mm

  • Pin Forward Reach

    NA

  • Reach at Ground

    1770 mm

  • Maximum Reach at Full Height

    1220 mm

  • Maximum Reach at Full Height - Bucket Dumped

    890 mm

  • Below Ground Level Dig Depth

    80 mm

  • Rollback at Ground

    44°

  • Dump Angle

    45°

  • Shovel Breakout Force

    5200 kgf

  • Loader Arm Breakout Force

    NA

  • Maximum Payload

    1900 kg

  • Standard Shovel Capacity

    1.1 m³

OVERALL DIMENSIONS & WEIGHT

  • Machine Weight

    8040 kg

  • Overall Length

    6200 mm

  • Wheelbase

    2180 mm

  • Slew Centre to Rear Axle Centre

    NA

  • Minimum Ground Clearance

    350 mm

  • Slew Ground Clearance

    660 mm

  • Height of Cabin

    2900 mm

  • Overall Height

    3600 mm

  • Track width - Rear

    1550 mm

  • Track width - Front

    1840 mm

  • Width Over Bucket

    2500 mm

Features of ACE Phantom 4WD N

High-Performance & Fuel-Efficient Engine

  • Powered by a Kirloskar 4R1040, 96 HP engine, ensuring optimal power, efficiency, and fuel savings for maximum productivity in construction and excavation tasks.

  • Advanced fuel injection system enhances combustion efficiency, reducing fuel consumption while maintaining high power output for demanding applications.

  • Robust cooling system prevents overheating, enabling continuous operation in extreme working conditions without performance drop.

  • Low-emission technology ensures environmental compliance, reducing carbon footprint while maintaining top-tier efficiency.

  • Engine design supports long operational hours, making it ideal for heavy-duty industrial and construction usage.

  • Reduced vibration and noise levels enhance operator comfort, improving working conditions and reducing fatigue.

Advanced 4WD Transmission & Drivetrain

  • Four-wheel drive (4WD) technology ensures superior traction and stability on rough, muddy, and uneven terrains for better maneuverability.

  • High ground clearance allows smooth operation on challenging surfaces, preventing damage to the undercarriage in demanding job sites.

  • Synchromesh transmission system delivers seamless gear shifting, ensuring enhanced speed control and fuel efficiency.

  • Optimized torque distribution between axles provides better load handling, reducing wheel slippage and improving efficiency.

  • Heavy-duty front and rear axles ensure exceptional durability, enabling higher load-bearing capacity.

  • Multi-disc wet brakes offer enhanced stopping power, ensuring safety and control in extreme working conditions.

Superior Backhoe Excavation Capabilities

  • Extended digging depth and reach allow effortless excavation, making it perfect for trenching, foundation work, and heavy-duty digging.

  • High breakout force ensures fast and efficient material penetration, reducing work time while improving output.

  • Ergonomic joystick controls provide smooth and precise backhoe operation, enhancing ease of use for the operator.

  • Reinforced boom and dipper arm improve structural strength, ensuring long-term durability in demanding environments.

  • Quick-attach system enables fast switching between attachments, enhancing the machine’s versatility for multiple job applications.

  • Improved weight distribution enhances stability and balance, ensuring maximum efficiency during deep excavation.

High-Efficiency Loader Performance

  • Large bucket capacity (1.1 cu.m/0.24 cu.m) ensures efficient material handling, reducing cycle time and increasing on-site productivity.

  • Strong loader arm with high breakout force enhances lifting capacity, making loading and unloading faster and easier.

  • Optimized hydraulic flow system enables smoother operations, reducing power loss and enhancing machine efficiency.

  • Quick cycle times ensure faster material handling, improving operational efficiency and reducing fuel consumption.

  • Reinforced front chassis and axle provide better load stability, preventing premature wear and enhancing durability.

  • Loader bucket design allows better penetration and material retention, ensuring maximum efficiency during operation.

Operator Comfort & Safety Features

  • Spacious, ergonomically designed cabin with wide visibility enhances operator comfort and reduces fatigue during long working hours.

  • Suspension seat with adjustable settings ensures maximum comfort, minimizing strain during extended shifts.

  • Intuitive dashboard display provides real-time data on engine performance, fuel levels, and hydraulic pressure for better control.

  • ROPS/FOPS-certified cabin structure ensures maximum operator safety, protecting against rollovers and falling objects.

  • Advanced braking system with multi-disc wet brakes enhances stopping power, ensuring safety on uneven terrains.

  • HVAC system with optimized airflow maintains comfortable working conditions in extreme weather.

Low Maintenance & Durability for Cost Savings

  • Easily accessible service points allow quick maintenance, reducing downtime and improving operational efficiency.

  • High-quality hydraulic components minimize wear and tear, ensuring long-lasting performance in tough working environments.

  • Self-lubricating bushings increase component lifespan, reducing maintenance intervals and improving durability.

  • Corrosion-resistant frame and paint extend machine longevity, preventing rust and environmental damage.

  • Reinforced chassis and heavy-duty axles provide maximum strength, ensuring a long operational life even under extreme loads.

  • Affordable spare parts availability ensures cost-effective repairs, reducing operational downtime and increasing productivity.

Why Choose ACE Phantom 4WD N

  • The Phantom 4WD N is the refreshed generation of the Phantom 4WD — same Kirloskar 96 HP engine, same permanent 4WD configuration, but with updated cab electronics, refined hydraulic management and the current-generation build quality that the "N" designation marks.
  • Why does the N update matter when the engine and drive are unchanged? Because the productivity differences at the 96 HP heavy-duty class come from operator side, not raw power. Updated operator cab reduces fatigue across long 10-hour shifts common in quarry and large-contract work; refined hydraulic pump management delivers measurably better fuel economy at partial load — genuine rupee savings over years of operation; current-generation electronics support basic telematics and operator-behaviour tracking useful for fleet operators.
  • The heavy-duty 96 HP power band is particularly demanding on hydraulic and engine-management tuning. The refreshed N specification brings those systems to current-industry standard on an ACE value-price platform.
  • Same Kirloskar engine-service reach through India's deepest diesel-engine mechanic network. Same ACE value pricing versus premium-brand 96 HP rivals.
  • For contractors and fleet operators wanting the latest-spec Phantom 4WD at ACE's pricing advantage, the 4WD N is the considered current-generation pick. Older Phantom 4WD remains available at stronger discount for buyers not needing the latest cab.

Are you interested in buying ACE Phantom 4WD N Backhoe Loader

    Tick if you also want finance or insurance offers.

    Buying Options for ACE Phantom 4WD N

    New, used, rent, EMI or spare parts — the number first, then one button for that option. Your details go to our team and only to the dealer or lender you ask for; we call you back.

    • New

      What is the ACE Phantom 4WD N price on road?

      Price on request. Tell us your district and we get a dated ex-factory and on-road quote from an authorised ACE dealer.

      Get On-Road Price
    • Used

      What is the second-hand price of the ACE Phantom 4WD N?

      Priced on year, hours and condition. Run the inspection checklist before paying and keep 10–15% aside for the first service. Tell us your budget and district; we pass it to sellers with checked units. Used backhoe loader guide. Have one to sell? List it free.

      Enquire for a Used Unit
    • Rent

      What does the ACE Phantom 4WD N cost on rent?

      Indicative hire: about ₹550–900 an hour on dry hire (machine only), ₹5,000–9,000 for an eight-hour day, or ₹90,000–1,40,000 a month; wet hire with operator and diesel adds roughly ₹300–400 an hour (Jul 2026). A month costs less per hour than day hire. Tell us your site, start date and duration. How backhoe loader rental works. Own one that sits idle? Put it on rent.

      Get a Rental Quote
    • EMI

      What is the EMI and down payment for the ACE Phantom 4WD N?

      Lenders finance 75–90% of the quoted price for 3–5 years, at 8.5–17% by profile. we get rate offers from banks and NBFCs that finance this machine.

      Get EMI Offers
    • Spares

      Where do I get ACE Phantom 4WD N spare parts?

      Genuine ACE parts — filters, oils, seals, wear parts, batteries, tyres — through ACE dealers and verified parts suppliers. Send the part name, machine year or serial number and quantity for a price and delivery time. Backhoe loader parts guide · service schedule.

      Ask for a Parts Quote

    ACE Phantom 4WD N calculators: on-road price, diesel cost, running cost and buy or hire

    Use the ACE Phantom 4WD N on-road price calculator, ACE Phantom 4WD N diesel cost calculator, ACE Phantom 4WD N owning and operating cost calculator and ACE Phantom 4WD N buy or hire calculator below. Each starts from the listed price and typical rates; change any figure you know.

    On-road price calculator

    Where the numbers come from. Our price data means it is the price listed on the DesiMachines model page (indicative, ex-factory), or the average of the listed prices for that type of machine. Market range means it is a rate the market was quoting in 2025–26. Estimate — check means it is our own working number and we have not confirmed it with a dealer, so treat it as a starting point. Standard factor means a standard engineering value, not a price.

    Assumptions used in every tool. GST is 18% on earthmoving machines (HSN 8429); tippers and trucks differ. Machine prices are the indicative ex-factory bands listed on DesiMachines model pages, or the average of listed prices for that type; they are not quotes. First-year insurance is taken as about 2% of the price, registration and road tax as about ₹45,000 (wheeled machines only; crawler machines are not registered), handling as about ₹15,000. Loans assume 20% down, 11% a year and 5 years unless you change them. Diesel is taken at ₹92 a litre and a typical burn for the machine class. Every one of these is a field you can change, and the “What we assumed” list under each result shows what the answer used.

    Please read. These calculators give an indicative estimate, not a quote. Prices, hire rates, diesel prices, salaries, taxes and interest rates change by state, by season and by buyer. Loan terms and eligibility depend on your bank or NBFC. Resale figures are a band, not a valuation. Confirm the final numbers with our team, your dealer and your lender before you commit money.

    Model prices come from the DesiMachines catalogue as it stands today. Last updated: 14 September 2026.
