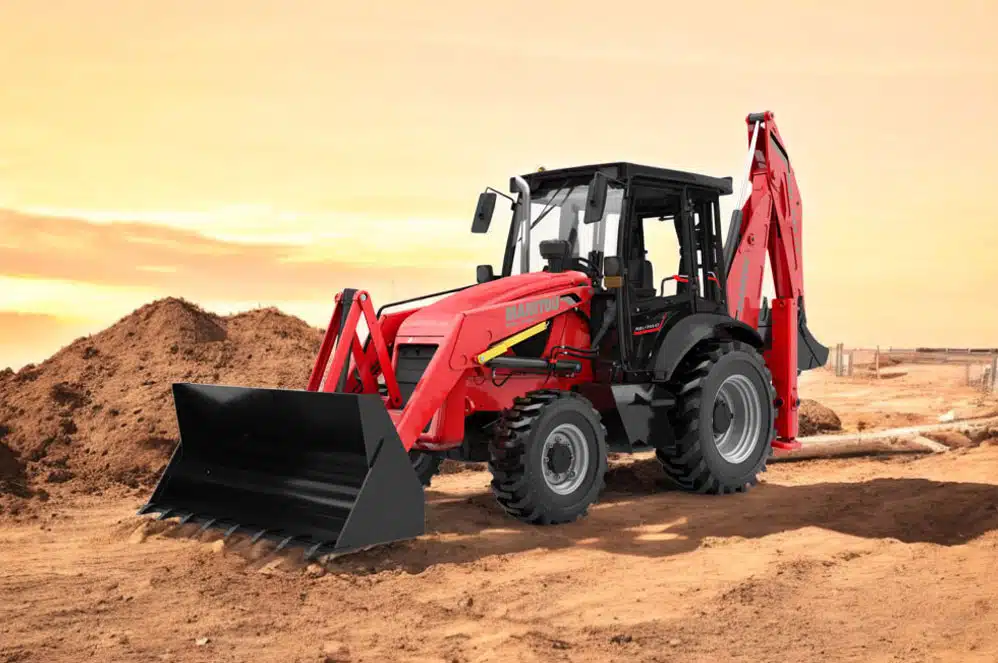

Manitou MBL 745 HT+ BS-V Backhoe Loader

Powered by a BS-V turbocharged engine with 74.8 HP, this machine combines power and fuel economy for various construction site needs.

It offers a high torque output of 400 Nm at just 1200 rpm, making it suitable for tough applications and challenging excavation jobs.

The 3.5L M&M engine provides consistent performance while reducing emissions and improving fuel efficiency.

It reaches a top speed of 40 km/h, allowing faster movement on site and better turnaround times.

A variable displacement pump lowers engine load, improving fuel savings while keeping excellent hydraulic performance.

The BS-V compliant design ensures environmentally friendly operations and meets future emissions standards.

This machine has a 143 l/min axial piston pump for quick and adaptive hydraulic output.

Smart hydraulic flow and pressure adjustments improve cycle times and optimize fuel use during work.

With a relief pressure of 225 bar, it provides strong lifting and digging performance while ensuring high operational safety.

It supports various attachments with consistent pressure and volume under different workloads.

The 75L hydraulic tank allows for extended operation without frequent refills.

It boosts productivity with faster cycle times and little hydraulic lag across the loader and backhoe.

It can dig up to 4741 mm deep with the standard dipper, which is perfect for deep trenches and drainage system installation.

The backhoe bucket delivers 5810 kgf tearout force, allowing for strong penetration in compact soil or rocky areas.

With a 194° bucket rotation, it offers excellent articulation and digging flexibility, even in tight or angled spaces.

A side shift travel of 1198 mm improves positioning accuracy without needing to move the machine.

The high dipper tearout force of 3942 kgf ensures effective performance in heavy-duty excavation projects.

This backhoe is ideal for foundations, cable laying, pipelines, and utility construction, supported by strong hydraulics.

The 1 m³ loader bucket easily handles bulk materials, speeding up loading and improving worksite productivity.

With a lifting capacity of 3467 kg at full height, it supports safe and stable operations with heavy loads.

A 5229 kgf shovel breakout force offers strong cutting performance in compact and dense materials.

The 45° rollback and 51° dump angle optimize bucket positioning and material retention.

A maximum hinge pin height of 3570 mm allows efficient dumping into high-bed trucks.

It's perfect for managing soil, aggregate, and debris across construction and mining sites.

The spacious cabin, with a height of 2900 mm, provides visibility, safety, and comfort for long work hours.

Available in both 2WD and 4WD, with a front oscillation axle, it adapts well to different terrains.

Ergonomically designed controls reduce operator fatigue and improve operating precision and efficiency.

The power steering system ensures smooth maneuverability, even in tight or rough conditions.

Optional air conditioning and cab insulation offer better temperature control and lower noise levels inside.

Versatile steering wheel options allow for balanced handling and responsive control.

The compact turning radius of 3.30 m (braked, 2WD) ensures agility in tight work areas.

A ground clearance of 315 mm improves mobility over uneven surfaces and construction debris.

With an unladen weight of up to 8245 kg (4WD with 7-in-1 bucket), it maintains excellent balance and traction.

Its overall length of 7290 mm and width of 2330 mm provide a stable yet maneuverable footprint.

Standard and optional tire choices allow customization for different soil, gravel, or road conditions.

This machine is built with a rugged, durable structure for long-lasting performance under heavy use.
