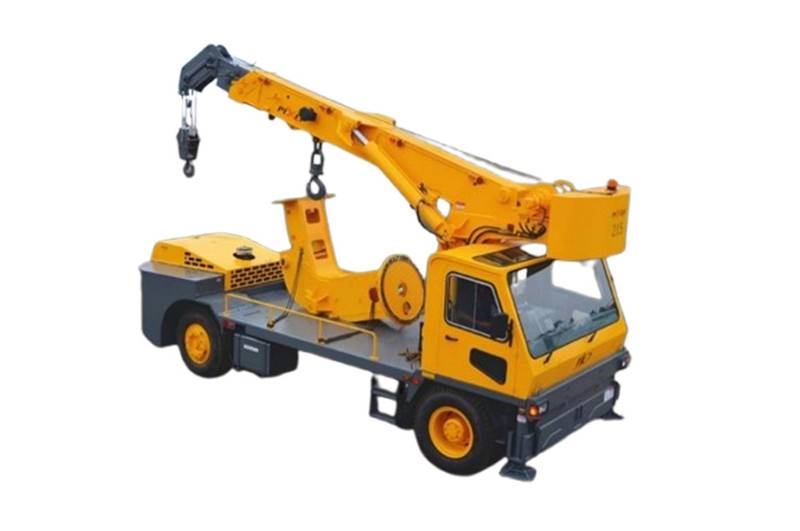

TIL PIXEF 215 Crane

TIL PIXEF 215 offers 15-tonne lift capacity with outriggers at 2.5 m and 10-tonne pick-and-carry at 3.0 m radius.

Equipped with 12.5 T two-sheave hook block and 16 T fixed hook—ideal for industrial and infrastructure load handling tasks.

Supports 4-tonne deck load with safe mobility at 15 km/h, enhancing efficiency in internal logistics and plant-site transfers.

Delivers 360° slewing with outriggers, enabling smooth lifting at 80° boom angle for complex jobsite tasks.

Features 6.0 m to 13.0 m three-section telescopic boom for controlled reach and lifting flexibility in mid-height operations.

Boom movement powered by double-acting ram with lacing chain for synchronized, proportional extension using a single lever.

Offers 15.0 m maximum tip height, suitable for equipment placement, maintenance jobs, and light construction applications.

Supports boom angles from –3° to +72°, offering versatile vertical and horizontal reach across multiple configurations.

Hydraulic hoist uses 13 mm non-spin rope, 80 m length, with 30 kN line pull—delivering safe, secure heavy-lift operations.

Counterbalance valves and spring-loaded brakes provide controlled lowering and safety during load transitions.

360° hydraulic slewing at 2.5 rev/min via hydraulic motor and double-reduction gear ensures precision in tight job zones.

Dual safety system—electronic and mechanical—ensures optimal slewing performance and operational control.

Powered by turbocharged BSIII (CEV) 4-cylinder diesel engine delivering 74.3 kW @2200 RPM and 390 Nm torque @1400–1700 RPM.

Equipped with power-shift transmission (4 forward, 3 reverse gears) for improved drivability in varied terrain conditions.

100-liter fuel tank capacity supports long working hours without frequent refueling interruptions, ideal for remote job sites.

High-tensile steel chassis with integrated carry-deck supports up to 4 T load over 6 m² platform—ensuring jobsite flexibility.

Dual-line air brakes on all wheels plus spring-actuated fail-safe parking brakes enhance overall operational safety.

Rear axle steering and fully hydraulic independent power steering offer an 8.5 m turning radius for compact job areas.

Night-vision rear-view camera with 4.5” LCD screen improves maneuvering visibility during reverse operations.

Full-width spacious cabin with ergonomic seat, electric fan, and overhead visibility ensures operator comfort in long duty cycles.

Cabin-integrated Load Moment Indicator (LMI) shows boom length, angle, load weight, and provides safe-zone cut-off alerts.

Multi-lever control system enables accurate handling of hoisting, slewing, telescoping, and outrigger operations with precision.

Safety features include anti-collision sensors, fire extinguisher provision, and optional towing hook for jobsite readiness.
