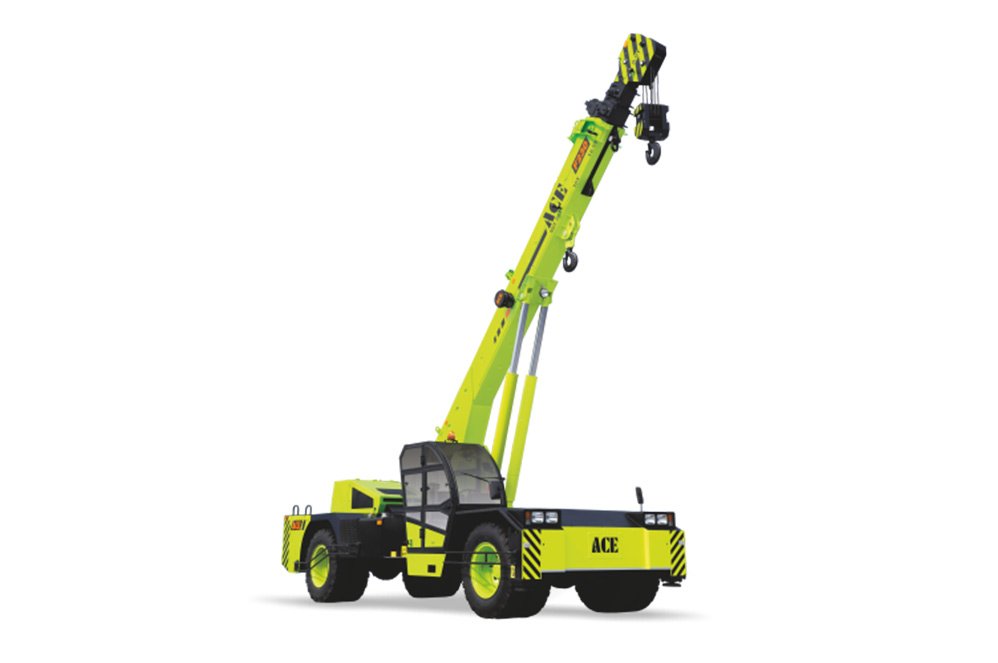

ACE F230 Crane

₹ 46 - 48 Lakh ex-factory Palwal, Haryana · Last updated: Sep 2026

On-road price adds transportation, RTO registration, TCS, warranty, insurance & FOC (where applicable); non-standard configurations, attachments & accessories are priced separately — confirm with a quote.

Get On-Road Price

The ACE F230 is a crane from ACE with a 23 Tonnes lifting capacity and a 20.2 m boom, priced at ₹ 46 - 48 Lakh ex-factory as of Sep 2026, with EMI from about ₹75,501 a month. Get the on-road price for a new unit here, or enquire for a used crane, a rental, an EMI plan or spare parts.

The ACE F230 is a 23-ton farana pick and carry crane designed for lifting in refineries, chemical plants, and large civil construction projects across India. A VECV diesel engine rated at 101 HP provides the hydraulic power needed for heavy-duty lift-and-carry cycles. The F230 boasts a rated lifting capacity of 23 tonnes and a boom that extends to 20.2 metres for wide coverage. Precise hydraulic slew control allows for accurate load placement in tight industrial spaces. Fuel-efficient hydraulic management lowers operating costs on long-term projects. The price of the ACE 23 ton farana crane price in India ranges from ₹46 lakh to ₹48 lakh, depending on variant and place of use. This pick and carry crane from ACE Construction Equipment is a versatile and productive choice for EPC contractors and specialized crane rental operators.

Pick & Carry Crane

Pick & Carry Crane

Lifting Capacity
23 Tonnes
Boom Height
20.2 m
Engine
Tata 101 HP
Weight
20340 kg
Turning Radius
8150 mm
Drive Type
4 Wheel Drive

Download Brochure

Ex-Factory Price
₹ 46 - 48 Lakh
EMI Starts
₹75,501/ Month
Insurance
Check Availability

Connect With Us:

Looking to buy the ACE Farana 23 ton Crane? Get the best price, finance options, and delivery timelines by submitting a quick enquiry.

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Key Highlights of ACE F230

Engine Make

Tata 497 (CEV Stage V)

Articulation

40°

Max. Speed

37 km/h

Fuel Tank

Hydraulic Tank

Overall Length

Overall Width

2600 mm

Wheel Base

4900 mm

Boom Luffing Range

Warranty

1 Year

Engine

Model

Tata 497 (CEV Stage V)
Type

4 cylinder water cooled diesel engine, Turbo Charged Engine with Electronic Control Unit
Max. Power

101 HP (74 kW) @ 2200 RPM
Battery

12V, Negative earth, 110Ah

Lifting Capacity

Max. Lifiting Capacity

23 Tonnes

Transmission & Clutch

Drive

4 Wheel Drive
Type

Heavy-duty, synchromesh transmission with 10 forward and 2 reverse speeds. Auxiliary Gear Box with & 2WD/4WD Selector
Creep Speed

1.3 km/h
Axles

Front axle is rigidly mounted on the chassis, and Rear Drive axle is mounted with 2 Nos. Leaf Springs
Max. Speed (Without Load)

37 km/h
Clutch

Heavy duty, single, dry friction pneumatic-assisted hydraulic

Steering

Type

Full power orbitrol with twin hydraulic double acting cylinders
Articulation

40°
Min. Turning Radius

8150 mm

Hoist Mechanism

Hoist

6 Falls, 4 Tonnes Line Pull Winch driven by Hydraulic motor, Rope dia 13 mm fitted with self-adjusting hook block and rope tensioner
Hoist Speed

35 Mtrs./Min (Line Speed)

Brakes

Front Wheels

Fully pneumatic brakes on front wheels
Rear Wheels

Fully pneumatic brakes on rear wheels
Parking Brake

Parking brake is pneumatically operated fail safe type

Service Capacity

Engine Oil

NA
Fuel Tank

NA
Hydraulic Tank

NA
Transmission Oil

NA

Overall Dimensions & Weight

Overall Length

NA
Overall Width

2600 mm
Overall Height

NA
Wheel Base

4900 mm
Operating Weight

20340 kg
Front Track

1880 mm
Rear Track

1880 mm
Front Tyres

12.00 x 24- 18 PR (4 Nos.)
Rear Tyres

12.00 x 24- 18 PR (4 Nos.)

Boom

Telescoping

Four-part slotted boom with 2 hydraulically operated & synchronized and 4th part powered extended
Derricking

Through one double-acting extension cylinder
Boom Luffing Time

NA
Boom Luffing Range

NA
Height

20.2 m

Features of ACE F230

23‑Ton Pick‑and‑Carry Lifting Capacity

Full 23 tonne pick-and-carry capacity, ideal for heavy-duty industrial, port, and construction material handling.
Low centre-of-gravity chassis with ~20,340 kg operating weight ensures stable lifting on uneven terrain.
Efficient on-site shifting, loading, unloading, and erecting tasks without need for outriggers.

19.3 m Hydraulic Telescopic Boom Reach

Two-part telescopic boom extends to 19.3 meters, supporting high-rise placement and versatile material positioning.
Boom length ~16 m with synchronized hydraulic extension ensures smooth, controlled lifting.
Optional fly-jib increases reach up to 22 m for enhanced job-site flexibility.

101 HP TATA Turbo Diesel Engine

Powered by 101 HP TATA CEV Stage V diesel engine @ 2200 RPM delivering reliable high torque.
Water-cooled turbocharged design ensures efficient fuel consumption and sustained uptime under heavy load.
Electronic control unit optimizes power for cost-effective and emission-compliant operation.

35‑37 km/h Mobility & Synchromesh Transmission

Synchromesh gearbox (10 F + 2 R with hi/low range) enables up to 37 km/h travel speed without load.
4WD chassis ensures traction on rough terrain; hydrostatic steering enhances tight-area maneuverability.
Compact 40° steering articulation and ~7.6 m turning radius enable easy navigation.

Dual‑Circuit Pneumatic Brakes & 40%Gradeability

Pneumatically-assisted dual-circuit service brakes and fail-safe spring parking brake deliver reliable stopping power.
Gradeability up to 40% ensures effective climbing over steep or uneven surfaces.
Reinforced axles and braking systems maximize control during loaded travel and lifts.

Heavy‑Duty Tyres, Fuel & Safety Features

Fitted with eight 12.00×24 18PR tyres for strong traction on mud, gravel, and debris-laden sites.
Large fuel tank supports extended operation; full-flow filtration ensures hydraulic system longevity.
ROPS-certified cabin, audio overload alarms, hoist-failure protections, and safe load indicators enhance operator safety.

Why Choose ACE F230

The F230 brings the Volvo Eicher E483 CRDI CEV Stage IV 101 HP engine to the 4WD configuration at 23-tonne tender-niche capacity — the 4WD sibling of the 2WD FX 230 that targets identical tender specifications but on difficult site conditions.
Why does Volvo Eicher Stage-IV matter at 23T? Because 23T is a tender-niche capacity commonly specified in petrochemical, oil-and-gas and heavy industrial maintenance contracts — and those same tenders are increasingly enforcing CEV Stage IV emission compliance as a bid qualifier. The F230 stays eligible where BS-III rivals are being excluded.
VECV (Volvo Eicher Commercial Vehicles) brings Swedish Volvo engine engineering to Indian heavy-duty manufacturing — cleaner emissions, better fuel economy, smoother part-load response than legacy 101 HP blocks. Over long refinery-turnaround shifts, the efficiency savings are meaningful.
4WD advantages at 23T heavy class. Petrochemical facility access on cramped, sloped and pipe-corridor-constrained sites; steel plant and refinery yard traction on constantly contaminated surfaces; monsoon-zone infrastructure and port work where 2WD machines get stuck.
Volvo Eicher dealer network is strong on major commercial-vehicle routes — Pune, Chennai, Indore, Bhopal, Jaipur cover heavy-industry geographies well.
For tender-specific 23T petrochemical and heavy-industry operators wanting Volvo Eicher Stage-IV compliance on 4WD traction, the F230 is the considered pick.
