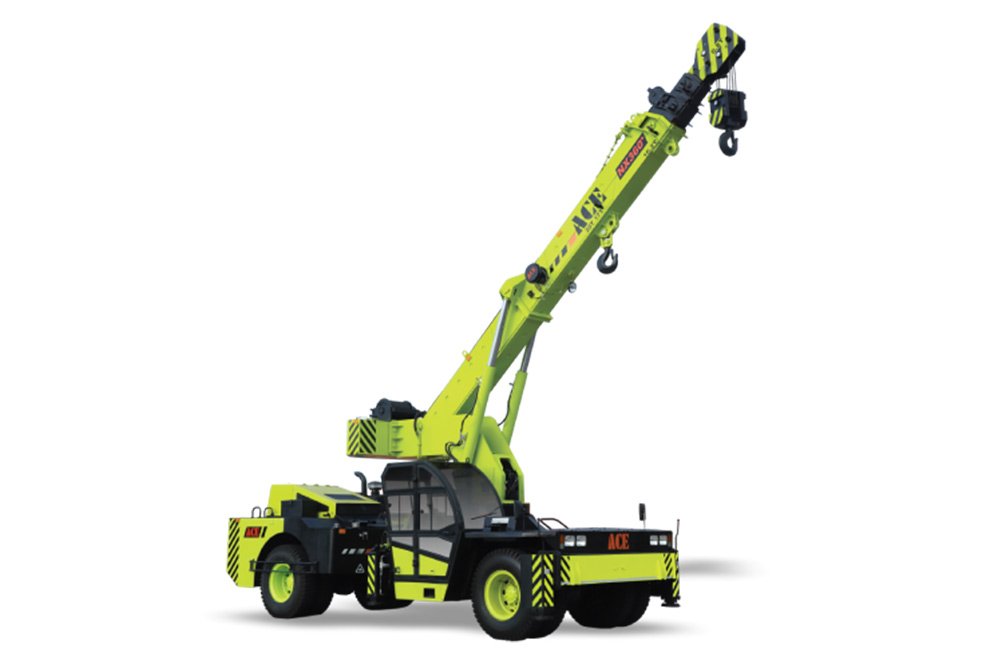

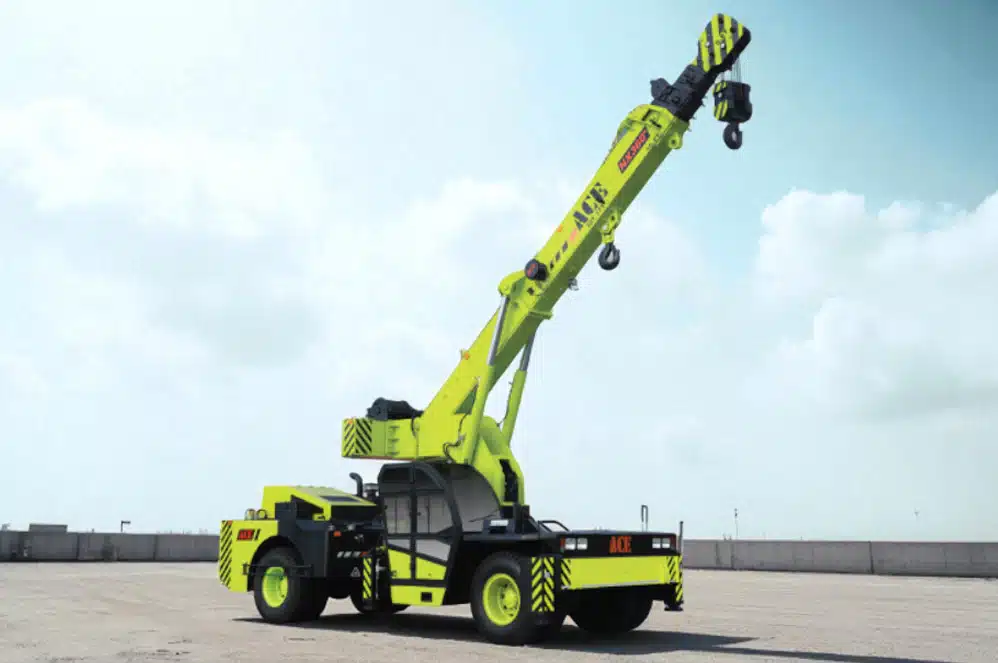

ACE NX 360 20T Crane

₹ 40 - 42 Lakh ex-factory Palwal, Haryana · Last updated: Oct 2026

On-road price adds transportation, RTO registration, TCS, warranty, insurance & FOC (where applicable); non-standard configurations, attachments & accessories are priced separately — confirm with a quote.

Get On-Road Price

The ACE NX 360 20T costs ₹ 40 - 42 Lakh ex-factory as of Oct 2026; on-road (with registration, road tax and insurance) it works out to about ₹43.2 lakh to ₹47 lakh. It is a crane from ACE with a 20 Tonnes lifting capacity and a 19.2 m boom, and EMI starts from about ₹65,653 a month. Get a dated on-road quote for your district here, or enquire for a used crane, a rental, an EMI plan or spare parts.

The ACE NX-360 20T is a 20-ton full-slew pick and carry crane built for industrial erection, power plants, and large civil project lifting across India. A VECV diesel engine producing 101 HP ensures reliable hydraulic output for heavy-duty slewing operations. It has a 20-tonne lifting capacity and a boom extending to 19.2 metres, making it suitable for demanding lifting scenarios on large sites. Its full 360-degree rotation capability with load-holding valves ensures safe pick-and-place cycles. High hydraulic efficiency helps reduce fuel consumption per tonne lifted. The ACE NX-360 20T crane price in India is usually between ₹40 lakh and ₹42 lakh, depending on specifications and local conditions. This crane from ACE Construction Equipment is best for large EPC companies, power projects, and professional crane rental operators.

Pick & Carry Crane

Pick & Carry Crane

Lifting Capacity
20 Tonnes
Boom Height
19.2 m
Engine
VECV 101 HP
Weight
20400 kgs
Turning Radius
7600 mm
Drive Type
4 Wheel Drive

Download Brochure

Ex-Factory Price
₹ 40 - 42 Lakh
EMI Starts
₹65,653/ Month
Insurance
Check Availability

Connect With Us:

Looking to buy the ACE NX 360 20T Swing Crane? Get the best price, finance options, and delivery timelines by submitting a quick enquiry.

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Key Highlights of ACE NX 360 20T

Engine Make

Volvo Eicher E483 CRDI (CEV Stage IV)

Articulation

40°

Max. Speed

38 km/h

Fuel Tank

Hydraulic Tank

Overall Length

Overall Width

Wheel Base

Boom Luffing Range

-2° to +64°

Warranty

1 Year

Engine

Model

Volvo Eicher E483 CRDI (CEV Stage IV)
Type

4 cylinder water cooled diesel engine, Turbo Charged Engine with Electronic Control Unit
Max. Power

101 HP (74 kW) @ 2200 RPM
Battery

12V, Negative earth
Alternator

NA

Lifting Capacity

Max. Lifiting Capacity

20 Tonnes

Transmission & Clutch

Drive

4 Wheel Drive
Type

Heavy-duty, synchromesh transmission with 8 forward and 2 reverse speeds and Hi-low drive selector for creep speed
Creep Speed

NA
Axles

Front axle is rigidly mounted on the chassis, and Rear Drive axle is mounted with 2 Nos. Leaf Springs
Max. Speed (Without Load)

38 km/h
Clutch

Heavy-duty, single dry friction type hydraulic clutch

Steering

Type

Full power orbitrol with twin hydraulic double acting cylinders
Articulation

40°
Min. Turning Radius

7600 mm

Hoist Mechanism

Hoist

6 falls, hydraulic winch, steel core anti-twist rope dia 13 mm, fitted with self-adjusting hook block and rope tensioner.
Hoist Speed

40 Mtrs./Min (Line Speed)

Brakes

Front Wheels

Fully pneumatic brakes on front wheels
Rear Wheels

Fully pneumatic brakes on rear wheels
Parking Brake

Parking brake is pneumatically operated fail safe type

Service Capacity

Engine Oil

NA
Fuel Tank

NA
Hydraulic Tank

NA
Transmission Oil

NA

Overall Dimensions & Weight

Overall Length

NA
Overall Width

NA
Overall Height

NA
Wheel Base

NA
Operating Weight

20400 kgs
Front Track

NA
Rear Track

NA
Front Tyres

12 x 20-18 PR (4 Nos.)
Rear Tyres

12 x 20-18 PR (4 Nos.)

Boom

Telescoping

4 section boom with 2 sections hydraulically operated and synchronized, and 4th section power extended
Derricking

Two double-acting hydraulic cylinders with counterbalance safety valve
Boom Luffing Time

NA
Boom Luffing Range

-2° to +64°
Height

19.2 m

Features of ACE NX 360 20T

20‑Ton Pick‑and‑Carry & 360° Slew Functionality

Offers full 20 tonne pick‑and‑carry lifting capacity combined with 360° continuous slew—perfect for versatile load handling in congested Indian industrial sites.
Articulated 4WD chassis allows efficient rotating and transport operations without repositioning, saving time and improving workflow.
Dual-functionality delivers cost-effective operation—around 50% lower lifecycle cost compared to dedicated slew cranes.

4‑Section Hydraulic Boom & 19.2 m Reach

Equipped with 4-section telescopic boom (12.8 m length), extending to 19.2 meters working height—ideal for high-rise placement and infrastructure erection.
Hydraulic boom synchronization and counter-balance derricking cylinders ensure smooth, safe operation under full load.
Features hydraulic-powered boom with derricking valves for precise control during lifting, slewing, and placement tasks.

101 HP High‑Torque Turbo Diesel Engine

Powered by Volvo Eicher CEV Stage IV 101 HP turbocharged diesel engine (2,200 RPM) delivering strong torque for sustained heavy-duty cycles.
Water-cooled 4-cylinder engine offers reliable thermal management and fuel efficiency during prolonged operations in hot climates.
Engine tuning ensures optimal uptime and low operational cost—backed by ACE’s widespread service network.

Robust Transmission, 4×4 Drive & 38 km/h Mobility

Rugged sliding mesh transmission paired with heavy-duty hydraulic clutch ensures smooth power delivery under full load.
4WD chassis enables confident handling on rough terrain, while hydrostatic steering aids tight manoeuvres.
Top speed of 38 km/h and a tight turning radius (~7.6 m) enables fast movement between job zones.

Advanced Safety Systems & Work‑Ready Tyres

Equipped with Safe Load Indicator (SLI), reverse camera, hoist-failure protection, safety brakes—prioritizing operator and site safety.
Front and rear fully pneumatic dual-circuit braking plus fail-safe parking brake ensure robust stopping power during operations.
Heavy-duty 12.00×20 18 PR tyres (4×) offer stable traction on soft soil, debris, and rough site conditions.

Bulk Capacities & Efficient Hydraulic System

Generous fuel and hydraulic reservoirs support extended work cycles without frequent refueling.
Full-flow suction filtration and high-performance hydraulic winch ensure smooth boom and slew operations.
System designed for lower downtime, reduced maintenance, and improved long-term crane performance.

Why Choose ACE NX 360 20T

The NX 360 20T extends ACE's next-generation 360-degree cab platform to the 20-tonne heavy capacity — same AL 101 HP BS-IV engine as the 15T NX 360, but on the larger 20T frame that targets heavy-industry, oil-and-gas maintenance and steel-plant rental work.
Why pair the latest cab generation with heavy 20T capacity? Because 20T pick-and-carry operators typically log the longest operator-shift hours in the segment — continuous refinery turnaround work, rolling industrial maintenance contracts, week-long tender jobs. Across those shifts, the cab environment is the single biggest driver of operator fatigue, error rate and shift-end productivity.
The NX 360 cab brings. Redesigned full-visibility glazing that cuts blind-spot incidents in crowded plant environments; updated operator controls and seat for long-shift fatigue management; current-generation instrument layout that reduces operator scan time.
AL 101 HP engine provides strong hydraulic response at 20T rated lifts and uses the truck-network service reach that every Indian highway provides. BS-IV certification keeps tender eligibility current.
ACE's pricing positions the NX 360 20T below premium brands even with the cab-generation upgrade — meaningful for rental operators refreshing fleet from older 20XW-generation machines.
For heavy-industry rental specialists and long-shift maintenance contractors wanting current-generation cab environment at 20T, the NX 360 20T is the fleet-refresh pick.

Are you interested in buying ACE NX 360 20T Crane

Buying Options for ACE NX 360 20T

New, used, rent, EMI or spare parts — the number first, then one button for that option. Your details go to our team and only to the dealer or lender you ask for; we call you back.

New

What is the ACE NX 360 20T price on road?

₹ 40 - 42 Lakh ex-factory Palwal, Haryana (Oct 2026). On-road adds transport, RTO, TCS, warranty and insurance. Get a dated quote from an authorised ACE dealer in your district.

Get On-Road Price
Used

What is the second-hand price of the ACE NX 360 20T?

Priced on year, hours and condition, against ₹ 40 - 42 Lakh new. Run an inspection checklist before paying and keep 10–15% aside for the first service. Tell us your budget and district; we pass it to sellers with checked units. Buying a used crane: how it works. Have one to sell? List it free.

Enquire for a Used Unit
Rent

What does the ACE NX 360 20T cost on rent?

Quoted per hour, day or month, by district, hire length and whether operator and diesel are included. A month costs less per hour than day hire. Tell us your site, start date and duration. Hiring a crane: how it works. Own one that sits idle? Put it on rent.

Get a Rental Quote
EMI

What is the EMI and down payment for the ACE NX 360 20T?

About ₹65,653 a month with ₹8 lakh down (20%) on a ₹32 lakh loan at 8.5% for 5 years — indicative; lenders quote 8.5–17% by profile. Adjust it in the EMI calculator; we get rate offers from banks and NBFCs that finance this machine.

Get EMI Offers
Spares

Where do I get ACE NX 360 20T spare parts?

Genuine ACE parts — filters, oils, seals, wear parts, batteries, tyres — through ACE dealers and verified parts suppliers. Send the part name, machine year or serial number and quantity for a price and delivery time. Crane spare parts.

Ask for a Parts Quote

ACE NX 360 20T EMI Calculator

Down Payment ₹8 L

₹

₹8.00 L₹40.00 L

Loan after down payment: ₹32.00 L

Loan Amount ₹32.00 L

₹

₹0 L₹32.00 L

Annual Interest Rate 8.5%

1%30%

Loan Tenure 5 Years

Yrs

1 Yr5 Yrs

Monthly EMI

₹

Principal Amount

₹L

Total Interest

₹L

Total Amount

₹L

Principal vs Interest

Principal: 48% Interest: 52%

Apply Now

Disclaimer: EMI is calculated based on the starting price with a default 20% down payment, 8.5% interest rate, and 5-year tenure. Interest rates typically range from 8.5% to 17%. Users can manually adjust the down payment, interest rate, and tenure to estimate different EMI options. Final loan terms, interest rate, down payment, and eligibility are subject to buyer profile and bank/NBFC approval. EMI shown is indicative only.

ACE NX 360 20T calculators: on-road price, diesel cost, running cost and buy or hire

On-road price of ACE NX 360 20T: about ₹49.8 lakh in October 2026 — the listed ex-factory ₹ 40 - 42 Lakh plus GST at 18%, first-year insurance (about 2%), registration and road tax (about ₹45,000, varies by state) and handling (about ₹15,000). Change any figure below.

Use the ACE NX 360 20T on-road price calculator, ACE NX 360 20T diesel cost calculator, ACE NX 360 20T owning and operating cost calculator and ACE NX 360 20T buy or hire calculator below. Each starts from the listed price and typical rates; change any figure you know.

On-road price calculator

Where the numbers come from. Our price data means it is the price listed on the DesiMachines model page (indicative, ex-factory), or the average of the listed prices for that type of machine. Market range means it is a rate the market was quoting in 2025–26. Estimate — check means it is our own working number and we have not confirmed it with a dealer, so treat it as a starting point. Standard factor means a standard engineering value, not a price.

Assumptions used in every tool. GST is 18% on earthmoving machines (HSN 8429); tippers and trucks differ. Machine prices are the indicative ex-factory bands listed on DesiMachines model pages, or the average of listed prices for that type; they are not quotes. First-year insurance is taken as about 2% of the price, registration and road tax as about ₹45,000 (wheeled machines only; crawler machines are not registered), handling as about ₹15,000. Loans assume 20% down, 11% a year and 5 years unless you change them. Diesel is taken at ₹92 a litre and a typical burn for the machine class. Every one of these is a field you can change, and the “What we assumed” list under each result shows what the answer used.

Please read. These calculators give an indicative estimate, not a quote. Prices, hire rates, diesel prices, salaries, taxes and interest rates change by state, by season and by buyer. Loan terms and eligibility depend on your bank or NBFC. Resale figures are a band, not a valuation. Confirm the final numbers with our team, your dealer and your lender before you commit money.

Model prices come from the DesiMachines catalogue as it stands today.
