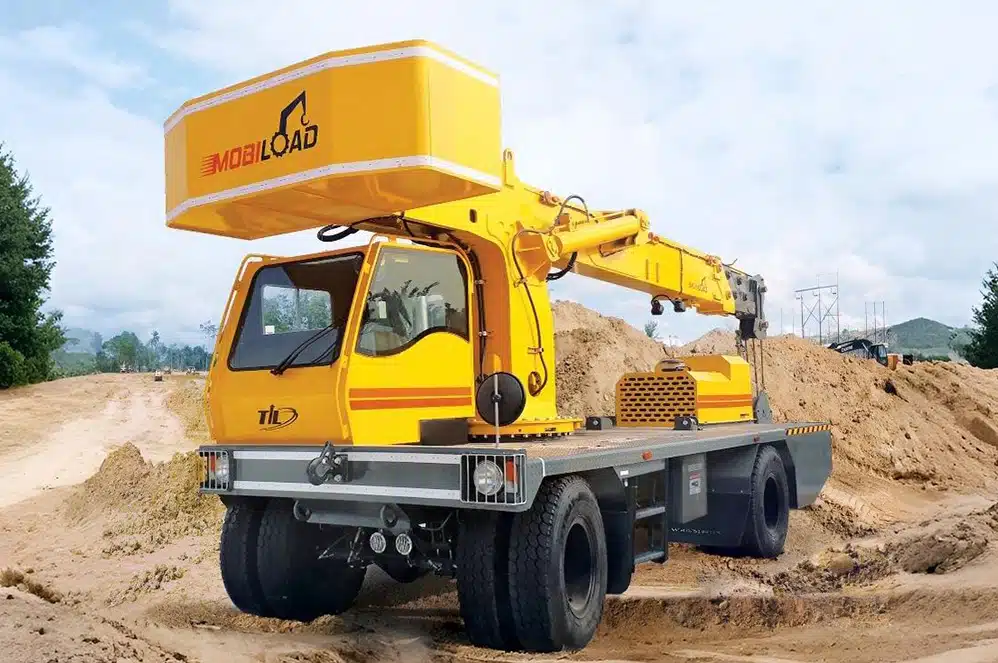

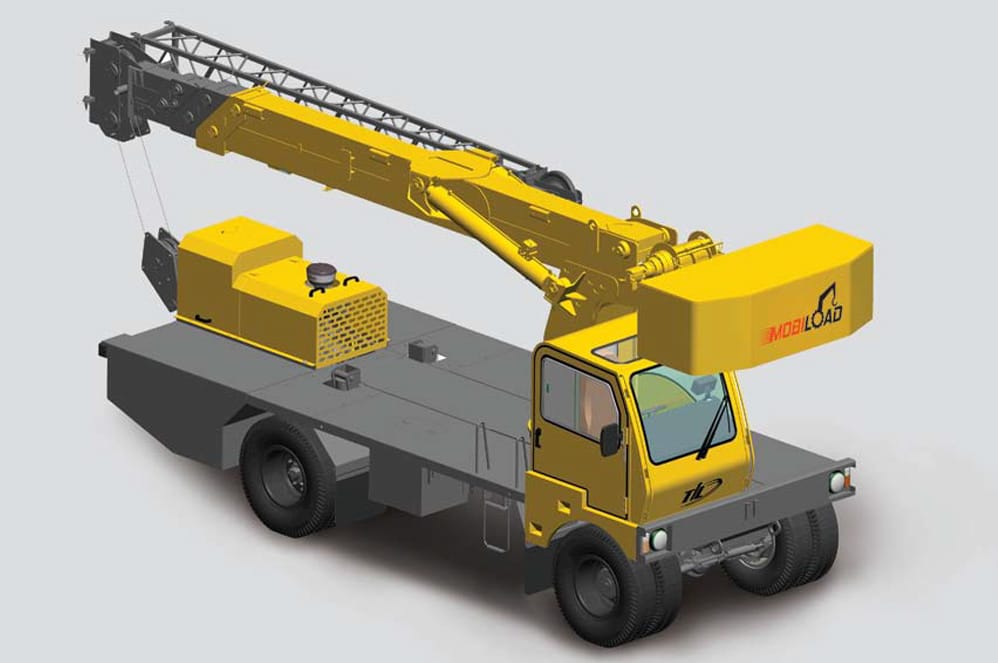

TIL MOBILOAD 315 Crane

15-ton pick and carry capacity at 2.5 m radius, ideal for heavy-duty applications across construction and industrial sectors.

Enables 360-degree slew operation with 8-ton capacity, offering full circular coverage for flexible lifting even while on tyres.

Designed for 85% tipping load rating, adhering to IS:4573-1982 power-driven crane safety regulations and load stability norms.

Offers maximum carry-deck loading of 2 tonnes, enabling transportation of components across short jobsite distances.

Fully synchronized 4-section telescopic boom ranges from 6.5m to 17.0m, suited for lifting at extended site elevations.

Includes a 3.5m power-positioned fly section, offering enhanced vertical reach and flexibility for high-reach crane tasks.

Maximum tip height of 19.5 meters, supporting lifting at higher elevations across factories, refineries, and power plants.

Optional 5.0m lattice boom extension increases lifting versatility for complex infrastructure and mechanical installation work.

Slew system driven by hydraulic motor and double reduction gear, allowing 1.4 rev/min slew speed with pinpoint control.

Hoist system features 80m non-spin 13mm rope with 30 kN line pull, ensuring reliable lifts of suspended loads.

Spring-applied, hydraulically released multi-plate brakes provide fail-safe operations during lifting, lowering, or slewing.

Load Moment Indicator (LMI) monitors radius, boom angle, hook load and activates motion cuts during overload situations.

Powered by a 74.3 kW turbocharged diesel engine (BSIII CEV compliant) delivering 390 Nm torque at 1400–1700 RPM.

Integrated power-shift torque converter transmission with four forward and three reverse speeds for versatile mobility.

100-liter fuel tank allows longer operations without frequent refueling interruptions—ideal for remote construction projects.

Proven reliability in Indian conditions, ensuring optimal uptime and fuel efficiency on challenging terrain.

Built on a high-strength steel chassis with integrated carry-deck, engineered for robust pick-and-carry performance.

Features front planetary drive axle and oscillating rear axle, offering traction and articulation on uneven terrain.

Dual-line compressed air brakes and fail-safe parking brake, ensuring secure operations on both slopes and level ground.

Turning radius of 8.5 meters supported by fully independent front steering for tight-space maneuvering.

Spacious, enclosed operator cabin with overhead visibility and ergonomic seat for fatigue-free long shifts.

Features dash-integrated gauges for oil, temp, RPM, voltage, speed, and LMI display, ensuring real-time diagnostics and safety.

Multi-lever joystick controls for hoisting, slewing, derricking, and telescoping, with support for simultaneous operations.

Cabin includes electric fan, light, lockable doors, and anti-slip access, offering enhanced operator comfort and safety.
