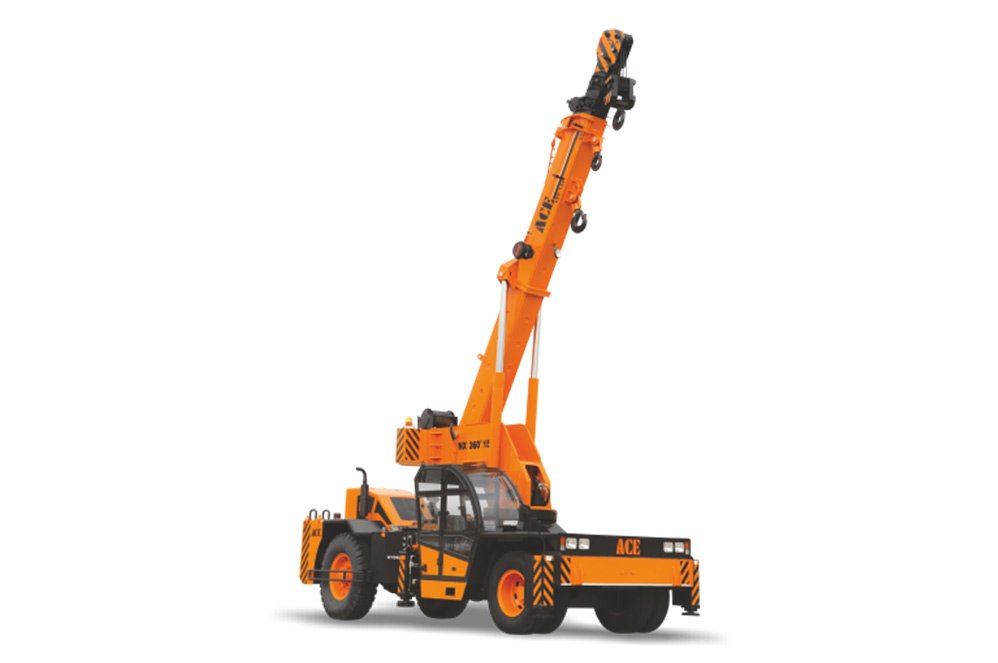

ACE NX 360 15T Crane

₹ 34 - 38 Lakh ex-factory Palwal, Haryana · Last updated: Oct 2026

On-road price adds transportation, RTO registration, TCS, warranty, insurance & FOC (where applicable); non-standard configurations, attachments & accessories are priced separately — confirm with a quote.

Get On-Road Price

The ACE NX 360 15T costs ₹ 34 - 38 Lakh ex-factory as of Oct 2026; on-road (with registration, road tax and insurance) it works out to about ₹36.7 lakh to ₹42.6 lakh. It is a crane from ACE with a 15 Tonnes lifting capacity and a 18.2 m boom, and EMI starts from about ₹55,805 a month. Get a dated on-road quote for your district here, or enquire for a used crane, a rental, an EMI plan or spare parts.

The ACE NX-360 15T is a 15-ton 360-degree slew pick and carry crane designed for construction, precast, and industrial lifting tasks across India. It is powered by a Tata diesel engine rated at 76 HP, allowing smooth full-circle slew operations. The crane offers a rated lifting capacity of 15 tonnes and a boom length of 18.2 metres. The full 360-degree slewing capability eliminates delays for repositioning and improves multi-directional load placement. Precision hydraulic speed control allows for careful load spotting in crowded work areas. The ACE NX-360 15T crane price in India ranges from ₹34 lakh to ₹38 lakh, based on configuration and local taxes. This 15-ton pick and carry crane ACE Construction Equipment is recommended for EPC contractors, precast developers, and crane hire businesses needing full-rotation capability.

Pick & Carry Crane

Pick & Carry Crane

Lifting Capacity
15 Tonnes
Boom Height
18.2 m
Engine
Tata 76 HP
Weight
18300 kg
Turning Radius
7400 mm
Drive Type
2 Wheel drive

Download Brochure

Ex-Factory Price
₹ 34 - 38 Lakh
EMI Starts
₹55,805/ Month
Insurance
Check Availability

Connect With Us:

Looking to buy the ACE NX 360 15T Swing Crane? Get the best price, finance options, and delivery timelines by submitting a quick enquiry.

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Key Highlights of ACE NX 360 15T

Engine Make

Tata

Articulation

40°

Max. Speed

40 km/h

Fuel Tank

Hydraulic Tank

Overall Length

Overall Width

Wheel Base

Boom Luffing Range

-2° to +64°

Warranty

1 Year

Engine

Model

Tata
Type

4 cylinder water cooled diesel engine
Max. Power

76 HP (56 kW) @ 2200 RPM
Battery

12V, Negative earth
Alternator

NA

Lifting Capacity

Max. Lifiting Capacity

15 Tonnes

Transmission & Clutch

Drive

2 Wheel Drive
Type

Heavy-duty, synchromesh transmission with 8 forward and 2 reverse speeds and Hi-low drive selector for creep speed
Creep Speed

NA
Axles

Front axle is rigidly mounted on the chassis, and Rear Drive axle is mounted with 2 Nos. Leaf Springs
Max. Speed (Without Load)

40 km/h
Clutch

Heavy-duty, single dry friction type hydraulic clutch

Steering

Type

Full power orbitrol with twin hydraulic double acting cylinders
Articulation

40°
Min. Turning Radius

7400 mm

Hoist Mechanism

Hoist

6 falls, hydraulic winch, steel core anti-twist rope dia 13 mm, fitted with self-adjusting hook block and rope tensioner.
Hoist Speed

50 Mtrs./Min (Line Speed)

Brakes

Front Wheels

Fully pneumatic brakes on front wheels
Rear Wheels

Fully pneumatic brakes on rear wheels
Parking Brake

Parking brake is pneumatically operated fail safe type

Service Capacity

Engine Oil

NA
Fuel Tank

NA
Hydraulic Tank

NA
Transmission Oil

NA

Overall Dimensions & Weight

Overall Length

NA
Overall Width

NA
Overall Height

NA
Wheel Base

NA
Operating Weight

18300 kg
Front Track

NA
Rear Track

NA
Front Tyres

11 x 20-16 PR (4 Nos.)
Rear Tyres

14 x 25-20 PR (4 Nos.)

Boom

Telescoping

4 section boom with 2 sections hydraulically operated and synchronized, and 4th section power extended
Derricking

Two double-acting hydraulic cylinders with counterbalance safety valve
Boom Luffing Time

NA
Boom Luffing Range

-2° to +64°
Height

18.2 m

Features of ACE NX 360 15T

5‑Ton Pick‑and‑Carry & 360° Slew Capability

Offers full 15‑tonne pick‑and‑carry capacity, plus 360° slewing—ideal for loading, shifting, erecting materials in tight or confined Indian job sites.
Articulated chassis and full-slew function enable versatile operation in factories, refineries, flyovers, Metro infrastructure—one crane, two distinct uses.
Costs roughly 50
lower in operation and maintenance than comparable slew cranes with similar multi-activity capability.

Hydraulic Telescopic Boom & 18.2 m Reach

Three-part hydraulic boom extends to 18.2 meters, supporting high‑reach placement for construction, industrial erection, and material handling applications.
Boom features hydraulic synchronization and safety locks for controlled, stable lifting even at maximum extension.
Self-adjusting hook block and slew-ready outriggers improve precision and balance during both pick‑and‑carry and slew operations.

76 HP High‑Torque Diesel Engine

Powered by a 76 HP diesel engine providing consistent torque—great reliability during continuous heavy-duty lifting cycles.
Engine design supports fuel efficiency across extended shifts and tough Indian operating environments.
Water-cooled system maintains thermal stability under high-load conditions, minimizing downtime for maintenance.

Durable 4×2 Chassis & 40 km/h Mobility

Built on a robust articulated 4×2 chassis enabling safe slew and pick‑and‑carry with strong stability on rough terrain.
Achieves up to 40 km/h top speed, allowing swift relocation between sites with minimal downtime in dense or remote areas.
Hydraulic steering and compact dimensions enhance maneuverability in congested factories or construction zones.

Safety Systems & Site-Ready Tyres

Equipped with Safe Load Indicator, reverse camera, hoist-failure protection, and slew-safety brakes for secure operation.
Heavy-duty 11.00×20 tyres with industrial-grade puncture resistance ensure traction across mud, gravel, and debris-filled sites.
Outriggers and reinforced chassis ensure balance and stability during 360° slew or heavy tip-load placements.

Value-Oriented & Low Lifecycle Cost

NextGen NX 360 15T crane combines pick‑and‑carry and slew capabilities—delivering full slew functionality at significantly lower cost than dedicated slew cranes.
In-house R&D platform, patented design, and dual-use efficiency yield ~50
reduced operation & maintenance cost vs. competitors.
Strong ACE support network and availability of genuine spare parts ensure reliability and minimal downtime across India.

Why Choose ACE NX 360 15T

The NX 360 designation marks ACE's latest-generation operator station — the "360" refers to redesigned full-visibility cab glazing that expands operator sight-lines beyond what legacy XW and FX cabs offer. At the 15T mainstream capacity, the NX 360 pairs this cab-generation leap with Ashok Leyland's 101 HP BS-IV engine — a meaningfully larger engine than the 47-50 HP class on standard 15T machines.
Why does 360-degree cab visibility matter for a crane buyer? Because blind-spot incidents in crowded industrial yards, tight construction sites and congested urban lifting zones are the single biggest operational risk in pick-and-carry work. Every additional sight-line that the cab design exposes cuts the risk of clipped scaffolding, damaged stock or injured yard workers.
Real-world working benefits. Redesigned glass area gives confident reversing and swinging in tight spaces; AL 101 HP engine gives strong hydraulic headroom for 15T rated lifts; BS-IV certification keeps the machine eligible for urban and major-infrastructure tenders.
ACE's volume-leader pricing approach applies — NX 360 positions below premium-brand rivals despite the cab-generation upgrade.
For safety-conscious industrial operators and urban fabricators upgrading from legacy XW-cab machines to current-generation operator environment at 15T capacity, the NX 360 15T is the considered cab-generation step-up.
