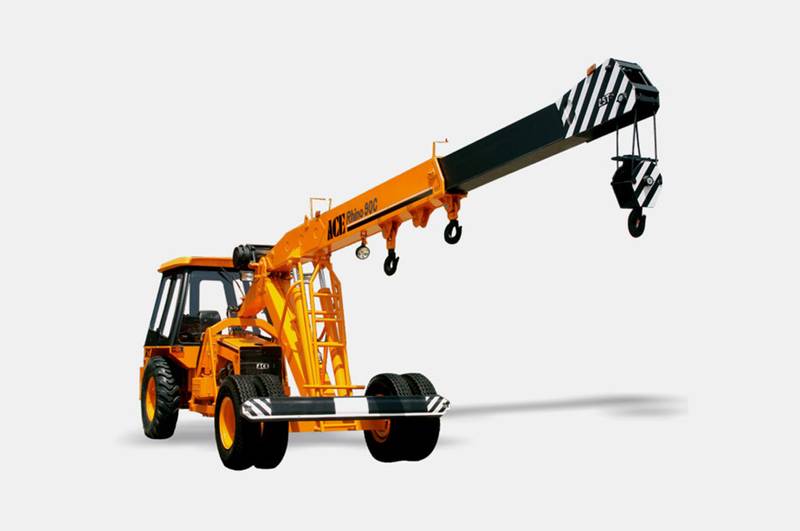

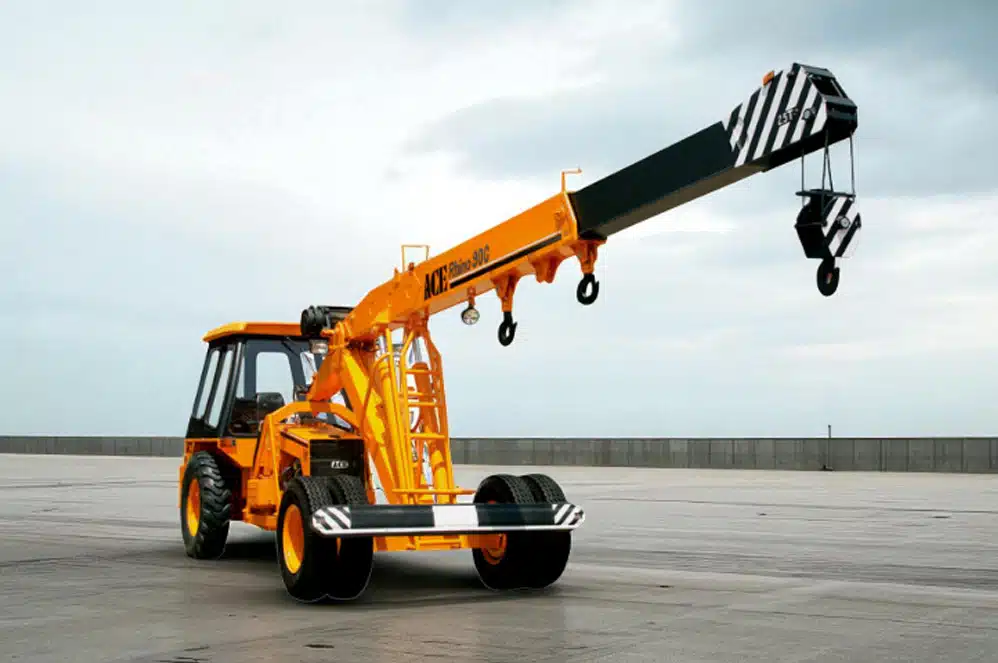

ACE Rhino 90C Crane

The ACE Rhino 90C is a 9-ton pick-and-carry crane designed for compact construction, urban infrastructure, and light industrial lifting in India. It is powered by a Mahindra diesel engine that produces 47.5 HP, delivering agile hydraulic performance in limited spaces. The Rhino 90C can lift up to 9 tonnes at rated radius, with a boom that reaches 9 metres for moderate-height tasks. Its lightweight build and tight turning radius make it effective on busy urban job sites. The fuel-efficient hydraulic operations lower per-shift operating costs for rental companies. The ACE 9 ton hydra crane price in India is in the ₹12 lakh to ₹14 lakh range, while the on-road price depending on model and region. It’s a practical and cost-effective choice for small contractors, housing developers, and urban crane rental services.

  • Lifting Capacity

    9 Tonnes

  • Boom Height

    9 m

  • Engine

    Mahindra 47.5 HP

  • icon alt1
    Weight

    7750 kg

  • Turning Radius

    5500 mm

  • Drive Type

    2 Wheel drive

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights of ACE Rhino 90C

Engine Make

Mahindra 4485 IAE (BS-III CEV)

Articulation

55°

Max. Speed

29 km/h

Fuel Tank

45 L

Hydraulic Tank

100 L

Overall Length

NA

Overall Width

2400 mm

Wheel Base

4400 mm

Boom Luffing Range

-5° to +60°

Medal Image
Warranty

1 Year

Features of ACE Rhino 90C

9‑Ton Pick‑and‑Carry Lifting Capacity

  • Full 9-tonne pick‑and‑carry capability ideal for on-site material handling in Indian construction and industrial projects.

  • Compact profile enables maneuverability in confined work zones without outriggers.

  • Supports versatile loading, unloading, erecting tasks across varied terrain conditions.

Hydraulic Telescopic Boom & Reach

  • Two‑part telescopic boom (1.8 m stroke) extends to 6 m reach for effective vertical lifting.

  • Boom luffs –5° to +60° with 20‑second controlled movement, improving placement accuracy.

  • Hydraulic hoist lifts at 50 m/min via 4‑fall hook, enhancing hoisting efficiency.

Reliable 48 HP Simpson Diesel Engine

  • Powered by Simpson S433(I) CEV BS‑III diesel engine delivering 48 HP @ 2200 RPM for consistent torque.

  • Designed for heavy-duty operations with fuel efficiency for continuous site work.

  • Engine reliability ensures low downtime and maintenance cost.

Durable Transmission & Agile Mobility

  • Sliding mesh gearbox with 6 forward + 2 reverse gears plus high/low selector ensures versatile operation.

  • Hydraulic steering with 55° articulation and 5.5 m turning radius allows tight-space handling.

  • Top travel speed 29 km/h enables efficient site relocation even under load.

Safe Braking & Operator Protection

  • Pneumatically‑assisted hydraulic brakes on front and rear wheels with dependable parking brake.

  • ROPS fully enclosed wide‑view cabin improves safety and visibility in rugged conditions.

  • Integrated audio alarms for overload, hose-failure, and over-hoist protect crew and equipment.

Ample Fluid Capacities & Hydraulic Efficiency

  • 45 L fuel tank and 100 L hydraulic reservoir support extended work cycles.

  • Gear/intra‑vane hydraulic pump ensures precise boom operation and hoist control.

  • Full-flow filters and durable hose guards reduce maintenance and prolong life.

Are you interested in buying ACE Rhino 90C Crane

    Note: Uncheck if you're not interested in finance or insurance deals.

    Specifications of ACE Rhino 90C

    Engine

    • Model

      Mahindra 4485 IAE (BS-III CEV)

    • Type

      4 cylinder water cooled diesel engine.

    • Max. Power

      47.5 HP (34.9 kW) @ 2200 RPM

    • Battery

      12V, Negative earth, 75Ah

    • Alternator

      35A

    Lifting Capacity

    • Max. Lifiting Capacity

      9 Tonnes

    Transmission & Clutch

    • Drive

      2 Wheel drive

    • Type

      Sliding mesh with 6 forward and 2 reverse speed with high low range selector

    • Creep Speed

      NA

    • Axles

      NA

    • Max. Speed (Without Load)

      29 km/h

    • Clutch

      Single, dry friction, clutch plate

    Steering

    • Type

      Hydraulicaly Operated

    • Articulation

      55°

    • Min. Turning Radius

      5500 mm

    Hoist Mechanism

    • Hoist

      4 falls, Hydraulic winch, Rope dia 13 mm

    • Hoist Speed

      50 Mtrs./Min (Line Speed)

    Brakes

    • Front Wheels

      Hydraulic brake with pneumatic assistance on front wheels actuated by a single pedal.

    • Rear Wheels

      Hydraulic brake with pneumatic assistance on rear wheels actuated by a single pedal.

    • Parking Brake

      A separate manual parking brake is provided

    Service Capacity

    • Engine Oil

      8.0 L

    • Fuel Tank

      45 L

    • Hydraulic Tank

      100 L

    • Transmission Oil

      48 L

    Overall Dimensions & Weight

    • Overall Length

      NA

    • Overall Width

      2400 mm

    • Overall Height

      2700 mm

    • Wheel Base

      4400 mm

    • Operating Weight

      7750 kgs

    • Front Track

      NA

    • Rear Track

      NA

    • Front Tyres

      10.00 x 20 - 16 PR (4 Nos.)

    • Rear Tyres

      13.00 x 24 - 12 PR (2 Nos.)

    Boom

    • Telescoping

      Two-part boom with hydraulically operated extension of 1800 mm stroke with 10 seconds telescoping time.

    • Derricking

      Through one double-acting extension cylinder

    • Boom Luffing Time

      20 Seconds

    • Boom Luffing Range

      -5° to +60°

    • Height

      9 m

    Why Choose ACE Rhino 90C

    • The Rhino 90C is a compact-class pick-and-carry crane at just 9 tonnes — ACE's dedicated small-site specialist. The "Rhino" naming signals the tough, stocky positioning: short, manoeuvrable, built for tight-site work that the larger XW machines can't enter.
    • Why does a 9-tonne compact crane make sense as a distinct product? Because a large share of Indian urban lifting work happens on sites where larger 12-15T cranes simply cannot reach — narrow warehouse aisles, tight industrial shop floors, city-centre fabrication bays, basement slab levels, small commercial-building maintenance. The 90C is engineered to work where the HYDRA 15 or 15XW cannot physically enter.
    • Key real-world advantages at compact size. Narrow overall width fits urban and industrial lanes the larger machines cannot negotiate; lighter operating weight keeps transport costs low and reduces site-floor load impact; short turning radius makes tight-yard manoeuvring practical; fuel economy is meaningfully better than full-size 12T-15T machines.
    • Mahindra 47.5 HP engine brings the same deep rural and tier-3 service reach that backs the XW family.
    • Trade-off is honest: 9T capacity limits the lift spec to lighter loads.
    • For urban fabricators, warehouse operators and tight-site industrial users needing a compact crane that physically fits where large cranes can't, the Rhino 90C is the considered small-site specialist.
    Common Questions

    FAQs about ACE Rhino 90C

    What is the ACE Rhino 90C crane price in India?

    The ACE Rhino 90C crane price in India ranges from ₹ 12 – 14 Lakhs. However, the on-road price may vary depending on the location, dealer, taxes, insurance, and additional features.

    What is the engine power of the ACE Rhino 90C crane?

    The ACE Rhino 90C is powered by a Mahindra 4485 IAE (BS-III CEV) diesel engine, delivering 47.5 HP (34.9 kW) @ 2200 RPM.

    What is the lifting capacity of the ACE Rhino 90C crane?

    The ACE Rhino 90C crane has a lifting capacity of 9 tonnes.

    What is the maximum boom height of the ACE Rhino 90C crane?

    The maximum boom height of the ACE Rhino 90C crane is 9 meters (when fully extended).

    What is the operating weight of the ACE Rhino 90C crane?

    The operating weight of the ACE Rhino 90C crane is approximately 7750 kg.

    Where can I buy the ACE Rhino 90C in India at the best price?

    You can purchase the ACE Rhino 90C pick and carry crane in India through Desi Machines, the best online platform for comparing and purchasing construction equipment from verified dealers near you. We connect you with authorized ACE dealers across India and help you get multiple price quotes from different vendors so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest ACE Rhino 90C on-road price, compare dealer quotes, and enjoy expert assistance—all in one place.

    What is the warranty period of the ACE Rhino 90C?

    The ACE Rhino 90C in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    Where can I find spare parts for the ACE Rhino 90C crane?

    You can find genuine spare parts for the ACE Rhino 90C at authorized ACE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on crane spare parts.
