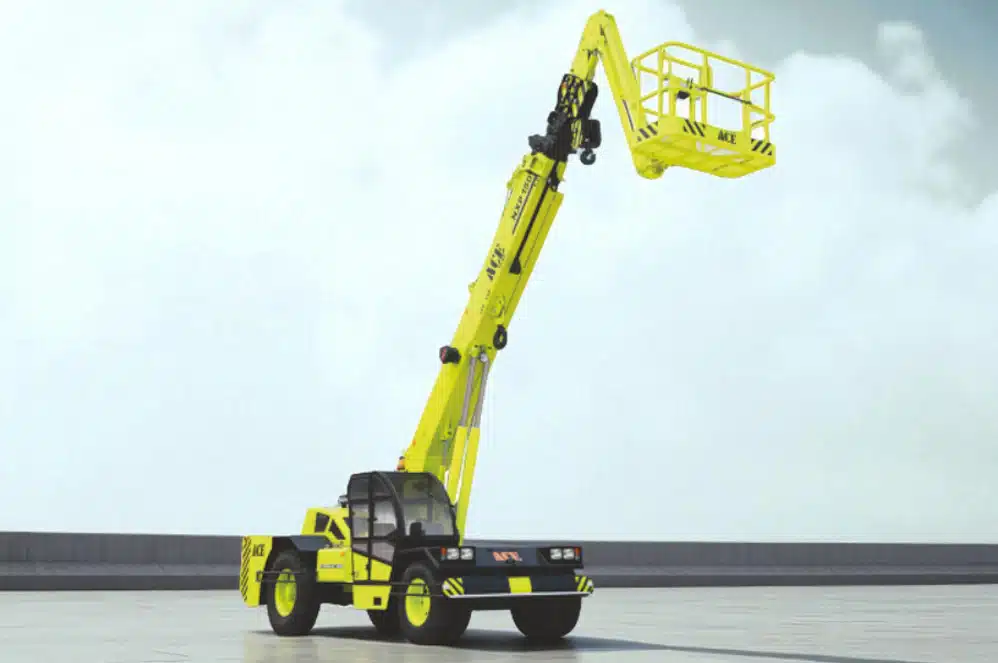

ACE NXP 150 Crane

₹ 41 - 43 Lakh ex-factory Palwal, Haryana · Last updated: Oct 2026

On-road price adds transportation, RTO registration, TCS, warranty, insurance & FOC (where applicable); non-standard configurations, attachments & accessories are priced separately — confirm with a quote.

Get On-Road Price

The ACE NXP 150 costs ₹ 41 - 43 Lakh ex-factory as of Oct 2026; on-road (with registration, road tax and insurance) it works out to about ₹44.3 lakh to ₹48.2 lakh. It is a crane from ACE with a 15 Tonnes lifting capacity and a 21.0 m boom, and EMI starts from about ₹67,294 a month. Get a dated on-road quote for your district here, or enquire for a used crane, a rental, an EMI plan or spare parts.

Pick and carry cranes do most of the everyday lifting on Indian sites, and the ACE NXP 150 covers that duty with a 15 Tonnes maximum lifting capacity and a four-section boom reaching 21.0 m of boom height. A Tata engine rated 49 HP drives it, with 4 Wheel Drive underneath and a 32 km/h travel speed without load for quick shifts between bays.

Erection jobs, plant maintenance, godown and yard loading all fall within its range. ACE builds these cranes in India, so parts and service stay close at hand, and the Tata engine can be attended by practically any truck mechanic.

Pick & Carry Crane

Pick & Carry Crane

Lifting Capacity
15 Tonnes
Boom Height
21.0 m
Engine
Tata 49 HP
Weight
15310 kg
Turning Radius
6500 mm
Drive Type
4 Wheel Drive

Download Brochure

Ex-Factory Price
₹ 41 - 43 Lakh
EMI Starts
₹67,294/ Month
Insurance
Check Availability

Connect With Us:

Looking to buy the ACE NXP 150 Man Lift Crane? Get the best price, finance options, and delivery timelines by submitting a quick enquiry.

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Key Highlights of ACE NXP 150

Engine Make

Tata

Articulation

40°

Max. Speed

32 km/h

Fuel Tank

Hydraulic Tank

Overall Length

Overall Width

2950 mm

Wheel Base

4150 mm

Boom Luffing Range

-3° to +75°

Warranty

1 Year

Engine

Model

Tata
Type

4 cylinder water cooled diesel engine
Max. Power

49 HP (36 kW) @ 2000 RPM
Battery

12V, Negative earth, 75Ah
Alternator

35A

Lifting Capacity

Max. Lifiting Capacity

15 Tonnes

Transmission & Clutch

Drive

4 Wheel Drive
Type

Heavy-duty, synchromesh transmission with 8 forward and 2 reverse speeds and Hi-low drive selector for creep speed
Creep Speed

NA
Axles

Front axle is rigidly mounted on the chassis, and Rear Drive axle is mounted with 2 Nos. Leaf Springs
Max. Speed (Without Load)

32 km/h
Clutch

Heavy-duty hydraulic clutch

Steering

Type

Full power orbitrol with twin hydraulic double acting cylinders
Articulation

40°
Min. Turning Radius

6500 mm

Hoist Mechanism

Hoist

4 falls, hydraulic winch, steel core anti-twist rope dia 13 mm, fitted with self-adjusting hook block and rope tensioner.
Hoist Speed

50 Mtrs./Min (Line Speed)

Brakes

Front Wheels

Pneumatically assisted hydraulic brakes are provided on front wheels
Rear Wheels

Fully air actuated brakes on rear wheels.
Parking Brake

Parking brake is pneumatically operated fail safe type

Service Capacity

Engine Oil

NA
Fuel Tank

NA
Hydraulic Tank

NA
Transmission Oil

NA

Overall Dimensions & Weight

Overall Length

NA
Overall Width

2950 mm
Overall Height

NA
Wheel Base

4150 mm
Operating Weight

15310 kg
Front Track

1900 mm
Rear Track

1800 mm
Front Tyres

11 x 20 (4 Nos.)
Rear Tyres

14.00 x 25 (2 Nos.)

Boom

Telescoping

4 section boom with 2 sections hydraulically operated and synchronized, and 4th section power extended
Derricking

Double acting hydraulic cylinder with counter balance safety valve is provided for boom telescoping
Boom Luffing Time

NA
Boom Luffing Range

-3° to +75°
Height

21.0 m

Features of ACE NXP 150

15‑Ton Pick‑and‑Carry & Aerial Platform Capability

Delivers dual-mode performance:15 ton pick‑and‑carry lifting plus aerial work platform reach—ideal for material handling and in‑height maintenance jobs on Indian sites.
Full-height platform (21 m) enables safe work at elevation without separate access equipment—reducing tool costs and site clutter.
Compact chassis supports easy navigation in tight work zones, loading, unloading, shifting—ideal for urban infrastructure and plant maintenance.

Hydraulic Boom & 21 m Working Height

Telescopic hydraulic boom extends to 16.6 m, delivering 21 m working height with stable reach and platform access.
Double-acting boom cylinders with counter-balance valves ensure smooth, controlled extension and reliable load handling at full height.
Self-aligning hook/platform interface enhances operator efficiency and load stability during pick‑carry and aerial tasks.

49 HP High‑Torque Diesel Engine

Powered by a 49 HP water-cooled diesel engine at 2,200 RPM, providing steady torque and dependable performance in pick‑carry and aerial cycles.
Engine designed for optimal fuel efficiency, enabling high uptime during prolonged site operations and reducing running costs.
Thermal control via water cooling keeps the crane running smoothly under heavy loads and hot Indian climate conditions.

Heavy‑Duty Transmission & 32 km/h Speed

Robust synchromesh transmission (6 F + 2 R) delivers efficient power transfer; heavy-duty clutch enhances durability under full‑load travel.
Achieves 32 km/h top speed, enabling quick relocation between sites—and reduces idle time on larger campuses or urban assignments.
Hydraulic power steering with 40° articulation and 6.5 m turning radius ensures tight maneuverability in congested work zones.

Powerful Braking & Site‑Ready Tyres

Pneumatically assisted dual‑circuit hydraulic braking with fail‑safe parking brake ensures safety during loaded travel and stationary work.
Fitted with front 11.00×20 & rear 14.00×25 tyres offering superior traction across uneven terrain, demolition sites, and plant floors.
Reinforced axles and dual‑line braking enhance stopping control and stability during aerial or pick‑carry operations.

Fuel & Hydraulic Systems for Extended Use

Generous fuel tank supports long work cycles without refueling—suitable for remote or continuous job site tasks.
Hydraulic boom cylinders, derricking valves, and counter‑balance ensure smooth, quick extension and retraction cycles.
Full-flow filtration and durable system design reduce maintenance needs, cutting downtime and improving site productivity.

Why Choose ACE NXP 150

The NXP 150 is one of the few 4WD options at the 15-tonne mainstream capacity — Tata 49 HP CEV engine paired with 4-wheel drive rather than the 2WD standard on most 15T pick-and-carry cranes. The 4WD choice unlocks site access that 2WD 15T machines cannot reach.
Why does 4WD matter at 15T mainstream capacity? Because specific site conditions demand traction that 2WD cannot deliver even at this mid-weight class. Monsoon-affected industrial yards with wet, loose ground; quarry, mine and aggregate lifting where surfaces are rough; construction sites with gradient and loose-aggregate approach roads; infrastructure project sites with unstable temporary ground.
Tata-branded engine brings commercial-vehicle service-network reach through India's largest truck dealer infrastructure. The Tata 49 HP spec is fuel-efficient at the 15T class where peak engine power isn't a daily requirement.
ACE's NXP trim signals the "New eXtreme Performance" family positioning — 4WD capability combined with ACE's current-generation cab and electronics on the 15T platform.
Trade-off vs 2WD 15XW: higher upfront cost, slightly heavier operating weight, modestly lower fuel economy on firm-ground work.
For 15T operators whose sites genuinely demand 4WD traction — quarry rental, monsoon-zone industrial, construction yard work — the NXP 150 is the considered 4WD mainstream pick.
