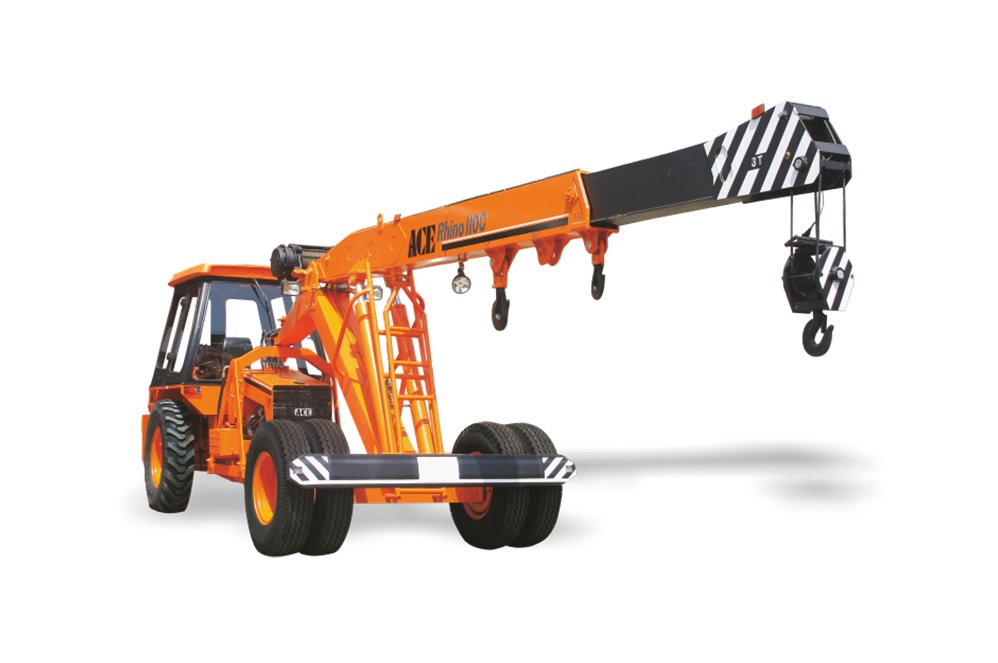

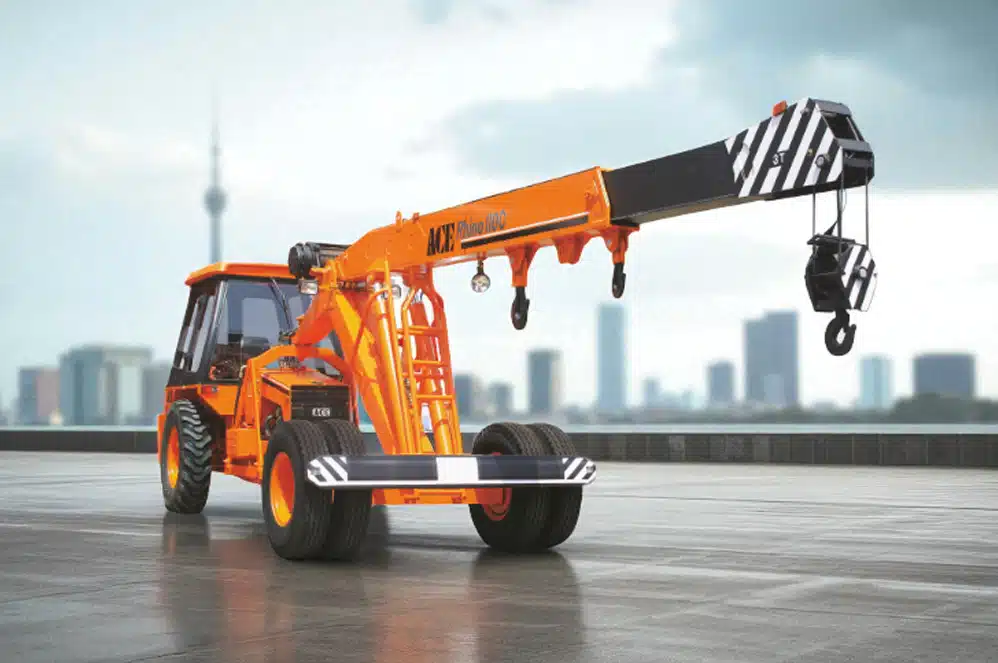

ACE Rhino 110C Crane

The ACE Rhino 110C is an 11-ton pick-and-carry crane designed for construction, warehousing, and industrial material placement throughout India. A Mahindra diesel engine producing 47.5 HP powers a responsive hydraulic circuit, enabling quick load cycles. The crane offers a lifting capacity of 11 tonnes and a boom length of 9 metres, making it suitable for mid-rise lifting tasks. Its compact design allows for easy movement between work areas without extensive site preparation. User-friendly controls and a wide field of view enhance handling accuracy and safety. The ACE 11 ton hydra crane price in India is between ₹12 lakh and ₹14 lakh, while the on-road price based on variant and state. It is ideal for small to medium contractors, precast yards, and crane rental companies.

  • Lifting Capacity

    11 Tonnes

  • Boom Height

    9 m

  • Engine

    Mahindra 47.5 HP

  • icon alt1
    Weight

    8150 kg

  • Turning Radius

    5500 mm

  • Drive Type

    2 Wheel drive

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights of ACE Rhino 110C

Engine Make

Mahindra 4485 IAE (BS-III CEV)

Articulation

55°

Max. Speed

29 km/h

Fuel Tank

45 L

Hydraulic Tank

100 L

Overall Length

NA

Overall Width

2400 mm

Wheel Base

4400 mm

Boom Luffing Range

-5° to +60°

Medal Image
Warranty

1 Year

Features of ACE Rhino 110C

11‑Ton Pick‑and‑Carry Lifting Capacity

  • Delivers full 11 tonne pick-and-carry capacity, perfect for loading, unloading, shifting materials across construction and industrial sites.

  • Compact design excels in tight Indian work zones without outriggers.

  • Ideal for material handling across rugged terrain and urban environments.

Hydraulic Telescopic Boom & 9 m Reach

  • Two-part slotted hydraulic boom extends 1.8 m stroke, achieving 5.8 m boom length and 9 m lifting height.

  • Boom luff range –5° to +60°, allowing precise material placement on slopes.

  • Fast telescoping in ~10–12 seconds boosts setup efficiency.

Reliable 48 HP Diesel Engine

  • Powered by Simpson S433(I)/Mahindra 4485 IAE BS‑III diesel engine delivering 47.5–48 HP @ 2200 RPM.

  • Ensures consistent torque for continuous pick‑and‑carry operations.

  • Engine tuned for fuel efficiency and low operating costs.

Heavy‑Duty Transmission & Agile Mobility

  • Sliding mesh gearbox with 6F + 2R speeds, plus high/low selector for versatile operation.

  • Hydraulic 55° steering and 5.5 m turning radius allow excellent maneuverability in confined zones.

  • Top speed of 29 km/h supports efficient site relocation even under load.

Safe Braking & ROPS Operator Cabin

  • Pneumatically‑assisted hydraulic brakes front and rear with reliable parking brake.

  • Enclosed ROPS cabin with wide-view design enhances operator protection and visibility.

  • Safety alarms include audio overload, hose-failure, and over-hoist indicators.

Large Fluid Capacities & Efficient Hoisting

  • 45 L fuel tank and 100 L hydraulic reservoir support extended duty cycles.

  • Hydraulic winch lifts at 50 m/min via 4-fall hook block for quick hoisting jobs.

  • Full-flow filtration and hose guards reduce maintenance frequency, boosting equipment uptime.

Are you interested in buying ACE Rhino 110C Crane

    Note: Uncheck if you're not interested in finance or insurance deals.

    Specifications of ACE Rhino 110C

    Engine

    • Model

      Mahindra 4485 IAE (BS-III CEV)

    • Type

      4 cylinder water cooled diesel engine.

    • Max. Power

      47.5 HP (34.9 kW) @ 2200 RPM

    • Battery

      12V, Negative earth, 75Ah

    • Alternator

      35A

    Lifting Capacity

    • Max. Lifiting Capacity

      11 Tonnes

    Transmission & Clutch

    • Drive

      2 Wheel drive

    • Type

      Sliding mesh with 6 forward and 2 reverse speed with high low range selector

    • Creep Speed

      NA

    • Axles

      NA

    • Max. Speed (Without Load)

      29 km/h

    • Clutch

      Single dry friction clutch plate

    Steering

    • Type

      Hydraulically operated

    • Articulation

      55°

    • Min. Turning Radius

      5500 mm

    Hoist Mechanism

    • Hoist

      4 falls, Hydraulic winch, Rope dia 13 mm

    • Hoist Speed

      50 Mtrs./Min (Line Speed)

    Brakes

    • Front Wheels

      Hydraulic brake with pneumatic assistance on front wheels actuated by a single pedal.

    • Rear Wheels

      Hydraulic brake with pneumatic assistance on rear wheels actuated by a single pedal.

    • Parking Brake

      A separate manual parking brake is provided

    Service Capacity

    • Engine Oil

      8.0 L

    • Fuel Tank

      45 L

    • Hydraulic Tank

      100 L

    • Transmission Oil

      48 L

    Overall Dimensions & Weight

    • Overall Length

      NA

    • Overall Width

      2400 mm

    • Overall Height

      2700 mm

    • Wheel Base

      4400 mm

    • Operating Weight

      8150 kg

    • Front Track

      NA

    • Rear Track

      NA

    • Front Tyres

      11.00 x 20 - 16 PR (4 Nos.)

    • Rear Tyres

      13.00 x 24 - 12 PR (2 Nos.)

    Boom

    • Telescoping

      Two-part boom with hydraulically operated extension of 1800 mm stroke with 10 seconds telescoping time.

    • Derricking

      Through one double-acting extension cylinder

    • Boom Luffing Time

      20 Seconds

    • Boom Luffing Range

      -5° to +60°

    • Height

      9 m

    Why Choose ACE Rhino 110C

    • The Rhino 110C is the 11-tonne sibling of the Rhino 90C — same compact-site positioning, same Mahindra 4485 IAE 47.5 HP engine, but with 2T additional lifting capacity that unlocks a broader set of tight-site work.
    • Why 11T specifically on the compact platform? Because 9T is a tight limit for some common urban and industrial lifts — slightly heavier pre-cast slabs, bundled steel sections, larger HVAC units — where operators need more than 9T margin but still need the compact footprint. 11T extends the capacity without stepping up to full-size 12-15T frames that cannot reach the same narrow sites.
    • The Rhino compact-site advantage remains intact. Narrow overall width for tight urban and industrial lanes; short turning radius for yard manoeuvring; lighter operating weight for transport economics and floor-load-sensitive sites.
    • Mahindra engine-service reach through India's deepest tractor-and-commercial-vehicle mechanic network — particularly valuable for urban contractors in North, Central and East India.
    • At 2WD the machine stays cost-efficient for the on-road pickup-and-drop working pattern typical of compact-site cranes.
    • For urban fabrication, warehousing and tight-site industrial users needing 11T capacity in a genuinely compact footprint — where the 90C runs out of margin but a 15-tonne frame cannot reach the site — the Rhino 110C is the considered compact-site pick.
    Common Questions

    FAQs about ACE Rhino 110C

    What is the ACE Rhino 110C crane price in India?

    The ACE Rhino 110C crane price in India ranges between ₹ 12 – 14 Lakhs. However, the exact on-road price may vary depending on the location, dealer, taxes, and additional features.

    What is the engine power of the ACE Rhino 110C crane?

    The ACE Rhino 110C is powered by a Mahindra 4485 IAE (BS-III CEV) diesel engine, delivering 47.5 HP (34.9 kW) @ 2200 RPM.

    What is the lifting capacity of the ACE Rhino 110C crane?

    The ACE Rhino 110C crane has a lifting capacity of 11 tonnes.

    What is the maximum boom height of the ACE Rhino 110C crane?

    The maximum boom height of the ACE Rhino 110C crane is 9 meters (when fully extended).

    What is the operating weight of the ACE Rhino 110C crane?

    The operating weight of the ACE Rhino 110C crane is approximately 8150 kg.

    Where can I buy the ACE Rhino 110C in India at the best price?

    You can purchase the ACE Rhino 110C pick and carry crane in India through Desi Machines, the best online platform for comparing and purchasing construction equipment from verified dealers near you. We connect you with authorized ACE dealers across India and help you get multiple price quotes from different vendors so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest ACE Rhino 110C on-road price, compare dealer quotes, and enjoy expert assistance—all in one place.

    What is the warranty period of the ACE Rhino 110C?

    The ACE Rhino 110C in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    Where can I find spare parts for the ACE Rhino 110C crane?

    You can find genuine spare parts for the ACE Rhino 110C at authorized ACE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
