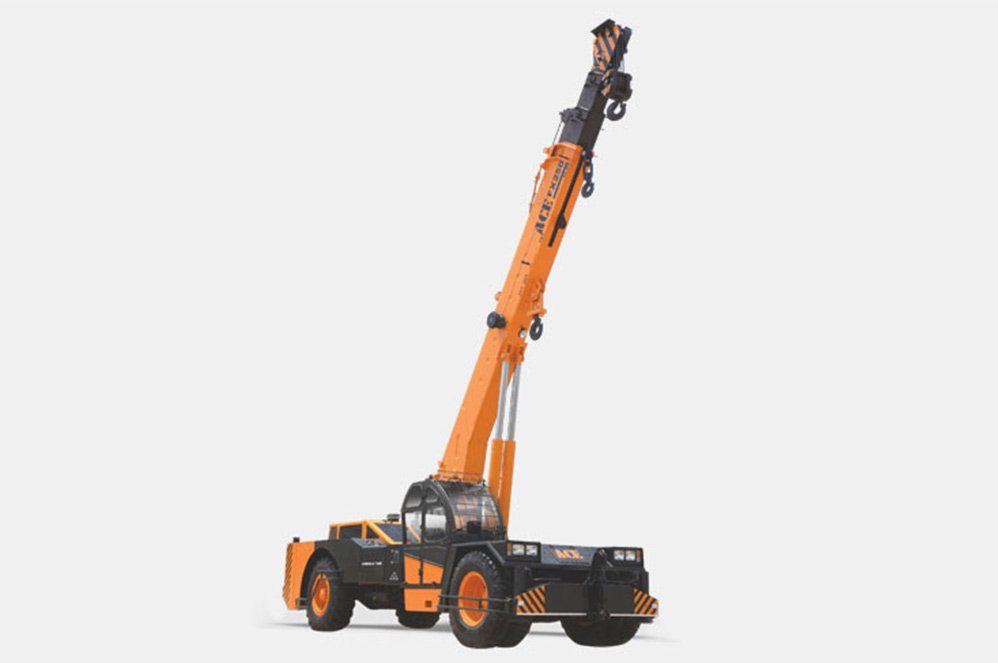

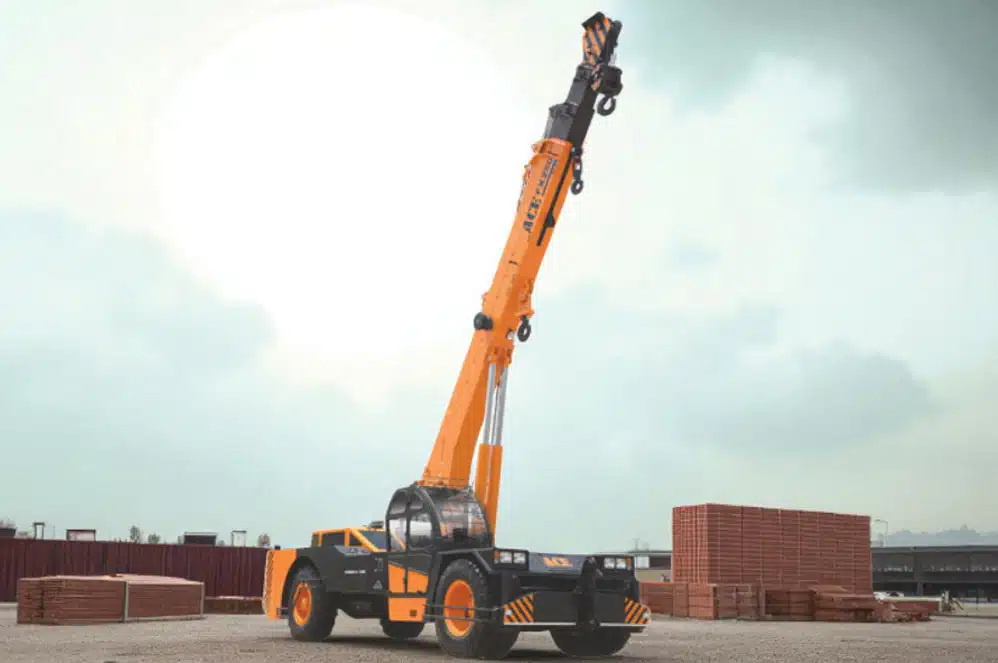

ACE FX 250 Crane

₹ 50 - 52 Lakh ex-factory Palwal, Haryana · Last updated: Oct 2026

On-road price adds transportation, RTO registration, TCS, warranty, insurance & FOC (where applicable); non-standard configurations, attachments & accessories are priced separately — confirm with a quote.

Get On-Road Price

The ACE FX 250 is a crane from ACE with a 25 Tonnes lifting capacity and a 18.3 m boom, priced at ₹ 50 - 52 Lakh ex-factory as of Oct 2026, with EMI from about ₹82,066 a month. Get the on-road price for a new unit here, or enquire for a used crane, a rental, an EMI plan or spare parts.

The ACE FX 250 is a 25-ton high-capacity farana crane built for heavy industrial, port, and large-scale infrastructure lifting in India. It is powered by an Ashok Leyland diesel engine that generates 133 HP, delivering consistent hydraulic power for demanding multi-shift operations. With a rated capacity of 25 tonnes and an extended boom of 18.3 metres, it has a wide operating range. Advanced load monitoring and overload protection ensure safety at maximum loads. High hydraulic efficiency lowers fuel consumption per tonne-metre of lift. The ACE FX 250 crane price in India is approximately ₹50 lakh to ₹52 lakh, depending on variant selection and location. This crane from ACE Construction Equipment is a high-performance option for large EPC companies, ports, and professional crane rental fleets.

Pick & Carry Crane

Pick & Carry Crane

Lifting Capacity
25 Tonnes
Boom Height
18.3 m
Engine
Ashok Leyland 133 HP
Weight
20200 kg
Turning Radius
8200 mm
Drive Type
2 Wheel drive

Download Brochure

Ex-Factory Price
₹ 50 - 52 Lakh
EMI Starts
₹82,066/ Month
Insurance
Check Availability

Connect With Us:

Looking to buy the ACE FX 250 Farana Crane? Get the best price, finance options, and delivery timelines by submitting a quick enquiry.

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm the final quote with our team before you buy.

Key Highlights of ACE FX 250

Engine Make

Ashok Leyland

Articulation

40°

Max. Speed

35 km/h

Fuel Tank

Hydraulic Tank

Overall Length

Overall Width

2600 mm

Wheel Base

5100 mm

Boom Luffing Range

-3° to +66°

Warranty

1 Year

Engine

Model

Ashok Leyland
Type

6 cylinder water cooled diesel engine
Max. Power

133 HP (99 kW) @ 2300 RPM
Battery

24 Negative Earth
Alternator

NA

Lifting Capacity

Max. Lifiting Capacity

25 Tonnes

Transmission & Clutch

Drive

2 Wheel drive
Type

Heavy-duty, synchromesh transmission with 8 forward and 2 reverse speeds and high-low drive selector for creep speed
Creep Speed

NA
Axles

Front axle is rigidly mounted on the chassis, and Rear Drive axle is mounted with 2 Nos. Leaf Springs
Max. Speed (Without Load)

35 km/h
Clutch

Heavy duty hydraulic clutch

Steering

Type

Full power orbitrol with twin hydraulic double acting cylinders
Articulation

40°
Min. Turning Radius

8200 mm

Hoist Mechanism

Hoist

6 falls, hydraulic winch, steel core anti-twist rope dia 13 mm, fitted with self-adjusting hook block and rope tensioner.
Hoist Speed

50 Mtrs./Min (Line Speed)

Brakes

Front Wheels

Fully pneumatic brakes on front wheels
Rear Wheels

Fully pneumatic brakes on rear wheels
Parking Brake

Parking brake is pneumatically operated fail safe type

Service Capacity

Engine Oil

NA
Fuel Tank

NA
Hydraulic Tank

NA
Transmission Oil

NA

Overall Dimensions & Weight

Overall Length

NA
Overall Width

2600 mm
Overall Height

NA
Wheel Base

5100 mm
Operating Weight

20200 kg
Front Track

1900 mm
Rear Track

1770 mm
Front Tyres

12.00 x 24-20 PR (4 Nos.)
Rear Tyres

17.50 x 25-20 PR (2 Nos.)

Boom

Telescoping

Three-part slotted boom with hydraulically operated synchronized extensions of 12 metres height
Derricking

Through two double-acting extension cylinder
Boom Luffing Time

NA
Boom Luffing Range

-3° to +66°
Height

18.3 m

Features of ACE FX 250

25‑Ton Pick‑and‑Carry Lifting Capacity

Full 25-tonne pick-and-carry capability enables heavy material handling in construction and infrastructure projects.
No outriggers required, offering agile operation across tight job sites.
Stable chassis design ensures safe lifting and shifting on rugged Indian terrain.

Hydraulic Telescopic Boom with 18.3 m Reach

Four-part slotted boom extends to 18.3 m maximum height for elevated lifting tasks.
Synchronized hydraulic extension and luffing boost boom deployment efficiency.
Precise load placement aided by controlled boom movement—ideal for congested areas.

Powerful 133 HP Diesel Engine

Powered by high-torque 133 HP engine delivering strong performance at 2,300 RPM.
Consistent torque supports continuous lifting cycles under full payload.
Engine architecture optimized for fuel efficiency and long duty cycles.

Heavy‑Duty Transmission & 35 km/h Road Mobility

Synchromesh gearbox with 8F+2R speeds and hi/low selector ensures flexible operation.
Achieves top travel speed of 35 km/h, ideal for road transit.
Hydraulic steering and compact chassis enable precise navigation in confined spaces.

Ergonomic ROPS Cabin & Safety Systems

Front-mounted ergonomic ROPS cabin enhances visibility, safety, and operator comfort.
Dual-circuit full-air braking system with fail-safe parking brake ensures reliable stopping power.
Safety alerts include overload, over-hoist, hose failure, with hoist safety brake and wheel guards.

Robust Hydraulic & Hoist Performance

Hydraulic winch delivers 50 m/min line speed via multi-fall hook block.
Gear/intra‑vane hydraulic pump with full-flow suction filtration ensures system cleanliness.
25‑tonne operating weight and sturdy ground clearance enhance on-site stability.

Why Choose ACE FX 250

The FX 250 matches 25-tonne capacity with Ashok Leyland's 133 HP engine — a meaningful step-up in power over the 101 HP class of the FX 210 and FX 230. At 25T loaded, the higher-output engine delivers the hydraulic headroom that continuous heavy-lift duty demands.
Why 133 HP AL at 25T? Because the 25-tonne pick-and-carry class is used for the heaviest industrial lifting work — oil refinery turnarounds, steel-plant maintenance, petrochemical shutdowns, heavy pre-cast concrete handling. Under sustained full-load cycles, the 133 HP output prevents the hydraulic pump from bottoming out on heavy simultaneous boom-and-travel movements.
Ashok Leyland's 4-cylinder engine-service reach through India's truck-and-bus workshop infrastructure means breakdown recovery is measured in hours across every Indian highway and district town.
Real-world benefits at 133 HP. Faster cycle times under repeat heavy lifts — direct impact on day-rate rental economics; stronger hydraulic response for tandem-lift and simultaneous-motion applications; headroom for 25T lifts at full boom extension without engine strain.
ACE's FX premium trim brings refined cab and updated controls at the 25T heavy class.
For heavy-industry rental operators and continuous-duty maintenance contractors wanting 25T AL 133 HP heavy-lift capability on a premium 2WD platform, the FX 250 is the considered heavy-performance pick.

Are you interested in buying ACE FX 250 Crane

Buying Options for ACE FX 250

New, used, rent, EMI or spare parts — the number first, then one button for that option. Your details go to our team and only to the dealer or lender you ask for; we call you back.

New

What is the ACE FX 250 price on road?

₹ 50 - 52 Lakh ex-factory Palwal, Haryana (Oct 2026). On-road adds transport, RTO, TCS, warranty and insurance. Get a dated quote from an authorised ACE dealer in your district.

Get On-Road Price
Used

What is the second-hand price of the ACE FX 250?

Priced on year, hours and condition, against ₹ 50 - 52 Lakh new. Run an inspection checklist before paying and keep 10–15% aside for the first service. Tell us your budget and district; we pass it to sellers with checked units. Buying a used crane: how it works. Have one to sell? List it free.

Enquire for a Used Unit
Rent

What does the ACE FX 250 cost on rent?

Quoted per hour, day or month, by district, hire length and whether operator and diesel are included. A month costs less per hour than day hire. Tell us your site, start date and duration. Hiring a crane: how it works. Own one that sits idle? Put it on rent.

Get a Rental Quote
EMI

What is the EMI and down payment for the ACE FX 250?

About ₹82,066 a month with ₹10 lakh down (20%) on a ₹40 lakh loan at 8.5% for 5 years — indicative; lenders quote 8.5–17% by profile. Adjust it in the EMI calculator; we get rate offers from banks and NBFCs that finance this machine.

Get EMI Offers
Spares

Where do I get ACE FX 250 spare parts?

Genuine ACE parts — filters, oils, seals, wear parts, batteries, tyres — through ACE dealers and verified parts suppliers. Send the part name, machine year or serial number and quantity for a price and delivery time. Crane spare parts.

Ask for a Parts Quote

ACE FX 250 EMI Calculator

Down Payment ₹10 L

₹

₹10.00 L₹50.00 L

Loan after down payment: ₹40.00 L

Loan Amount ₹40.00 L

₹

₹0 L₹40.00 L

Annual Interest Rate 8.5%

1%30%

Loan Tenure 5 Years

Yrs

1 Yr5 Yrs

Monthly EMI

₹

Principal Amount

₹L

Total Interest

₹L

Total Amount

₹L

Principal vs Interest

Principal: 48% Interest: 52%

Apply Now

Disclaimer: EMI is calculated based on the starting price with a default 20% down payment, 8.5% interest rate, and 5-year tenure. Interest rates typically range from 8.5% to 17%. Users can manually adjust the down payment, interest rate, and tenure to estimate different EMI options. Final loan terms, interest rate, down payment, and eligibility are subject to buyer profile and bank/NBFC approval. EMI shown is indicative only.

ACE FX 250 calculators: on-road price, diesel cost, running cost and buy or hire

On-road price of ACE FX 250: about ₹61.8 lakh in October 2026 — the listed ex-factory ₹ 50 - 52 Lakh plus GST at 18%, first-year insurance (about 2%), registration and road tax (about ₹45,000, varies by state) and handling (about ₹15,000). Change any figure below.

Use the ACE FX 250 on-road price calculator, ACE FX 250 diesel cost calculator, ACE FX 250 owning and operating cost calculator and ACE FX 250 buy or hire calculator below. Each starts from the listed price and typical rates; change any figure you know.

On-road price calculator

Where the numbers come from. Our price data means it is the price listed on the DesiMachines model page (indicative, ex-factory), or the average of the listed prices for that type of machine. Market range means it is a rate the market was quoting in 2025–26. Estimate — check means it is our own working number and we have not confirmed it with a dealer, so treat it as a starting point. Standard factor means a standard engineering value, not a price.

Assumptions used in every tool. GST is 18% on earthmoving machines (HSN 8429); tippers and trucks differ. Machine prices are the indicative ex-factory bands listed on DesiMachines model pages, or the average of listed prices for that type; they are not quotes. First-year insurance is taken as about 2% of the price, registration and road tax as about ₹45,000 (wheeled machines only; crawler machines are not registered), handling as about ₹15,000. Loans assume 20% down, 11% a year and 5 years unless you change them. Diesel is taken at ₹92 a litre and a typical burn for the machine class. Every one of these is a field you can change, and the “What we assumed” list under each result shows what the answer used.

Please read. These calculators give an indicative estimate, not a quote. Prices, hire rates, diesel prices, salaries, taxes and interest rates change by state, by season and by buyer. Loan terms and eligibility depend on your bank or NBFC. Resale figures are a band, not a valuation. Confirm the final numbers with our team, your dealer and your lender before you commit money.

Model prices come from the DesiMachines catalogue as it stands today. Last updated: 14 September 2026.
