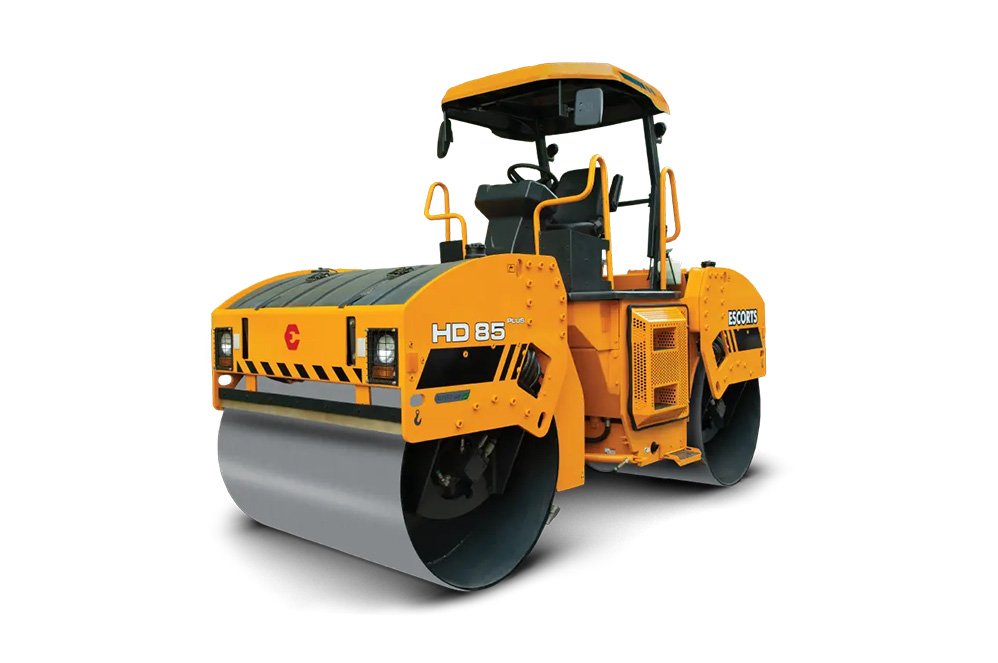

    Escorts HD 85 PLUS Compactor

    The Escorts HD 85 Plus Tandem Roller is engineered for superior compaction efficiency and durability in road construction and infrastructure projects. With a powerful 75 HP engine, around 9,120 kg operating weight, and 1,680 mm drum width, it delivers excellent compaction results. This roller compactor features titable steering for precision, a 160-L fuel tank, and meets CEV Stage-IV/BS emission norms. Built with user-friendly controls and robust build, the HD 85 Plus is a reliable road roller, ideal for asphalt and soil works.

    • Brand

      Escorts Kubota

    • Type

      Tandem Roller

    • Operating Cost

      ₹ 34-36 Lakhs

    • Ex-Showroom Price

      ₹ 34-36 Lakhs

    • icon alt1
      Weight

      9120 kg

    • Drum Width

      1680 mm

    • Engine

      Escorts 75 HP

    • Static Load

      26.6/27.7 kg/cm

    • CF - Hi/Low

      65/59 kN

    • Travel Speed

      0 -13.8 km/hr

    Connect With Us:

    Looking for the best Escorts HD 85 PLUS Tandem Roller price in India? Connect with us today and unlock exclusive offers on this reliable road roller!

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights

    Engine Make

    Escorts E4.346CRS4

    Fuel Tank

    160 L

    Hydraulic Tank

    80 L

    Vibration Frequency

    50/33 Hz

    Nominal Amplitude

    1.0/0.4 mm

    Max Gradeability

    36%

    Steering Angle

    ±30°

    Turning Radius

    6475 mm

    Wheel Base

    2900 mm

    Water Tank

    800 L

    Overall Length

    4175 mm

    Overall Width

    1780 mm

    Overall Height

    3110 mm

    GPS Tracking
    Telematics

    NA

    Medal Image
    Warranty

    1 Year

    Features

    Powerful CEV Stage-IV Engine

    Powerful CEV Stage-IV Engine

    • 75 HP, 4 Cylinder, water-cooled engine complying with CEV Stage-IV emission norms for efficient performance and reliability.

    • Best-in-class fuel economy ensures cost-effective operation across diverse compaction projects.

    • High on performance with low maintenance cost for maximum machine uptime.

    Ergonomic Operator Platform

    Ergonomic Operator Platform

    • Ergonomically designed space enhances operator comfort during long working hours.

    • Foldable 2-post canopy legs enable ease of transportation across job sites.

    • Rotating platform with tiltable steering improves maneuverability and operator convenience.

    • Resilient rubber mounts reduce vibration transfer to operator, ensuring smoother ride.

    Gradeability And Compaction System

    Gradeability And Compaction System

    • High Gradeability makes it versatile for all applications on road projects.

    • Optimised amplitude setting 1.0/0.4 mm with frequency 33/50 Hz ensures uniform compaction.

    • Delay relay avoids sudden impact while switching frequencies during operation.

    • High Kerb clearance provides better road edge compaction.

    Optimum Machine Visibility

    Optimum Machine Visibility

    • 360° visibility around machine ensures maximum safety and productivity.

    • Clear drum edge visibility from operator seat helps in precision compaction.

    • Compact design allows easy navigation and operation in confined areas.

    Reliable Instrument Panel

    Reliable Instrument Panel

    • Dust and weatherproof instrument panel ensures long-lasting durability.

    • IP 67 compliant instrument panel and rocker switches deliver high reliability in tough conditions.

    Efficient Water Sprinkling System

    Efficient Water Sprinkling System

    • Sprinkling nozzles visible from operator seat for better monitoring.

    • Three-stage filtration in sprinkling nozzles prevents clogging and maintains consistent spray.

    • Tongue-type nozzles prevent rusting, enhancing system longevity.

    • Wide flat fan with sharp delimited spray pattern ensures uniform water coverage.

    Powerful CEV Stage-IV Engine

    • 75 HP, 4 Cylinder, water-cooled engine complying with CEV Stage-IV emission norms for efficient performance and reliability.

    • Best-in-class fuel economy ensures cost-effective operation across diverse compaction projects.

    • High on performance with low maintenance cost for maximum machine uptime.

    Ergonomic Operator Platform

    • Ergonomically designed space enhances operator comfort during long working hours.

    • Foldable 2-post canopy legs enable ease of transportation across job sites.

    • Rotating platform with tiltable steering improves maneuverability and operator convenience.

    • Resilient rubber mounts reduce vibration transfer to operator, ensuring smoother ride.

    Gradeability And Compaction System

    • High Gradeability makes it versatile for all applications on road projects.

    • Optimised amplitude setting 1.0/0.4 mm with frequency 33/50 Hz ensures uniform compaction.

    • Delay relay avoids sudden impact while switching frequencies during operation.

    • High Kerb clearance provides better road edge compaction.

    Optimum Machine Visibility

    • 360° visibility around machine ensures maximum safety and productivity.

    • Clear drum edge visibility from operator seat helps in precision compaction.

    • Compact design allows easy navigation and operation in confined areas.

    Reliable Instrument Panel

    • Dust and weatherproof instrument panel ensures long-lasting durability.

    • IP 67 compliant instrument panel and rocker switches deliver high reliability in tough conditions.

    Efficient Water Sprinkling System

    • Sprinkling nozzles visible from operator seat for better monitoring.

    • Three-stage filtration in sprinkling nozzles prevents clogging and maintains consistent spray.

    • Tongue-type nozzles prevent rusting, enhancing system longevity.

    • Wide flat fan with sharp delimited spray pattern ensures uniform water coverage.

    Specifications

    Product specification of Escorts HD 85 PLUS Compactor

    ENGINE

    • Model

      Escorts E4.346CRS4

    • Type

      CEV Stage-IV, 4 Cylinders, Water-cooled

    • Max. Power

      75 HP (55.9 kW) @ 2000 rpm

    • Displacement

      NA

    • Max. Torque

      340 Nm @ 1400 rpm

    • Battery

      12V - 150Ah

    SERVICE CAPACITIES

    • Fuel Tank

      160 L

    • Hydraulic Tank

      80 L

    • Engine Oil

      NA

    • Engine Coolant

      NA

    TRACTION

    • Max. Travel Speed

      0 -13.8 km/hr

    • Max. Working Speed

      0 - 8.5 km/hr

    • Max Gradeability with Vibration

      36%

    VIBRATION SYSTEM

    • Centrifugal Force (High/Low)

      65/59 kN

    • Nominal Amplitude - High/Low

      1.0/0.4 mm

    • Frequency High/Low

      50/33 Hz

    • Vibration Stages

      2

    • Static Linear Load (Front/Rear)

      26.6/27.7 kg/cm

    HYDRAULIC SYSTEM

    • Travel System

      Hydrostatic

    • Vibration System

      NA

    STEERING

    • Type

      Articulated

    • Steering Angle

      ±30°

    • Oscillation

      ±10°

    BRAKES

    • Service

      Hydrostatic

    • Parking

      Spring loaded, hydraulically released (both drums)

    WATER SYSTEM

    • Type

      Pressurized (Double Water Pump)

    • Water Tank

      800 L

    OPERATIONAL DATA

    • Operating Weight

      9120 kg

    • Max. Operating Weight

      NA

    • Front Axle Load

      4470 kg

    • Rear Axle Load

      4650 kg

    DIMENSIONS

    • Wheelbase

      2900 mm

    • Overall Width

      1780 mm

    • Overall Height

      3110 mm

    • Height (Top of Steering)

      2420 mm

    • Overall Length

      4175 mm

    • Drum Width

      1680 mm

    • Drum Diameter

      1200 mm

    • Drum Shell Thickness

      17 mm

    • Ground Clearance

      290 mm

    • Curb Clearance

      730 mm

    • Turning radius, Outside

      6475 mm

    • Turning radius, Inside

      4750 mm

    Frequently Asked Question

    01. What is the price of the Escorts HD 85 PLUS compactor in India?

    Ans.

    The Escorts HD 85 PLUS compactor price in India ranges between ₹ 34 – 36 Lakhs. The final Escorts HD 85 PLUS on-road price in India may vary based on state taxes, dealer location, and optional features.

    02. Where can I buy the Escorts HD 85 PLUS compactor in India?

    Ans.

    You can buy the Escorts HD 85 PLUS Tandem Roller from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the road roller you want, or contact us directly for expert assistance and competitive pricing.

    03. What is the operating weight of the Escorts HD 85 PLUS compactor?

    Ans.

    The operating weight of the Escorts HD 85 PLUS compactor is approximately 9120 kg. The weight may vary slightly depending on specific configurations and attachments.

    04. What is the drum width of the Escorts HD 85 PLUS compactor?

    Ans.

    The drum width of the Escorts HD 85 PLUS compactor is 1680 mm.

    05. What is the engine power of the Escorts HD 85 PLUS compactor?

    Ans.

    The Escorts HD 85 PLUS compactor is powered by an Escorts E4.346CRS4 CEV Stage-IV engine, delivering 75 HP (55.9 kW) @ 2000 RPM.

    06. What is the fuel tank capacity of the Escorts HD 85 PLUS compactor?

    Ans.

    The Escorts HD 85 PLUS has a 160 litres diesel fuel tank, providing extended operation time without frequent refuelling.

    07. What is the turning radius of the Escorts HD 85 PLUS compactor?

    Ans.

    The Escorts HD 85 PLUS compactor has a turning radius of 6475 mm outer and 4750 mm inner.

    08. What type of steering is used in the Escorts HD 85 PLUS compactor?

    Ans.

    The Escorts HD 85 PLUS tandem roller uses articulated steering.

    09. What is the warranty period of the Escorts HD 85 PLUS compactor?

    Ans.

    The Escorts HD 85 PLUS compactor typically comes with a 1-year standard warranty. The warranty covers defects from faulty materials or workmanship, but terms may vary. For accurate details, check with authorized dealers, OEMs, or visit the official brand website.

    10. Where can I find spare parts for the Escorts HD 85 PLUS compactor?

    Ans.

    You can find genuine spare parts for the Escorts HD 85 PLUS compactor at authorized Escorts dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers and assist you in getting the best deals based on your location. Fill out the form now to get the best offers on compactor spare parts.
