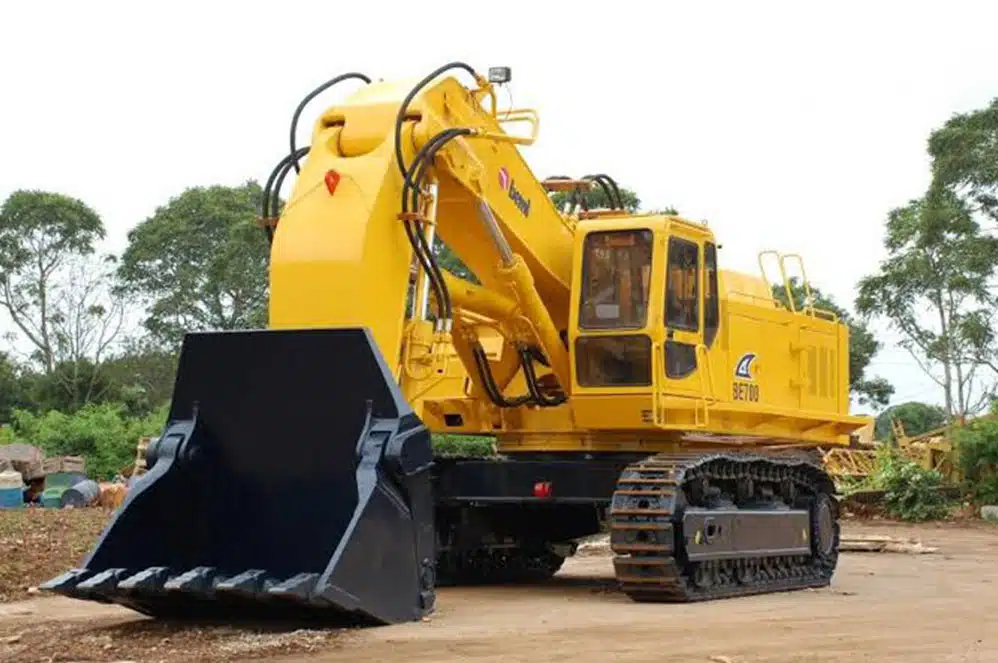

BEML BE700 Excavator

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
BEML
Type
Extra-Large (>50 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
69500 Kg
Bucket
4.5 m³
Digging Depth
8070 mm
Engine
BEML 415 HP
Warranty
1 Yr. / 2500 hr.
Boom
7100 mm

Quick Overview:

Being an extra-large excavator, BEML BE700 delivers powerful performance and ensures longevity for large-scale mining and earthmoving.

Connect With Us:

Get the best price for the BEML BE700 Extra-Large Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

BEML BSA6D140-1

Fuel Tank

740 L

Engine Displacement

15.246 L

Under Carriage

Hydraulic System

2 x 420 L/min

Arm

2870 mm

Max Digging Reach

12080 mm

Fuel Consumption

Overall Width

3910 mm

Overall Length

12880 mm

Bucket Digging Force

297 kN

Tailswing Radius

4100 mm

Track Shoe Width

610 mm

AC Cabin

Optional

GPS

Not Available

Features

Efficient Hydraulic System Design

Three pump hydraulic systems which consists of independently controlled variable capacity axial piston pumps for implements and closed loop swing, not only assures smooth compound movements of the work equipment, but also shortens cycle time.
Three pump hydraulic systems which consists of independently controlled variable capacity axial piston pumps for implements and closed loop swing, not only assures smooth compound movements of the work equipment, but also shortens cycle time.

Powerful, Economical Engine

BEML BSA6D140-1 diesel engine delivers 415 HP. A direct injection combustion system and the power-efficient Positive control hydraulic system make the BE700 a real miser when it comes to fuel consumption.

Effort-free Operation & Operator Comfort

Work equipment controls are simple and feather-touch due to the hydraulically assisted control system.
Newly designed operator's compartment offers ample work space and excellent visibility.

Maximum Working Performance:

Three mode selection system viz. Electronic Standard and Medium-duty modes S&L for high excavation efficiency and non-electronic mode M for light-duty operations.
Swing holding brake facilitates smooth lifting operation on an incline. The positive control and closed loop swing system gives maximum hydraulic efficiency.
The auto boom float and regeneration reduces the fuel consumption and avoid cavitation’s. The Boom, Arm and Bucket merge circuits and smooth compound travel and work equipment movement boosts productivity.
Wide working range and larger undercarriage assures stable operation for maximum working performance.

High Total Reliability and Durability

Grease bathed swing pinion, sealed hinge pins on all joint section, floating seals on all rollers, tough undercarriages use job-proven bulldozer components. The BEML quality controls system is a real winner of the reliable and durable BE700.
The BEML quality controls system is a real winner of the reliable and durable BE700.

Easy Maintenance

With a centralized monitoring system within the operator's cab, the operator can instantly check machine conditions. The top cover of the machine cab can be opened easily with the aid of a torsion bar, allowing quick access to internal components.
Centralized grease points for the work equipment makes lubrication easy with grease gun.

Efficient Hydraulic System Design

Three pump hydraulic systems which consists of independently controlled variable capacity axial piston pumps for implements and closed loop swing, not only assures smooth compound movements of the work equipment, but also shortens cycle time.
Three pump hydraulic systems which consists of independently controlled variable capacity axial piston pumps for implements and closed loop swing, not only assures smooth compound movements of the work equipment, but also shortens cycle time.

Powerful, Economical Engine

BEML BSA6D140-1 diesel engine delivers 415 HP. A direct injection combustion system and the power-efficient Positive control hydraulic system make the BE700 a real miser when it comes to fuel consumption.

Effort-free Operation & Operator Comfort

Work equipment controls are simple and feather-touch due to the hydraulically assisted control system.
Newly designed operator's compartment offers ample work space and excellent visibility.

Maximum Working Performance:

Three mode selection system viz. Electronic Standard and Medium-duty modes S&L for high excavation efficiency and non-electronic mode M for light-duty operations.
Swing holding brake facilitates smooth lifting operation on an incline. The positive control and closed loop swing system gives maximum hydraulic efficiency.
The auto boom float and regeneration reduces the fuel consumption and avoid cavitation’s. The Boom, Arm and Bucket merge circuits and smooth compound travel and work equipment movement boosts productivity.
Wide working range and larger undercarriage assures stable operation for maximum working performance.

High Total Reliability and Durability

Grease bathed swing pinion, sealed hinge pins on all joint section, floating seals on all rollers, tough undercarriages use job-proven bulldozer components. The BEML quality controls system is a real winner of the reliable and durable BE700.
The BEML quality controls system is a real winner of the reliable and durable BE700.

Easy Maintenance

With a centralized monitoring system within the operator's cab, the operator can instantly check machine conditions. The top cover of the machine cab can be opened easily with the aid of a torsion bar, allowing quick access to internal components.
Centralized grease points for the work equipment makes lubrication easy with grease gun.

Specifications

Product specification of BEML BE700 Excavator

ENGINE

Model

BEML BSA6D140-1
Fuel

Diesel
Type

6 Cylinders, 4 Stroke, Water Cooled, Turbo Charged, After Cooled Direct Injection
Rated Engine Power

415 HP (309 kW) @ 1800 rpm
Maximum Torque

1804 Nm @ 1400 rpm
Piston Displacement

15.246 L
Alternator

24 V, 100 V
Battery

2 x 12 V, 200 Ah
Starting Motor

24 V - 7.5 kW

UNDERCARRIAGE

No of Top Rollers

3
No of Bottom Rollers

8
Track Shoes (Each Side)

47
Track Guard

NA
Track Shoe Width

610 mm
Ground Bearing Pressure

104.8 kPA
Track Tensioning

Grease
Gradeability

NA
Travel Speed-Low

2.7 Km/h
Travel Speed-High

4.6 Km/h
Max Tracking Force

549 kN

HYDRAULIC SYSTEM

Hydraulic Pump

Variable Capacity Displacement Piston Pumps with positive control
Maximum Flow

2 x 420 L/min
Pilot Pump

Gear Pump
Implement Circuit

31.38 MPa
Swing Circuit

29.42 MPa
Travel Circuit

26.96 MPa
Pilot Circuit

3.43 MPa

HYDRAULIC MOTORS

Travel

4 Axial Piston Variable Displacement Motors with counter balance valves (two each side)
Swing

1 Axial Piston Fixed Displacement Motor with flushing valve for closed loop

SERVICE CAPACITIES

Fuel Tank

740 L
Engine Coolant

147 L
Engine Oil

50 L
Hydraulic System

NA
Hydraulic Tank

480 L

MACHINE WEIGHTS

Operating Weight

69500 Kg

WORKING RANGE

Boom Length

7100 mm
Arm Length

2870 mm
Max. Digging Reach

12080 mm
Max. Digging Reach on Ground

11800 mm
Max. Digging Depth

8070 mm
Max. Digging Height

11040 mm
Max. Dumping Height

7300 mm
Max. Vertical Wallcut Depth

8070 mm
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

297 kN
Arm Digging Force

291.8 KN
Swing Speed

7.5 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

4.5 m³

STATIC DIMENSIONS

Overall Length

12880 mm
Overall Width

3910 mm
Overall Height

4910 mm
Overall Height of Cab

3600 mm
Upper Width

3280 mm
Track Lengh on Ground

4500 mm
Undercarriage Overall Length

NA
Tailswing Radius

4100 mm
Min. Ground Clearance

880 mm
Track Gauge

3300 mm
Width Over Tracks

3910 mm
Track Height

1420 mm
Counterweight Clearence

1550 mm
Track Shoe Width

610 mm

Frequently Asked Question

01. What is the BEML BE700 Excavator price in India?

Ans.

The exact BEML BE700 Excavator price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the excavator.

02. Where can I buy a BEML BE700 excavator?

Ans.

You can buy the BEML BE700 excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the BEML BE700 Excavator come with financing and insurance options?

Ans.

Yes, the BEML BE700 comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the BEML BE700 excavator?

Ans.

The operating weight of the BEML BE700 excavator is approximately 69500 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the BEML BE700 excavator?

Ans.

The BEML BE700 excavator is powered by a BEML BSA6D140-1 engine, delivering 415 HP (309 kW) at 1800 rpm.

06. What is the maximum digging depth of the BEML BE700 excavator?

Ans.

The BEML BE700 excavator has a maximum digging depth of 8070 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the BEML BE700 Excavator?

Ans.

The bucket capacity of the BEML BE700 Excavator is 4.5 cubic meters (m³).

08. What is the warranty period for the BEML BE700 excavator?

Ans.

The BEML BE700 Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the BEML BE700 excavator?

Ans.

You can find genuine spare parts for the BEML BE700 excavator at authorized BEML dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the BEML BE700 Excavator?

Ans.

The BEML BE700 excavator has a 740 litres diesel fuel tank, providing extended operation time without frequent refueling.
