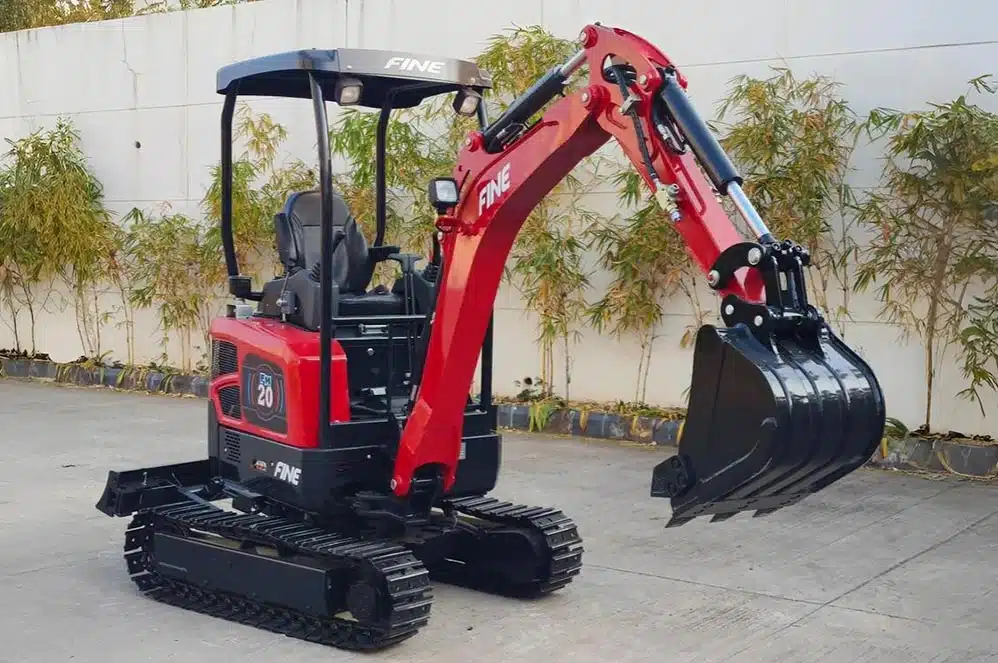

Fine FM20 Excavator

Name: Fine FM20 Excavator
Brand: Fine
Price: 2100000 INR
Rating: 4.2 (59 reviews)

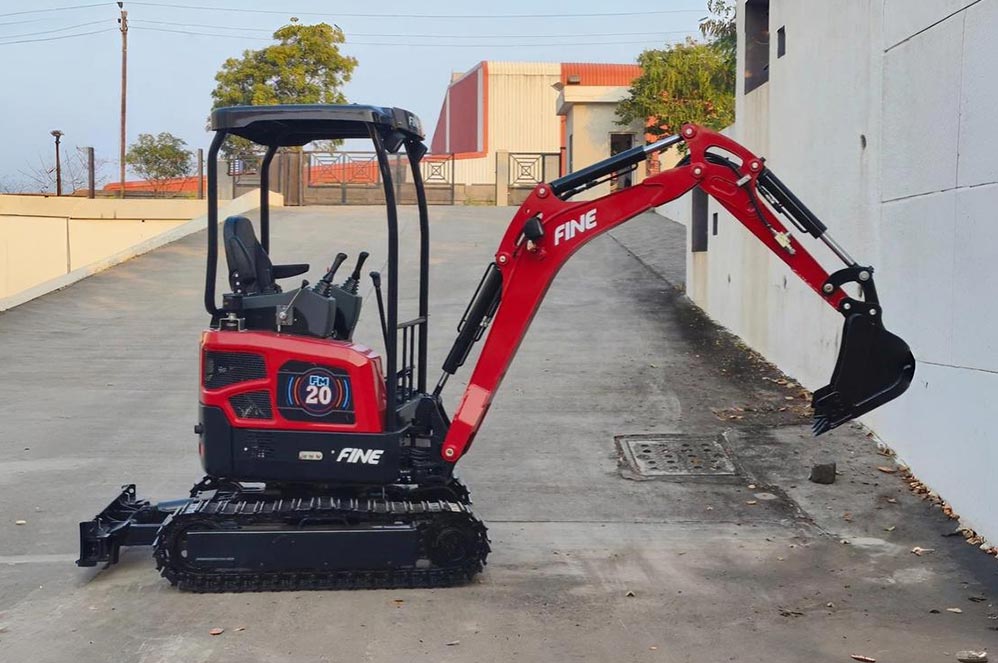

desi-machines-mini-excavator-fine-fm20-1

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Fine
Type
Mini (0-6 Ton)
Operating Cost
₹ 21 -22 Lakhs
Ex-Showroom Price
₹ 21 -22 Lakhs

Weight
2000 Kg
Bucket
0.07 m³
Digging Depth
2400 mm
Engine
Kubota 19 HP
Warranty
1 Yr. / 1000 hr.
Boom
1850 mm

Quick Overview:

The Fine FM20 mini excavator is a compact yet powerful 2-ton machine, ideal for navigating tight spaces. It offers efficient performance for various construction and landscaping tasks.

Connect With Us:

Get the best price for the Fine FM28 mini Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Kubota D1105

Fuel Tank

17 L

Engine Displacement

Under Carriage

1610 mm

Hydraulic System

39.6 L/min + 8.8 L/min

Arm

950 mm

Max Digging Reach

4040 mm

Fuel Consumption

3-5 L/hour

Overall Width

990 mm / 1300 mm

Overall Length

3555 mm

Bucket Digging Force

18 kN

Tailswing Radius

650 mm

Track Shoe Width

230 mm

AC Cabin

Not Available

GPS

Not Available

Features

Ultra-Compact Design

Extremely narrow width of just 990mm allows access through doorways and tight spaces.
True zero-tail swing design ensures safe operation in confined urban environments and along walls.
Lightweight and easily maneuverable, making it ideal for navigating complex job sites.
Perfect for indoor demolition, landscaping in small gardens, and utility work in congested areas.

Powerful & Fuel-Efficient Engine

Equipped with a robust and reliable 19 HP Kubota diesel engine delivering consistent power.
Impressive 18 kN bucket digging force tackles tough soil and materials with ease.
Achieves a maximum digging depth of 2.4 meters, suitable for various excavation tasks.
Engineered for fuel efficiency, reducing operational costs and environmental impact.

Versatile Attachment Compatibility

Capable of handling a wide range of tasks, including trenching, excavation, and landscaping.
Pre-fitted with hydraulic lines and quick couplers for easy attachment changes.
Seamlessly integrates with various hydraulic attachments like breakers for demolition.
Also compatible with augers for drilling and grapplers for material handling.

Operator-Focused Comfort

Offers an optional spacious and comfortable cabin, prioritizing operator well-being during long hours.
Features an intuitive, automotive-style control layout for easy and quick familiarization.
Ergonomically designed hydraulic control levers provide precise and smooth operation.
Minimizes operator fatigue, leading to increased productivity and safer operation.

Robust Construction & Durability

Built with a heavy-duty steel structure, ensuring exceptional durability and a long service life.
Utilizes reliable and high-quality hydraulic and mechanical components for consistent performance.
Features easily accessible service points, simplifying routine maintenance procedures.
Designed for minimal downtime, maximizing operational efficiency and reducing maintenance expenses.

Adjustable Features for Enhanced Stability

Incorporates a hydraulically expandable track width, adjustable from 990mm to 1300mm.
The expandable tracks provide significantly increased stability when working on uneven or sloping terrain.
Comes equipped with a robust and efficient hydraulic dozer blade for leveling and backfilling tasks.
Offers enhanced flexibility and adaptability to a wider range of job site conditions and requirements.

Ultra-Compact Design

Extremely narrow width of just 990mm allows access through doorways and tight spaces.
True zero-tail swing design ensures safe operation in confined urban environments and along walls.
Lightweight and easily maneuverable, making it ideal for navigating complex job sites.
Perfect for indoor demolition, landscaping in small gardens, and utility work in congested areas.

Powerful & Fuel-Efficient Engine

Equipped with a robust and reliable 19 HP Kubota diesel engine delivering consistent power.
Impressive 18 kN bucket digging force tackles tough soil and materials with ease.
Achieves a maximum digging depth of 2.4 meters, suitable for various excavation tasks.
Engineered for fuel efficiency, reducing operational costs and environmental impact.

Versatile Attachment Compatibility

Capable of handling a wide range of tasks, including trenching, excavation, and landscaping.
Pre-fitted with hydraulic lines and quick couplers for easy attachment changes.
Seamlessly integrates with various hydraulic attachments like breakers for demolition.
Also compatible with augers for drilling and grapplers for material handling.

Operator-Focused Comfort

Offers an optional spacious and comfortable cabin, prioritizing operator well-being during long hours.
Features an intuitive, automotive-style control layout for easy and quick familiarization.
Ergonomically designed hydraulic control levers provide precise and smooth operation.
Minimizes operator fatigue, leading to increased productivity and safer operation.

Robust Construction & Durability

Built with a heavy-duty steel structure, ensuring exceptional durability and a long service life.
Utilizes reliable and high-quality hydraulic and mechanical components for consistent performance.
Features easily accessible service points, simplifying routine maintenance procedures.
Designed for minimal downtime, maximizing operational efficiency and reducing maintenance expenses.

Adjustable Features for Enhanced Stability

Incorporates a hydraulically expandable track width, adjustable from 990mm to 1300mm.
The expandable tracks provide significantly increased stability when working on uneven or sloping terrain.
Comes equipped with a robust and efficient hydraulic dozer blade for leveling and backfilling tasks.
Offers enhanced flexibility and adaptability to a wider range of job site conditions and requirements.

Specifications

Product specification of Fine FM20 Excavator

ENGINE

Model

Kubota D1105
Fuel

Diesel
Type

NA
Rated Engine Power

19 HP (14.2 kW) @ 2200 rpm
Maximum Torque

NA
Piston Displacement

NA
Alternator

NA
Battery

12V
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

NA
No of Bottom Rollers

NA
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

230 mm
Ground Bearing Pressure

NA
Track Tensioning

Grease
Travel Speed-Low

2.4 km/h
Travel Speed-High

3.6 km/h
Gradeability

NA
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

Piston Pump
Maximum Flow

39.6 L/min + 8.8 L/min
Pilot Pump

NA
Implement Circuit

21.5 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

Piston pump with reducer.
Swing

Orbit Type

SERVICE CAPACITIES

Fuel Tank

17 L
Engine Coolant

8 L
Engine Oil

5.1 L
Hydraulic System

17 L
Hydraulic Tank

18 L

MACHINE WEIGHTS

Operating Weight

2000 Kg

WORKING RANGE

Boom Length

1850 mm
Arm Length

950 mm
Max. Digging Reach

4040 mm
Max. Digging Reach on Ground

NA
Max. Digging Depth

2400 mm
Max. Digging Height

3655 mm
Max. Dumping Height

2420 mm
Max. Vertical Wallcut Depth

2025 mm
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

18 kN
Arm Digging Force

11 kN
Swing Speed

NA

DOZER BLADE

Dozer Type

Hydraulic Lifiting Type
Dozer Length

NA
Digging Depth for Ground Level

270 mm
Vertical Lift from Ground level

305 mm
Approach Angle

NA
Width

990-1300 mm
Height

240 mm

BUCKET

Bucket Capacity

0.07 m³

STATIC DIMENSIONS

Overall Length

3555 mm
Overall Width

990 mm / 1300 mm
Overall Height

2350 mm
Overall Height of Cab

NA
Upper Width

NA
Track Length on Ground

1230 mm
Undercarriage Overall Length

1610 mm
Tailswing Radius

650 mm
Min. Ground Clearance

175 mm
Track Gauge

NA
Width Over Tracks

990 mm
Track Height

NA
Counterweight Clearence

NA
Track Shoe Width

230 mm

Frequently Asked Question

01. What is the Fine FM20 Mini Excavator price in India?

Ans.

The Fine FM20 Mini Excavator price in India ranges between ₹ 21 – 22 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features

02. Where can I buy a Fine FM20 Mini Excavator?

Ans.

You can buy the Fine FM20 Mini Excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Fine FM20 Mini Excavator come with financing and insurance options?

Ans.

Yes, the Fine FM20 Mini Excavator comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Fine FM20 Mini Excavator?

Ans.

The Fine FM20 Mini Excavator’s operating weight is approximately 2000 Kg. However, the weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Fine FM20 Mini Excavator?

Ans.

The Fine FM20 Mini Excavator is powered by a Kubota D1105 diesel engine, delivering 19 HP (14.2 kW) at 2200 rpm.

06. What is the maximum digging depth of the Fine FM20 Mini Excavator?

Ans.

The Fine FM20 Mini Excavator has a maximum digging depth of 2400 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Fine FM20 Mini Excavator?

Ans.

The bucket capacity of the Fine FM20 Mini Excavator is 0.07 cubic meters (m³).

08. What is the warranty period for the Fine FM20 Mini Excavator?

Ans.

The Fine FM20 Mini Excavator in India typically comes with a standard warranty of 1 year or 1000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Fine FM20 Mini Excavator?

Ans.

You can find genuine spare parts for the Fine FM20 Mini Excavator at authorized Fine Equipment dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Fine FM20 Mini Excavator?

Ans.

The Fine FM20 Mini Excavator has a 17-litre diesel fuel tank, which provides extended operation time without frequent refueling.

11. What is the mileage of the Fine FM20 Mini Excavator?

Ans.

The Fine FM20 Mini Excavator has an average fuel consumption of 3-5 litres per hour, depending on factors such as load, terrain, and operating conditions.
