Sany SY155W Excavator

Name: Sany SY155W Excavator
Brand: SANY
Price: 9000000 INR
Rating: 4.4 (67 reviews)

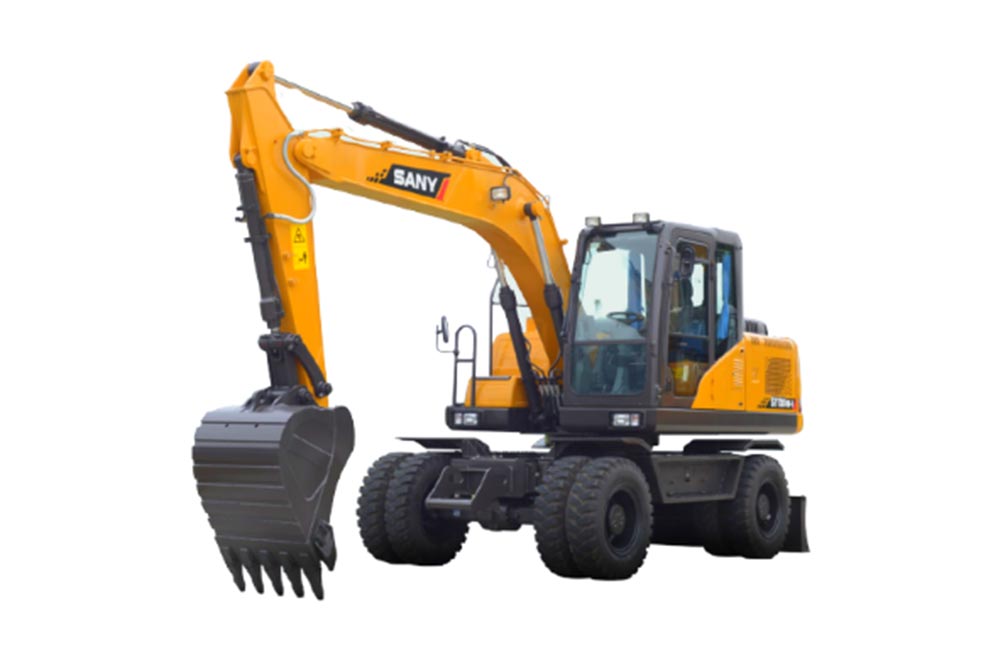

Powerful and efficient, the Sany SY155W Wheel Excavator delivers superior performance, mobility, and versatility for urban construction projects.

Sany SY155W Excavator | Sany Wheel Excavator

desi-machines-sany-sy155w-wheel-excavator-1

Brand
SANY
Type
Wheel Excavator
Operating Cost
₹ 90 - 92 Lakhs
Ex-Showroom Price
₹ 90 - 92 Lakhs

Weight
13500 Kg
Bucket
0.58 m³
Digging Depth
4800 mm
Engine
Isuzu 161 HP
Warranty
1 Yr. / 2500 hr.
Boom
4600 mm

Connect With Us:

Get the best price for the Sany SY155W Wheel Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

Isuzu 4HK1

Fuel Tank

260 L

Engine Displacement

4.5 L

Wheel Base

2800 mm

Hydraulic System

250 L/min

Arm

2100 mm

Max Digging Reach

7960 mm

Fuel Consumption

6-10 L/hour

Overall Width

2490 mm

Overall Length

7690 mm

Bucket Digging Force

102.3 kN

Tailswing Radius

2310 mm

Tread Gauge

1944 mm

AC Cabin

Standard

GPS

Standard

Features

Excellent Performance

SY155W wheeled excavator comes with an operating weight of 14 Ton & Flat bottom profile dozer blade, which are specially designed for enhanced stability. Large bucket capacity, high pay-loads & rapid working cycles satisfy all requirements for efficient site operations. Optimum engine power can be utilized by a unique 2 stage engine automatic idling function along with the advanced hydraulic system, Sany specially designed DOMCS to improve the fuel efficiency. Boom priority system & hydraulic regeneration system helps to increase the overall implement cycle time during bulk digging & loading applications. High travel speed leads to quick mobility and faster job completion.

High on Reliability

SANY SY155W wheeled excavator is already proven in various application segments like crusher, road, infrastructure projects, etc while delivered an excellent performance in terms of high reliability & adaptability. The robust upper & lower structure can endure external shock & heavy workloads for longer hours. Reinforcements on boom foot, center & base end minimize abrasion to ensures high life of boom & arm. All side reinforced heavy-duty type robust bucket manufactured with high-grade steel plates to ensures longer bucket service life. Single piece forged swing ring body design makes the undercarriage stronger in terms of higher load-bearing capacity & prevents damage while working in heavy-duty applications

High on Serviceability

SANY’s SY155W is designed with user-friendly serviceability to ensure quick & easy maintenance for enhanced machine uptime. All Filters are located in centralized locations, where they can be easily accessed and replaced. It reduces machine downtime & keeps your machine more productive. Centralized greasing points on the machine give easy access during greasing operation which ensures high machine uptime. High efficient air pre-filtration enhances the service life of air filters & offers an enhanced engine service life

High on Operator Comfort

SANY wheeled excavator cab comes with generous dimension & an ergonomic design. The operator’s seat is individually adjustable & Overall visibility is more as compared to rivalrous due to single piece RH window & transparent roof cover. Auto Climate Control AC as standard for keeping optimum cab temperature with fresh air. Thin & effortless joysticks give a smooth operation experience to the operator for working longer hours. A perfectly positioned large & informative LCD colour display provides a fast & uncomplicated interface between the machine & the operator which delivers peace of mind operation.

High on Safety

In addition to the performance & efficiency, SY155W wheeled excavator comes with excellent safety of personnel & the machine. Operator safety improved by offering FOPS complied cabin with optional front & top guards. specially designed heavy-duty under covers & belly guards as standard to protect hydraulic components from damages. Operator safety is taken care of by offering key features as standard like, seat belt, fire extinguisher, Emergency window, hydraulic accumulator, hydraulic lock engine anti-starting system, Hydraulic isolation switch, etc.

Better Machine Monitoring System (EVI)

SY155W wheeled excavator comes with an advanced telematics system, which enables the user to easily monitor various machine operating parameters like, Real-time machine location, daily machine utilization, Independent usage tracking of Travel, swing & attachment, Machine maintenance & diagnostic information, and many more such valuable information which help the Customers to easily manage their fleet on a fingertip.

Excellent Performance

SY155W wheeled excavator comes with an operating weight of 14 Ton & Flat bottom profile dozer blade, which are specially designed for enhanced stability. Large bucket capacity, high pay-loads & rapid working cycles satisfy all requirements for efficient site operations. Optimum engine power can be utilized by a unique 2 stage engine automatic idling function along with the advanced hydraulic system, Sany specially designed DOMCS to improve the fuel efficiency. Boom priority system & hydraulic regeneration system helps to increase the overall implement cycle time during bulk digging & loading applications. High travel speed leads to quick mobility and faster job completion.

High on Reliability

SANY SY155W wheeled excavator is already proven in various application segments like crusher, road, infrastructure projects, etc while delivered an excellent performance in terms of high reliability & adaptability. The robust upper & lower structure can endure external shock & heavy workloads for longer hours. Reinforcements on boom foot, center & base end minimize abrasion to ensures high life of boom & arm. All side reinforced heavy-duty type robust bucket manufactured with high-grade steel plates to ensures longer bucket service life. Single piece forged swing ring body design makes the undercarriage stronger in terms of higher load-bearing capacity & prevents damage while working in heavy-duty applications

High on Serviceability

SANY’s SY155W is designed with user-friendly serviceability to ensure quick & easy maintenance for enhanced machine uptime. All Filters are located in centralized locations, where they can be easily accessed and replaced. It reduces machine downtime & keeps your machine more productive. Centralized greasing points on the machine give easy access during greasing operation which ensures high machine uptime. High efficient air pre-filtration enhances the service life of air filters & offers an enhanced engine service life

High on Operator Comfort

SANY wheeled excavator cab comes with generous dimension & an ergonomic design. The operator’s seat is individually adjustable & Overall visibility is more as compared to rivalrous due to single piece RH window & transparent roof cover. Auto Climate Control AC as standard for keeping optimum cab temperature with fresh air. Thin & effortless joysticks give a smooth operation experience to the operator for working longer hours. A perfectly positioned large & informative LCD colour display provides a fast & uncomplicated interface between the machine & the operator which delivers peace of mind operation.

High on Safety

In addition to the performance & efficiency, SY155W wheeled excavator comes with excellent safety of personnel & the machine. Operator safety improved by offering FOPS complied cabin with optional front & top guards. specially designed heavy-duty under covers & belly guards as standard to protect hydraulic components from damages. Operator safety is taken care of by offering key features as standard like, seat belt, fire extinguisher, Emergency window, hydraulic accumulator, hydraulic lock engine anti-starting system, Hydraulic isolation switch, etc.

Better Machine Monitoring System (EVI)

SY155W wheeled excavator comes with an advanced telematics system, which enables the user to easily monitor various machine operating parameters like, Real-time machine location, daily machine utilization, Independent usage tracking of Travel, swing & attachment, Machine maintenance & diagnostic information, and many more such valuable information which help the Customers to easily manage their fleet on a fingertip.

Specifications

Product specification of Sany SY155W Excavator

ENGINE

Model

Isuzu 4HK1
Fuel

Diesel
Rated Engine Power

160 HP (120 kW) @ 2000 rpm
Engine Displacement

4.5 L

SPEED

Travel Speed - High

37 km/h
Travel Speed - Low

10 km/h

HYDRAULIC SYSTEM

Maximum Flow

250 L/min

SERVICE CAPACITIES

Fuel Tank

260 L

MACHINE WEIGHTS

Operating Weight

13500 Kg

WORKING RANGE

Boom Length

4600 mm
Arm Length

2100 mm
Max. Digging Reach

7960 mm
Max. Digging Reach on Ground

7750 mm
Max. Digging Depth

4800 mm
Max. Digging Height

8600 mm
Max. Tipping Height

6800
Max. Dumping Height

3200 mm
Max. Vertical Wallcut Depth

4390 mm
Min. Swing Radius

2400 mm
Bucket Digging Force

102.3 kN
Arm Digging Force

75.2 kN
Swing Speed

12.3 rpm
Gradeability

70% (35°)

BUCKET

Bucket Capacity

0.58 m³

STATIC DIMENSIONS

Overall Length

7690 mm
Overall Width

2490 mm
Overall Height

3610 mm
Overall Height of Cab

3200 mm
Tailswing Radius

2310 mm
Min. Ground Clearance

360 mm
Track Gauge

1944 mm
Wheelbase

2800 mm
Counterweight Clearence

1230 mm
Tread Gauge

1944 mm
Dozer Blade

2490 mm

Frequently Asked Question

01. What is the Sany SY155W Wheel Excavator price in India?

Ans.

The Sany SY155W wheel excavator price in India ranges between ₹ 90 – 92 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

02. Where can I buy a Sany SY155W Wheel Excavator?

Ans.

You can buy the Sany SY155W wheel excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Sany SY155W Wheel Excavator come with financing and insurance options?

Ans.

Yes, the Sany SY155W comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Sany SY155W Wheel Excavator?

Ans.

The operating weight of the Sany SY155W Wheel Excavator is approximately 13500 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Sany SY155W Wheel Excavator?

Ans.

The Sany SY155W Wheel Excavator is powered by a Isuzu 4HK1 diesel engine, delivering 160 HP (120 kW) at 2000 rpm.

06. What is the maximum digging depth of the Sany SY155W Wheel Excavator?

Ans.

The Sany SY155W Wheel Excavator has a maximum digging depth of 4800 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Sany SY155W Wheel Excavator?

Ans.

The bucket capacity of the Sany SY155W Wheel Excavator is 0.58 cubic meters (m³).

08. What is the warranty period for the Sany SY155W Wheel Excavator?

Ans.

The Sany SY155W Wheel Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Sany SY155W Wheel Excavator?

Ans.

You can find genuine spare parts for the Sany SY155W Wheel Excavator at authorized Sany dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Sany SY155W Wheel Excavator?

Ans.

The Sany SY155W Wheel Excavator has a 260 litres diesel fuel tank, providing extended operation time without frequent refueling.

11. What is the mileage of the Sany SY155W Wheel Excavator?

Ans.

The Sany SY155W Wheel Excavator has an average fuel consumption of 6-10 litres per hour, depending on factors such as load, terrain, and operating conditions

12. Is the SANY SY155W suitable for urban construction projects?

Ans.

Yes, its compact design, wheeled mobility, and high efficiency make it ideal for urban infrastructure, roadworks, and municipal applications.

13. Does the SY155W come with hydraulic attachments?

Ans.

Yes, it supports a range of hydraulic attachments such as breakers, augers, and grapples, enhancing versatility on the job site.

Are you interested in buying Sany SY155W Excavator

About Sany

SANY Heavy Industry India Pvt Ltd which was founded in December 2002, is a wholly owned subsidiary of SANY Heavy Industry Co Ltd, China, with a manufacturing facility in Chakan, Pune, and a leader in the construction equipment industry. Sany India provides an excellent selection of products such as excavators, cranes, aerial work platforms, road machinery, material handling, and mining equipment, with a strong focus on infrastructure development projects nationwide. Known for development and unwavering quality, Sany India underscores sustainability, client-driven benefits, and cutting-edge innovation to drive modern advancement.
