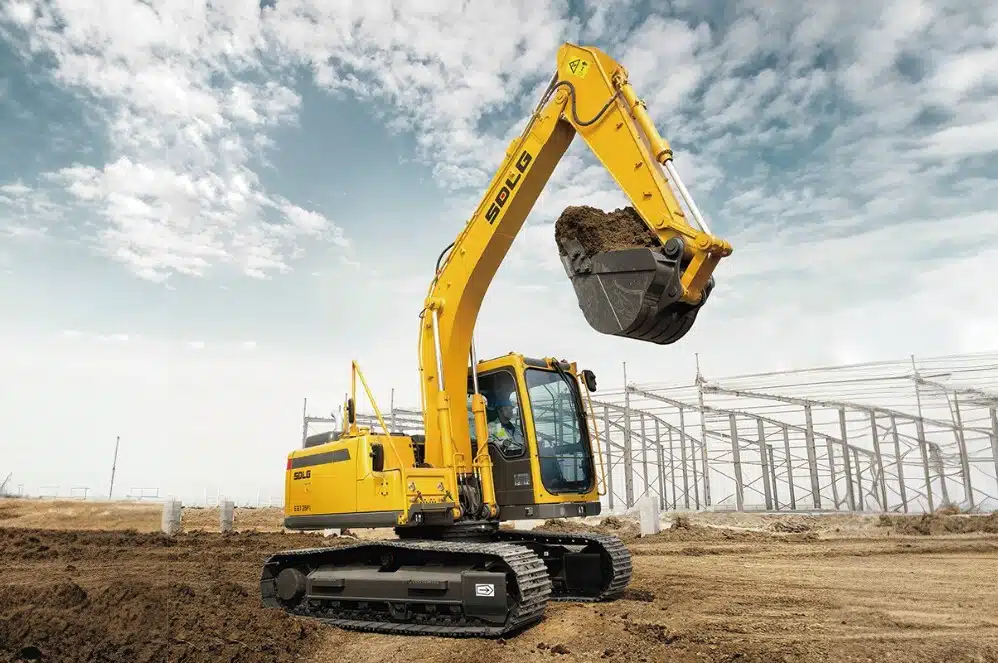

SDLG E6135Fi Excavator

Name: SDLG E6135Fi Excavator
Brand: SDLG
Rating: 4.4 (65 reviews)

SDLG E6135Fi 13-ton excavator has a powerful DDE engine, energy-saving hydraulics, and ECU control. It achieves efficient fuel economy while reducing noise and emissions.

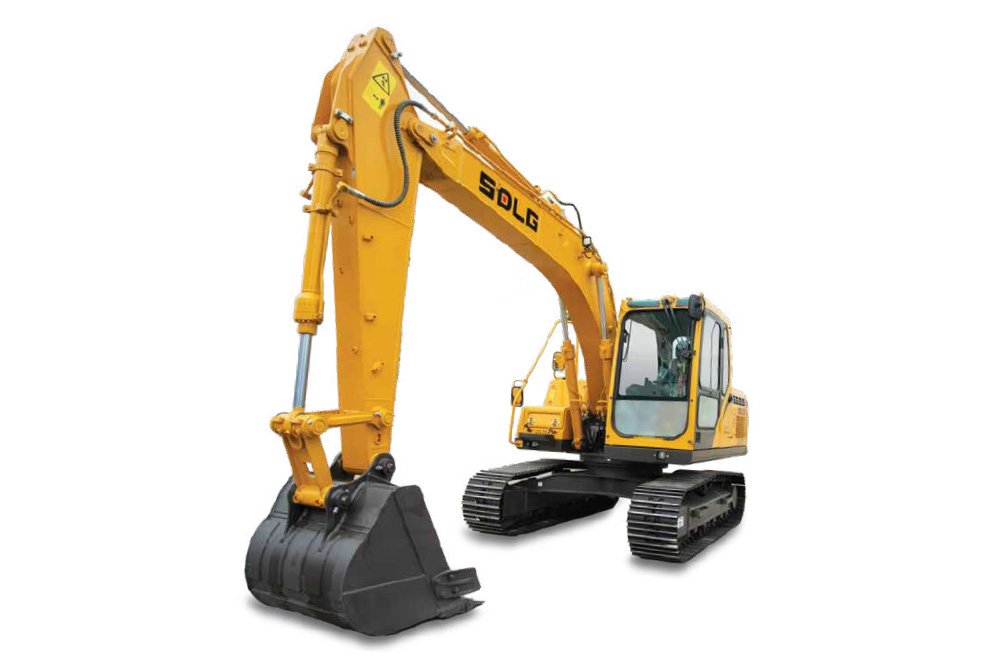

desi-machines-sdlg-e6135fi-excavator-gallery-1

Brand
SDLG
Type
Small (6-15 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
125000 kg
Bucket
0.55 m³
Digging Depth
5060 mm
Engine
DDE 100 HP
Warranty
1 Yr. / 2000 hr.
Boom
4260 mm

Connect With Us:

Get the best price for the SDLG E6135Fi Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

Duetz BF4M2012- 10T3R-8124

Fuel Tank

260 L

Engine Displacement

4.0 L

Under Carriage

3440 mm

Hydraulic System

2 x 110 +20 l/min

Arm

2315 mm

Max Digging Reach

7790 mm

Fuel Consumption

10.27-12.3 L/hour

Overall Width

2490 mm

Overall Length

7340 mm

Bucket Digging Force

85 kN

Tailswing Radius

2200 mm

Track Shoe Width

500 mm

AC Cabin

Standard

GPS

Standard

Features

High-Performance Engine Power

Powered by a 101 hp Dalian Duetz turbocharged engine @ 2000 rpm, delivering reliable performance in heavy-duty excavation.
Strong 425 Nm torque @ 1500 rpm ensures effortless digging, loading, and lifting across tough terrains.
Turbocharger with intercooler provides better combustion efficiency, reducing fuel consumption and emissions.
Multi-stage air and fuel filtration protects engine from dust and impurities, extending service life.
Pre-heater feature ensures quick starts in cold weather, minimizing downtime on-site.
Automatic idling system reduces unnecessary fuel use, improving operational economy.

Advanced Hydraulic Efficiency

Equipped with double pump negative flow control system for smooth and responsive hydraulic performance.
Maximum flow of 2 × 110 + 20 l/min ensures seamless multi-function operations without performance drop.
Load-sensing hydraulics deliver precise oil flow, enhancing fuel savings and machine efficiency.
Boom/arm/swing priority improves digging cycle times, increasing overall job site productivity.
Cushioning in cylinders minimizes vibration, extending machine durability and operator comfort.
Multi-stage hydraulic filtration maintains clean oil, preventing wear and reducing maintenance costs.

Durable Undercarriage Strength

12,500 kg operating weight ensures stability during heavy excavation and lifting tasks.
Strong “X”-shaped undercarriage frame provides balanced weight distribution on uneven terrain.
500 mm triple grouser track shoes offer better grip for challenging ground conditions.
Reinforced rollers and sealed track links enhance durability in high-impact environments.
35% gradeability ensures reliable climbing ability on steep or uneven job sites.
Centralized lubrication posts simplify maintenance, reducing service downtime.

Comfortable Operator Environment

Spacious cabin with suspension seat and seatbelt reduces fatigue during long work hours.
Air conditioning system maintains comfort in hot or humid climates across India.
Ergonomic joysticks and dual armrests provide precise control with less operator strain.
Sliding windscreen improves visibility and airflow, enhancing operator safety.
Color monitor with keypad displays machine data, fault codes, and work modes for easier operation.
Built-in radio with MP3/AUX and cup holder improve operator convenience on long shifts.

Safety and Control Features

Safe-start system with restart prevention protects both machine and operator.
Halogen work lights (frame and boom mounted) ensure clear visibility during night shifts.
Rearview mirrors and optional rear camera enhance site safety and maneuvering in tight spaces.
Wet disc brakes provide reliable stopping power under heavy load conditions.
Acoustic travel alarm alerts nearby workers, improving overall job site safety.
Optional burglar alarm and protective FOG (falling object guard) add extra security for demanding worksites.

Versatile Attachment Options

Standard 0.55 m³ bucket capacity (range 0.48 – 0.6 m³) fits multiple job requirements.
Compatible with breakers, crushers, and grapples, reducing need for multiple machines.
Optional light material buckets and HD buckets adapt to specific project needs.
Hydraulic quick-fit pipes (X1/X3) support fast attachment changes, boosting productivity.
Optional wide steel track pads (600/700/800 mm) suit varied terrains and urban projects.
Backed by 19+ dealerships and 300+ outlets across India, ensuring genuine parts and fast support.

High-Performance Engine Power

Powered by a 101 hp Dalian Duetz turbocharged engine @ 2000 rpm, delivering reliable performance in heavy-duty excavation.
Strong 425 Nm torque @ 1500 rpm ensures effortless digging, loading, and lifting across tough terrains.
Turbocharger with intercooler provides better combustion efficiency, reducing fuel consumption and emissions.
Multi-stage air and fuel filtration protects engine from dust and impurities, extending service life.
Pre-heater feature ensures quick starts in cold weather, minimizing downtime on-site.
Automatic idling system reduces unnecessary fuel use, improving operational economy.

Advanced Hydraulic Efficiency

Equipped with double pump negative flow control system for smooth and responsive hydraulic performance.
Maximum flow of 2 × 110 + 20 l/min ensures seamless multi-function operations without performance drop.
Load-sensing hydraulics deliver precise oil flow, enhancing fuel savings and machine efficiency.
Boom/arm/swing priority improves digging cycle times, increasing overall job site productivity.
Cushioning in cylinders minimizes vibration, extending machine durability and operator comfort.
Multi-stage hydraulic filtration maintains clean oil, preventing wear and reducing maintenance costs.

Durable Undercarriage Strength

12,500 kg operating weight ensures stability during heavy excavation and lifting tasks.
Strong “X”-shaped undercarriage frame provides balanced weight distribution on uneven terrain.
500 mm triple grouser track shoes offer better grip for challenging ground conditions.
Reinforced rollers and sealed track links enhance durability in high-impact environments.
35% gradeability ensures reliable climbing ability on steep or uneven job sites.
Centralized lubrication posts simplify maintenance, reducing service downtime.

Comfortable Operator Environment

Spacious cabin with suspension seat and seatbelt reduces fatigue during long work hours.
Air conditioning system maintains comfort in hot or humid climates across India.
Ergonomic joysticks and dual armrests provide precise control with less operator strain.
Sliding windscreen improves visibility and airflow, enhancing operator safety.
Color monitor with keypad displays machine data, fault codes, and work modes for easier operation.
Built-in radio with MP3/AUX and cup holder improve operator convenience on long shifts.

Safety and Control Features

Safe-start system with restart prevention protects both machine and operator.
Halogen work lights (frame and boom mounted) ensure clear visibility during night shifts.
Rearview mirrors and optional rear camera enhance site safety and maneuvering in tight spaces.
Wet disc brakes provide reliable stopping power under heavy load conditions.
Acoustic travel alarm alerts nearby workers, improving overall job site safety.
Optional burglar alarm and protective FOG (falling object guard) add extra security for demanding worksites.

Versatile Attachment Options

Standard 0.55 m³ bucket capacity (range 0.48 – 0.6 m³) fits multiple job requirements.
Compatible with breakers, crushers, and grapples, reducing need for multiple machines.
Optional light material buckets and HD buckets adapt to specific project needs.
Hydraulic quick-fit pipes (X1/X3) support fast attachment changes, boosting productivity.
Optional wide steel track pads (600/700/800 mm) suit varied terrains and urban projects.
Backed by 19+ dealerships and 300+ outlets across India, ensuring genuine parts and fast support.

Specifications

Product specification of SDLG E6135Fi Excavator

ENGINE

Model

Duetz BF4M2012- 10T3R-8124
Fuel

Diesel
Type

4 cylinder, Four stroke, Turbocharged, intercooled"
Rated Engine Power

101 HP (76 kW) @2000 rpm
Maximum Torque

425 Nm @ 1500 rpm
Piston Displacement

4.0 L
Alternator

28V
Battery

24V / 2 x 100Ah
Starting Motor

24V

UNDERCARRIAGE

No of Top Rollers

2 x 1
No of Bottom Rollers

2 x 6
Track Shoes (Each Side)

42
Track Guard

2 x 1
Track Shoe Width

500 mm
Ground Bearing Pressure

40.9 kPa
Track Tensioning

Grease
Travel Speed-Low

3.0 km/h
Travel Speed-High

5.1 km/h
Gradeability

35°
Max Tracking Force

109.8 kN

HYDRAULIC SYSTEM

Hydraulic Pump

Double Pump Constant Power Negative Flow Control
Maximum Flow

2 x 110 +20 l/min
Pilot Pump

NA
Implement Circuit

32.4 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

2 Axial Piston Motors
Swing

1 Axial Piston Motor

SERVICE CAPACITIES

Fuel Tank

260 L
Engine Coolant

19.5 L
Engine Oil

13 L
Hydraulic System

190 L
Hydraulic Tank

NA

MACHINE WEIGHTS

Operating Weight

125000 kg

WORKING RANGE

Boom Length

4260 mm
Arm Length

2315 mm
Max. Digging Reach

7790 mm
Max. Digging Reach on Ground

7650 mm
Max. Digging Depth

5060 mm
Max. Digging Height

7900 mm
Max. Dumping Height

5625 mm
Max. Vertical Wallcut Depth

4625 mm
Min. Swing Radius

2642 mm
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

85 kN
Arm Digging Force

NA
Swing Speed

10.3 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

NA
Height

NA

BUCKET

Bucket Capacity

0.55 m³

STATIC DIMENSIONS

Overall Length

7340 mm
Overall Width

 2490 mm
Overall Height

2830 mm
Overall Height of Cab

2770 mm
Upper Width

2450 mm
Track Length on Ground

2700 mm
Undercarriage Overall Length

3440 mm
Tailswing Radius

2200 mm
Min. Ground Clearance

430 mm
Track Gauge

1990 mm
Width Over Tracks

2490 mm
Track Height

NA
Counterweight Clearence

900 mm
Track Shoe Width

500 mm

Frequently Asked Question

01. What is the SDLG E6135Fi Excavator price in India?

Ans.

The SDLG E6135Fi Excavator price in India is available on request. To get the latest on-road price of the SDLG E6135Fi Excavator based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

02. Where can I buy a SDLG E6135Fi excavator?

Ans.

You can buy the SDLG E6135Fi excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the SDLG E6135Fi Excavator come with financing and insurance options?

Ans.

Yes, the SDLG E6135Fi comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the SDLG E6135Fi excavator?

Ans.

The operating weight of the SDLG E6135Fi excavator is approximately 125000 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the SDLG E6135Fi excavator?

Ans.

The SDLG E6135Fi excavator is powered by a Duetz BF4M2012- 10T3R-8124 engine, delivering 101 HP (76 kW) at 2200 rpm.

06. What is the maximum digging depth of the SDLG E6135Fi excavator?

Ans.

The SDLG E6135Fi excavator has a maximum digging depth of 5060 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the SDLG E6135Fi Excavator?

Ans.

The bucket capacity of the SDLG E6135Fi Excavator is 0.55 cubic meters (m³).

08. What is the warranty period for the SDLG E6135Fi excavator?

Ans.

The SDLG E6135Fi Excavator in India typically comes with a standard warranty of 1 Year. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the SDLG E6135Fi excavator?

Ans.

You can find genuine spare parts for the SDLG E6135Fi excavator at authorized SDLG dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the SDLG E6135Fi Excavator?

Ans.

The SDLG E6135Fi excavator has a 260 liters diesel fuel tank, providing extended operation time without frequent refueling.

11. What is the mileage of the SDLG E6135Fi excavator?

Ans.

The SDLG E6135Fi excavator has an average fuel consumption of 10.27-12.3 liters per hour, depending on factors such as load, terrain, and operating conditions

Are you interested in buying SDLG E6135Fi Excavator

Products

Related Excavator

SDLG E6150F

Weight

13800 kg
Bucket

0.52–0.65 m³
Dig. Depth

5160 mm

Price Available Soon^*

Small (6-15 Ton)

SDLG E6150F

Price Available Soon ^*

SDLG E6150F

Price Available Soon ^*

SDLG E6150F excavator offers a powerful low-RPM DDE engine, 10 work modes, a durable reinforced build, effective hydraulics, and multiple attachments for strong performance.

Weight

13800 kg
Bucket

0.52–0.65 m³
Dig. Depth

5160 mm
Engine

DDE 108 HP
Warranty

1 Yr. / 2000 hr.
Boom

4600 mm

Compare

SDLG E680Hi

Weight

7700 kg
Bucket

0.3 m³
Dig. Depth

4160 mm

₹ 35 - 37 Lakhs^*

Small (6-15 Ton)

SDLG E680Hi

₹ 35 - 37 Lakhs ^*

SDLG E680Hi

₹ 35 - 37 Lakhs ^*

SDLG E680Hi 8-ton excavator combines efficient Yanmar engine, load-sensing hydraulics, and ergonomic cabin, ensuring fuel economy, durability, and comfort for versatile operations.

Weight

7700 kg
Bucket

0.3 m³
Dig. Depth

4160 mm
Engine

Yanmar 58 HP
Warranty

1 Yr. / 2000 hr.
Boom

3710 mm

Compare

About SDLG India

SDLG India of the Volvo Group is a trusted name in the construction equipment industry, which offers lasting and efficient machines for infrastructure, mining, and road projects. The product line includes a reliable SDLG excavator, a versatile SDLG wheel loader, and a precision-driven SDLG motor grader. The brand is known for performance and operator comfort, and it is designed for Indian working conditions. With strong dealer support, transparent SDLG loader price in India, and global expertise, SDLG continues to deliver value-driven solutions.

Product Portfolio: Excavators

Categories

Contact Us

Contact Info

SDLG E6135Fi Excavator

Connect With Us:

Download Brochure

Key Highlights

Engine Make

Fuel Tank

Engine Displacement

Under Carriage

Hydraulic System

Arm

Max Digging Reach

Fuel Consumption

Overall Width

Overall Length

Bucket Digging Force

Tailswing Radius

Track Shoe Width

AC Cabin

GPS

Features

High-Performance Engine Power

High-Performance Engine Power

Advanced Hydraulic Efficiency

Advanced Hydraulic Efficiency

Durable Undercarriage Strength

Durable Undercarriage Strength

Comfortable Operator Environment

Comfortable Operator Environment

Safety and Control Features

Safety and Control Features

Versatile Attachment Options

Versatile Attachment Options

High-Performance Engine Power

Advanced Hydraulic Efficiency

Durable Undercarriage Strength

Comfortable Operator Environment

Safety and Control Features

Versatile Attachment Options

Specifications

ENGINE

UNDERCARRIAGE

HYDRAULIC SYSTEM

HYDRAULIC MOTORS

SERVICE CAPACITIES

MACHINE WEIGHTS

WORKING RANGE

DOZER BLADE

BUCKET

STATIC DIMENSIONS

Frequently Asked Question

01. What is the SDLG E6135Fi Excavator price in India?

02. Where can I buy a SDLG E6135Fi excavator?

03. Does the SDLG E6135Fi Excavator come with financing and insurance options?

04. What is the operating weight of the SDLG E6135Fi excavator?

05. What type of engine is used in the SDLG E6135Fi excavator?

06. What is the maximum digging depth of the SDLG E6135Fi excavator?

07. What is the bucket capacity of the SDLG E6135Fi Excavator?

08. What is the warranty period for the SDLG E6135Fi excavator?

09. Where can I find spare parts for the SDLG E6135Fi excavator?

10. What is the fuel tank capacity of the SDLG E6135Fi Excavator?

11. What is the mileage of the SDLG E6135Fi excavator?

Are you interested in buying SDLG E6135Fi Excavator

Products

Related Excavator

Weight

13800 kg

Bucket

0.52–0.65 m³

Dig. Depth

5160 mm

Price Available Soon*

Price Available Soon *

Price Available Soon *

Weight

13800 kg

Bucket

0.52–0.65 m³

Price Available Soon^*

Price Available Soon ^*

Price Available Soon ^*

₹ 35 - 37 Lakhs^*

₹ 35 - 37 Lakhs ^*

₹ 35 - 37 Lakhs ^*
