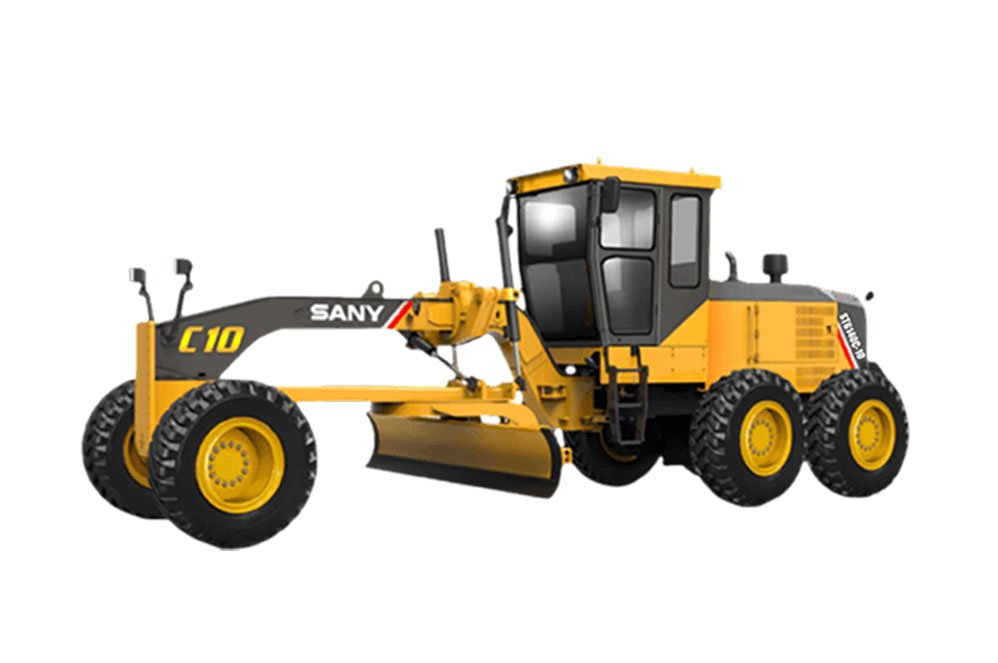

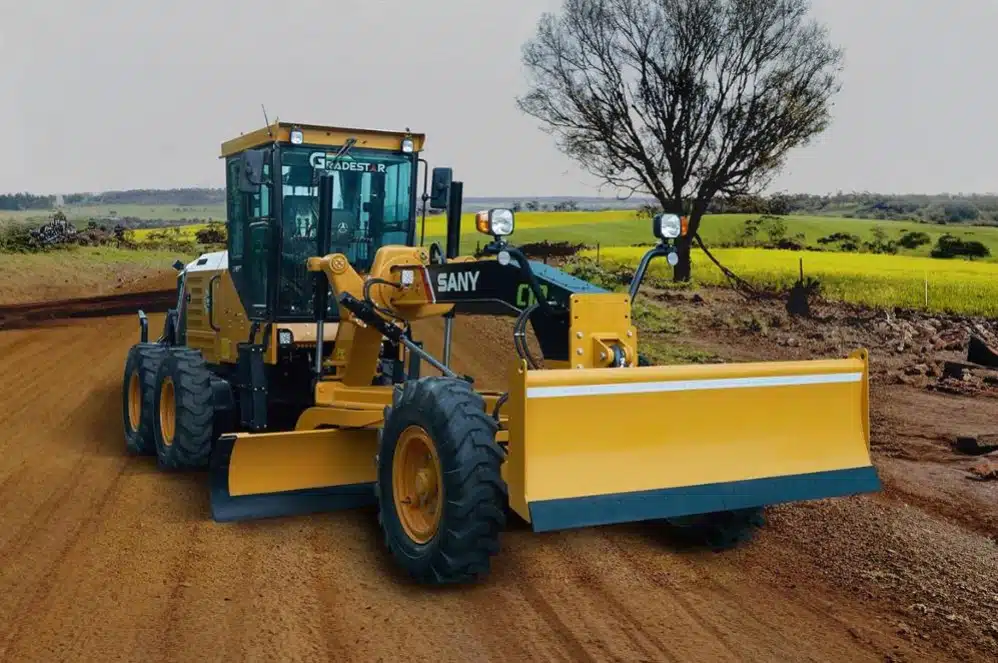

With reduced fuel usage and advanced hydraulics, the Sany STG140C-10 motor grader provides sustainable and efficient grading, perfect for road construction projects.
SANY
Medium (12-20 Ton)
Price Available Soon
Price Available Soon
Cummins 150 HP
3660 mm
12650 kg
7200 mm
42.0 km/hr
26.0 km/hr
Looking for the best price on a Sany STG140C-10 from authorized dealers? We can help you find exclusive deals and connect you with trusted sellers.
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Please fil the below form to start the download
Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.
Cummins QSF4.5
655 Nm @ 1500 rpm
280 L
NA
13 x 24" 12-PR
NA
420 mm
650 mm
NA
6040 mm
10600 mm
3356 mm
1 Yr. / 2500 hr.
Standard
NA
Powerful, fuel-efficient & low-emission Cummins QSF4.5.
Advanced transmission with 6 forward & 3 reverse speeds.
12 ft heavy-duty moldboard & 10 ft optional.
Maximum blade lifting height 420 mm.
Proven branded major aggregates.
Integrally casted swing frame drawbar structure.
Bigger cross-section front & rear structure with thick steel plates.
Heat-treated moldboard.
Spacious AC cabin with 8 air vents.
Suspension seat with multi-angle adjustments.
Adjustable steering angle.
LED working lamps and rotary work lights switch.
Real-time machine tracking.
Easy machine health monitoring.
Machine past movement tracking.
Fuel consumption data.
ROPS/FOPS certified cabin.
Battery disconnect switch as standard.
Fire extinguisher standard.
Articulation locking system.
Reverse alarm standard.
SANY excellent support system.
Service reminder through digital display with self-diagnostic system.
Wider & large service access doors.
Battery disconnect switch standard.
Powerful, fuel-efficient & low-emission Cummins QSF4.5.
Advanced transmission with 6 forward & 3 reverse speeds.
12 ft heavy-duty moldboard & 10 ft optional.
Maximum blade lifting height 420 mm.
Proven branded major aggregates.
Integrally casted swing frame drawbar structure.
Bigger cross-section front & rear structure with thick steel plates.
Heat-treated moldboard.
Spacious AC cabin with 8 air vents.
Suspension seat with multi-angle adjustments.
Adjustable steering angle.
LED working lamps and rotary work lights switch.
Real-time machine tracking.
Easy machine health monitoring.
Machine past movement tracking.
Fuel consumption data.
ROPS/FOPS certified cabin.
Battery disconnect switch as standard.
Fire extinguisher standard.
Articulation locking system.
Reverse alarm standard.
SANY excellent support system.
Service reminder through digital display with self-diagnostic system.
Wider & large service access doors.
Battery disconnect switch standard.
Product specification of Sany STG140C-10 Motor Grader
Model
Cummins QSF4.5
Fuel
Diesel
Type
CEV Stage v
Number of Cylinders
NA
Gross Power
150 HP (112 kW) @ 2200 rpm
Max Torque
655 Nm @ 1500 rpm
Displacement
4.5 L
Battery
NA
Alternator
NA
Type
Direct Drive Power Shift Transmission
Max. Forward Speed
42.0 km/hr
Max. Reverse Speed
26.0 km/hr
Rear Axle
NA
Front Axle
NA
Size
13 x 24" 12-PR
Type
Hydraulic power steering system
Minimum Turning Radius
7200 mm
Steering Angle
45°
Service
Hydraulic, multi-disc wet brakes
Parking
Manual, spring-applied, hydraulic-released (SAHR) brake
Front Frame Structure - Height
NA
Front Frame Structure - Width
NA
Front Frame Structure - Thickness
NA
Type
NA
Blade Length
3660 mm
Blade Height
620 mm
Blade Thickness
NA
Cutting Edge
NA
Blade Pull
NA
Blade Down Pressure
6628 kgf
Moldboard Side Shift (Right/Left)
NA
Maximum Shoulder Reach (Right/Left)
NA
Maximum Lift Above Ground
420 mm
Maximum Cutting Depth
650 mm
Blade Pitch Angle
NA
Type
NA
Maximum Pump Flow
NA
Maximum System Pressure
NA
Fuel Tank
280 L
Cooling System
NA
Engine Oil
NA
DEF Tank
40 L
Transmission Oil
NA
Final Drive
NA
Hydraulic System
120 L
Circle Reverse Housing
NA
Gross Vehicle Weight
12650 kg
Overall Height
3356 mm
Moldboard Base
2500 mm
Wheelbase
6040 mm
Tandem Wheelbase
1550 mm
Width of Standard Moldboard
3660 mm
Overall Length
10600 mm
Tread Gauge
2008 mm
Width of Tires
2460 mm
Articulation, left or right
NA
Minimum Ground Clearence
410 mm
The price of the Sany STG140C-10 Motor Grader in India will be available soon. Stay connected with Desi Machines to get the latest and most accurate pricing updates as soon as they are released.
You can buy the Sany STG140C-10 motor grader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the motor grader you want, or contact us directly for expert assistance and competitive pricing.
Yes, the Sany STG140C-10 motor grader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.
The Sany STG140C-10 motor grader is powered by a Cummins QSF4.5 diesel engine, delivering 150 HP (112 kW) @ 2200 rpm.
The weight of the Sany STG140C-10 motor grader is approximately 12650 kg. The weight may vary slightly depending on specific configurations and attachments.
The Sany STG140C-10 Motor Grader features a blade width of 3660 mm (12.01 feet), making it ideal for reliable and consistent road grading.
The Sany STG140C-10 Motor Grader has a turning radius of 7200 mm, delivering accurate performance in mid-sized operations.
The Sany STG140C-10 motor grader has a 280-liter diesel fuel tank, providing extended operation time without frequent refueling.
The Sany STG140C-10 in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. Please verify with authorized dealers or the official brand website for the most accurate and up-to-date information.
You can find genuine spare parts for the Sany STG140C-10 at authorized SANY dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on motor grader spare parts.
