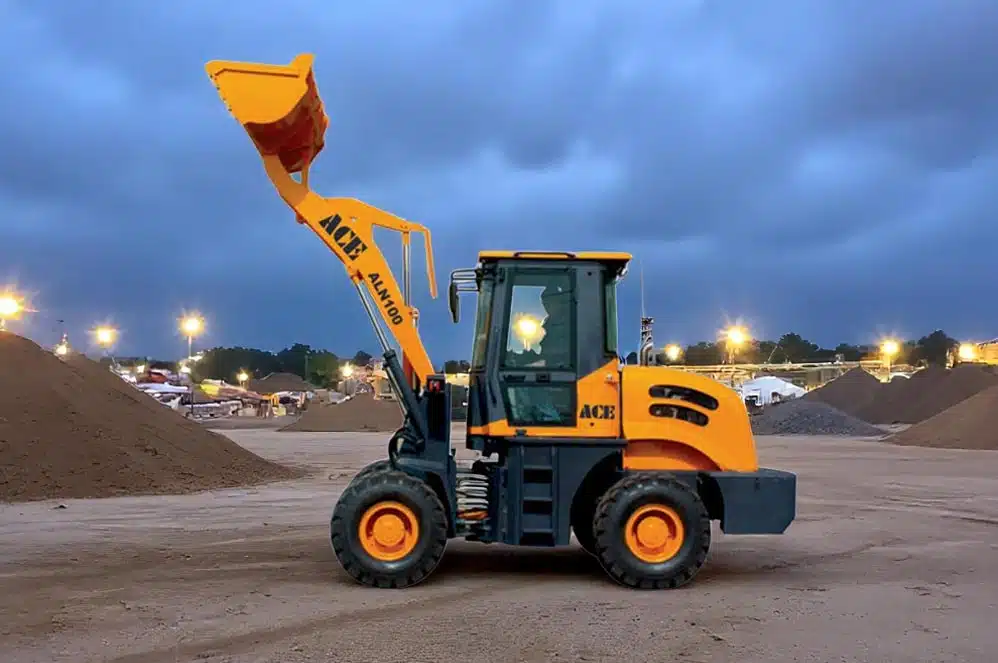

ACE ALN 100 Wheel Loader

Compact and efficient, the ACE ALN 100 Wheel Loader is ideal for small-scale Indian construction and material handling projects.

ACE ALN 100 Wheel Loader Price in india
desi machines ace aln 100 wheel loader 1
  • Brand

    ACE

  • Type

    Compact (0-8 Ton)

  • Operating Cost

    ₹19 - 22 Lakhs

  • Ex-Showroom Price

    ₹19 - 22 Lakhs

  • Engine

    SIMPSON 75 HP

  • featIcon2 (1) alt
    Bucket

    1.0 m³

  • icon alt1
    Weight

    4000 kg

  • Fwd. Speed

    24 km/h

  • dumping height loader
    Dump Height

    NA

  • tipping load
    Tipping Load

    NA

Connect With Us:

Get the best price for the ACE ALN 100 wheel loader from authorized dealers. Contact us now for exclusive deals!

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

SIMPSON - TSJ436

Max Torque

295 @ 1500 rpm

Fuel Tank

80 L

Hydraulic System

110 L/min

grounding
Min. Ground Clearance

270 mm

desi machines payload
Payload

NA

360 degree
Steering Angle

±35°

Drive Type

4-wheel drive (4WD)

Wheelbase

2100 mm

Tyres

16/70 – 20 (PR14)

down
Max. Breakout Force

32 kN

Overall Length

5800 mm

Medal Image
Warranty

1 Year

air-conditioner-alt
AC Cabin

Not Available

GPS Tracking
GPS

NA

Features

Engine Performance

Engine Performance

  • Powered by a 75 HP SIMPSON TSJ436 diesel engine, which guarantees effective performance in a range of construction jobs.

  • Offers powerful performance for heavy-duty applications with a maximum torque of 295 Nm.

  • Equipped with a water-cooled, turbocharged system for the best engine temperature and longevity.

Hydraulic System

Hydraulic System

  • Enables easy and accurate job site maneuvering with hydrostatic power steering.

  • An 80-liter hydraulic tank allows for continuous operation without the need for frequent refills.

  • Lifting and loading tasks are more efficient when a maximum flow of 110 LPM is used.

Loading Capacity

Loading Capacity

  • Includes a 1.03 cubic meter bucket that can be used effectively to handle a variety of materials.

  • Has an 1800 kg lifting capacity, making it perfect for medium-sized industrial and construction projects.

  • A 32 kN breakout force guarantees efficient material handling and penetration.

Operator Comfort and Safety

Operator Comfort and Safety

  • For improved control and monitoring, the cabin has a digital instrument cluster and power steering.

  • Equipped with a reverse parking buzzer and seat belts to guarantee operator safety while in use.

  • Operator fatigue during long workdays is decreased by ergonomic design.

Durability and Design

Durability and Design

  • Reliable performance on various terrains is ensured by a four-wheel drive system with an integrated gearbox and torque converter.

  • A 270 mm ground clearance enables smooth operation on uneven terrain.

  • A 4000 kg operating weight offers stability when performing demanding tasks.

Cost-Effectiveness

Cost-Effectiveness

  • Offering value for money in its segment, it is competitively priced between ₹19.60 and ₹21.40 lakh.

  • designed to be low maintenance and long-lasting, which lowers operating costs over time.

  • An 80-liter fuel tank guarantees extended operation between refuelings.

Engine Performance

  • Powered by a 75 HP SIMPSON TSJ436 diesel engine, which guarantees effective performance in a range of construction jobs.

  • Offers powerful performance for heavy-duty applications with a maximum torque of 295 Nm.

  • Equipped with a water-cooled, turbocharged system for the best engine temperature and longevity.

Hydraulic System

  • Enables easy and accurate job site maneuvering with hydrostatic power steering.

  • An 80-liter hydraulic tank allows for continuous operation without the need for frequent refills.

  • Lifting and loading tasks are more efficient when a maximum flow of 110 LPM is used.

Loading Capacity

  • Includes a 1.03 cubic meter bucket that can be used effectively to handle a variety of materials.

  • Has an 1800 kg lifting capacity, making it perfect for medium-sized industrial and construction projects.

  • A 32 kN breakout force guarantees efficient material handling and penetration.

Operator Comfort and Safety

  • For improved control and monitoring, the cabin has a digital instrument cluster and power steering.

  • Equipped with a reverse parking buzzer and seat belts to guarantee operator safety while in use.

  • Operator fatigue during long workdays is decreased by ergonomic design.

Durability and Design

  • Reliable performance on various terrains is ensured by a four-wheel drive system with an integrated gearbox and torque converter.

  • A 270 mm ground clearance enables smooth operation on uneven terrain.

  • A 4000 kg operating weight offers stability when performing demanding tasks.

Cost-Effectiveness

  • Offering value for money in its segment, it is competitively priced between ₹19.60 and ₹21.40 lakh.

  • designed to be low maintenance and long-lasting, which lowers operating costs over time.

  • An 80-liter fuel tank guarantees extended operation between refuelings.

Specifications

Product specification of ACE ALN 100 Wheel Loader

ENGINE

  • Make

    SIMPSON - TSJ436

  • Type

    4 Stroke, BOSCH Rotary FIP Water Cooled, Turbo Charged, Direct Injection, Diesel Engine

  • Aspiration

    Turbocharged with intercooler (TCIC)

  • Emission

    BS III (CEV)

  • Max. Power

    75 HP (55.9 kW)@2200 rpm

  • Max Torque

    295 @ 1500 rpm

  • Piston Displacement

    3.6 L

  • No. of Cylinders

    4 Cylinders

  • Battery

    12 V DC battery with negative earth

  • Alternator

    NA

POWER TRAIN

  • Transmission

    Full Powershift

  • Drive Type

    4-wheel drive (4WD)

  • Torque Converter

    NA

BRAKES

  • Service

    Pneumatically assisted hydraulic disc brakes

  • Parking

    Mechanically assisted hydraulic disc brakes

STEERING SYSTEM

  • Type

    Hydrostatic power steering

  • Steering Angle

    ±35°

AXLE AND FINAL DRIVE

  • Front Axle Type

    Drive, rigid axle

  • Rear Axle Type

    Drive, centrally pivoted rear axle

  • Oscillation Angle

    ±12°

SPEED

  • Top Forward Speed

    24 km/h

  • Top Reverse Speed

    NA

HYDRAULIC SYSTEM

  • System Type

    NA

  • Pump Type

    NA

  • Max. Pump Flow

    110 L/min

  • System Pressure

    NA

SERVICE REFILL CAPACITIES

  • Fuel Tank

    80 L

  • Hydraulic System

    NA

  • Engine Oil

    9 L

  • Cooling System

    NA

  • Rear Axle Oil

    NA

  • Front Axle Oil

    NA

  • Hydraulic Tank

    80 L

  • Transmission Oil

    20 L

  • DEF Tank

    NA

DIMENSIONS

  • Overall Length With Bucket

    5800 mm

  • Wheel Base

    2100 mm

  • Height Over Cab

    NA

  • Height Over Exhaust

    1600 mm

  • Min. Ground Clearance

    270 mm

  • Width Over Tyres

    NA

  • Wheel Tread

    NA

  • Tyre Size

    16/70 – 20 (PR14)

PERFORMANCE

  • Bucket Capacity

    1.0 m³

  • Bucket Width

    NA

  • Payload

    NA

  • Tipping Load Straight

    NA

  • Tipping Load Full Turn

    NA

  • Max. Breakout Force

    32 kN

  • Operating Weight

    4000 kg

  • Maximum Dump Angle

    NA

  • Bucket Roll Back Angle Full Height

    NA

  • Bucket Roll Back At Carry

    NA

  • Bucket Roll Back At Ground Level

    NA

  • Dumping Height, Fully Raised

    NA

  • Dumping Reach, Fully Raised

    NA

  • Max. Hinge Pin Height

    3500 mm

  • Max. Digging Depth

    NA

  • Turning Radius Over Tyres

    3450 mm

  • Turning Radius Over Bucket

    NA

Frequently Asked Question

01. What is the ACE ALN 100 wheel loader price in India?

Ans.

The ACE ALN 100 wheel loader price in India ranges between ₹19 – 22 Lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

02. Where can I buy the ACE ALN 100 wheel loader in India at the best price?

Ans.

You can buy the ACE ALN 100 wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized ACE dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest ACE ALN 100 price, compare dealer quotes, and enjoy expert assistance—all in one place.

03. What is the engine power of the ACE ALN 100 wheel loader?

Ans.

The ACE ALN 100 wheel loader is powered by a SIMPSON TSJ436 diesel engine, delivering 75 HP (55.9 kW) @ 2200 rpm.

04. What is the operating weight of the ACE ALN 100 wheel loader?

Ans.

The operating weight of the ACE ALN 100 wheel loader is approximately 4000 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What is the fuel tank capacity of the ACE ALN 100 wheel loader?

Ans.

The ACE ALN 100 wheel loader has a 80 litres diesel fuel tank, providing extended operation time without frequent refueling.

06. What is the bucket capacity of the ACE ALN 100 wheel loader?

Ans.

The bucket capacity of the ACE ALN 100 is 1.0 cubic meters (m³).

07. What is the warranty period of ACE ALN 100 wheel loader?

Ans.

The ACE ALN 100 wheel loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

08. How many gears are available in the ACE ALN 100 wheel loader?

Ans.

The ACE ALN 100 wheel loader features a 4-wheel drive (4WD) system with a Full Powershift transmission. It offers 2 forward and 2 reverse gears, enabling efficient operation at speeds up to 24 km/h.

09. What are the key applications and uses of the ACE ALN 100 wheel loader?

Ans.

The ACE ALN 100 is a small loader suitable for light material handling tasks, offering good maneuverability and fuel efficiency.

10. Where can I find spare parts for the ACE ALN 100 wheel loader?

Ans.

You can find genuine spare parts for the ACE ALN 100 wheeled loader at authorized ACE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
