Tata Hitachi ZW550 Wheel Loader

With superior load capacity, the Tata Hitachi ZW 550 Wheel Loader meets the rigorous demands of India’s mining and quarrying sectors.

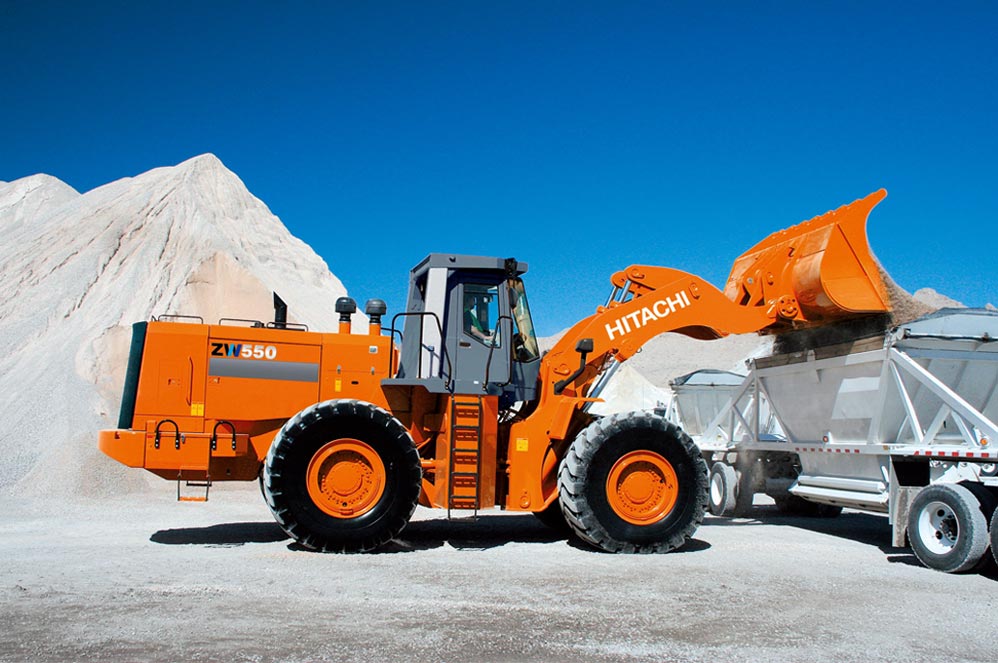

desi machines tata hitachi zw550 wheel loader featured

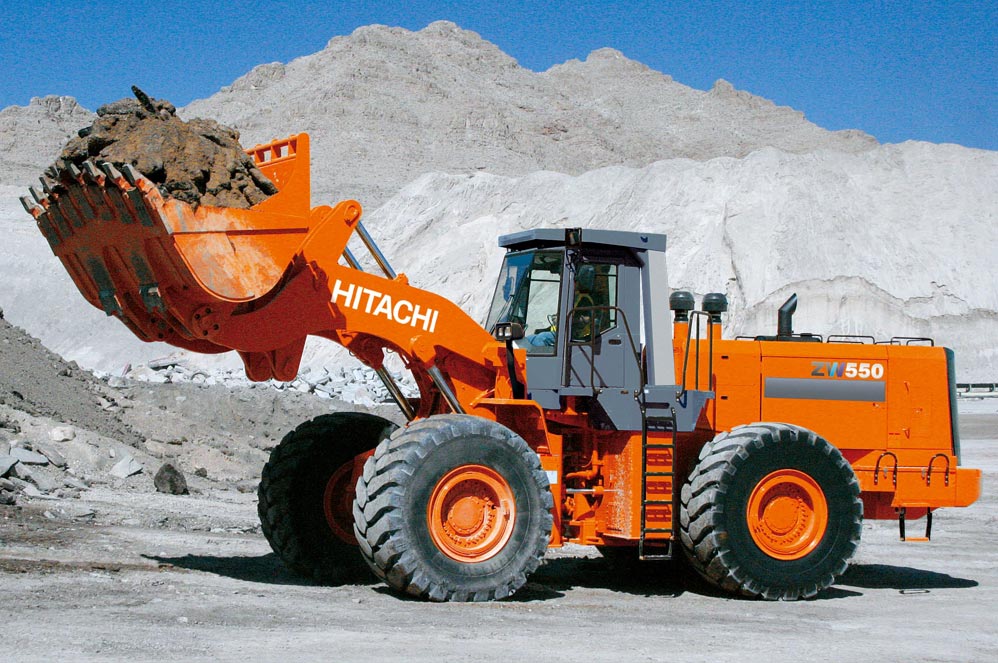

desi machines tata hitachi zw550 wheel loader 1

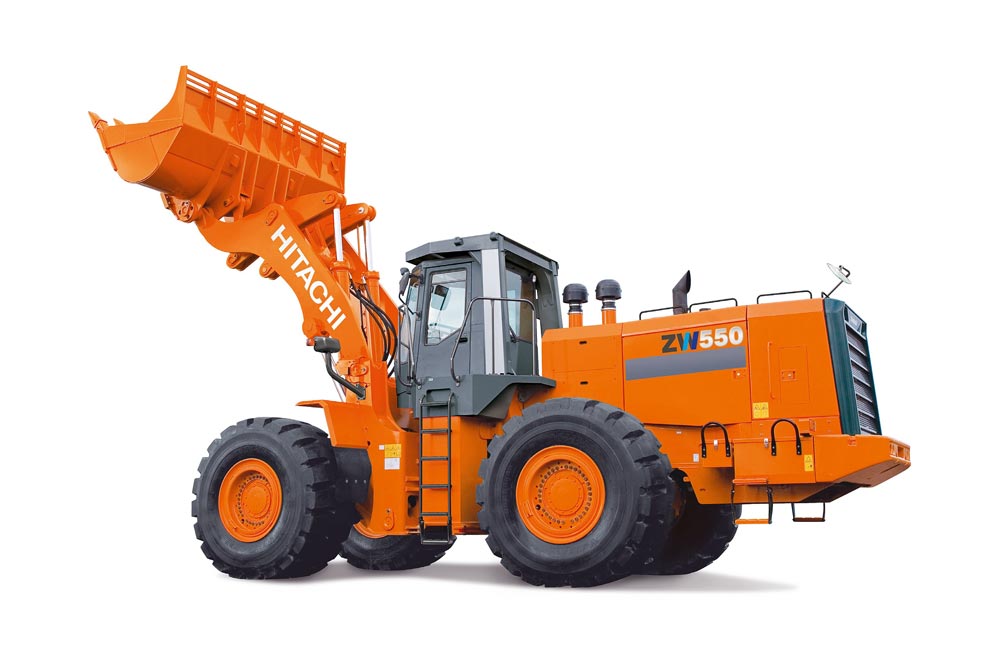

desi machines tata hitachi zw550 wheel loader 2
  • Brand

    Tata Hitachi

  • Type

    Large (>30 Ton)

  • Operating Cost

    Price Available Soon

  • Ex-Showroom Price

    Price Available Soon

  • Engine

    Cummins 483 HP

  • featIcon2 (1) alt
    Bucket

    6.2 - 10.0 m³

  • icon alt1
    Weight

    45130 kg

  • Fwd. Speed

    36 km/h

  • dumping height loader
    Dump Height

    3330 mm

  • tipping load
    Tipping Load

    25390 kg

Connect With Us:

Get the best price for the Tata Hitachi ZW 550 wheel loader from authorized dealers. Contact us now for exclusive deals!

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

Cummins QSK19

Max Torque

1125 Nm

Fuel Tank

660 L

Hydraulic System

NA

grounding
Min. Ground Clearance

545 mm

desi machines payload
Payload

12000 kg

360 degree
Steering Angle

±40°

Drive Type

4-wheel drive (4WD)

Wheelbase

4150 mm

Tyres

35 / 65-33-24PR (L4)

down
Max. Breakout Force

401 kN

Overall Length

11300 mm

Medal Image
Warranty

1 Yr. / 2000 hr.

air-conditioner-alt
AC Cabin

Standard

GPS Tracking
GPS

Standard

Features

Top-Class Productivity

Top-Class Productivity

  • Computer-Controlled Engine – Essential operating data for efficient fault diagnosis and troubleshooting. Key engine data for quick, accurate analysis.

  • Hydraulic Cooling Fan – Hydraulic cooling fan speed varies with changes in operating temperatures to reduce noise and fuel consumption. Automatic reversible fan comes with a manual override that swings open for easy cleaning of radiators.

  • Load-Sensing Hydraulic Steering System – Enhanced steering force in the main hydraulic circuit resulting in full use of pump torque for higher job efficiency.

  • Improved Rimpull Control and Acceleration – The powertrain is designed for more efficient operation in various applications. Improved torque control and matching between engine and torque converter deliver higher performance.

Comfortable

Comfortable

  • High Visibility – Great visibility with inside and outside rear view mirrors. Easily replaceable front windshield. Shock and noise absorbing cab for operator comfort.

  • Outer ROPS/FOPS Optional – Outer ROPS/FOPS structure is adopted to protect the operator from injury in the case of an accident.

  • Full-Auto Air Conditioner/Heater – Automatically and thermostatically controlled AC & heater to enhance operator comfort.

  • Adjustable Steering Column – Tiltable and telescopic steering column to suit operator’s build for comfortable positioning and operation.

Durable and Dependable

Durable and Dependable

  • Strong Lift Arms and Bucket – Strong lift arms and linkage for high production during digging, loading and hauling. Big bucket breakout force and optimum bucket rollback bring for good load retention.

  • Extended Greasing Intervals of Universal Joints – Hermetically sealed joints to extend greasing intervals up to 12,000 Hours for simplified maintenance and increased durability.

  • Full Box-Section Track Frame – The track frame is box-section structured to resist twisting loads.

  • Wet Disc Parking Brake – The advanced wet disc parking brake is utilized for dependable braking.

Top-Class Productivity

  • Computer-Controlled Engine – Essential operating data for efficient fault diagnosis and troubleshooting. Key engine data for quick, accurate analysis.

  • Hydraulic Cooling Fan – Hydraulic cooling fan speed varies with changes in operating temperatures to reduce noise and fuel consumption. Automatic reversible fan comes with a manual override that swings open for easy cleaning of radiators.

  • Load-Sensing Hydraulic Steering System – Enhanced steering force in the main hydraulic circuit resulting in full use of pump torque for higher job efficiency.

  • Improved Rimpull Control and Acceleration – The powertrain is designed for more efficient operation in various applications. Improved torque control and matching between engine and torque converter deliver higher performance.

Comfortable

  • High Visibility – Great visibility with inside and outside rear view mirrors. Easily replaceable front windshield. Shock and noise absorbing cab for operator comfort.

  • Outer ROPS/FOPS Optional – Outer ROPS/FOPS structure is adopted to protect the operator from injury in the case of an accident.

  • Full-Auto Air Conditioner/Heater – Automatically and thermostatically controlled AC & heater to enhance operator comfort.

  • Adjustable Steering Column – Tiltable and telescopic steering column to suit operator’s build for comfortable positioning and operation.

Durable and Dependable

  • Strong Lift Arms and Bucket – Strong lift arms and linkage for high production during digging, loading and hauling. Big bucket breakout force and optimum bucket rollback bring for good load retention.

  • Extended Greasing Intervals of Universal Joints – Hermetically sealed joints to extend greasing intervals up to 12,000 Hours for simplified maintenance and increased durability.

  • Full Box-Section Track Frame – The track frame is box-section structured to resist twisting loads.

  • Wet Disc Parking Brake – The advanced wet disc parking brake is utilized for dependable braking.

Specifications

Product specification of Tata Hitachi ZW550 Wheel Loader

ENGINE

  • Make

    Cummins QSK19

  • Type

    4-cycle water-cooled, direct injection,

  • Aspiration

    Turbocharger and intercooled

  • Emission

    EPA Tier III

  • Max. Power

    483 HP (360 kW) @ 1800 rpm

  • Max Torque

    1125 Nm

  • Piston Displacement

    18.87 L

  • No. of Cylinders

    6 Cylinders

  • Battery

    2 x 12V / 176 Ah

  • Alternator

    24V / 75A

POWER TRAIN

  • Transmission

    Countershaft Powershift Transmission

  • Drive Type

    4-wheel drive (4WD)

  • Torque Converter

    Three element, single stage, single phase

BRAKES

  • Service

    Inboard mounted fully hydraulic 4 wheel wet disc brake.

  • Parking

    Front & rear independent brake circuit.

STEERING SYSTEM

  • Type

    Articulated Frame Steering

  • Steering Angle

    ±40°

AXLE AND FINAL DRIVE

  • Front Axle Type

    Fixed to the front frame

  • Rear Axle Type

    Trunnion support

  • Oscillation Angle

    ±13°

SPEED

  • Top Forward Speed

    36 km/h

  • Top Reverse Speed

    23.6 km/h

HYDRAULIC SYSTEM

  • System Type

    Load sensing

  • Pump Type

    Fixed displacement type gear pump

  • Max. Pump Flow

    NA

  • System Pressure

    NA

SERVICE REFILL CAPACITIES

  • Fuel Tank

    660 L

  • Hydraulic System

    NA

  • Engine Oil

    61 L

  • Cooling System

    155 L

  • Rear Axle Oil

    360 L

  • Front Axle Oil

    360 L

  • Hydraulic Tank

    225 L

  • Transmission Oil

    90 L

  • DEF Tank

    NA

DIMENSIONS

  • Overall Length With Bucket

    11300 mm

  • Wheel Base

    4150 mm

  • Height Over Cab

    4170 mm

  • Height Over Exhaust

    NA

  • Min. Ground Clearance

    545 mm

  • Width Over Tyres

    3570 mm

  • Wheel Tread

    2660 mm

  • Tyre Size

    35 / 65-33-24PR (L4)

PERFORMANCE

  • Bucket Capacity

    6.2 - 10.0 m³

  • Bucket Width

    3770 mm

  • Payload

    12000 kg

  • Tipping Load Straight

    30300 kg

  • Tipping Load Full Turn

    25390 kg

  • Max. Breakout Force

    401 kN

  • Operating Weight

    45130 kg

  • Maximum Dump Angle

    NA

  • Bucket Roll Back Angle Full Height

    NA

  • Bucket Roll Back At Carry

    NA

  • Bucket Roll Back At Ground Level

    NA

  • Dumping Height, Fully Raised

    3330 mm

  • Dumping Reach, Fully Raised

    1930 mm

  • Max. Hinge Pin Height

    5040 mm

  • Max. Digging Depth

    190 mm

  • Turning Radius Over Tyres

    7045 mm

  • Turning Radius Over Bucket

    8480 mm

Frequently Asked Question

01. What is the Tata Hitachi ZW550 wheel loader price in India?

Ans.

The Tata Hitachi ZW550 wheel loader price in India is available on request. To get the latest on-road price of the Tata Hitachi ZW550 based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

02. Where can I buy the Tata Hitachi ZW550 wheel loader in India at the best price?

Ans.

You can buy the Tata Hitachi ZW550 wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Tata dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Tata Hitachi ZW550 price, compare dealer quotes, and enjoy expert assistance—all in one place.

03. What is the engine power of the Tata Hitachi ZW550 wheel loader?

Ans.

The Tata Hitachi ZW550 wheel loader is powered by a Cummins QSK19 diesel engine, delivering 483 HP (360 kW) @ 1800 rpm.

04. What is the operating weight of the Tata Hitachi ZW550 wheel loader?

Ans.

The operating weight of the Tata Hitachi ZW550 wheel loader is approximately 45130 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What is the fuel tank capacity of the Tata Hitachi ZW550 wheel loader?

Ans.

The Tata Hitachi ZW550 wheel loader has a 660 litres diesel fuel tank, providing extended operation time without frequent refueling.

06. What is the bucket capacity of the Tata Hitachi ZW550 wheel loader?

Ans.

The bucket capacity of the Tata Hitachi ZW550 is 6.2 – 10.0 cubic meters (m³).

07. What is the dump height of the Tata Hitachi ZW550 wheel loader?

Ans.

The Tata Hitachi ZW550 wheel loader comes with a dump height of 3330 mm, designed for heavy-duty material dumping in mining and construction.

08. What is the warranty period of Tata Hitachi ZW550 wheel loader?

Ans.

The Tata Hitachi ZW550 wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

09. How many gears are available in the Tata Hitachi ZW550 wheel loader?

Ans.

The Tata Hitachi ZW550 wheel loader features a 4-wheel drive (4WD) system with a Countershaft Powershift Transmission. It offers 4 forward and 3 reverse gears, enabling efficient operation at speeds up to 36 km/h.

10. What are the key applications and uses of the Tata Hitachi ZW550 wheel loader?

Ans.

The Tata Hitachi ZW550 is a heavy-duty loader used mainly in mining and large construction sites, excelling in loading, transporting, and stockpiling heavy and bulky materials with high productivity.

11. Where can I find spare parts for the Tata Hitachi ZW550 wheel loader?

Ans.

You can find genuine spare parts for the Tata Hitachi ZW550 wheeled loader at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
