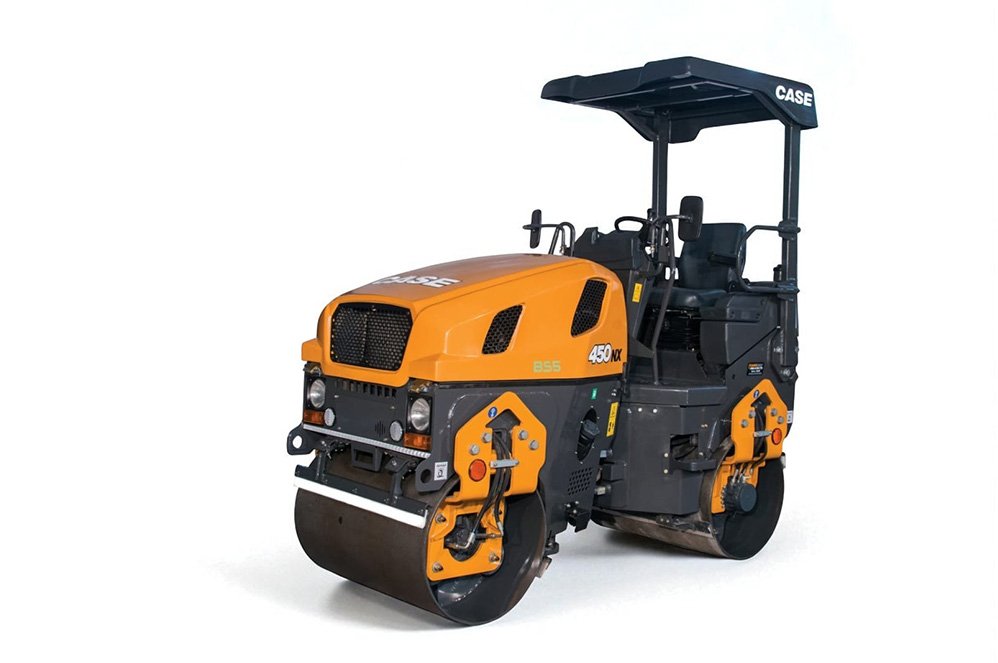

    CASE 450NX Compactor

    The CASE 451 NX Mini Tandem Roller, also called a mini roller compactor or baby roller, is designed for asphalt and soil compaction in confined worksites. Powered by a reliable engine with a 2,900 kg operating weight and efficient vibratory roller system, it delivers up to 43 kN force for smooth, uniform results. This mini road roller combines hydrostatic articulation with excellent maneuverability, ensuring productivity in urban and highway projects. Equipped with ergonomic controls, ROPS canopy, rust-proof tanks, and smart water sprinkling, the CASE roller is a trusted for durability, efficiency, and long-term performance.

    • Brand

      CASE

    • Type

      Tandem Roller

    • Operating Cost

      ₹ 18-20 Lakhs

    • Ex-Showroom Price

      ₹ 18-20 Lakhs

    • icon alt1
      Weight

      2900 kg

    • Drum Width

      1000 mm

    • Engine

      M&M 25 HP

    • Static Load

      14.8/14.2 kg/cm

    • CF - Hi/Low

      28.43/16.20 kN

    • Travel Speed

      0 - 9 km/hr

    Connect With Us:

    Looking for the best CASE 450NX Mini Roller price in India? Connect with us today and unlock exclusive offers on this reliable road roller!

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

    Key Highlights

    Engine Make

    Mahindra & Mahindra 275DI

    Fuel Tank

    38 L

    Hydraulic Tank

    40 L

    Vibration Frequency

    61/46 Hz

    Nominal Amplitude

    0.5 mm

    Max Gradeability

    35%

    Steering Angle

    ± 27°

    Turning Radius

    NA

    Wheel Base

    1925 mm

    Water Tank

    150 L

    Overall Length

    2871 mm

    Overall Width

    1184 mm

    Overall Height

    2697 mm

    GPS Tracking
    Telematics

    Standard

    Medal Image
    Warranty

    1 Year

    Features

    High Efficiency and Reliable Performance

    High Efficiency and Reliable Performance

    • Optimized machine weight and repowering with 18.5 KW CEV Stage V engine, with mechanical fuel pump ensures peace of mind

    • Intelligent hydraulic system and 25HP engine delivers high efficiency than CEV-V 45hp models.

    • Well protected rust proof plastic fuel tank with lockable cap

    • Powered by M&M 275DI mechanical engine

    • 180+ years of legacy, delivering breakthrough technology

    • Compact design for hassle-free maintenance

    Advanced Serviceability for Easy Maintenance

    Advanced Serviceability for Easy Maintenance

    • Single piece openable engine hood with provision to lock

    • Engine and all serviceable parts are easily accessible

    • Ease of accessibility of Hydraulic pumps, Valve block, from Hood opening.

    • Gas strut assisted engine hood for ease of lifting and serviceability

    Smart Connected Technology with Telematics

    Smart Connected Technology with Telematics

    • Enhanced monitoring and streamlined operations with my CASE Construction Telematics

    • Boosted productivity through efficient resource allocation with fleet management

    • Improved safety and security with advanced tracking and recovery capabilities

    • Real-time data and downtime reduction for superior customer service

    • Data-driven decision-making to increase profitability

    Smart Design for Better Visibility and Accessibility

    Smart Design for Better Visibility and Accessibility

    • Two post foldable ROPS structure for better visibility and ease of ingress/egress

    • Electro Magnetic Immunity and compliance

    • Both sides rear-view mirror

    • Excellent visibility of drum edges thanks to optimized width

    • New ergonomic footsteps

    Operator Comfort with Ergonomic Cabin

    Operator Comfort with Ergonomic Cabin

    • New operator station with newly designed controls and speed settings

    • Best in class ergonomically designed comfortable seat with adjustable arm rest and high back-rest

    • Wide canopy for better sun and rain protection

    • High backrest seat with mechanical suspension with adjustments such as weight setting, backrest incline, arm rest position, forward and backward movement.

    Enhanced Safety and Robust Build Quality

    Enhanced Safety and Robust Build Quality

    • Compact contemporary looks

    • New robust frame suitable for confined space

    • New intuitive instrument cluster with Vandal Guard

    • Plastic water tank with strainer/filler for clean water, rust free for lifetime, 150L big size.

    • Plastic fuel tanks with strainer and lockable cap, rust free for lifetime, Vandalism protection from all sides. Ground level filling ease.

    • The vehicle experiences reduced noise pollution due to the engine fan being positioned at the front

    • Fuel level gauge on cluster and low water level sensor

    • Standard drum width of 1 m for ease of maneuverability

    High Efficiency and Reliable Performance

    • Optimized machine weight and repowering with 18.5 KW CEV Stage V engine, with mechanical fuel pump ensures peace of mind

    • Intelligent hydraulic system and 25HP engine delivers high efficiency than CEV-V 45hp models.

    • Well protected rust proof plastic fuel tank with lockable cap

    • Powered by M&M 275DI mechanical engine

    • 180+ years of legacy, delivering breakthrough technology

    • Compact design for hassle-free maintenance

    Advanced Serviceability for Easy Maintenance

    • Single piece openable engine hood with provision to lock

    • Engine and all serviceable parts are easily accessible

    • Ease of accessibility of Hydraulic pumps, Valve block, from Hood opening.

    • Gas strut assisted engine hood for ease of lifting and serviceability

    Smart Connected Technology with Telematics

    • Enhanced monitoring and streamlined operations with my CASE Construction Telematics

    • Boosted productivity through efficient resource allocation with fleet management

    • Improved safety and security with advanced tracking and recovery capabilities

    • Real-time data and downtime reduction for superior customer service

    • Data-driven decision-making to increase profitability

    Smart Design for Better Visibility and Accessibility

    • Two post foldable ROPS structure for better visibility and ease of ingress/egress

    • Electro Magnetic Immunity and compliance

    • Both sides rear-view mirror

    • Excellent visibility of drum edges thanks to optimized width

    • New ergonomic footsteps

    Operator Comfort with Ergonomic Cabin

    • New operator station with newly designed controls and speed settings

    • Best in class ergonomically designed comfortable seat with adjustable arm rest and high back-rest

    • Wide canopy for better sun and rain protection

    • High backrest seat with mechanical suspension with adjustments such as weight setting, backrest incline, arm rest position, forward and backward movement.

    Enhanced Safety and Robust Build Quality

    • Compact contemporary looks

    • New robust frame suitable for confined space

    • New intuitive instrument cluster with Vandal Guard

    • Plastic water tank with strainer/filler for clean water, rust free for lifetime, 150L big size.

    • Plastic fuel tanks with strainer and lockable cap, rust free for lifetime, Vandalism protection from all sides. Ground level filling ease.

    • The vehicle experiences reduced noise pollution due to the engine fan being positioned at the front

    • Fuel level gauge on cluster and low water level sensor

    • Standard drum width of 1 m for ease of maneuverability

    Specifications

    Product specification of CASE 450NX Compactor

    ENGINE

    • Model

      Mahindra & Mahindra 275DI

    • Type

      CEV Emission Stage-V, Liquid Cooled

    • Max. Power

      25 HP (18.5 kW) @ 2200 rpm

    • Displacement

      2.048 L

    • Max. Torque

      130 Nm @ 1200 rpm

    • Battery

      12V

    SERVICE CAPACITIES

    • Fuel Tank

      38 L

    • Hydraulic Tank

      40 L

    • Engine Oil

      5 L

    • Engine Coolant

      6.8 L

    TRACTION

    • Max. Travel Speed

      0 - 9 km/hr

    • Max. Working Speed

      0 - 9 km/hr

    • Max Gradeability with Vibration

      35%

    VIBRATION SYSTEM

    • Centrifugal Force (High/Low)

      28.43/16.20 kN

    • Nominal Amplitude - High/Low

      0.5 mm

    • Frequency High/Low

      61/46 Hz

    • Vibration Stages

      2

    • Static Linear Load (Front/Rear)

      14.8/14.2 kg/cm

    HYDRAULIC SYSTEM

    • Travel System

      Hydrostatic drive acting on both drums with tank mounted type axial-piston variable displacement pump

    • Vibration System

      Tank mounted fixed-displacement gear pump supplying flow to exciter gear motors

    STEERING

    • Type

      Hydrostatic (Center Point Articulation)

    • Steering Angle

      ± 27°

    • Oscillation

      ±10°

    BRAKES

    • Service

      Hydrostatic

    • Parking

      Spring applied, hydraulically released

    WATER SYSTEM

    • Type

      Pressurized water sprinkler system.

    • Water Tank

      150 L

    OPERATIONAL DATA

    • Operating Weight

      2900 kg

    • Max. Operating Weight

      NA

    • Front Axle Load

      1480 kg

    • Rear Axle Load

      1420 kg

    DIMENSIONS

    • Wheelbase

      1925 mm

    • Overall Width

      1184 mm

    • Overall Height

      2697 mm

    • Height (Top of Steering)

      1827 mm

    • Overall Length

      2871 mm

    • Drum Width

      1000 mm

    • Drum Diameter

      700 mm

    • Drum Shell Thickness

      12 mm

    • Ground Clearance

      307 mm

    • Curb Clearance

      560 mm

    • Turning radius, Outside

      NA

    • Turning radius, Inside

      3320 mm

    Frequently Asked Question

    01. What is the price of the CASE 450NX compactor in India?

    Ans.

    The CASE 450NX compactor price in India ranges between ₹ 18 – 20 Lakhs. The final CASE 450NX on-road price in India may vary based on state taxes, dealer location, and optional features.

    02. Where can I buy the CASE 450NX compactor in India?

    Ans.

    You can buy the CASE 450NX Tandem Roller from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the road roller you want, or contact us directly for expert assistance and competitive pricing.

    03. What is the operating weight of the CASE 450NX compactor?

    Ans.

    The operating weight of the CASE 450NX compactor is approximately 2900 kg. The weight may vary slightly depending on specific configurations and attachments.

    04. What is the drum width of the CASE 450NX compactor?

    Ans.

    The drum width of the CASE 450NX compactor is 1000 mm.

    05. What is the engine power of the CASE 450NX compactor?

    Ans.

    The CASE 450NX compactor is powered by a Mahindra & Mahindra 275DI CEV Emission Stage-V engine, delivering 25 HP (18.5 kW) @ 2200 RPM.

    06. What is the fuel tank capacity of the CASE 450NX compactor?

    Ans.

    The CASE 450NX has a 38 litres diesel fuel tank, providing extended operation time without frequent refuelling.

    07. What is the turning radius of the CASE 450NX compactor?

    Ans.

    The CASE 450NX compactor has a turning radius of 3320 mm inner.

    08. What type of steering is used in the CASE 450NX compactor?

    Ans.

    The CASE 450NX tandem roller uses hydrostatic steering with center point articulation.

    09. What is the warranty period of the CASE 450NX compactor?

    Ans.

    The CASE 450NX compactor typically comes with a 1-year standard warranty. The warranty covers defects from faulty materials or workmanship, but terms may vary. For accurate details, check with authorized dealers, OEMs, or visit the official brand website.

    10. Where can I find spare parts for the CASE 450NX compactor?

    Ans.

    You can find genuine spare parts for the CASE 450NX compactor at authorized CASE dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers and assist you in getting the best deals based on your location. Fill out the form now to get the best offers on compactor spare parts.
