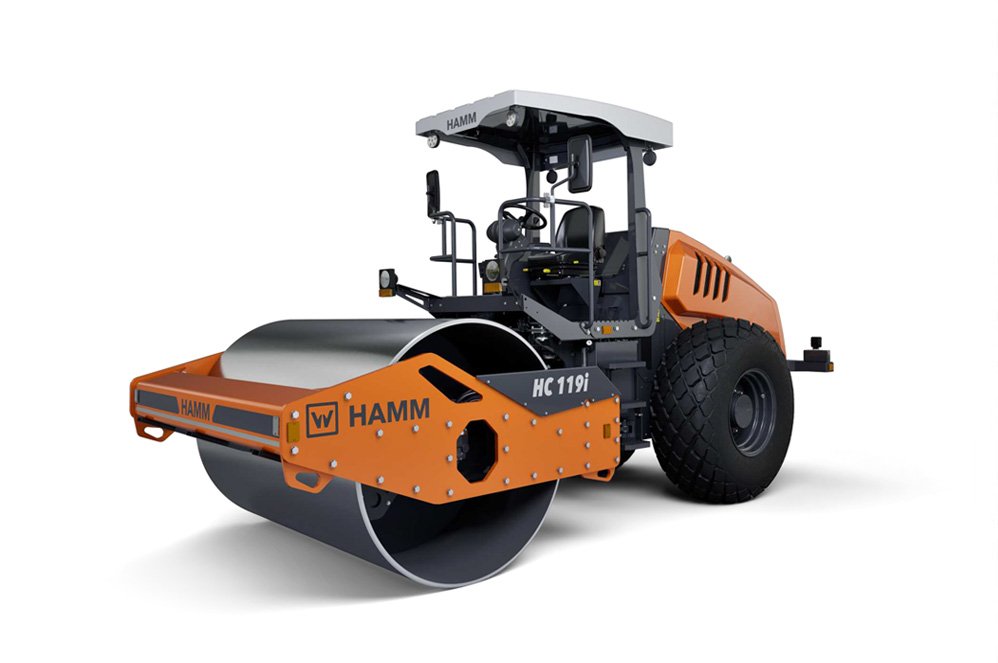

HAMM HC 119i Compactor

The CEV Stage V engine offers excellent power. Its ECO mode ensures fuel-efficient and productive compaction performance.

The diesel engine, made by ASHOK LEYLAND, model H4C510122, has four cylinders and produces 74 kW (99.2 HP) at 2200 rpm.

The exhaust gas after-treatment system includes DOC-DPF-SCR, which meets strict emission standards and supports environmentally friendly operation.

The high torque engine provides reliable performance across various applications, even in challenging Indian working conditions.

High compaction performance leads to strong soil density, fewer passes, and improved productivity across different compaction applications.

Vibration frequency levels I/II are 30/35 Hz, with amplitudes of 1.92/0.84 mm for effective soil compaction.

Centrifugal force levels I/II are 242/145 kN, creating a strong impact for efficient compaction of various material layers.

The static linear load of 28.3 kg/cm maximizes compaction efficiency, requiring fewer operating cycles and reducing fuel usage.

The intuitive, language-neutral operation makes it easier for operators to handle the machine, boosting productivity and shortening the learning time.

The dashboard features displays, indicator lights, and switches for clear operational control and safety feedback.

The driver's platform allows access from one side and includes vibration isolation to reduce fatigue and improve comfort during long operations.

The seat offers length adjustment and a single drive lever for ergonomic operation and enhanced operator comfort.

The 3-point articulation ensures even weight distribution and a great on-center feel, providing consistent traction and maneuverability.

Hydrostatic steering with a steering angle of +/- 33° allows for excellent control in both confined and wide compaction spaces.

The pendulum angle of +/- 10° maintains stability on uneven terrain and in tough working conditions.

The adjustable scraper and hose protection on the front of the vehicle enhance reliability and safety during extended use.

The tiltable engine hood allows for easy maintenance and servicing from ground level, which reduces downtime and enables quick checks.

The battery isolation switch enhances operator safety and makes maintenance easier during servicing.

An emergency stop function ensures maximum safety during critical operations or maintenance tasks.

Hose protection and durable construction extend the lifespan and minimize maintenance in demanding compaction projects.

Padfoot shells can be added for cohesive soils that require deeper compaction forces and better results.

A speedometer option helps monitor travel and working speeds, improving operational control and productivity.

Optional connectivity with the John Deere Operations Center offers advanced monitoring and fleet management for contractors.

An automatic vibration system enhancement boosts compaction efficiency with less operator input, ensuring consistent results across projects.
