HAMM HD 109i VV Compactor

Name: HAMM HD 109i VV Compactor
Brand: HAMM
Rating: 4.4 (67 reviews)

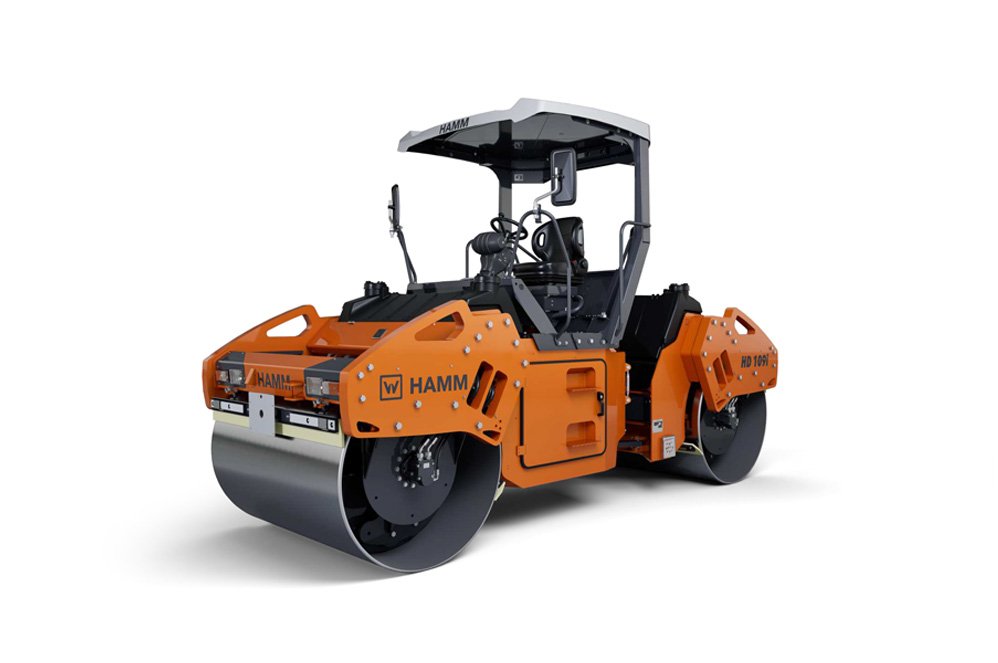

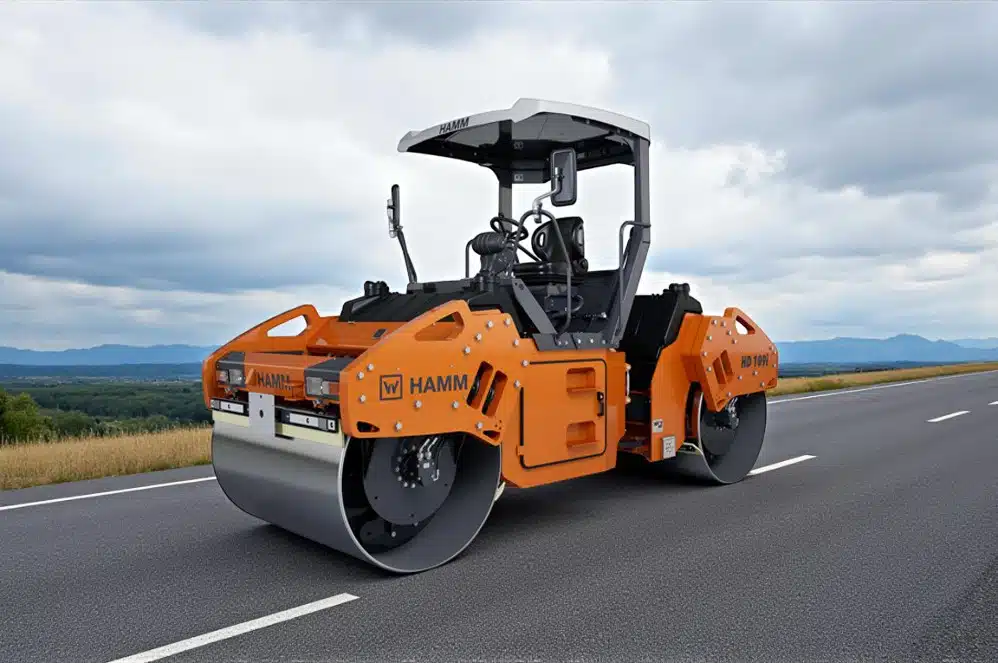

The HAMM HD 109i VV Tandem Roller is a heavy-duty double drum roller designed for high-quality asphalt and soil compaction. Powered by a 75 HP CEV-V compliant engine, with an operating weight of about 10,060 kg and a 1,680 mm drum width, this advanced vibratory roller delivers exceptional density and smooth mat finishes. Built for durability and operator comfort, the roller compactor features articulated steering, a 700-liter water tank, and intuitive controls. Recognized as a reliable road roller and efficient asphalt compactor, the HD 109i VV embodies the strength and innovation of the HAMM roller range, making it ideal for urban and highway projects.

HAMM HD 109i VV Tandem Roller Compactor | Desi Machines

desi-machines-hamm-hd-109i-vv-tandem-roller-gallery-1

Brand
HAMM
Type
Tandem Roller
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Weight
10060 kg
Drum Width
1680 mm
Engine
John Deere 75 HP
Static Load
30.3/29.6 kg/cm
CF - Hi/Low
75/60 kN
Travel Speed
0 - 13.8 km/hr

Connect With Us:

Looking for the best HAMM HD 109i VV Tandem Roller price in India? Connect with us today and unlock exclusive offers on this reliable road roller!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

JOHN DEERE EWX 2.9

Fuel Tank

156 L

Hydraulic Tank

NA

Vibration Frequency

50/42 Hz

Nominal Amplitude

0.66/0.37 mm

Max Gradeability

25%

Steering Angle

±38°

Turning Radius

NA

Wheel Base

3510 mm

Water Tank

700 L

Overall Length

4810 mm

Overall Width

1928 mm

Overall Height

3027 mm

Telematics

Optional

Warranty

1 Year

Features

Advanced CEV Stage V Engine

Powered by John Deere EWX 2.9 engine with 3 cylinders, delivering 55 kW (74 HP) at 2200 rpm.
Equipped with CEV Stage V engine technology, offering best-in-class power, fuel efficiency, and eco-friendly construction operations.
DOC-DPF exhaust after-treatment system ensures compliance with strict emission standards for sustainable road and infrastructure projects.

High Compaction Performance

Dual vibration drums with selectable amplitudes ensure optimal compaction across different asphalt and soil applications with precision.
Frequency range 42/50 Hz delivers flexibility for light or heavy compaction layers depending on site requirements.
Produces centrifugal force up to 75 kN on both drums, ensuring maximum compaction density with fewer passes.

Stability & Maneuverability

3-point articulation system ensures stability on uneven ground, reducing tipping risks during asphalt paving or road compaction.
Compact turning radius of 4151 mm ensures excellent maneuverability in restricted urban or narrow job-site areas.
Articulated steering with 38° steering angle and 10° pendulum angle provides precise control and smoother operation.

Operator Comfort & Safety

Rotatable seat operating unit and driver’s platform with dual-side access improve operator comfort during extended working shifts.
Intuitive and language-neutral interface ensures easy machine operation, reducing operator fatigue in diverse workforce conditions.
Seat belt with retractor, emergency stop, and handrails maximize safety in challenging road construction environments.

Intelligent Water Sprinkling System

Pressure water sprinkling system ensures reliable drum wetting, preventing asphalt pickup during compaction operations.
Large 700 L water tank capacity supports extended working shifts without frequent refilling, enhancing job-site efficiency.
Optional water pump/sprinkling upgrade further improves reliability under demanding site conditions and hot climates.

Serviceability & Optional Features

Easy serviceability from ground level minimizes downtime and simplifies maintenance tasks for daily operational checks.
Standard equipment includes switchable amplitudes, water level display, battery isolation switch, and John Deere Operations Center.
Optional add-ons: edge pressing and cutting device, track offset version, working spotlights, rotating beacon, cold-start device.

Are you interested in buying HAMM HD 109i VV Compactor

Specifications

Product specification of HAMM HD 109i VV Compactor

ENGINE
SERVICE CAPACITIES
TRACTION
VIBRATION SYSTEM
HYDRAULIC SYSTEM
STEERING
BRAKES
WATER SYSTEM
OPERATIONAL DATA
DIMENSIONS

ENGINE

Model

JOHN DEERE EWX 2.9
Type

CEV Stage V, 3 Cylinders, DOC-DPF
Max. Power

75 HP (55 kW) @ 2200 rpm
Displacement

2.9 L
Max. Torque

NA
Battery

NA

SERVICE CAPACITIES

Fuel Tank

156 L
Hydraulic Tank

NA
Engine Oil

NA
Engine Coolant

NA

TRACTION

Max. Travel Speed

0 - 13.8 km/hr
Max. Working Speed

0 - 7 km/hr
Max Gradeability with Vibration

25%

VIBRATION SYSTEM

Centrifugal Force (High/Low)

75/60 kN
Nominal Amplitude - High/Low

0.66/0.37 mm
Frequency High/Low

50/42 Hz
Vibration Stages

2
Static Linear Load (Front/Rear)

30.3/29.6 kg/cm

HYDRAULIC SYSTEM

Travel System

Hydrostatic travel drive
Vibration System

NA

STEERING

Type

Articulated steering
Steering Angle

±38°
Oscillation

±10°

BRAKES

Service

Hydrostatic (wear-free) braking via the travel drive
Parking

Spring-applied, multi-disc brake(s) on the hydraulic drive motors; typically electric/automatic actuation

WATER SYSTEM

Type

Pressure Water Sprinkling System
Water Tank

700 L

OPERATIONAL DATA

Operating Weight

10060 kg
Max. Operating Weight

10520 kg
Front Axle Load

4829 kg
Rear Axle Load

5231 kg

DIMENSIONS

Wheelbase

3510 mm
Overall Width

1928 mm
Overall Height

3027 mm
Height (Top of Steering)

2660 mm
Overall Length

4810 mm
Drum Width

1680 mm
Drum Diameter

1200 mm
Drum Shell Thickness

17 mm
Ground Clearance

343 mm
Curb Clearance

705 mm
Turning radius, Outside

NA
Turning radius, Inside

4151 mm

Faq's

Common Questions about HAMM HD 109i VV

What is the price of the HAMM HD 109i VV compactor in India?

The HAMM HD 109i VV compactor price in India is available on request. To get the latest HAMM HD 109i VV on-road price based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

Where can I buy the HAMM HD 109i VV compactor in India?

You can buy the HAMM HD 109i VV Tandem Roller from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the road roller you want, or contact us directly for expert assistance and competitive pricing.

What is the operating weight of the HAMM HD 109i VV compactor?

The operating weight of the HAMM HD 109i VV compactor is approximately 10060 kg. The weight may vary slightly depending on specific configurations and attachments.

What is the drum width of the HAMM HD 109i VV compactor?

The drum width of the HAMM HD 109i VV compactor is 1680 mm.

What is the engine power of the HAMM HD 109i VV compactor?

The HAMM HD 109i VV compactor is powered by a JOHN DEERE EWX 2.9 CEV Stage V engine, delivering 75 HP (55 kW) @ 2200 RPM.

What is the fuel tank capacity of the HAMM HD 109i VV compactor?

The HAMM HD 109i VV has a 156 litres diesel fuel tank, providing extended operation time without frequent refuelling.

What is the turning radius of the HAMM HD 109i VV compactor?

The HAMM HD 109i VV compactor has a turning radius of 4151 mm inner.

What type of steering is used in the HAMM HD 109i VV compactor?

The HAMM HD 109i VV tandem roller uses articulated steering.

What is the warranty period of the HAMM HD 109i VV compactor?

The HAMM HD 109i VV compactor typically comes with a 1-year standard warranty. The warranty covers defects from faulty materials or workmanship, but terms may vary. For accurate details, check with authorized dealers, OEMs, or visit the official brand website.

Where can I find spare parts for the HAMM HD 109i VV compactor?
