Fine FM38 Excavator

Name: Fine FM38 Excavator
Brand: Fine
Price: 2700000 INR
Rating: 4.5 (72 reviews)

Fine FM38 Excavator Price | Mini Excavator

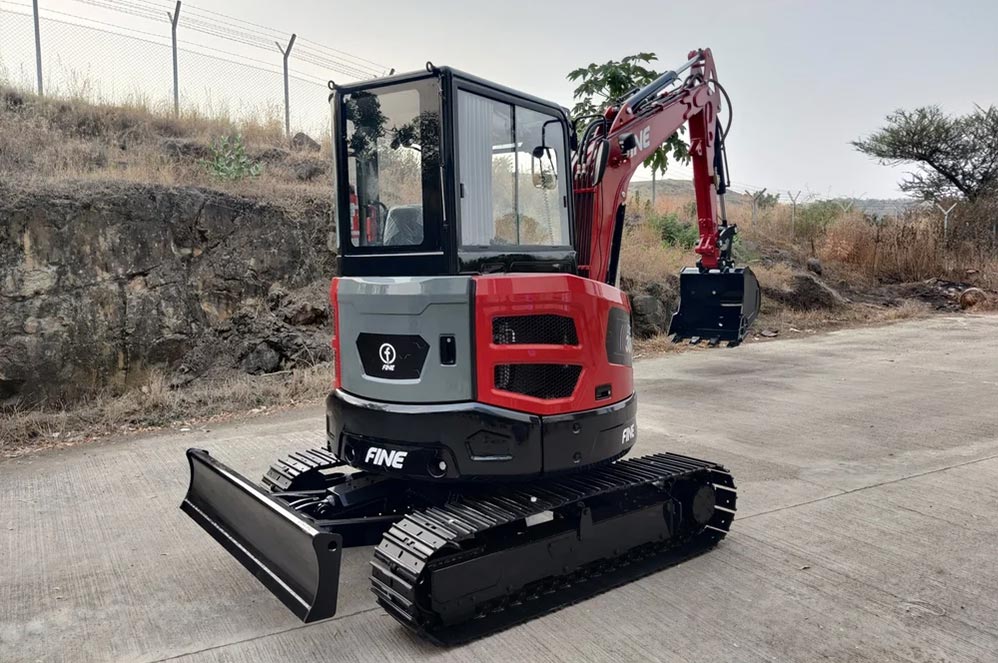

desi-machines-mini-excavator-fine-fm38-1

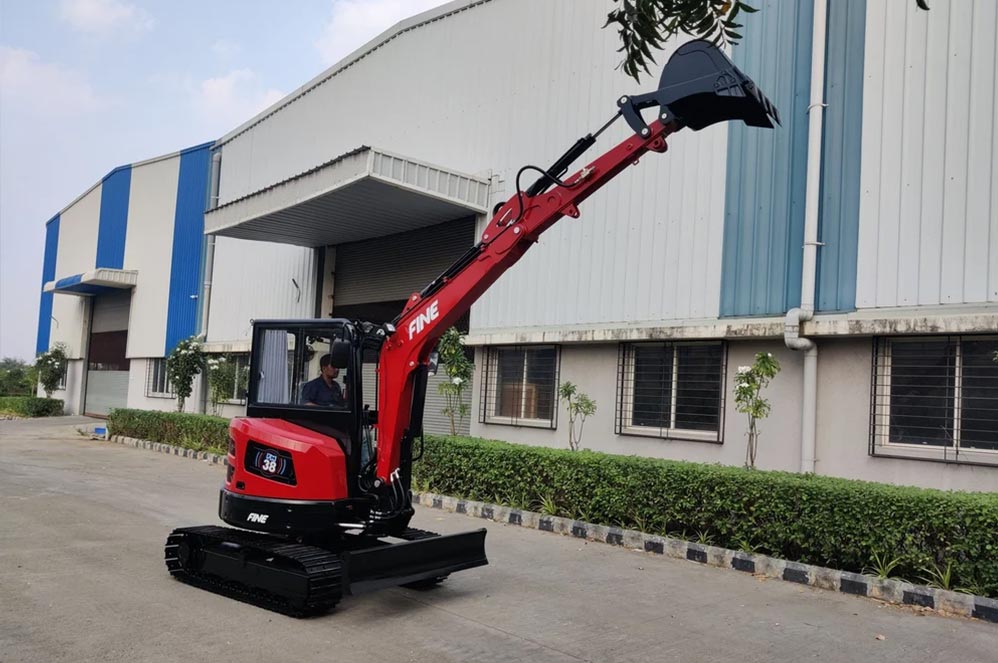

desi-machines-mini-excavator-fine-fm38-2

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Fine
Type
Mini (0-6 Ton)
Operating Cost
₹ 27 -29 Lakhs
Ex-Showroom Price
₹ 27 -29 Lakhs

Weight
3810 Kg
Bucket
0.12 m³
Digging Depth
3208 mm
Engine
Kubota 24 HP
Warranty
1 Yr. / 1000 hr.
Boom
2535 mm

Quick Overview:

The Fine FM38 is a robust 3.8-ton mini excavator featuring a zero-tail swing. It’s designed for efficient hydraulic performance in confined urban environments.

Connect With Us:

Get the best price for the Fine FM38 mini Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Kubota D1703

Fuel Tank

42 L

Engine Displacement

Under Carriage

2125 mm

Hydraulic System

88 L/min

Arm

1400 mm

Max Digging Reach

5480 mm

Fuel Consumption

4-6 L/hour

Overall Width

1755 mm

Overall Length

4915 mm

Bucket Digging Force

30 kN

Tailswing Radius

860 mm

Track Shoe Width

350 mm

AC Cabin

Standard

GPS

Not Available

Features

Ultra-Compact Design

Its narrow 1.7-meter width allows easy navigation through tight spaces, doorways, and congested construction sites.
The minimized tail swing design ensures safer operation when working close to walls or obstacles in urban environments.
Lightweight and highly maneuverable, making it ideal for intricate landscaping projects and utility installations
Enables efficient work in areas where larger excavators simply cannot access.

Powerful & Fuel-Efficient Engine

Features a robust and dependable 37 HP engine, delivering consistent and powerful performance for demanding tasks.
Offers a high digging force, allowing for efficient excavation of various soil types and materials.
Provides a well-balanced combination of digging reach and depth, enhancing its versatility on different job sites.
Engineered for fuel efficiency, contributing to lower operating costs and a reduced environmental footprint

Enhanced Attachment Compatibility

Designed to handle a wide array of tasks beyond basic digging, including loading, grading, and demolition.
Equipped with readily accessible hydraulic lines and quick couplers for swift and easy attachment changes.
Compatible with a broad spectrum of hydraulic attachments such as breakers, augers, grapples, and more.
Significantly increases job site versatility, allowing one machine to perform multiple functions efficiently.

Intuitive Operator Comfort & Control

Boasts a spacious and ergonomically designed operator cabin, prioritizing comfort during long working hours.
Incorporates a user-friendly and intuitive control layout, allowing operators to quickly become proficient.
Designed to minimize operator fatigue through comfortable seating and easy-to-reach controls, leading to increased productivity.
Enhances operator safety and overall efficiency with its well-thought-out control system.

Robust Build & Simplified Maintenance

Manufactured with a heavy-duty and durable structural frame, ensuring exceptional longevity and resistance to demanding work conditions.
Utilizes high-quality and reliable hydraulic and mechanical components for consistent and dependable performance.
Features strategically placed and easily accessible service and maintenance points, simplifying routine checks and upkeep.
Engineered for minimal downtime, maximizing operational efficiency and reducing long-term maintenance expenses

Adjustable Undercarriage & Dozer Blade

Incorporates a hydraulically expandable track width, allowing for adjustment to suit various terrain conditions and stability requirements.
Comes standard with a robust and efficient dozer blade for leveling, backfilling, and site preparation.
The adjustable undercarriage provides enhanced stability when working on uneven or sloping ground, improving safety and productivity.
Offers increased adaptability to a wider range of job site environments and operational needs.

Ultra-Compact Design

Its narrow 1.7-meter width allows easy navigation through tight spaces, doorways, and congested construction sites.
The minimized tail swing design ensures safer operation when working close to walls or obstacles in urban environments.
Lightweight and highly maneuverable, making it ideal for intricate landscaping projects and utility installations
Enables efficient work in areas where larger excavators simply cannot access.

Powerful & Fuel-Efficient Engine

Features a robust and dependable 37 HP engine, delivering consistent and powerful performance for demanding tasks.
Offers a high digging force, allowing for efficient excavation of various soil types and materials.
Provides a well-balanced combination of digging reach and depth, enhancing its versatility on different job sites.
Engineered for fuel efficiency, contributing to lower operating costs and a reduced environmental footprint

Enhanced Attachment Compatibility

Designed to handle a wide array of tasks beyond basic digging, including loading, grading, and demolition.
Equipped with readily accessible hydraulic lines and quick couplers for swift and easy attachment changes.
Compatible with a broad spectrum of hydraulic attachments such as breakers, augers, grapples, and more.
Significantly increases job site versatility, allowing one machine to perform multiple functions efficiently.

Intuitive Operator Comfort & Control

Boasts a spacious and ergonomically designed operator cabin, prioritizing comfort during long working hours.
Incorporates a user-friendly and intuitive control layout, allowing operators to quickly become proficient.
Designed to minimize operator fatigue through comfortable seating and easy-to-reach controls, leading to increased productivity.
Enhances operator safety and overall efficiency with its well-thought-out control system.

Robust Build & Simplified Maintenance

Manufactured with a heavy-duty and durable structural frame, ensuring exceptional longevity and resistance to demanding work conditions.
Utilizes high-quality and reliable hydraulic and mechanical components for consistent and dependable performance.
Features strategically placed and easily accessible service and maintenance points, simplifying routine checks and upkeep.
Engineered for minimal downtime, maximizing operational efficiency and reducing long-term maintenance expenses

Adjustable Undercarriage & Dozer Blade

Incorporates a hydraulically expandable track width, allowing for adjustment to suit various terrain conditions and stability requirements.
Comes standard with a robust and efficient dozer blade for leveling, backfilling, and site preparation.
The adjustable undercarriage provides enhanced stability when working on uneven or sloping ground, improving safety and productivity.
Offers increased adaptability to a wider range of job site environments and operational needs.

Specifications

Product specification of Fine FM38 Excavator

ENGINE

Model

Kubota D1703
Fuel

Diesel
Type

NA
Rated Engine Power

24.40 HP (18.2 kW) @ 2200 rpm
Maximum Torque

NA
Piston Displacement

NA
Alternator

NA
Battery

12V
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

NA
No of Bottom Rollers

NA
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

350 mm
Ground Bearing Pressure

NA
Track Tensioning

Grease
Travel Speed-Low

2.4 km/h
Travel Speed-High

4.4 km/h
Gradeability

NA
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

Piston Pump
Maximum Flow

88 L/min
Pilot Pump

NA
Implement Circuit

22.5 MPa
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

Piston pump with reducer.
Swing

Slew Reducer Type

SERVICE CAPACITIES

Fuel Tank

42 L
Engine Coolant

14 L
Engine Oil

7 L
Hydraulic System

20.5 L
Hydraulic Tank

40 L

MACHINE WEIGHTS

Operating Weight

3810 Kg

WORKING RANGE

Boom Length

2535 mm
Arm Length

1400 mm
Max. Digging Reach

5480 mm
Max. Digging Reach on Ground

NA
Max. Digging Depth

3208 mm
Max. Digging Height

4540 mm
Max. Dumping Height

3280 mm
Max. Vertical Wallcut Depth

2957 mm
Min. Swing Radius

NA
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

30 kN
Arm Digging Force

18 kN
Swing Speed

NA

DOZER BLADE

Dozer Type

Hydraulic Lifiting Type
Dozer Length

NA
Digging Depth for Ground Level

385 mm
Vertical Lift from Ground level

365 mm
Approach Angle

NA
Width

1720 mm
Height

350 mm

BUCKET

Bucket Capacity

0.12 m³

STATIC DIMENSIONS

Overall Length

4915 mm
Overall Width

1755 mm
Overall Height

2525 mm
Overall Height of Cab

NA
Upper Width

NA
Track Length on Ground

1670 mm
Undercarriage Overall Length

2125 mm
Tailswing Radius

860 mm
Min. Ground Clearance

305 mm
Track Gauge

NA
Width Over Tracks

1755 mm
Track Height

NA
Counter Height Clearence

NA
Track Shoe Width

350 mm

Frequently Asked Question

01. What is the Fine FM38 Mini Excavator price in India?

Ans.

The Fine FM38 Mini Excavator price in India ranges between ₹ 27 – 29 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features

02. Where can I buy a Fine FM38 Mini Excavator?

Ans.

You can buy the Fine FM38 Mini Excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Fine FM38 Mini Excavator come with financing and insurance options?

Ans.

Yes, the Fine FM38 Mini Excavator comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Fine FM38 Mini Excavator?

Ans.

The Fine FM38 Mini Excavator’s operating weight is approximately 3810 Kg. However, the weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Fine FM38 Mini Excavator?

Ans.

The Fine FM38 Mini Excavator is powered by a Kubota D1703 diesel engine, delivering 24.40 HP (18.2 kW) at 2200 rpm.

06. What is the maximum digging depth of the Fine FM38 Mini Excavator?

Ans.

The Fine FM38 Mini Excavator has a maximum digging depth of 3208 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Fine FM38 Mini Excavator?

Ans.

The bucket capacity of the Fine FM38 Mini Excavator is 0.12 cubic meters (m³).

08. What is the warranty period for the Fine FM38 Mini Excavator?

Ans.

The Fine FM38 Mini Excavator in India typically comes with a standard warranty of 1 year or 1000 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Fine FM38 Mini Excavator?

Ans.

You can find genuine spare parts for the Fine FM38 Mini Excavator at authorized Fine Equipment dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Fine FM38 Mini Excavator?

Ans.

The Fine FM38 Mini Excavator has a 40-litre diesel fuel tank, which provides extended operation time without frequent refueling.

11. What is the mileage of the Fine FM38 Mini Excavator?

Ans.

The Fine FM38 Mini Excavator has an average fuel consumption of 4-6 litres per hour, depending on factors such as load, terrain, and operating conditions
