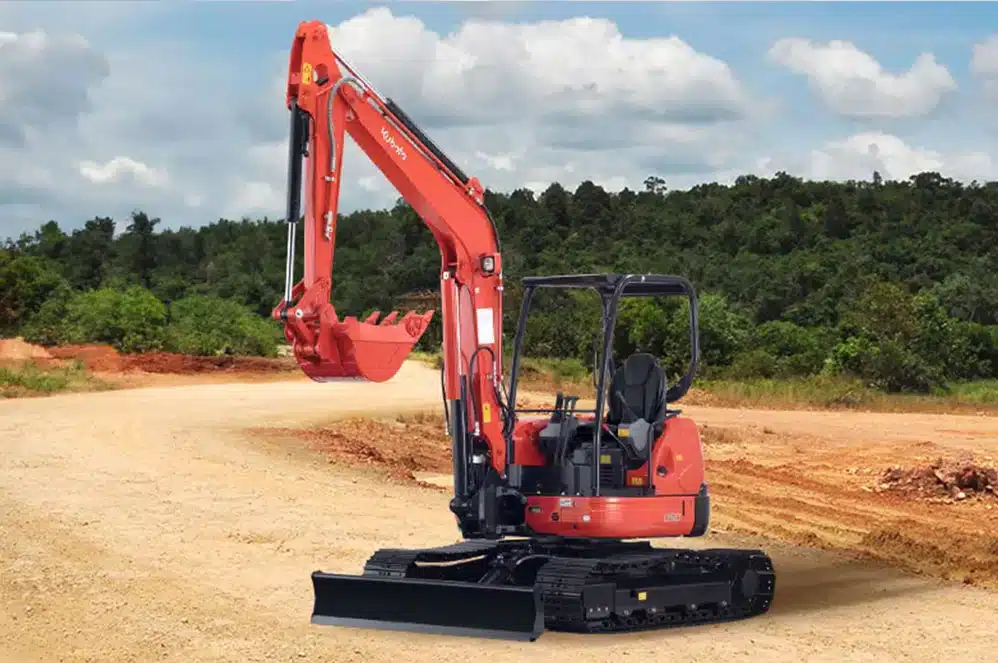

Kubota U50-5S Excavator

desi-machines-kubota-excavator-u50-5s-featured

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Escorts Kubota
Type
Mini (0-6 Ton)
Operating Cost
₹ 23-24 lakhs
Ex-Showroom Price
₹ 23-24 lakhs

Weight
4780 Kg
Bucket
0.16 m³
Digging Depth
3560 mm
Engine
Kubota 38.6 HP
Warranty
1 Yr. / 2500 hr.
Boom
NA

Quick Overview:

Kubota’s U50-5S mini excavator, made for precision, ensures high-performance landscaping and compact construction applications.

Connect With Us:

Get the best price for the Kubota U50-5S Mini Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Kubota V2203-M-E3-BH-BR2

Fuel Tank

64 L

Engine Displacement

2.197 L

Under Carriage

2500 mm

Hydraulic System

Arm

Max Digging Reach

5995 mm

Fuel Consumption

4.5 L/hour

Overall Width

1960 mm

Overall Length

5510 mm

Bucket Digging Force

36.5 kN

Tailswing Radius

990 mm

Track Shoe Width

400 mm

AC Cabin

Standard

GPS

Standard

Features

Enhanced Operational Performance

The U50-5S features a powerful and efficient hydraulic system, delivering smooth and highly productive performance in various working conditions.
Equipped with zero-tail swing, this mini excavator ensures maneuverability in tight spaces, making it ideal for confined areas like urban construction sites.
The boom-swing function allows you to dig directly close to walls or buildings, saving time and avoiding the need to reposition the machine frequently.
With the ability to perform four operations simultaneously—bucket, boom, arm, and swing—this excavator provides smooth and efficient multitasking for quicker project completion.

Advanced Technology

The U50-5S is powered by a clean-running Kubota engine, offering low noise levels, high fuel efficiency, and dependable performance for all-day operations.
A user-friendly digital panel provides real-time operational information, such as hour meters, tachometer readings, and emergency alerts for overheating, hydraulic issues, or battery problems.
The Auto Idling system automatically reduces engine speed when control levers are neutral for more than four seconds, helping save up to 10% in fuel while lowering emissions and noise.
Kubota integrates advanced technology in the U50-5S, ensuring precise control over hydraulic systems and overall performance, making the machine highly responsive to operator inputs.

Enhanced Safety Features

The U50-5S is equipped with a ROPS/FOPS cabin, offering world-class protection against rollover and falling objects, which ensures the operator's safety in hazardous environments.
The swivel motor is automatically locked when the engine is switched off, eliminating the need for a manual lock during transport, providing added convenience and security.
The engine-neutral start system ensures the engine can only be started when the safety lever is in a locked position, preventing accidental movement and reducing the risk of workplace accidents.

Easy Maintenance

Kubota has made servicing easier by consolidating the hydraulic system inspection points on the right side of the machine, offering quick access for maintenance and reducing downtime.
The rear-end engine access makes it simpler to check engine parts and perform routine inspections, ensuring the machine remains in top condition.
A thoughtfully designed anti-collision hood is positioned 30mm inside the rotating part, minimizing damage during accidental collisions and protecting the integrity of the excavator.
The electrical system is water-proof, ensuring reliable operation even in wet conditions, reducing the chances of malfunctions and extending the lifespan of the machine.

Superior Durability

The U50-5S features a steel-plated V-shaped boom cylinder protector, which shields the boom cylinder from potential damage when loading or operating in challenging environments.
A double air-filter structure is designed to keep the intake system clean, improving engine efficiency and reducing the chances of performance issues due to dirty filters.
The machine is equipped with independent hydraulic hoses for the blade, making maintenance simpler and reducing the chances of hose damage during operation.
The X-shaped, slanted track frame design helps reduce soil buildup, keeping the tracks cleaner and providing more stability during travel and operation in rough terrains.

Operator Comfort & Climate Control

For added comfort, the U50-5S model comes with an air-conditioned cabin, which is essential for keeping the operator comfortable and focused, especially in hot and dusty environments.
The spacious cabin design allows the operator to move freely, reducing fatigue and enhancing their productivity throughout the workday.
The excellent all-round visibility from the cabin ensures that the operator can work efficiently, avoiding obstacles and increasing safety during operations.
The climate-controlled cabin ensures a pleasant environment for the operator, even in extreme weather conditions, providing a significant advantage for long working hours in various job sites.

Enhanced Operational Performance

The U50-5S features a powerful and efficient hydraulic system, delivering smooth and highly productive performance in various working conditions.
Equipped with zero-tail swing, this mini excavator ensures maneuverability in tight spaces, making it ideal for confined areas like urban construction sites.
The boom-swing function allows you to dig directly close to walls or buildings, saving time and avoiding the need to reposition the machine frequently.
With the ability to perform four operations simultaneously—bucket, boom, arm, and swing—this excavator provides smooth and efficient multitasking for quicker project completion.

Advanced Technology

The U50-5S is powered by a clean-running Kubota engine, offering low noise levels, high fuel efficiency, and dependable performance for all-day operations.
A user-friendly digital panel provides real-time operational information, such as hour meters, tachometer readings, and emergency alerts for overheating, hydraulic issues, or battery problems.
The Auto Idling system automatically reduces engine speed when control levers are neutral for more than four seconds, helping save up to 10% in fuel while lowering emissions and noise.
Kubota integrates advanced technology in the U50-5S, ensuring precise control over hydraulic systems and overall performance, making the machine highly responsive to operator inputs.

Enhanced Safety Features

The U50-5S is equipped with a ROPS/FOPS cabin, offering world-class protection against rollover and falling objects, which ensures the operator's safety in hazardous environments.
The swivel motor is automatically locked when the engine is switched off, eliminating the need for a manual lock during transport, providing added convenience and security.
The engine-neutral start system ensures the engine can only be started when the safety lever is in a locked position, preventing accidental movement and reducing the risk of workplace accidents.

Easy Maintenance

Kubota has made servicing easier by consolidating the hydraulic system inspection points on the right side of the machine, offering quick access for maintenance and reducing downtime.
The rear-end engine access makes it simpler to check engine parts and perform routine inspections, ensuring the machine remains in top condition.
A thoughtfully designed anti-collision hood is positioned 30mm inside the rotating part, minimizing damage during accidental collisions and protecting the integrity of the excavator.
The electrical system is water-proof, ensuring reliable operation even in wet conditions, reducing the chances of malfunctions and extending the lifespan of the machine.

Superior Durability

The U50-5S features a steel-plated V-shaped boom cylinder protector, which shields the boom cylinder from potential damage when loading or operating in challenging environments.
A double air-filter structure is designed to keep the intake system clean, improving engine efficiency and reducing the chances of performance issues due to dirty filters.
The machine is equipped with independent hydraulic hoses for the blade, making maintenance simpler and reducing the chances of hose damage during operation.
The X-shaped, slanted track frame design helps reduce soil buildup, keeping the tracks cleaner and providing more stability during travel and operation in rough terrains.

Operator Comfort & Climate Control

For added comfort, the U50-5S model comes with an air-conditioned cabin, which is essential for keeping the operator comfortable and focused, especially in hot and dusty environments.
The spacious cabin design allows the operator to move freely, reducing fatigue and enhancing their productivity throughout the workday.
The excellent all-round visibility from the cabin ensures that the operator can work efficiently, avoiding obstacles and increasing safety during operations.
The climate-controlled cabin ensures a pleasant environment for the operator, even in extreme weather conditions, providing a significant advantage for long working hours in various job sites.

Specifications

Product specification of Kubota U50-5S Excavator

ENGINE

Model

Kubota V2203-M-E3-BH-BR2
Fuel

Diesel
Type

NA
Rated Engine Power

38.6 HP (28.8 kW) @ 2250 rpm
Maximum Torque

NA
Piston Displacement

2.197 L
Alternator

NA
Battery

12V
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

NA
No of Bottom Rollers

NA
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

400 mm
Ground Bearing Pressure

NA
Track Tensioning

Grease
Gradeability

30°
Travel Speed-Low

2.5 Km/h
Travel Speed-High

4.4 Km/h
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

Variable pump × 1 + gear pump × 1
Maximum Flow

NA
Pilot Pump

Gear Pump
Implement Circuit

NA
Swing Circuit

NA
Travel Circuit

NA
Pilot Circuit

NA

HYDRAULIC MOTORS

Travel

Hydraulic piston motor: 2F
Swing

Hydraulic piston motor

SERVICE CAPACITIES

Fuel Tank

64 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

NA
Hydraulic Tank

NA

MACHINE WEIGHTS

Operating Weight

4780 Kg

WORKING RANGE

Boom Length

NA
Arm Length

NA
Max. Digging Reach

5995 mm
Max. Digging Reach on Ground

NA
Max. Digging Depth

3560 mm
Max. Digging Height

5630 mm
Max. Dumping Height

4000 mm
Max. Vertical Wallcut Depth

2890 mm
Min. Swing Radius

2375 mm
Max. Height at Min Swing Radius

1875 mm
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

36.5 kN
Arm Digging Force

NA
Swing Speed

8.6 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

455 mm
Vertical Lift from Ground level

375 mm
Approach Angle

NA
Width

1960 mm
Height

360 mm

BUCKET

Bucket Capacity

0.16 m³

STATIC DIMENSIONS

Overall Length

5510 mm
Overall Width

1960 mm
Overall Height

2540 mm
Overall Height of Cab

2540 mm
Upper Width

NA
Track Lengh on Ground

1990 mm
Undercarriage Overall Length

2500 mm
Tailswing Radius

990 mm
Min. Ground Clearance

320 mm
Track Gauge

NA
Width Over Tracks

NA
Track Height

NA
Counterweight Clearence

NA
Track Shoe Width

400 mm

Frequently Asked Question

01. What is the Kubota U50-5S Excavator price in India?

Ans.

The Kubota U50-5S Excavator price in India ranges between ₹ 23 – 24 lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

02. Where can I buy a Kubota U50-5S excavator?

Ans.

You can buy the Kubota U50-5S excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Kubota U50-5S Excavator come with financing and insurance options?

Ans.

Yes, the Kubota U50-5S comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Kubota U50-5S excavator?

Ans.

The operating weight of the Kubota U50-5S excavator is approximately 4780 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Kubota U50-5S excavator?

Ans.

The Kubota U50-5S excavator is powered by a Kubota V2203-M-E3-BH-BR2 engine, delivering 38.6 HP (28.8 kW) at 2250 rpm.

06. What is the maximum digging depth of the Kubota U50-5S excavator?

Ans.

The Kubota U50-5S excavator has a maximum digging depth of 3560 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Kubota U50-5S Excavator?

Ans.

The bucket capacity of the Kubota U50-5S Excavator is 0.16 cubic meters (m³).

08. What is the warranty period for the Kubota U50-5S excavator?

Ans.

The Kubota U50-5S Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Kubota U50-5S excavator?

Ans.

You can find genuine spare parts for the Kubota U50-5S excavator at authorized L&T Komatsu dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Kubota U50-5S Excavator?

Ans.

The Kubota U50-5S excavator has a 64 litres diesel fuel tank, providing extended operation time without frequent refueling.

11. What is the mileage of the Kubota U50-5S excavator?

Ans.

The Kubota U50-5S excavator has an average fuel consumption of 4.5 litres per hour, depending on factors such as load, terrain, and operating conditions
