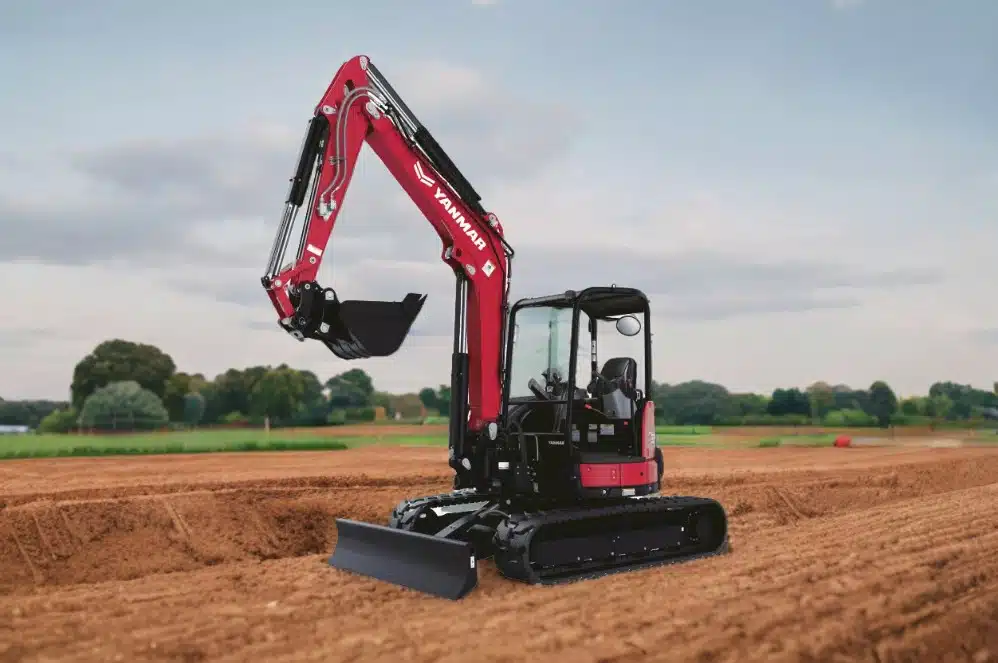

Yanmar Vi050-6B Excavator

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Yanmar
Type
Mini (0-6 Ton)
Operating Cost
₹ 35.5 - 36.5 Lakhs
Ex-Showroom Price
₹ 35.5 - 36.5 Lakhs

Weight
4735 Kg
Bucket
0.15 m³
Digging Depth
3360 mm
Engine
Yanmar 37.7 HP
Warranty
1 Yr. / 2500 hr.
Boom
NA

Quick Overview:

Yanmar Vi050-6B mini excavator ensures unmatched performance and durability, perfect for compact construction and landscaping tasks.

Connect With Us:

Get the best price for the Yanmar Vi050-6B Mini Excavator from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Yanmar 4TNV88-ZPBV

Fuel Tank

66 L

Engine Displacement

Under Carriage

2590 mm

Hydraulic System

2 x 42.5 L/min

Arm

Max Digging Reach

Fuel Consumption

Overall Width

1940 mm

Overall Length

5230 mm

Bucket Digging Force

36.5 kN

Tailswing Radius

Track Shoe Width

350 mm

AC Cabin

Optional

GPS

Standard

Features

Engine Performance and Efficiency

Equipped with a Yanmar 4TNV88C-PBV engine, delivering 37.7 HP at 2,200 rpm, ensuring robust performance for various tasks.
Features direct injection and a common rail system for precise fuel delivery, enhancing fuel efficiency and reducing emissions.
Meets EU Stage V emission standards through cooled Exhaust Gas Recirculation (EGR) and a Diesel Particulate Filter (DPF), promoting environmental sustainability.
Includes an Eco-Mode function that optimizes engine speed, reducing fuel consumption and operational costs.

Hydraulic System and Performance

Incorporates the ViO Progressive 3 Pump System, combining two variable displacement piston pumps with multiple directional control valves for smooth, simultaneous operations.
Equipped with a high-flow auxiliary circuit with proportional control to the arm end, allowing for versatile attachment compatibility.
Features an automatic second-speed function that adjusts travel speed based on load, enhancing operational efficiency.
Features an automatic second-speed function that adjusts travel speed based on load, enhancing operational efficiency.

Design and Durability

The zero tail swing design allows for operation in confined spaces, enhancing manoeuvrability in urban environments.
Features a redesigned boom with a box structure, increasing lifting force by 10% and reducing weight by 40 kg, thereby improving stability and durability.
The X-shaped box-section undercarriage provides excellent torsional stiffness, contributing to the machine's overall stability and durability.
Offers comprehensive protection for all boom and arm cylinders, reducing maintenance costs and enhancing machine longevity.

Operator Comfort and Safety

Designed with a spacious cabin that offers increased legroom and improved ergonomics, enhancing operator comfort during extended operations.
Features optimal air distribution with six vents and a defrost function, ensuring a comfortable working environment in various weather conditions.
Equipped with an air suspension seat that offers multiple adjustment options, allowing operators to find their optimal seating position.
Provides excellent 360° visibility, enhancing safety and operational efficiency by allowing operators to monitor the work area effectively.

Maintenance and Serviceability

Designed with five hoods or openings that allow easy access for component maintenance, facilitating quick daily checks and servicing.
Engineered for extended service intervals, reducing downtime and maintenance costs, thereby increasing overall productivity.
Equipped with a digital interface that provides real-time information on machine status, assisting in maintenance scheduling and diagnostics.
Standard LED lighting enhances visibility during low-light conditions, improving safety and operational efficiency.

Environmental Considerations

Engineered to reduce noise levels by 3 dB(A), contributing to a quieter working environment and compliance with noise regulations.
Incorporates features like Eco-Mode and a Diesel Particulate Filter (DPF) to minimize emissions and fuel consumption, supporting environmental sustainability.
Constructed with recyclable materials, aligning with environmental standards and promoting sustainability in construction operations
Meets stringent emission standards, ensuring the machine operates within environmental regulations and reduces its ecological footprint.

Engine Performance and Efficiency

Equipped with a Yanmar 4TNV88C-PBV engine, delivering 37.7 HP at 2,200 rpm, ensuring robust performance for various tasks.
Features direct injection and a common rail system for precise fuel delivery, enhancing fuel efficiency and reducing emissions.
Meets EU Stage V emission standards through cooled Exhaust Gas Recirculation (EGR) and a Diesel Particulate Filter (DPF), promoting environmental sustainability.
Includes an Eco-Mode function that optimizes engine speed, reducing fuel consumption and operational costs.

Hydraulic System and Performance

Incorporates the ViO Progressive 3 Pump System, combining two variable displacement piston pumps with multiple directional control valves for smooth, simultaneous operations.
Equipped with a high-flow auxiliary circuit with proportional control to the arm end, allowing for versatile attachment compatibility.
Features an automatic second-speed function that adjusts travel speed based on load, enhancing operational efficiency.
Features an automatic second-speed function that adjusts travel speed based on load, enhancing operational efficiency.

Design and Durability

The zero tail swing design allows for operation in confined spaces, enhancing manoeuvrability in urban environments.
Features a redesigned boom with a box structure, increasing lifting force by 10% and reducing weight by 40 kg, thereby improving stability and durability.
The X-shaped box-section undercarriage provides excellent torsional stiffness, contributing to the machine's overall stability and durability.
Offers comprehensive protection for all boom and arm cylinders, reducing maintenance costs and enhancing machine longevity.

Operator Comfort and Safety

Designed with a spacious cabin that offers increased legroom and improved ergonomics, enhancing operator comfort during extended operations.
Features optimal air distribution with six vents and a defrost function, ensuring a comfortable working environment in various weather conditions.
Equipped with an air suspension seat that offers multiple adjustment options, allowing operators to find their optimal seating position.
Provides excellent 360° visibility, enhancing safety and operational efficiency by allowing operators to monitor the work area effectively.

Maintenance and Serviceability

Designed with five hoods or openings that allow easy access for component maintenance, facilitating quick daily checks and servicing.
Engineered for extended service intervals, reducing downtime and maintenance costs, thereby increasing overall productivity.
Equipped with a digital interface that provides real-time information on machine status, assisting in maintenance scheduling and diagnostics.
Standard LED lighting enhances visibility during low-light conditions, improving safety and operational efficiency.

Environmental Considerations

Engineered to reduce noise levels by 3 dB(A), contributing to a quieter working environment and compliance with noise regulations.
Incorporates features like Eco-Mode and a Diesel Particulate Filter (DPF) to minimize emissions and fuel consumption, supporting environmental sustainability.
Constructed with recyclable materials, aligning with environmental standards and promoting sustainability in construction operations
Meets stringent emission standards, ensuring the machine operates within environmental regulations and reduces its ecological footprint.

Specifications

Product specification of Yanmar Vi050-6B Excavator

ENGINE

Model

Yanmar 4TNV88-ZPBV
Fuel

Diesel
Type

Vertical 4-cylinder water-cooled direct injection diesel engine
Rated Engine Power

37.7 HP (28.1 kW) @ 2200 rpm
Maximum Torque

NA
Piston Displacement

NA
Alternator

NA
Battery

NA
Starting Motor

NA

UNDERCARRIAGE

No of Top Rollers

NA
No of Bottom Rollers

NA
Track Shoes (Each Side)

NA
Track Guard

NA
Track Shoe Width

350 mm
Ground Bearing Pressure

29.9 kPa
Track Tensioning

Grease
Gradeability

NA
Travel Speed-Low

2.1 Km/h
Travel Speed-High

4.3 Km.h
Max Tracking Force

NA

HYDRAULIC SYSTEM

Hydraulic Pump

Variable displacement pump
Maximum Flow

2 x 42.5 L/min
Pilot Pump

1 Gear Pump
Implement Circuit

24.5 MPa
Swing Circuit

21.6 MPa
Travel Circuit

24.5 MPa
Pilot Circuit

3.9 MPa

HYDRAULIC MOTORS

Travel

NA
Swing

NA

SERVICE CAPACITIES

Fuel Tank

66 L
Engine Coolant

NA
Engine Oil

NA
Hydraulic System

NA
Hydraulic Tank

38 L

MACHINE WEIGHTS

Operating Weight

4735 Kg

WORKING RANGE

Boom Length

NA
Arm Length

NA
Max. Digging Reach

NA
Max. Digging Reach on Ground

NA
Max. Digging Depth

3360 mm
Max. Digging Height

5530 mm
Max. Dumping Height

3870 mm
Max. Vertical Wallcut Depth

2690 mm
Min. Swing Radius

2190 mm
Max. Height at Min Swing Radius

NA
Max. Height (Above Ground)

NA
Dig Depth (Below Ground)

NA
Bucket Digging Force

36.5 kN
Arm Digging Force

22.7 kN
Swing Speed

10 rpm

DOZER BLADE

Dozer Type

NA
Dozer Length

NA
Digging Depth for Ground Level

NA
Vertical Lift from Ground level

NA
Approach Angle

NA
Width

1970 mm
Height

400 mm

BUCKET

Bucket Capacity

0.15 m³

STATIC DIMENSIONS

Overall Length

5230 mm
Overall Width

1940 mm
Overall Height

2540 mm
Overall Height of Cab

NA
Upper Width

NA
Track Lengh on Ground

NA
Undercarriage Overall Length

2590 mm
Tailswing Radius

NA
Min. Ground Clearance

345 mm
Track Gauge

1590 mm
Width Over Tracks

1940 mm
Track Height

NA
Counterweight Clearence

NA
Track Shoe Width

350 mm

Frequently Asked Question

01. What is the Yanmar Vi050-6B Excavator price in India?

Ans.

The Yanmar Vi050-6B Excavator price in India ranges between ₹ 35.5 – 36.5 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

02. Where can I buy a Yanmar Vi050-6B excavator?

Ans.

You can buy the Yanmar Vi050-6B excavator from Desi Machines, your trusted platform for heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the excavator you need, or contact us directly for expert assistance and competitive pricing.

03. Does the Yanmar Vi050-6B Excavator come with financing and insurance options?

Ans.

Yes, the Yanmar Vi050-6B comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Simply fill out the form for the excavator, and our team will help you secure the best deals.

04. What is the operating weight of the Yanmar Vi050-6B excavator?

Ans.

The operating weight of the Yanmar Vi050-6B excavator is approximately 4735 Kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What type of engine is used in the Yanmar Vi050-6B excavator?

Ans.

The Yanmar Vi050-6B excavator is powered by a Yanmar 4TNV88-ZPBV engine, delivering 37.7 HP (28.1 kW) at 2200 rpm.

06. What is the maximum digging depth of the Yanmar Vi050-6B excavator?

Ans.

The Yanmar Vi050-6B excavator has a maximum digging depth of 3360 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

07. What is the bucket capacity of the Yanmar Vi050-6B Excavator?

Ans.

The bucket capacity of the Yanmar Vi050-6B Excavator is 0.14 cubic meters (m³).

08. What is the warranty period for the Yanmar Vi050-6B excavator?

Ans.

The Yanmar Vi050-6B Excavator in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever occurs first. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. For the most accurate and up-to-date information, please verify with authorized dealers or the official brand website.

09. Where can I find spare parts for the Yanmar Vi050-6B excavator?

Ans.

You can find genuine spare parts for the Yanmar Vi050-6B excavator at authorized Yanmar dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on excavator spare parts.

10. What is the fuel tank capacity of the Yanmar Vi050-6B Excavator?

Ans.

The Yanmar Vi050-6B excavator has a 66 litres diesel fuel tank, providing extended operation time without frequent refueling.
