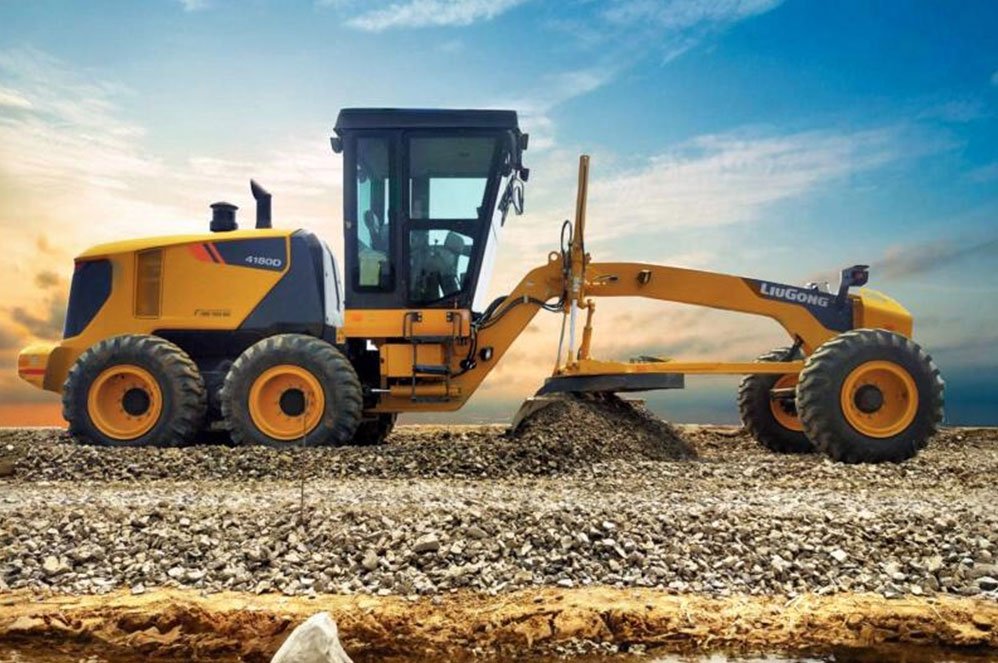

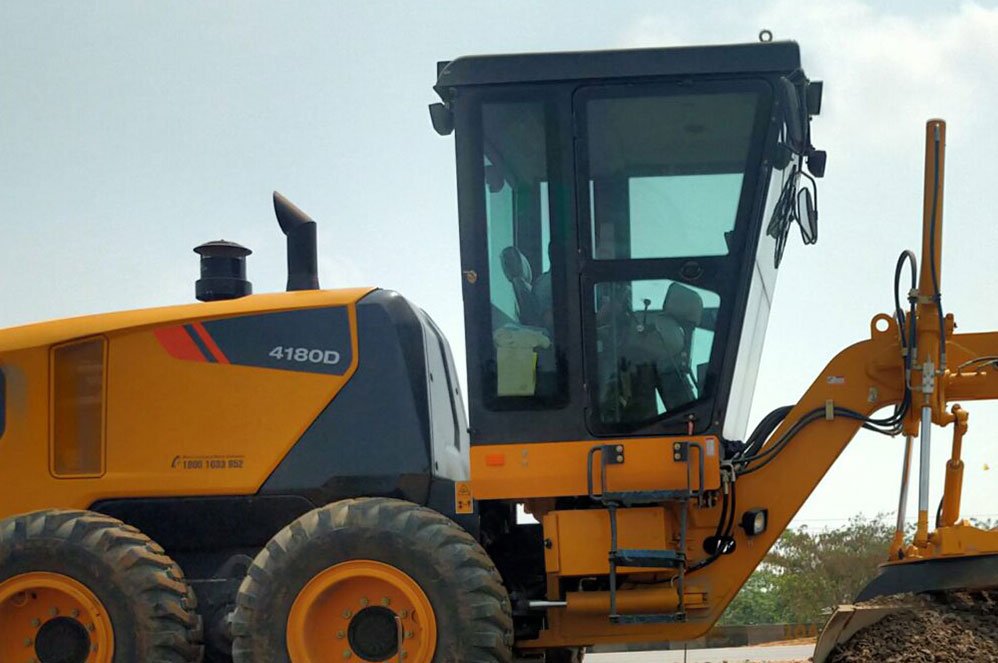

    LiuGong 4180D Motor Grader

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      LiuGong

    • Type

      Medium (12-20 Ton)

    • Operating Cost

      ₹ 92-94 Lakhs

    • Ex-Showroom Price

      ₹ 92-94 Lakhs

    • Engine

      Ashok Leyland 180 HP

    • Blade

      3660 mm

    • icon alt1
      Weight

      15000 kg

    • Turning Radius

      7800 mm

    • Forward Speed

      43 km/hr

    • Reverse Speed

      32 km/hr

    Quick Overview:

    LiuGong 4180D motor grader is easy to maneuver, combining robust structure with excellent performance for diverse construction projects in varying conditions.

    Connect With Us:

    Looking for the best price on a LiuGong 4180 D from authorized dealers? We can help you find exclusive deals and connect you with trusted sellers.​

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Ashok Leyland H6 Engine

    Max Torque

    700 Nm @1600 rpm

    Fuel Tank

    275 L

    Hydraulic System

    NA

    Tires

    17.5-25 PR16

    Frame Height

    NA

    Max Lift Above Ground

    600 mm

    Max Cutting Depth

    680 mm

    Blade Pitch Angle

    NA

    Wheel Base

    6230 mm

    Overall Length

    9090 mm

    Overall Height

    3670 mm

    Medal Image
    Warranty

    1.5 Years

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Optional

    Features

    Performance

    Performance

    • Precisely selection of CEV Stage IV Compliant Engine to ensure the unmatched performance to handle the toughest and harsh grading jobs. Liugong 4180D Offering high Grading ability and tractionwith all advanced features of Grading to its Customer resulting in high profitability

    Efficiency

    Efficiency

    • Perfect match of power trains and implementation units always succeed to deliver high productivity in any kind of Road application.

    Reliability

    Reliability

    • Reliability is factor which cannot come from the brand make but from the product presence and adaptability in the market due to its continuous operating hours.

    Comfort

    Comfort

    • Every work get easier & productive if operator feels safe as well as comfort on his job. Our well designed AC Cab offers various features to create best working environment – a comfortable operator is a productive operator.

    Maximum uptime

    Maximum uptime

    • Ground level serviceability give easy access to service touch points and minimize the down time.

    Performance

    • Precisely selection of CEV Stage IV Compliant Engine to ensure the unmatched performance to handle the toughest and harsh grading jobs. Liugong 4180D Offering high Grading ability and tractionwith all advanced features of Grading to its Customer resulting in high profitability

    Efficiency

    • Perfect match of power trains and implementation units always succeed to deliver high productivity in any kind of Road application.

    Reliability

    • Reliability is factor which cannot come from the brand make but from the product presence and adaptability in the market due to its continuous operating hours.

    Comfort

    • Every work get easier & productive if operator feels safe as well as comfort on his job. Our well designed AC Cab offers various features to create best working environment – a comfortable operator is a productive operator.

    Maximum uptime

    • Ground level serviceability give easy access to service touch points and minimize the down time.

    Specifications

    Product specification of LiuGong 4180D Motor Grader

    ENGINE

    • Model

      Ashok Leyland H6 Engine

    • Fuel

      Diesel

    • Type

      NA

    • Number of Cylinders

      6

    • Gross Power

      180 HP (134 kW) @ 2200 rpm

    • Max Torque

      700 Nm @1600 rpm

    • Displacement

      6.7 L

    • Battery

      NA

    • Alternator

      NA

    TRANSMISSION

    • Type

      Powershift transmission, coupled with a three-member, single-turbine torque converter, offers 6 forward and 3 reverse speeds gears.

    SPEED

    • Max. Forward Speed

      43 km/hr

    • Max. Reverse Speed

      32 km/hr

    AXLES

    • Rear Axle

      Meritor - Four Wheel Drive

    • Front Axle

      All Welded Steel Frame

    TIRES

    • Size

      17.5-25 PR16

    STEERING

    • Type

      Front Wheel Steering

    • Minimum Turning Radius

      7800 mm

    • Steering Angle

      50°

    BRAKES

    • Service

      Fully Hydraulic, Shoe

    • Parking

      Manual, Mechanical Shoe Brake

    FRAME

    • Front Frame Structure - Height

      NA

    • Front Frame Structure - Width

      NA

    • Front Frame Structure - Thickness

      NA

    MOLDBOARD

    • Type

      NA

    • Blade Length

      3660 mm

    • Blade Height

      610 mm

    • Blade Thickness

      NA

    • Cutting Edge

      NA

    • Blade Pull

      NA

    • Blade Down Pressure

      7600 kgf

    • Moldboard Side Shift (Right/Left)

      NA

    • Maximum Shoulder Reach (Right/Left)

      NA

    • Maximum Lift Above Ground

      600 mm

    • Maximum Cutting Depth

      680 mm

    • Blade Pitch Angle

      NA

    HYDRAULICS

    • Type

      Gear pump

    • Maximum Pump Flow

      NA

    • Maximum System Pressure

      20 MPa

    SERVICE CAPACITIES

    • Fuel Tank

      275 L

    • Cooling System

      40 L

    • Engine Oil

      24 L

    • DEF Tank

      NA

    • Transmission Oil

      33 L

    • Final Drive

      NA

    • Hydraulic System

      115 L

    • Circle Reverse Housing

      NA

    WEIGHT

    • Gross Vehicle Weight

      15000 kg

    STATIC DIMENSIONS

    • Overall Height

      3670 mm

    • Moldboard Base

      NA

    • Wheelbase

      6230 mm

    • Tandem Wheelbase

      1538 mm

    • Width of Standard Moldboard

      3660 mm

    • Overall Length

      9090 mm

    • Tread Gauge

      2150 mm

    • Width of Tires

      2600 mm

    • Articulation, left or right

      NA

    • Minimum Ground Clearence

      NA

    Frequently Asked Question

    01. What is the price of the LiuGong 4180D Motor Grader in India?

    Ans.

    The LiuGong 4180D motor grader price in India ranges between ₹ 92-94 Lakhs. However, the exact price may vary depending on the location, dealer, taxes, and additional features.

    02. Where can I buy LiuGong 4180D motor grader in india?

    Ans.

    You can buy the LiuGong 4180D motor grader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the motor grader you want, or contact us directly for expert assistance and competitive pricing.

    03. Does the LiuGong 4180D motor grader comes with financing & insurance options?

    Ans.

    Yes, the LiuGong 4180D motor grader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

    04. What is the engine power of the LiuGong 4180D Motor Grader?

    Ans.

    The LiuGong 4180D motor grader is powered by a Ashok Leyland H6 Engine diesel engine, delivering 180 HP (134 kW) @ 2200 rpm.

    05. What is the weight of the LiuGong 4180D Motor Grader?

    Ans.

    The weight of the LiuGong 4180D motor grader is approximately 17650 kg. The weight may vary slightly depending on specific configurations and attachments.

    06. What is the blade width of the LiuGong 4180D Motor Grader?

    Ans.

    The LiuGong 4180D Motor Grader features a blade width of 3660 mm (12.01 feet), making it ideal for balanced and efficient grading applications.

    07. What is the turning radius of the LiuGong 4180D Motor Grader?

    Ans.

    The LiuGong 4180D Motor Grader has a turning radius of 7800 mm, providing optimized control for precision grading.

    08. What is the fuel tank capacity of the LiuGong 4180D Motor Grader?

    Ans.

    The LiuGong 4180D motor grader has a 275-liter diesel fuel tank, providing extended operation time without frequent refueling.

    09. What is the warranty period of LiuGong 4180D motor grader?

    Ans.

    The LiuGong 4180D in India typically comes with a standard warranty of 1.5 years. This warranty generally covers defects due to faulty materials or workmanship. Warranty terms can vary. Please verify with authorized dealers or the official brand website for the most accurate and up-to-date information.

    10. Where can I find spare parts for the LiuGong 4180D motor grader?

    Ans.

    You can find genuine spare parts for the LiuGong 4180D at authorized LiuGong dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on motor grader spare parts.
