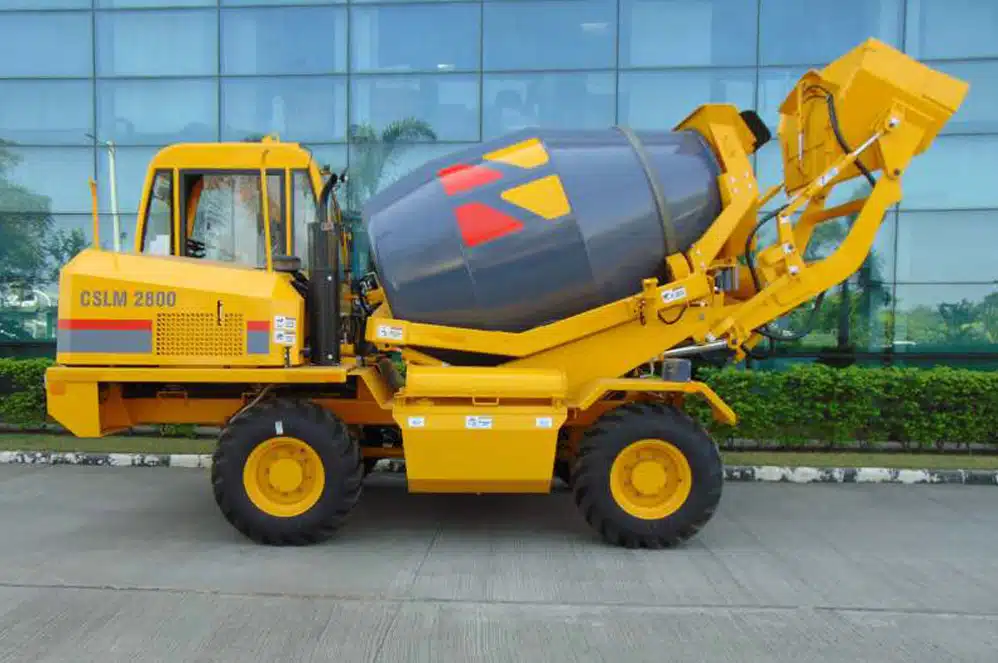

CONMAT CSLM 2800 Self Loading Concrete Mixer

Powered by KOEL 4R810T BS-V diesel engine producing 49 HP at 2200 RPM, designed for consistent performance on construction job site.

The 4-cylinder turbocharged, water-cooled engine is BS-V emission compliant, ensuring cleaner output with better fuel efficiency.

Ideal for medium-scale construction, providing the right balance of power, fuel economy, and operational stability across terrain type.

Deliver concrete output of 2.8 m³ per batch, suitable for roadwork, building, and small-scale infrastructure project.

Drum rotation of 0–22 RPM allow consistent, high-quality mixing of aggregate, cement, and water on demand.

Equipped with optimized spiral blade that improve mix uniformity and allow quicker, spill-free discharge on job site.

Built with hydraulic-powered transmission system offering 2-speed forward and reverse travel for better handling and speed control.

Feature hydraulic-powered braking, providing excellent stopping power even on incline or while fully loaded.

Can reach top travel speed of 25 km/h, enabling faster movement across batching zone and pouring location.

Weigh approximately 6900 kg, ensuring stability and durability even under full drum load on rugged construction terrain.

Compact dimension 5885 mm (L) × 2450 mm (W) × 3670 mm (H), designed to operate in narrow access work zone.

Integrated hydraulic articulated steering system provide smooth and responsive maneuvering, improving operational efficiency and safety.

Include 420 L loading bucket that allow fast material intake, minimizing spillage and cycle downtime between batch.

Integrated electronic weight batching system ensure accurate mix ratio for consistent concrete quality.

Support optional admixture dosing, giving contractor flexibility to adapt concrete blend to specific structural requirement.

Feature 625 L water tank, 100 L diesel tank, and reliable hydraulic system for day-long, self-contained operation.

High-performance 360 LPM water pump support precise water dosing and drum cleaning between batch.

Ideal for remote site work, allowing self-reliant mixing, transporting, and discharging without external support or frequent refueling.
