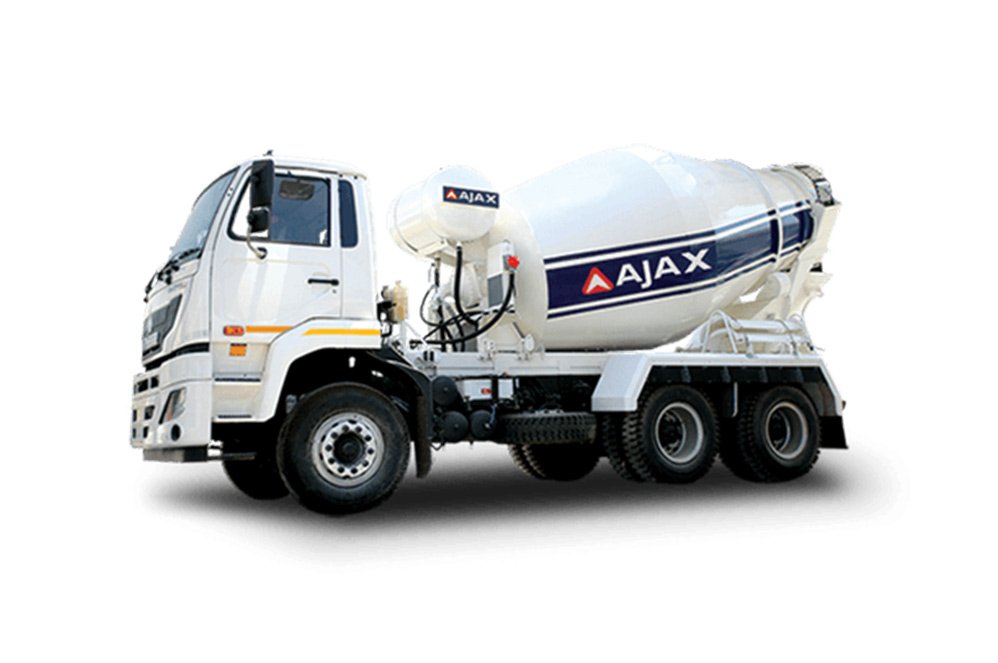

Ajax AF 7XE Concrete Mixer

7 m³ nominal drum filling capacity supports large-scale concrete delivery without frequent reloads.

12.88 m³ geometric volume ensures an optimized fill-to-drum ratio for maximum load efficiency.

A 56% filling ratio reduces dead space and improves payload use per trip.

The drum spins at 12 rpm to maintain a consistent mixing speed and prevent segregation.

High-strength steel drum with spiral liners resists wear and extends maintenance intervals.

The optimized spiral position ensures even concrete flow and reduces wear on mixing blades.

The 450 L pressurized water tank with a level indicator allows for precise hydration control for a quality mix.

Water jet output of 250–300 L/min at 5–6 bar supports effective concrete cleaning and drum rinsing.

The integrated pressurized design minimizes leakage and ensures reliable water delivery on job sites.

The PTO (Power Take-Off) drive improves operational efficiency by allowing truck engines to power drum rotation.

The slave PTO drive mechanism simplifies integration with standard heavy-duty trucks without needing extra engines.

This reliable drive system delivers consistent rotational torque, reducing mechanical issues during transit.

Steel extension chutes with wear-resistant liners protect high-wear sliding surfaces during delivery.

The mixer unit weighs 3.95 tons, providing a strong foundation and stability during transport and mixing.

Compatibility with a 3-axle chassis offers structural rigidity, supporting safe concrete transit over rough terrain.

The drum diameter of 2300 mm is industry-standard, allowing for robust internal volume and easy part servicing.

Pressurized systems and durable steel components simplify cleaning and reduce downtime from wear.

Built by AJAX with a rugged construction, it is ideal for heavy-duty applications in roads, bridges, and commercial projects.
