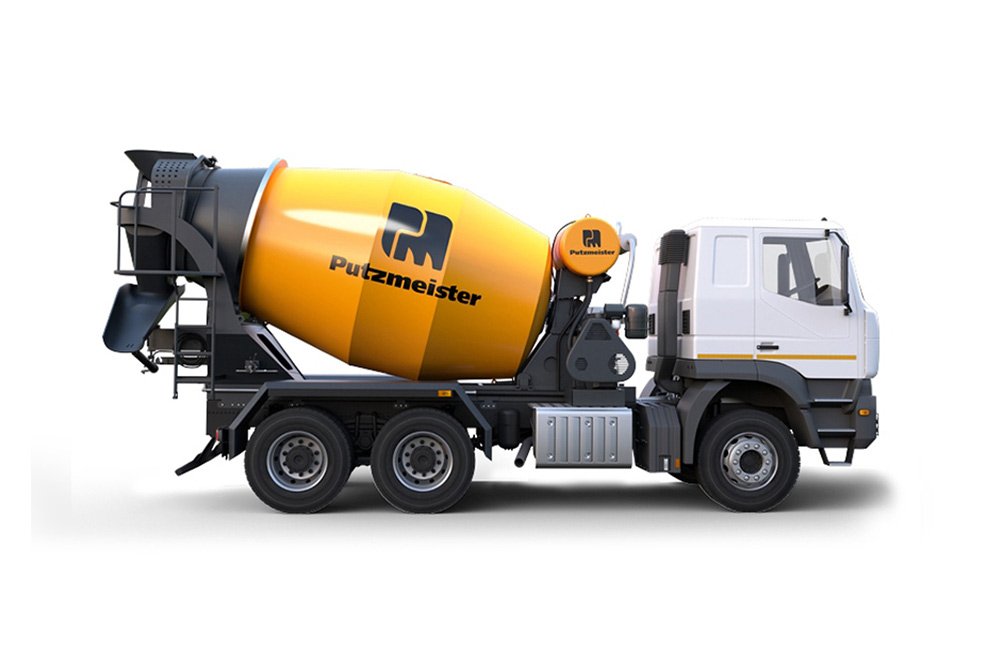

Putzmeister P7+ Concrete Mixer

The optimized spiral and drum layout provides better concrete mix quality and faster discharge times.

With a nominal filling capacity of 8,260 L and a geometric volume of 12.7 m³, it ensures efficient loading.

The large feeder hopper is 23% bigger, which speeds up loading and reduces spillage for a smoother delivery process.

This mixer has an 18 L hydraulic oil cooler, which keeps performance steady during heavy-duty use.

The high-torque hydraulic motor (72 cc or 90 cc options) handles tough concrete mixes with power and dependability.

Drum speeds can go from 0 to 14 rpm, allowing for precise control during loading and discharge.

A discharge chute that is 32% larger speeds up unloading and helps keep concrete delivery uniform at the site.

The anti-clockwise loading and clockwise discharging pattern ensures consistent flow of the mixture without segregation.

The design for uniform delivery reduces leftover concrete in the drum, improving efficiency and cleanliness.

A box-type sub-frame made from high-strength steel (530 N/mm² yield) supports tough and reliable mixer operations.

The shell thickness ranges from 4 to 6 mm, ensuring the drum lasts even when exposed to coarse materials.

Automated welding and modern painting methods extend the structural life in harsh construction environments.

The high volumetric output system carries more concrete per trip, which boosts project productivity.

With a filling ratio of 54 to 65% , it provides optimal fill without overloading, cutting down on fuel consumption and wear.

Low concrete residue after discharge reduces waste and makes cleanup easier at job sites.

The 450 L water tank on the chassis allows for easy washout and cleaning after every delivery.

It runs on a 51.5 kW air-cooled slave engine, which is independent of the truck PTO, making it suitable for remote or PTO-restricted areas.

An optional PTO setup is available where truck PTO is allowed, providing flexible power options.
