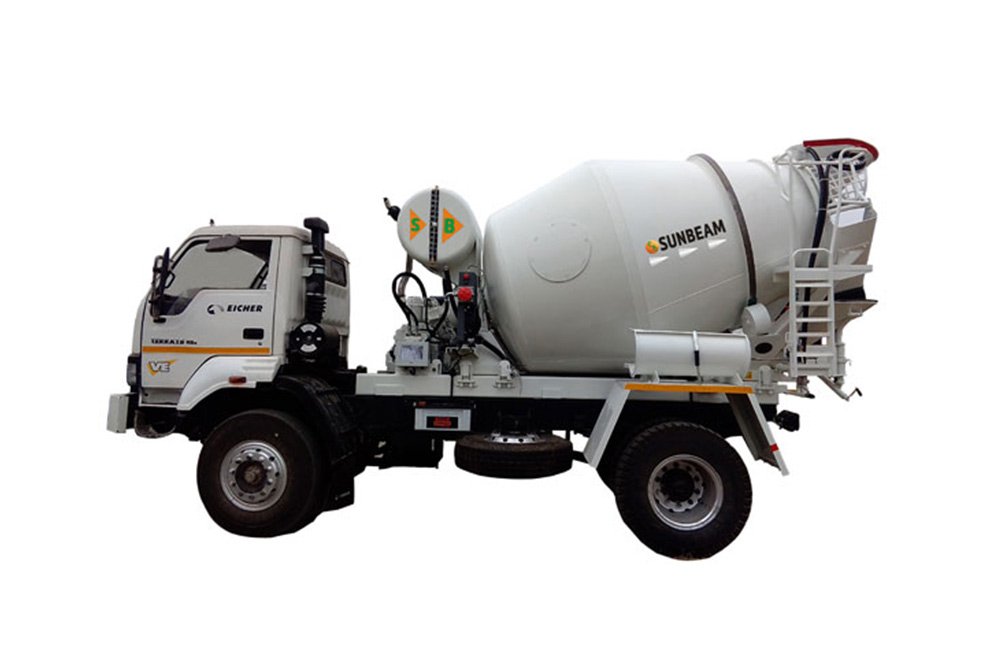

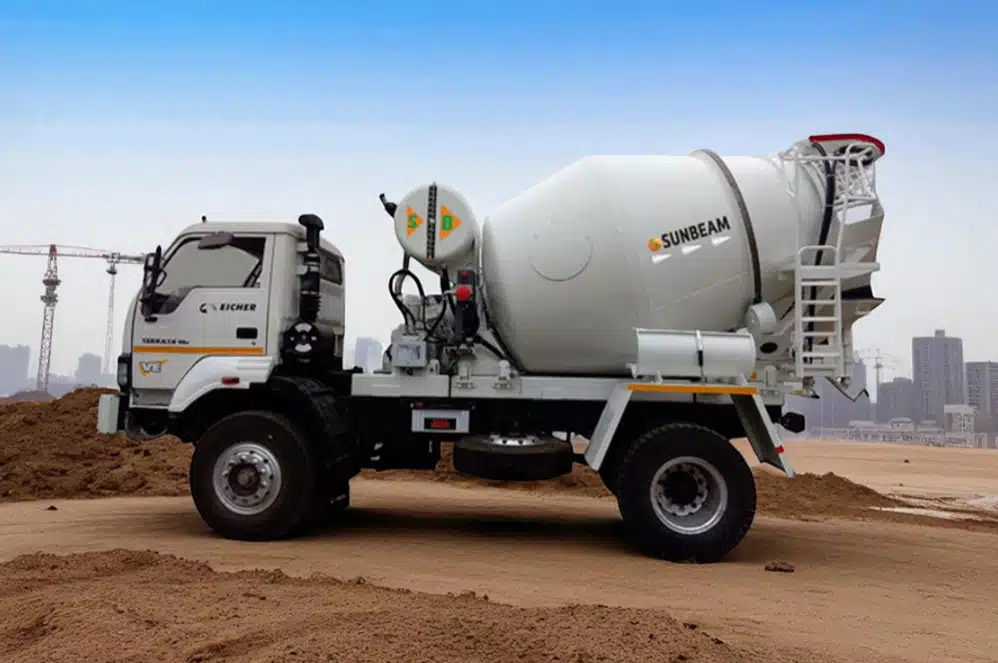

Sunbeam 45 Concrete Mixer

Optimized spiral blade design in the drum provides a quicker and more uniform mix.

It can handle high charge and discharge rates, increasing on-site productivity.

The rotational speed of 0 to 14 rpm keeps concrete fresh during transit and prevents separation.

The drum and spirals are made from wear and corrosion-resistant ST52 steel for long life.

The thick drum shell and wear plates on the hopper and chute resist abrasion.

The PU coating over grit-blasted steel offers UV and scratch resistance, which reduces surface damage.

The 400 L/min pump provides strong cleaning and mixing water flow.

The accurate water meter scale, ranging from 0 to 450 L, allows for precise water dosing.

There is an option for T-TRACK IoT telematics, which offers remote diagnostics and real-time fault alerts.

The low center-of-gravity chassis enhances road stability and cornering safety.

Finite Element Analysis ensures strong counterframe support and dependable load-bearing.

Two rollers support the drum, reducing vibration and improving driving comfort.

It comes with a 52 kW engine that is balanced for a 4 cu m capacity without overuse.

An efficient gearbox and hydraulics provide optimal drum rotation and PTO power.

Proven PTO or truck-PTO drive options are available in larger variants, increasing versatility.

An ISO 9001:2015 system ensures consistent quality in manufacturing.

Two manholes on the bottom cone make inspection and cleaning easy.

The large geometric volume of 7.8 cu m maximizes concrete capacity while minimizing spillage.
