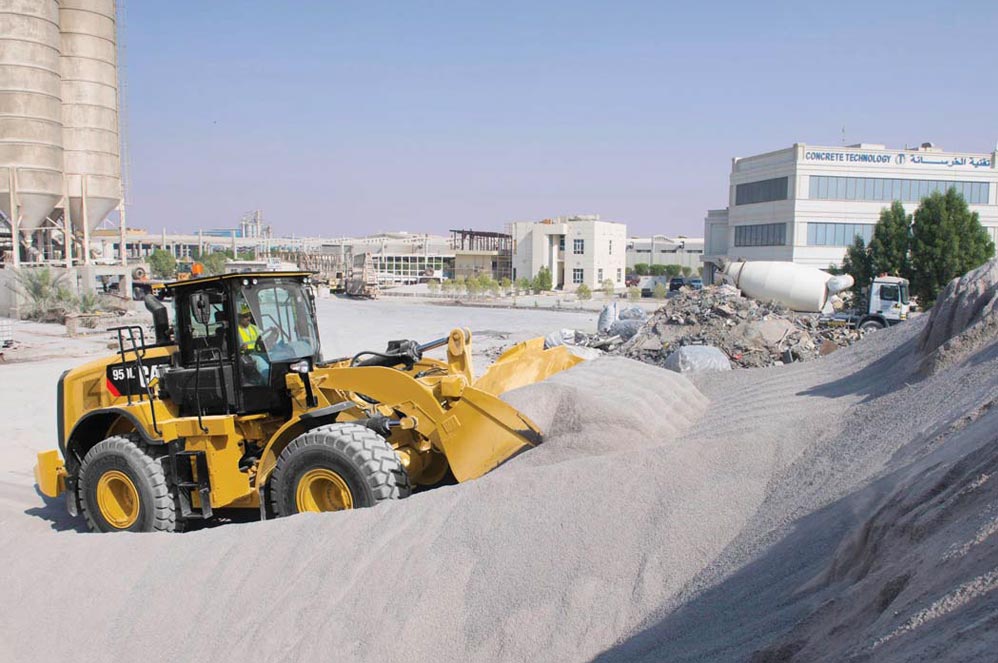

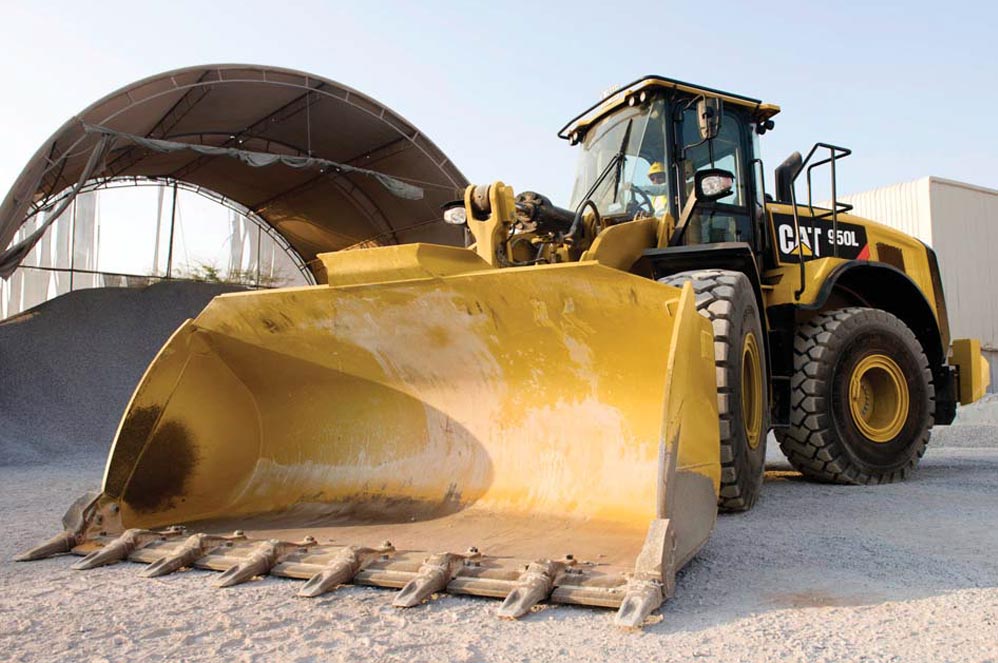

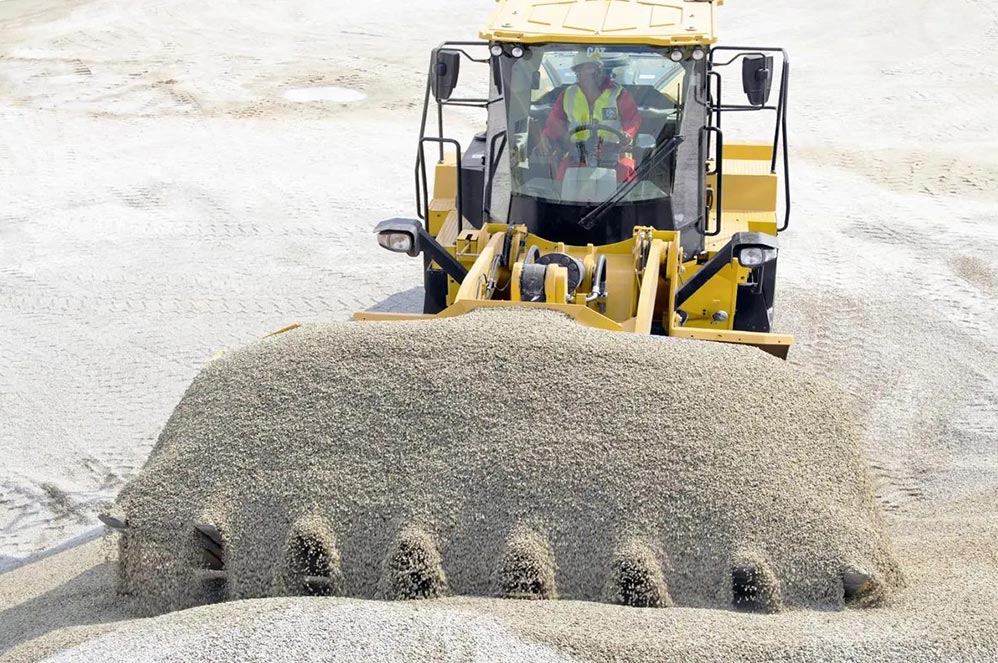

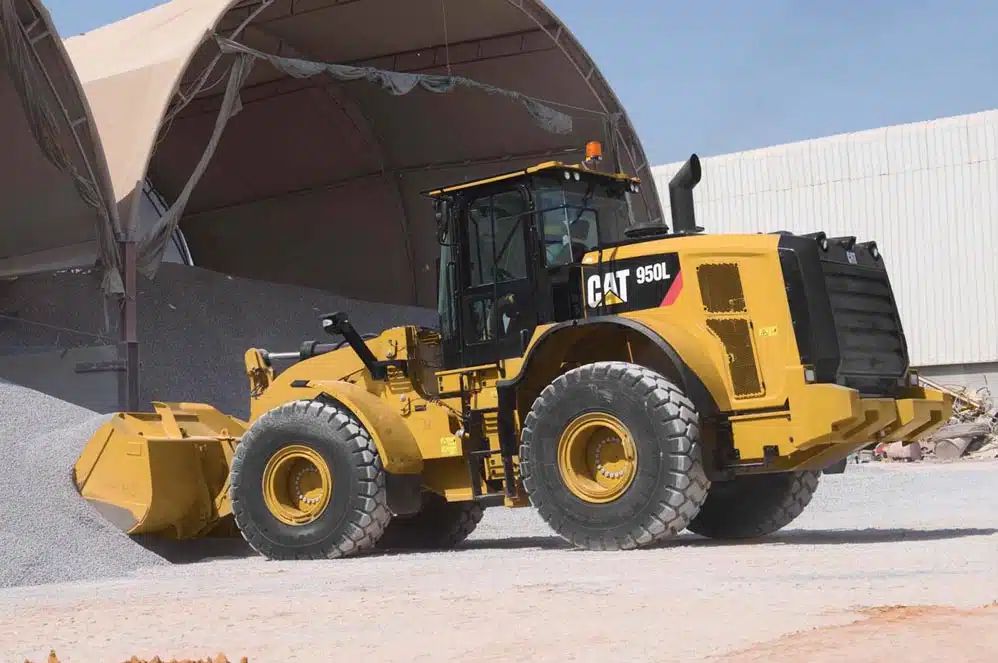

Cat 950L Wheel Loader

Name: Cat 950L Wheel Loader
Brand: Caterpillar
Rating: 4.4 (65 reviews)

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
Caterpillar
Type
Medium (15-30 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Engine
Cat 252 HP
Bucket
2.7 - 4.4 m³
Weight
18136 kg
Fwd. Speed
39.5 km/h
Dump Height
2856 mm
Tipping Load
10926 kg

Quick Overview:

The Cat 950L Wheel Loader delivers high efficiency and operator comfort, suitable for India’s diverse industrial applications.

Connect With Us:

Get the best price for the Cat 950L wheel loader from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Cat® C7.1 ACERT

Max Torque

1050 Nm @ 1400 rpm

Fuel Tank

275 L

Hydraulic System

245 L/min

Min. Ground Clearance

368 mm

Payload

Steering Angle

±40°

Drive Type

4-wheel drive (4WD)

Wheelbase

3350 mm

Tyres

23.5R25

Max. Breakout Force

152 kN

Overall Length

8249 mm

Warranty

1 Year

AC Cabin

Standard

GPS

Standard

Features

Unmatched Reliability for Demanding Jobs

Cat C7.1 ACERT engine offers a combination of proven electronic, fuel and air systems and meets China Nonroad Stage III emission standards and U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards.
Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.

Built for Long-Lasting Durability

Tough countershaft powershift transmission and axles handle extreme applications.
Improved hydraulic hose routing reduces potential hose wear.
Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.

Boosted Productivity with Every Load

Increased engine power improves machine performance and response.
Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.
High capacity torque converter results in greater digging efficiency.
Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.

Superior Fuel Efficiency, Lower Operating Costs

Up to 10% lower fuel consumption than H Series.*
Power dense ACERT engine burns less fuel by providing power and torque when needed.
Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.

Effortless Operation and Easy Serviceability

New best-in-class operator environment provides unmatched comfort, visibility, and efficiency.
Intuitive, ergonomic controls keep operators focused on their work.
One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.
Safe ground level access to fuel fill, oil fill, filters and daily maintenance points means less servicing time required.

Advanced Safety Features for Operator Protection

Excellent cab access with wide door and stair-like steps
Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.

Unmatched Reliability for Demanding Jobs

Cat C7.1 ACERT engine offers a combination of proven electronic, fuel and air systems and meets China Nonroad Stage III emission standards and U.S. EPA Tier 3/EU Stage IIIA equivalent emission standards.
Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.

Built for Long-Lasting Durability

Tough countershaft powershift transmission and axles handle extreme applications.
Improved hydraulic hose routing reduces potential hose wear.
Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.

Boosted Productivity with Every Load

Increased engine power improves machine performance and response.
Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.
High capacity torque converter results in greater digging efficiency.
Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.

Superior Fuel Efficiency, Lower Operating Costs

Up to 10% lower fuel consumption than H Series.*
Power dense ACERT engine burns less fuel by providing power and torque when needed.
Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.

Effortless Operation and Easy Serviceability

New best-in-class operator environment provides unmatched comfort, visibility, and efficiency.
Intuitive, ergonomic controls keep operators focused on their work.
One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.
Safe ground level access to fuel fill, oil fill, filters and daily maintenance points means less servicing time required.

Advanced Safety Features for Operator Protection

Excellent cab access with wide door and stair-like steps
Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.

Specifications

Product specification of Cat 950L Wheel Loader

ENGINE

Make

Cat® C7.1 ACERT
Type

4-stroke, turbocharged, air-to-air aftercooled diesel engine
Aspiration

Tubocharged
Emission

Tier 3/Stage IIIA
Max. Power

252 HP (185 kW) @ 2000 rpm
Max Torque

1050 Nm @ 1400 rpm
Piston Displacement

7.01 L
No. of Cylinders

6 Cylinders
Battery

2 x 12V / 1400 CCA
Alternator

24V / 145A

POWER TRAIN

Transmission

Electronically Controlled, Automatic Powershift Countershaft Transmission
Drive Type

4-wheel drive (4WD)
Torque Converter

Single-stage, Lock-up clutch with lock-to-lock shifting

BRAKES

Service

Inboard, oil-cooled multi-disc brakes hydraulically actuated on all wheels.
Parking

Spring-applied, hydraulically released brake mounted on the driveshaft.

STEERING SYSTEM

Type

Load-Sensing Hydrostatic Articulated Steering
Steering Angle

±40°

AXLE AND FINAL DRIVE

Front Axle Type

Fixed
Rear Axle Type

Oscillating
Oscillation Angle

±13°

SPEED

Top Forward Speed

39.5 km/h
Top Reverse Speed

25.7 km/h

HYDRAULIC SYSTEM

System Type

Load-Sensing Hydraulic System
Pump Type

Variable Axial Piston Pump
Max. Pump Flow

245 L/min
System Pressure

279 bar

SERVICE REFILL CAPACITIES

Fuel Tank

275 L
Hydraulic System

NA
Engine Oil

22 L
Cooling System

59 L
Rear Axle Oil

43 L
Front Axle Oil

43 L
Hydraulic Tank

125 L
Transmission Oil

43 L
DEF Tank

16 L

DIMENSIONS

Overall Length With Bucket

8249 mm
Wheel Base

3350 mm
Height Over Cab

3446 mm
Height Over Exhaust

3414 mm
Min. Ground Clearance

368 mm
Width Over Tyres

2822 mm
Wheel Tread

2140 mm
Tyre Size

23.5R25

PERFORMANCE

Bucket Capacity

2.7 - 4.4 m³
Bucket Width

2927 mm
Payload

NA
Tipping Load Straight

12804 kg
Tipping Load Full Turn

10926 kg
Max. Breakout Force

152 kN
Operating Weight

18136 kg
Maximum Dump Angle

53°
Bucket Roll Back Angle Full Height

60°
Bucket Roll Back At Carry

49°
Bucket Roll Back At Ground Level

41°
Dumping Height, Fully Raised

2856 mm
Dumping Reach, Fully Raised

1319 mm
Max. Hinge Pin Height

3995 mm
Max. Digging Depth

NA
Turning Radius Over Tyres

5984 mm
Turning Radius Over Bucket

6026 mm

Frequently Asked Question

01. What is the Cat 950L wheel loader price in India?

Ans.

The Cat 950L wheel loader price in India is available on request. To get the latest on-road price of the Cat 950L based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

02. Where can I buy the Cat 950L wheel loader in India at the best price?

Ans.

You can buy the Cat 950L wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Cat dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Cat 950L price, compare dealer quotes, and enjoy expert assistance—all in one place.

03. What is the engine power of the Cat 950L wheel loader?

Ans.

The Cat 950L wheel loader is powered by a Cat® C7.1 ACERT diesel engine, delivering 252 HP (185 kW) @ 2000 rpm.

04. What is the operating weight of the Cat 950L wheel loader?

Ans.

The operating weight of the Cat 950L wheel loader is approximately 18136 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What is the fuel tank capacity of the Cat 950L wheel loader?

Ans.

The Cat 950L wheel loader has a 275 litres diesel fuel tank, providing extended operation time without frequent refueling.

06. What is the bucket capacity of the Cat 950L wheel loader?

Ans.

The bucket capacity of the Cat 950L is 2.7 – 4.4 cubic meters (m³).

07. What is the dump height of the Cat 950L wheel loader?

Ans.

The Cat 950L wheel loader features a dump height of 2856 mm, designed for reliable material dumping.

08. What is the warranty period of Cat 950L wheel loader?

Ans.

The Cat 950L wheel loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

09. How many gears are available in the Cat 950L wheel loader?

Ans.

The Cat 950L wheel loader features a 4-wheel drive (4WD) system with an Electronically Controlled & Automatic Powershift Countershaft Transmission. It offers 4 forward and 4 reverse gears, enabling efficient operation at speeds up to 39.5 km/h.

10. What are the key applications and uses of the Cat 950L wheel loader?

Ans.

The Cat 950L is a robust loader built for efficient loading in construction and mining, offering high breakout force and operator comfort.

11. Where can I find spare parts for the Cat 950L wheel loader?

Ans.

You can find genuine spare parts for the Cat 950L wheeled loader at authorized Caterpillar (Cat) dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
