Caterpillar
Medium (15-30 Ton)
Price Available Soon
Price Available Soon
Cat 412 HP
4.2-12.2 m³
30090 kg
39.5 km/h
3273 mm
19565 kg
Designed for heavy-duty tasks, the Cat 980L Wheel Loader meets the rigorous demands of India’s construction and industrial sectors.
Get the best price for the Cat 980L wheel loader from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Cat® C13 ACERT
2040 Nm @ 1000 rpm
426 L
449 L/min
453 mm
NA
±40°
4-wheel drive (4WD)
3800 mm
29.5R25 XLDD1 L4
226 kN
9493 mm
1 Year
Standard
Standard
Cat C13 ACERT engine offers a combination of proven electronic, fuel and air systems and meets U.S. EPA Tier 3/EU Stage IIIA, or emits equivalent to Tier 2/Stage II, depending on the emission standards of the specifi c country.
Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.
Heavy-duty powershift transmission and axles handle extreme applications.
Improved hydraulic hose routing reduces potential hose wear.
Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.
Increased engine power improves machine performance and response.
Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.
High capacity torque converter results in greater digging efficiency.
Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.
Up to 25% lower fuel consumption than H Series.*
Power dense ACERT engine burns less fuel by providing power and torque when needed.
Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.
Best-in-class operator environment provides unmatched comfort, visibility, and efficiency.
Intuitive, ergonomic controls keep operators focused on their work.

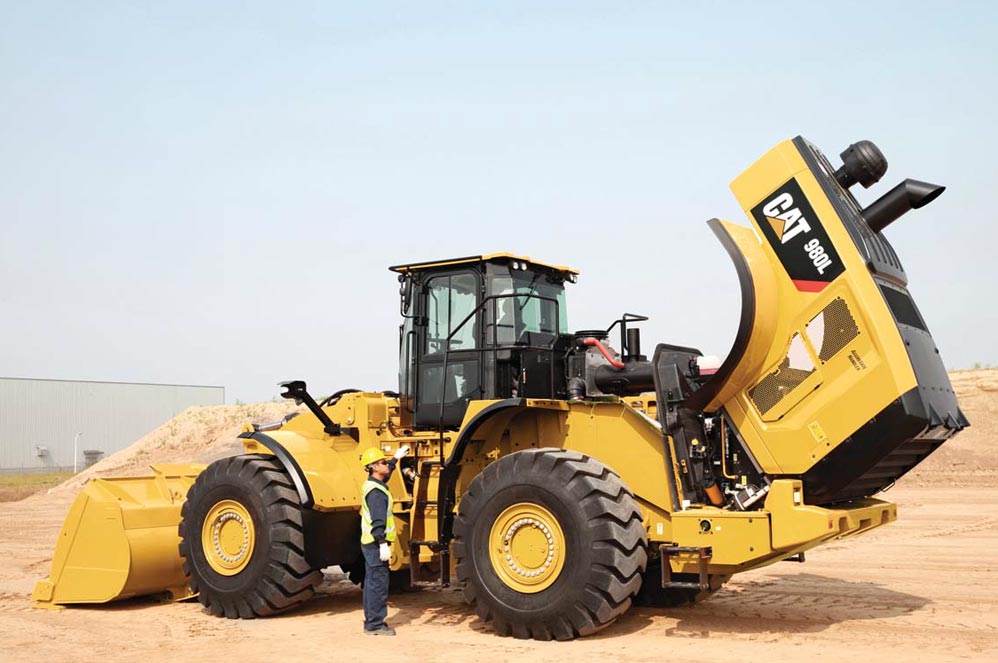

One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.
Convenient access to fuel fill, oil fill, filters and daily maintenance points means less servicing time required.
Excellent cab access with wide door and stair-like steps
Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.
Cat C13 ACERT engine offers a combination of proven electronic, fuel and air systems and meets U.S. EPA Tier 3/EU Stage IIIA, or emits equivalent to Tier 2/Stage II, depending on the emission standards of the specifi c country.
Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.
Heavy-duty powershift transmission and axles handle extreme applications.
Improved hydraulic hose routing reduces potential hose wear.
Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.
Increased engine power improves machine performance and response.
Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.
High capacity torque converter results in greater digging efficiency.
Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.
Up to 25% lower fuel consumption than H Series.*
Power dense ACERT engine burns less fuel by providing power and torque when needed.
Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.
Best-in-class operator environment provides unmatched comfort, visibility, and efficiency.
Intuitive, ergonomic controls keep operators focused on their work.
One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.
Convenient access to fuel fill, oil fill, filters and daily maintenance points means less servicing time required.
Excellent cab access with wide door and stair-like steps
Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.
Product specification of Cat 980L Wheel Loader
Make
Cat® C13 ACERT
Type
4-stroke, turbocharged, inline 6-cylinder diesel engine with ACERT™ technology
Aspiration
Tubocharged
Emission
U.S. EPA Tier 4 Final and EU Stage IV
Max. Power
412 HP (303 kW) @ 1800 rpm
Max Torque
2040 Nm @ 1000 rpm
Piston Displacement
12.5 L
No. of Cylinders
6 Cylinders
Battery
2 x 12V / 1400 CCA
Alternator
24V / 145A
Transmission
Cat Planetary Power Shift Transmission
Drive Type
4-wheel drive (4WD)
Torque Converter
Single-stage torque converter with lock-up clutch
Service
Wet, multi-disc, hydraulic-actuated, oil-cooled brakes on both axles.
Parking
Spring-applied, hydraulically released, external caliper disc brake.
Type
Load-Sensing Hydrostatic Articulated Steering
Steering Angle
±40°
Front Axle Type
Fixed
Rear Axle Type
Oscillating
Oscillation Angle
±13°
Top Forward Speed
39.5 km/h
Top Reverse Speed
39.5 km/h
System Type
Load-Sensing Hydraulic System
Pump Type
Variable Displacement Piston
Max. Pump Flow
449 L/min
System Pressure
343 bar
Fuel Tank
426 L
Hydraulic System
NA
Engine Oil
37 L
Cooling System
45 L
Rear Axle Oil
84 L
Front Axle Oil
84 L
Hydraulic Tank
153 L
Transmission Oil
77 L
DEF Tank
NA
Overall Length With Bucket
9493 mm
Wheel Base
3800 mm
Height Over Cab
3813 mm
Height Over Exhaust
3746 mm
Min. Ground Clearance
453 mm
Width Over Tyres
3296 mm
Wheel Tread
2440 mm
Tyre Size
29.5R25 XLDD1 L4
Bucket Capacity
4.2-12.2 m³
Bucket Width
3447 mm
Payload
NA
Tipping Load Straight
22639 kg
Tipping Load Full Turn
19565 kg
Max. Breakout Force
226 kN
Operating Weight
30090 kg
Maximum Dump Angle
52°
Bucket Roll Back Angle Full Height
61°
Bucket Roll Back At Carry
48°
Bucket Roll Back At Ground Level
40°
Dumping Height, Fully Raised
3273 mm
Dumping Reach, Fully Raised
1481 mm
Max. Hinge Pin Height
4539 mm
Max. Digging Depth
103 mm
Turning Radius Over Tyres
NA
Turning Radius Over Bucket
NA
The Cat 980L wheel loader price in India is available on request. To get the latest on-road price of the Cat 980L based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.
You can buy the Cat 980L wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Cat dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Cat 980L price, compare dealer quotes, and enjoy expert assistance—all in one place.
The Cat 980L wheel loader is powered by a Cat® C13 ACERT diesel engine, delivering 412 HP (303 kW) @ 1800 rpm.
The operating weight of the Cat 980L wheel loader is approximately 30090 kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Cat 980L wheel loader has a 426 litres diesel fuel tank, providing extended operation time without frequent refueling.
The bucket capacity of the Cat 980L is 4.2 – 12.2 cubic meters (m³).
The Cat 980L wheel loader offers a dump height of 3273 mm, ideal for large-scale material handling.
The Cat 980L wheel loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.
The Cat 980L wheel loader features a 4-wheel drive (4WD) system with a Cat Planetary Power Shift Transmission. It offers 4 forward and 4 reverse gears, enabling efficient operation at speeds up to 39.5 km/h.
The Cat 980L is a high-performance loader for large material handling tasks, offering reliable operation and fuel efficiency in heavy construction.
You can find genuine spare parts for the Cat 980L wheeled loader at authorized Caterpillar (Cat) dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
