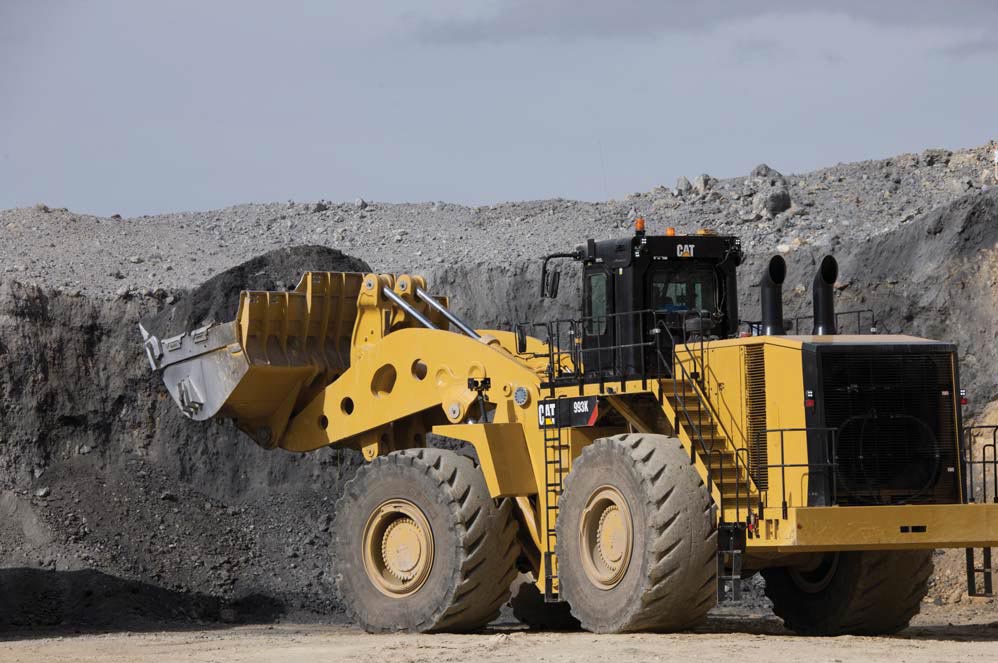

Cat 993K Wheel Loader

The powerful C32 ACERT engine powers the CAT 993K wheel loader, which is ideal for heavy-duty mining tasks in India.

Delivers a high torque increase of 33% and 1,042 horsepower gross power for quicker digging and improved machine response.

Modern aftercoolers and turbochargers guarantee optimal engine performance and effective combustion under all operating circumstances.

r heavy operations, low engine RPM prolongs engine life while consuming less fuel.

Better load-handling ability and rapid throttle response are provided by integrated electronic controls.

Improves fuel economy and environmental safety by adhering to Tier 2 and Tier 4 emissions regulations.

The CAT 993K is perfect for large-scale mining and material handling because it can support a payload of up to 27.2 tonnes with standard lift.

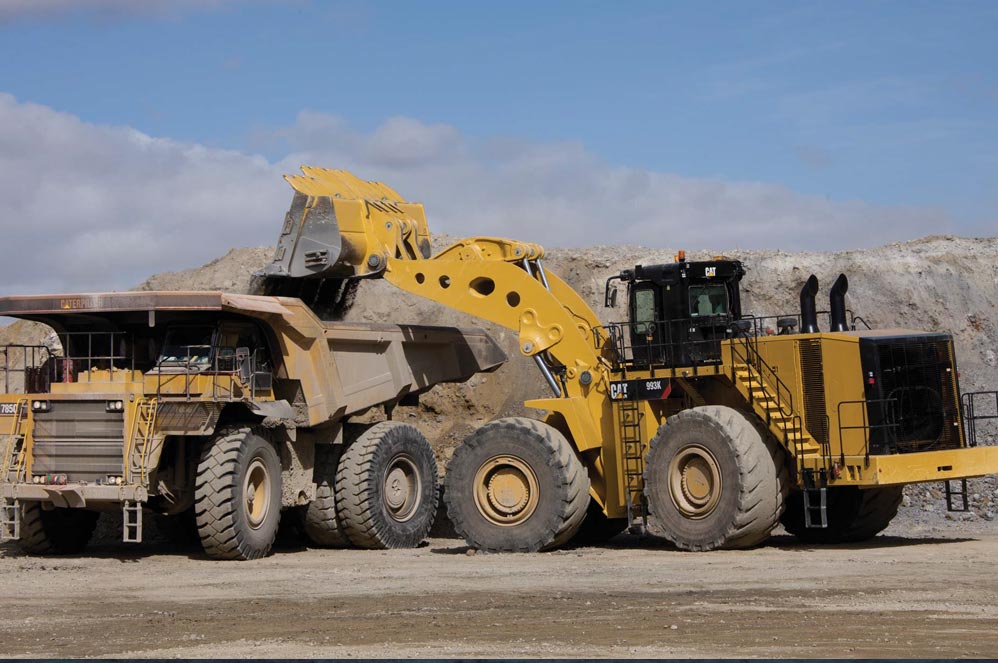

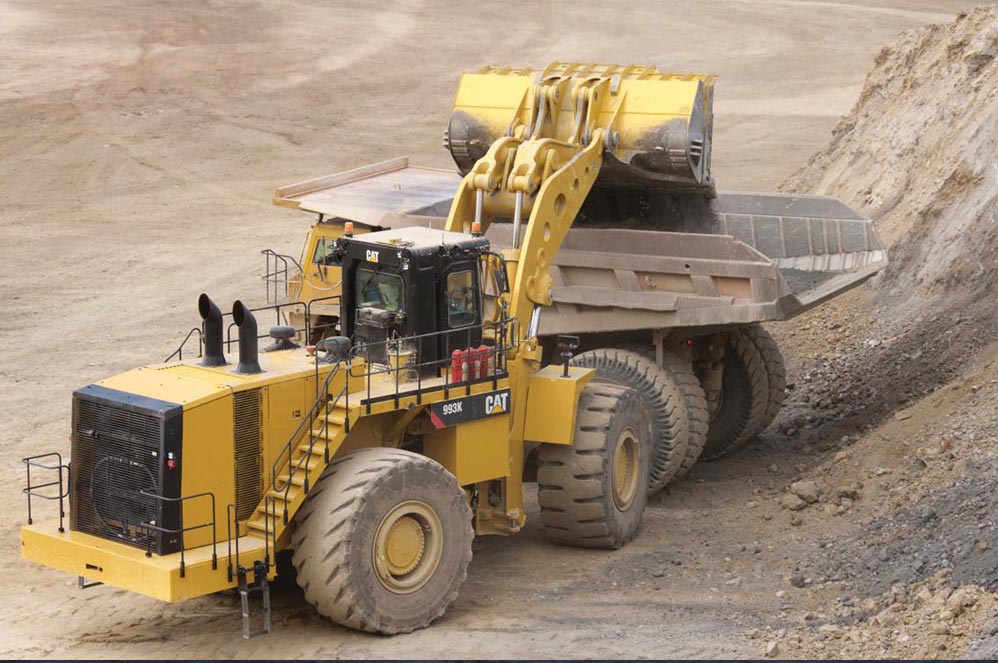

Able to load trucks such as the CAT 785 in six passes thanks to its high lift options.

For varying material densities, the bucket's capacity varies from 12.2 to 23.7 cubic meters.

With responsive flow matching bucket operation, Positive Flow Control (PFC) hydraulics increase loading speed.

Consistent, strong, and seamless hydraulic cycles are produced by three electronically controlled piston pumps.

Designed to move the most material per hour while using the least amount of fuel possible during extended loading hours.

Designed for mining operations in India, the Cat Powershift transmission offers seamless gear shifting under load.

To accommodate different terrain and haul road conditions, there are 3-forward and 3-reverse speeds.

For accurate traction, variable rimpull control is made possible by the Integrated Impeller Clutch Torque Converter (ICTC).

Long trips and flat terrain use less fuel thanks to the lock-up clutch, which guarantees direct drive.

Steering and gear selection are combined in the STIC control lever for simple one-handed operation.

Longer tire life, improved control, and reduced tire slippage on abrasive Indian quarry sites.

An air-suspension seat in a ROPS/FOPS-certified cab ensures comfort during extended loading cycles.

45-degree stairways and a powered access system for rear platform entry make it simple to access the cab.

By integrating steering and gear shifting into a single lever, the STIC system lessens fatigue.

For safe operator training, a trainer seat with belt is included in the dual-seat arrangement.

For quieter operation, a sound-suppressed cab keeps noise levels at 70 dB(A).

The in-cab working environment is improved by automatic climate control, filtered air, and less vibration.

By displaying real-time machine data, CAT VIMS™ 3G assists operators in keeping an eye on systems and preventing malfunctions.

Tracking load weight and material types while in operation is made easier with the Payload Control System 3.0.

By examining cycle durations such as loading, dumping, and return times, Cycle Timer increases productivity.

For quicker machine setup and reliable output, operator profiles and unique layouts can be stored.

Remote management tools, machine health, and fleet monitoring are all integrated into the CAT MineStar System.

By improving visibility around the machine while it is operating, detection and vision systems raise worker safety.

Under heavy loads, the fully welded box-section frame maintains pin alignment by absorbing shocks.

Sleeve-bearing linkage pins cut down on maintenance by doing away with daily greasing.

Fast and secure servicing is made possible by ecology drains, grouped service points, and ground-level service access.

In dusty quarry settings, visibility is enhanced by rearview cameras, heated mirrors, and LED lights.

High-abrasion buckets are optional for handling coal, rock, and iron ore in Indian mines.

Long-term operating costs are decreased by using Cat Reman parts, which are designed for rebuilds and long life.
