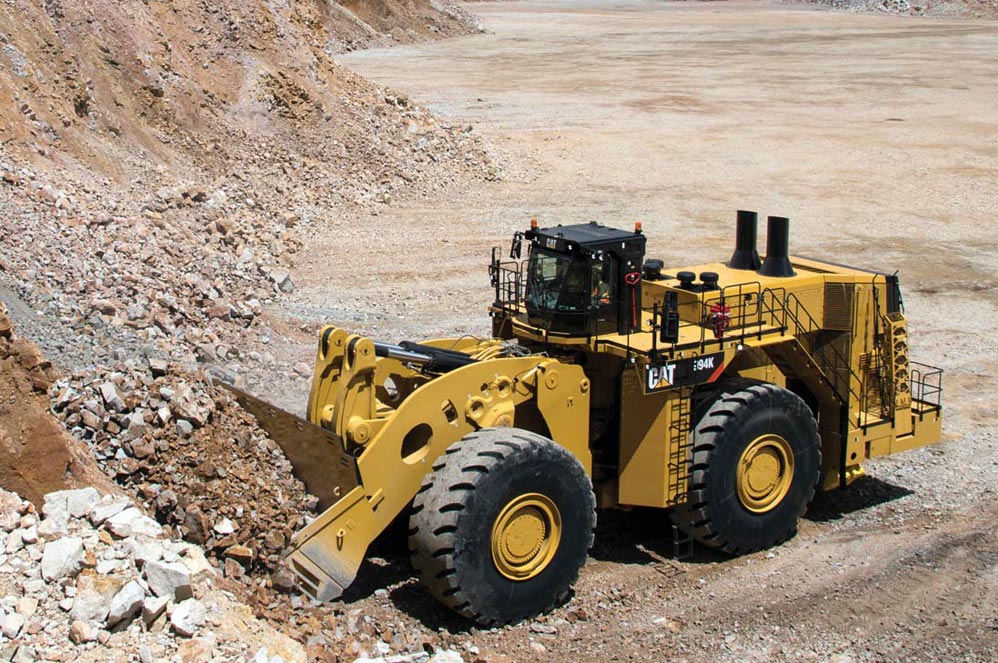

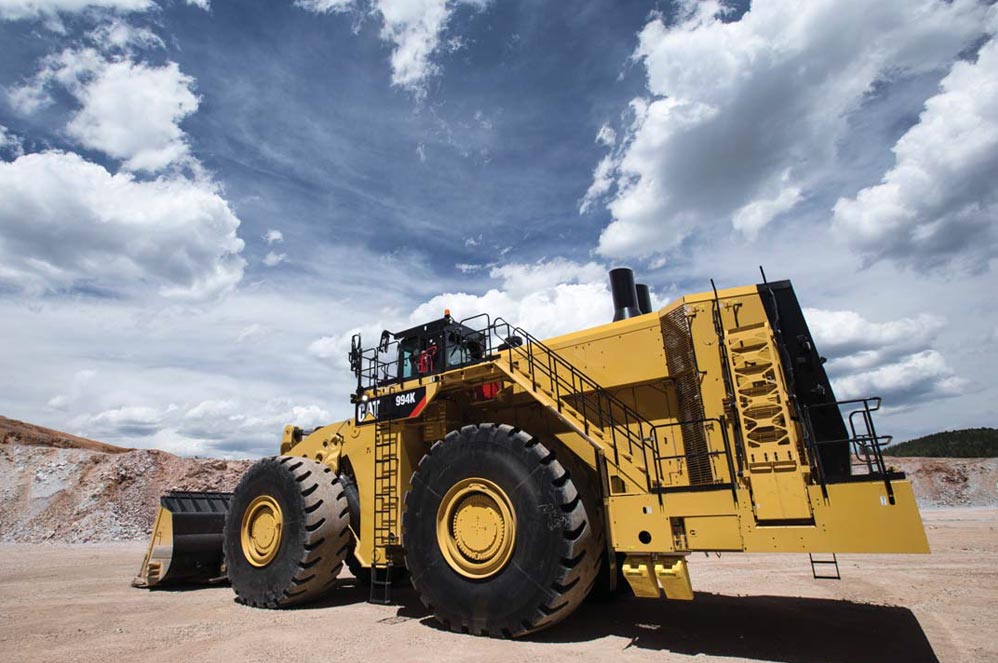

Cat 994K Wheel Loader

Built for demanding mining and quarry applications, the CAT 994K wheel loader has a 3516E engine that delivers 1,847 horsepower.

Its planetary powershift transmission and three forward and three reverse gears guarantee seamless shifting and long-term operation.

By providing direct drive under ideal circumstances for increased productivity and efficiency, lock-up clutch torque converters reduce fuel consumption.

Strong performance during heavy loading or digging in high-resistance material is made possible by the CAT 994K's 39% torque rise.

An advanced economy mode that modifies engine speed according to load and demand helps reduce fuel consumption.

For reduced operating costs, the sophisticated throttle lock and Rimpull Control System guarantee accurate control and reduced tire slippage.

Long-term durability under severe loading conditions is ensured by the loader's use of full box-section rear frames, which absorb high stress.

The CAT 994K's solid steel lift arms guarantee dependability when handling big buckets and bulky objects over uneven terrain.

In mining and quarry loader applications throughout India, castings in high-stress areas extend structural life and lower maintenance costs.

One-piece cast lift arm pin joints ensure less wear and a longer service life by adding strength where it's most needed.

The CAT 994K loader structure, which is built for multiple life cycles, maximizes machine uptime and reliability while reducing cost per ton.

For better structural integrity and balanced load distribution during operations, the rear axle is fixed to the frame.

With the use of variable piston pumps and advanced hydraulics, CAT's Positive Flow Control system enables quicker bucket cycles and improved fuel efficiency.

Even in difficult working environments or when handling heavy loads in mines, load-sensing steering guarantees precise loader control.

By allowing operators to preset kickouts, electro-hydraulic systems increase productivity and lessen operator fatigue during repetitive digging tasks.

The loader extends the life of hydraulic components by using advanced filtration, such as case drain filters and high-pressure screens.

In both hot and cold Indian job sites, the hydraulic fan cooling system maximizes efficiency by adjusting to the operating temperature.

In congested quarry or mining areas, the steering system's 40-degree articulation allows for exceptional maneuverability and accuracy.

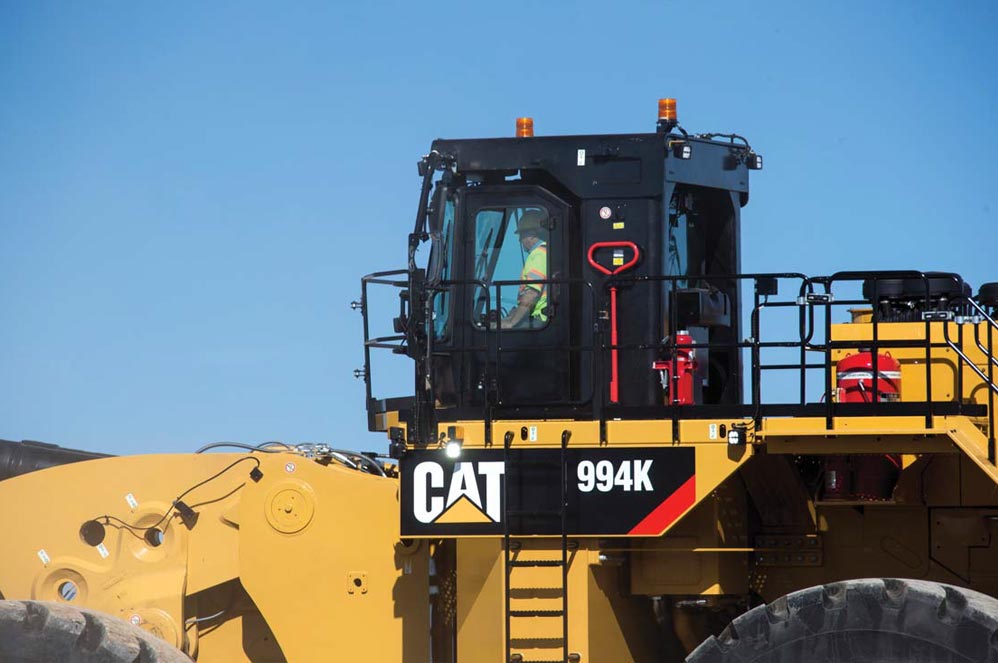

With air-suspension seats, the CAT 994K loader lessens operator fatigue during extended shifts in earthmoving or mining operations.

With reduced vibration and noise levels, a pressurized and sound-suppressed cab environment enhances operator safety and focus.

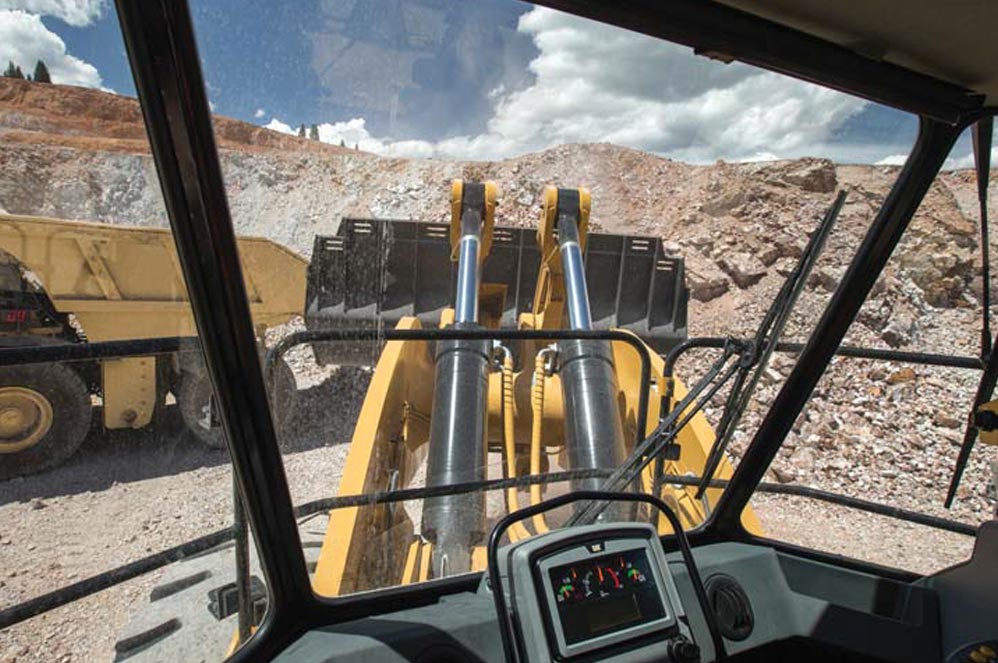

Real-time machine monitoring for improved operator efficiency is made possible by an advanced touchscreen display with payload data and diagnostics.

Even in harsh Indian conditions, extended operations are made comfortable by wide trainer seats and heated and ventilated leather seats.

By combining steering and transmission controls, the STIC system minimizes operator movements and enhances handling over long operating cycles.

In India's hot and cold climates, automatic climate control keeps the cabin at a comfortable temperature for the operator.

CAT 994K features powered access stairs with full handrails, ensuring safe entry and exit from the operator’s platform.

Using a rearview camera and optional radar, the integrated Cat Detect system improves operator awareness and safety in blind areas.

For technicians working on Indian job sites, wider walkways with non-slip surfaces make maintenance areas safer.

During emergencies or system failures, a safe exit is supported by an emergency egress ladder and a three-point contact design.

High visibility during night shifts or in dimly lit mining or quarry locations is guaranteed by an LED lighting package.

A comprehensive view of the machine is made possible by a six-mirror visibility system, a higher cab position, and programmable warning lights.

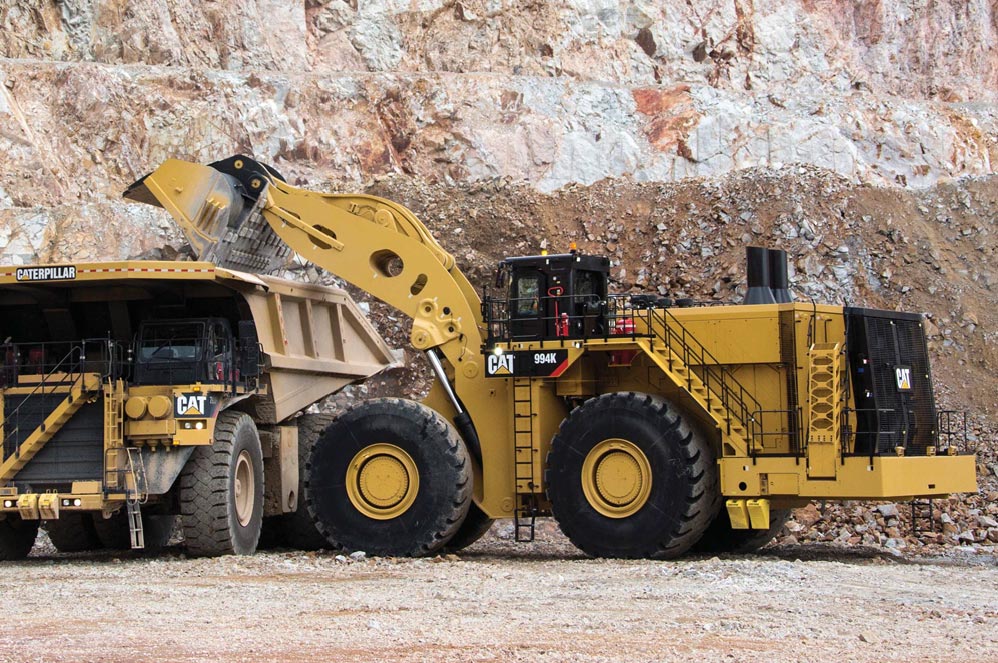

For quicker truck loading, the CAT 994K wheel loader can handle up to 42 tons with high-lift and 45 tons with standard payload.

The 19.1 to 24.5 cubic meter bucket capacity makes it perfect for handling coal, rock, or iron ore.

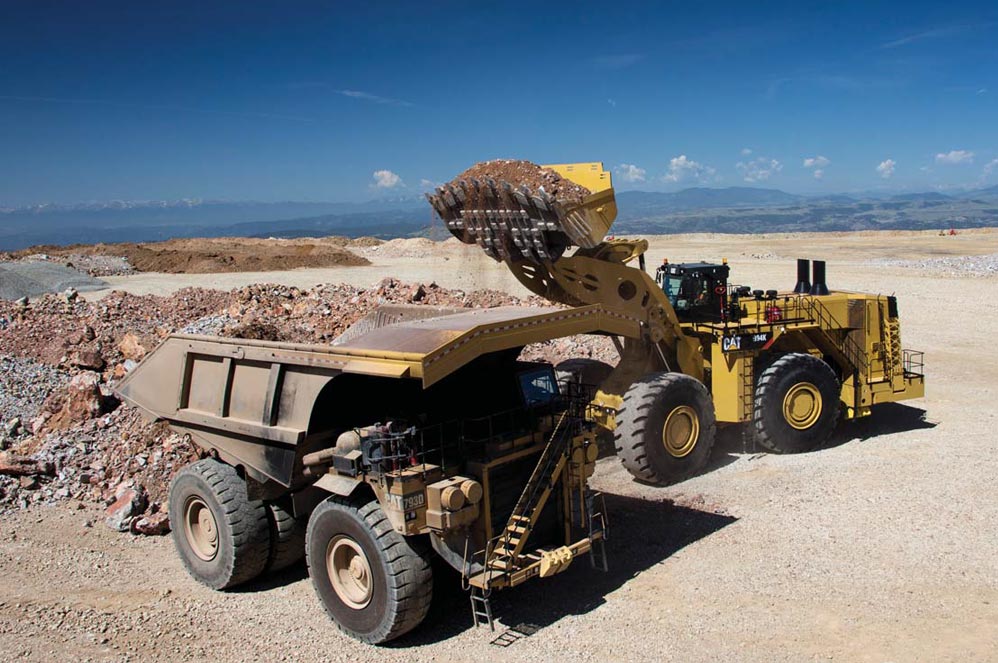

Cat 785, 789, and 793 trucks are optimized for 4–6 pass loading, which guarantees the shortest cycle time per load.

Performance tips and wear plates on both standard and optional buckets are made to withstand extremely abrasive material in Indian conditions.

For faster and more precise load cycles, the Advanced Cat Production Measurement system provides precise payload weight in-cab.

Reduced machine wear, lower fuel expenses, and increased jobsite profitability are the outcomes of shorter cycle times and fewer passes.
