Komatsu WA600-6R Wheel Loader

Name: Komatsu WA600-6R Wheel Loader
Brand: L&T Komatsu
Rating: 4.1 (53 reviews)

Designed for heavy-duty tasks, the Komatsu WA600-6R Wheel Loader excels in India’s mining and quarrying operations.

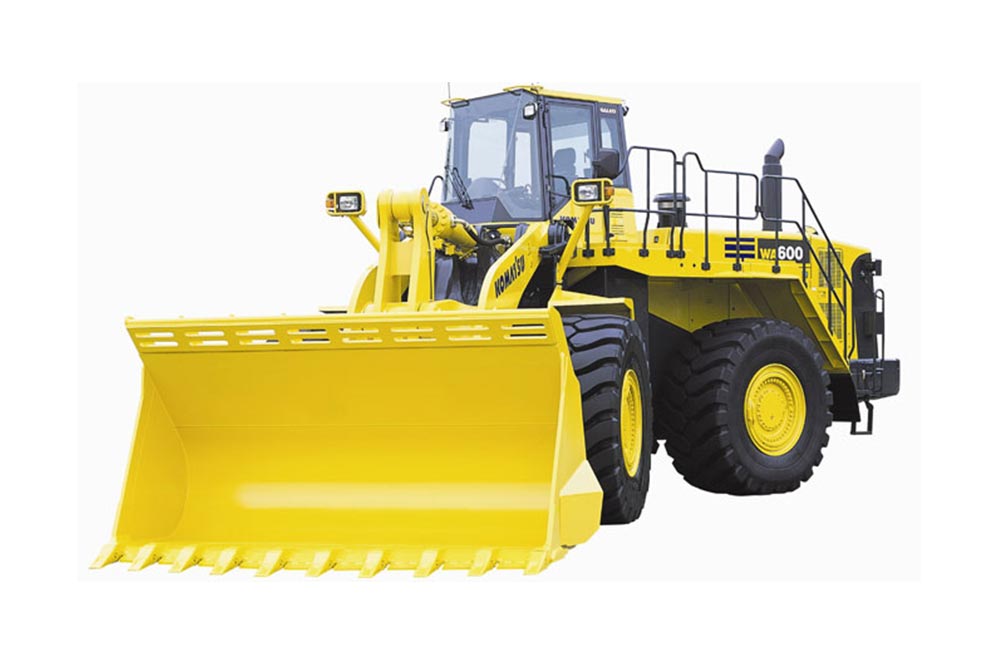

desi machines komatsu wa600 6r wheel loader 1

Brand
L&T Komatsu
Type
Large (>30 Ton)
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Engine
Komatsu 530 HP
Bucket
6.4 – 7.0 m³
Weight
52900 Kg
Fwd. Speed
33.8 km/h
Dump Height
3995 mm
Tipping Load
28500 kg

Connect With Us:

Get the best price for the Komatsu WA600-6R wheel loader from authorized dealers. Contact us now for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

Komatsu SAA6D170E-5

Max Torque

Fuel Tank

718 L

Hydraulic System

239 + 239 L/min

Min. Ground Clearance

525 mm

Payload

Steering Angle

±43°

Drive Type

4-wheel drive (4WD)

Wheelbase

4500 mm

Tyres

35/65-33

Max. Breakout Force

387 kN

Overall Length

11985 mm

Warranty

1 Yr. / 3000 hr.

AC Cabin

Standard

GPS

Standard

Features

Exceptional Performance & Fuel Efficiency

Drives with a high-performance Komatsu SAA6D170E-5 engine for superior output in heavy usage.
Boasts a dual-mode power select system and lock-up torque converter to promote superior fuel efficiency and smooth gear transitions.
Variable displacement piston pump with CLSS provides accurate hydraulic performance with minimal fuel use.

Enhanced Loading Capabilities

Combined bucket capacity increases with a longer wheelbase for load stability and cycle efficiency improvement.
Advanced automatic transmission with a shift timing select system optimizes traction and responsiveness under operation.
Suits big-scale mining or quarry work involving regular high-volume material handling.

Operator Comfort & Control

The spacious, low-noise ROPS/FOPS cab with a front-hinged door provides ease of entry/exit and minimizes fatigue.
"AJSS" (Advanced Joystick Steering System) and "EPC" (Electronic Pilot Control) levers provide smooth and easy control.
Features like the engine RPM set system with auto decel (optional) and modulated clutch enhance driving comfort and control.

Environmental Compatibility

Low external noise emissions and economical fuel usage make it ideal for noise-sensitive or environmentally friendly job sites.
Designed to be environmentally compliant without sacrificing power or performance.
Efficient powertrain and hydraulic systems ensure a lower carbon footprint in heavy-duty applications.

Built for Reliability

Built with Komatsu-made parts and a robust main frame for maximum durability even in harsh environments.
Hydraulic hoses featuring flat-face O-ring seals and wet disc brakes provide leak-proof, low-maintenance performance.
Cathion electrodeposition primer and powder-coated structural components protect against corrosion.

Simplified Maintenance & Monitoring

Equipped with EMMS (Equipment Management Monitoring System) for real-time performance data and alerts.
Optional VHMS (Vehicle Health Monitoring System) enables predictive diagnostics and remote health monitoring.
Modular core radiator and accessible design make cleaning easy and cut maintenance time.

Exceptional Performance & Fuel Efficiency

Drives with a high-performance Komatsu SAA6D170E-5 engine for superior output in heavy usage.
Boasts a dual-mode power select system and lock-up torque converter to promote superior fuel efficiency and smooth gear transitions.
Variable displacement piston pump with CLSS provides accurate hydraulic performance with minimal fuel use.

Enhanced Loading Capabilities

Combined bucket capacity increases with a longer wheelbase for load stability and cycle efficiency improvement.
Advanced automatic transmission with a shift timing select system optimizes traction and responsiveness under operation.
Suits big-scale mining or quarry work involving regular high-volume material handling.

Operator Comfort & Control

The spacious, low-noise ROPS/FOPS cab with a front-hinged door provides ease of entry/exit and minimizes fatigue.
"AJSS" (Advanced Joystick Steering System) and "EPC" (Electronic Pilot Control) levers provide smooth and easy control.
Features like the engine RPM set system with auto decel (optional) and modulated clutch enhance driving comfort and control.

Environmental Compatibility

Low external noise emissions and economical fuel usage make it ideal for noise-sensitive or environmentally friendly job sites.
Designed to be environmentally compliant without sacrificing power or performance.
Efficient powertrain and hydraulic systems ensure a lower carbon footprint in heavy-duty applications.

Built for Reliability

Built with Komatsu-made parts and a robust main frame for maximum durability even in harsh environments.
Hydraulic hoses featuring flat-face O-ring seals and wet disc brakes provide leak-proof, low-maintenance performance.
Cathion electrodeposition primer and powder-coated structural components protect against corrosion.

Simplified Maintenance & Monitoring

Equipped with EMMS (Equipment Management Monitoring System) for real-time performance data and alerts.
Optional VHMS (Vehicle Health Monitoring System) enables predictive diagnostics and remote health monitoring.
Modular core radiator and accessible design make cleaning easy and cut maintenance time.

Specifications

Product specification of Komatsu WA600-6R Wheel Loader

ENGINE

Make

Komatsu SAA6D170E-5
Type

Water-cooled, 4-cycle
Aspiration

Turbocharged, aftercooled
Emission

EPA Tier 3 and EU Stage IIIA
Max. Power

530 HP (396 kW) @ 1800 rpm
Max Torque

NA
Piston Displacement

23.15 L
No. of Cylinders

6 Cylinders
Battery

2 x 12V / 200 Ah
Alternator

24V / 90A

POWER TRAIN

Transmission

Full-Powershift, Contershaft Type
Drive Type

4-wheel drive (4WD)
Torque Converter

3-element, single-stage, double-phase

BRAKES

Service

Hydraulically actuated, wet disc brakes actuate on four wheels
Parking

Wet disc brake

STEERING SYSTEM

Type

Articulated Type, Full-Hydraulic Power Steering
Steering Angle

±43°

AXLE AND FINAL DRIVE

Front Axle Type

Fixed, full-floating
Rear Axle Type

Center-pin support, full-floating
Oscillation Angle

±13°

SPEED

Top Forward Speed

33.8 km/h
Top Reverse Speed

37.0 km/h

HYDRAULIC SYSTEM

System Type

Closed-Center, Load-Sensing System
Pump Type

Double-acting, piston type
Max. Pump Flow

239 + 239 L/min
System Pressure

343 bar

SERVICE REFILL CAPACITIES

Fuel Tank

718 L
Hydraulic System

443 L
Engine Oil

86 L
Cooling System

147 L
Rear Axle Oil

155 L
Front Axle Oil

155 L
Hydraulic Tank

NA
Transmission Oil

83 L
DEF Tank

NA

DIMENSIONS

Overall Length With Bucket

11985 mm
Wheel Base

4500 mm
Height Over Cab

4460 mm
Height Over Exhaust

NA
Min. Ground Clearance

525 mm
Width Over Tyres

3540 mm
Wheel Tread

2650 mm
Tyre Size

35/65-33

PERFORMANCE

Bucket Capacity

6.4 – 7.0 m³
Bucket Width

3685 mm
Payload

NA
Tipping Load Straight

34200 kg
Tipping Load Full Turn

28500 kg
Max. Breakout Force

387 kN
Operating Weight

52700 - 52900 Kg
Maximum Dump Angle

45°
Bucket Roll Back Angle Full Height

NA
Bucket Roll Back At Carry

NA
Bucket Roll Back At Ground Level

NA
Dumping Height, Fully Raised

3995 mm
Dumping Reach, Fully Raised

1800 mm
Max. Hinge Pin Height

5885 mm
Max. Digging Depth

130 mm
Turning Radius Over Tyres

NA
Turning Radius Over Bucket

NA

Frequently Asked Question

01. What is the Komatsu WA600-6R wheel loader price in India?

Ans.

The Komatsu WA600-6R wheel loader price in India is available on request. To get the latest on-road price of the Komatsu WA600-6R based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

02. Where can I buy the Komatsu WA600-6R wheel loader in India at the best price?

Ans.

You can buy the Komatsu WA600-6R wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Komatsu dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Komatsu WA600-6R price, compare dealer quotes, and enjoy expert assistance—all in one place.

03. What is the engine power of the Komatsu WA600-6R wheel loader?

Ans.

The Komatsu WA600-6R wheel loader is powered by a Komatsu SAA6D170E-5 diesel engine, delivering 530 HP (396 kW) @ 1800 rpm.

04. What is the operating weight of the Komatsu WA600-6R wheel loader?

Ans.

The operating weight of the Komatsu WA600-6R wheel loader ranges from 52700 to 52900 kg. The operating weight may vary slightly depending on specific configurations and attachments.

05. What is the fuel tank capacity of the Komatsu WA600-6R wheel loader?

Ans.

The Komatsu WA600-6R wheel loader has a 718 litres diesel fuel tank, providing extended operation time without frequent refueling.

06. What is the bucket capacity of the Komatsu WA600-6R wheel loader?

Ans.

The bucket capacity of the Komatsu WA600-6R is 6.4 – 7.0 cubic meters (m³).

07. What is the dump height of the Komatsu WA600-6R wheel loader?

Ans.

The Komatsu WA600-6R wheel loader offers a dump height of 3995 mm, suitable for large material handling tasks in mining.

08. What is the warranty period of Komatsu WA600-6R wheel loader?

Ans.

The Komatsu WA600-6R wheel loader in India typically comes with a standard warranty of 1 year or 3000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

09. How many gears are available in the Komatsu WA600-6R wheel loader?

Ans.

The Komatsu WA600-6R wheel loader features a 4-wheel drive (4WD) system with a Full-Powershift & Countershaft Type transmission. It offers 4 forward and 4 reverse gears, enabling efficient operation at speeds up to 33.8 km/h.

10. What are the key applications and uses of the Komatsu WA600-6R wheel loader?

Ans.

The Komatsu WA600-6R is a heavy-duty loader offering efficient material handling and transport capabilities, designed for tough construction and mining environments with optimized fuel consumption.

11. Where can I find spare parts for the Komatsu WA600-6R wheel loader?

Ans.

You can find genuine spare parts for the Komatsu WA600-6R wheeled loader at authorized Komatsu dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.

Popular Comparisons with Komatsu WA600-6R

L&T Komatsu

Komatsu WA600-6R

4.5 rating

Price Available Soon

52900 Kg

Caterpillar

Cat 988K

4.5 rating

Price Available Soon

51062 kg

Compare

L&T Komatsu

Komatsu WA600-6R

4.5 rating

Price Available Soon

52900 Kg

Caterpillar

Cat 986K

4.5 rating

Price Available Soon

44818 kg

Compare

L&T Komatsu

Komatsu WA600-6R

4.5 rating

Price Available Soon

52900 Kg

Volvo

Volvo L350H

4.5 rating

Price Available Soon

56300 kg

Compare

L&T Komatsu

Komatsu WA600-6R

4.5 rating

Price Available Soon

52900 Kg

LiuGong

Liugong 8128H

4.5 rating

₹ 1.5-1.55 Crore

52000 kg

Compare

L&T Komatsu

Komatsu WA600-6R

4.5 rating

Price Available Soon

52900 Kg

Tata Hitachi

Tata Hitachi ZW550

4.5 rating

Price Available Soon

45130 kg

Compare

Are you interested in buying Komatsu WA600-6R Wheel Loader

Products

Related Wheel Loader

L&T 9020 SX

Engine

Cummins 140 HP
Bucket

1.5 - 3.5 m³
Weight

11400 kg

₹ 54-56 Lakhs^*

Small (8-15 Ton)

L&T 9020 SX

₹ 54-56 Lakhs ^*

L&T 9020 SX

₹ 54-56 Lakhs ^*

The L&T 9020 SX Wheel Loader delivers superior performance and durability, meeting the demands of India’s infrastructure development.

Engine

Cummins 140 HP
Bucket

1.5 - 3.5 m³
Weight

11400 kg
Fwd. Speed

29 km/h
Dump Height

2715 mm
Tipping Load

NA

Compare

L&T 9020

Engine

Ashok Leyland 133 HP
Bucket

1.5 - 3.5 m³
Weight

11500 kg

₹ 53-55 Lakhs^*

Small (8-15 Ton)

L&T 9020

₹ 53-55 Lakhs ^*

L&T 9020

₹ 53-55 Lakhs ^*

L&T’s 9020 Wheel Loader is engineered for Indian construction sites, offering seamless operation and enhanced load-handling capabilities.

Engine

Ashok Leyland 133 HP
Bucket

1.5 - 3.5 m³
Weight

11500 kg
Fwd. Speed

29 km/h
Dump Height

2715 mm
Tipping Load

NA

Compare

Komatsu WA380Z-6

Engine

Komatsu 192 HP
Bucket

2.7 - 4.0 m³
Weight

17420 kg

Price Available Soon^*

Medium (15-30 Ton)

Komatsu WA380Z-6

Price Available Soon ^*

Komatsu WA380Z-6

Price Available Soon ^*

The Komatsu WA380Z-6 Wheel Loader combines fuel efficiency with robust performance, suitable for various Indian construction projects.

Engine

Komatsu 192 HP
Bucket

2.7 - 4.0 m³
Weight

17420 kg
Fwd. Speed

34.0 km/h
Dump Height

2950 mm
Tipping Load

12470 kg

Compare

Komatsu WA900-8R

Engine

Komatsu 900 HP
Bucket

11.5 - 13.0 m³
Weight

116400 Kg

Price Available Soon^*

Large (>30 Ton)

Komatsu WA900-8R

Price Available Soon ^*

Komatsu WA900-8R

Price Available Soon ^*

The Komatsu WA900-8R Wheel Loader delivers exceptional power and efficiency, ideal for India’s large-scale mining applications.

Engine

Komatsu 900 HP
Bucket

11.5 - 13.0 m³
Weight

116400 Kg
Fwd. Speed

23.3 km/h
Dump Height

4610 mm
Tipping Load

63610 kg

Compare

Komatsu WA500-6R

Engine

Komatsu 357 HP
Bucket

4.3 – 5.6 m³
Weight

34470 kg

Price Available Soon^*

Large (>30 Ton)

Komatsu WA500-6R

Price Available Soon ^*

Komatsu WA500-6R

Price Available Soon ^*

The Komatsu WA500-6R Wheel Loader offers superior performance, catering to India’s large-scale infrastructure and industrial projects.

Engine

Komatsu 357 HP
Bucket

4.3 – 5.6 m³
Weight

34470 kg
Fwd. Speed

34.9 km/h
Dump Height

3295 mm
Tipping Load

21000 kg

Compare

Komatsu WA480-6A

Engine

Komatsu 300 HP
Bucket

3.8 – 6.1 m³
Weight

25155 kg

Price Available Soon^*

Medium (15-30 Ton)

Komatsu WA480-6A

Price Available Soon ^*

Komatsu WA480-6A

Price Available Soon ^*

With enhanced load capacity, the Komatsu WA480-6A Wheel Loader meets the rigorous demands of India’s construction and mining sectors.

Engine

Komatsu 300 HP
Bucket

3.8 – 6.1 m³
Weight

25155 kg
Fwd. Speed

36.3 km/h
Dump Height

3205 mm
Tipping Load

17125 kg

Compare

Komatsu WA470-6A

Engine

Komatsu 273 HP
Bucket

3.6 – 5.2 m³
Weight

34470 kg

Price Available Soon^*

Large (>30 Ton)

Komatsu WA470-6A

Price Available Soon ^*

Komatsu WA470-6A

Price Available Soon ^*

The Komatsu WA470-6A Wheel Loader stands out in Indian mining and heavy-duty applications, providing unmatched productivity and reliability.

Engine

Komatsu 273 HP
Bucket

3.6 – 5.2 m³
Weight

34470 kg
Fwd. Speed

36.2 km/h
Dump Height

3185 mm
Tipping Load

15720 kg

Compare

About L&T Komatsu

L&T Komatsu, a collaboration between Larsen and Toubro and Komatsu Limited. It specializes in manufacturing and distributing earthmoving, construction, and mining equipment in India. Utilizing Komatsu’s trend-setting innovation and L&T’s market aptitude, the organization delivers high-performance equipment, including excavators, loaders, and dump trucks, tailored to diverse industrial needs in India. Renowned for its reliability, innovation, and robust after-sales support, L&T Komatsu plays a very important role in developing infrastructure and mining development across India, ensuring sustainable growth and customer satisfaction.

Product Portfolio: Excavators, Motor Graders, Wheel Loaders

Categories

Contact Us

Contact Info

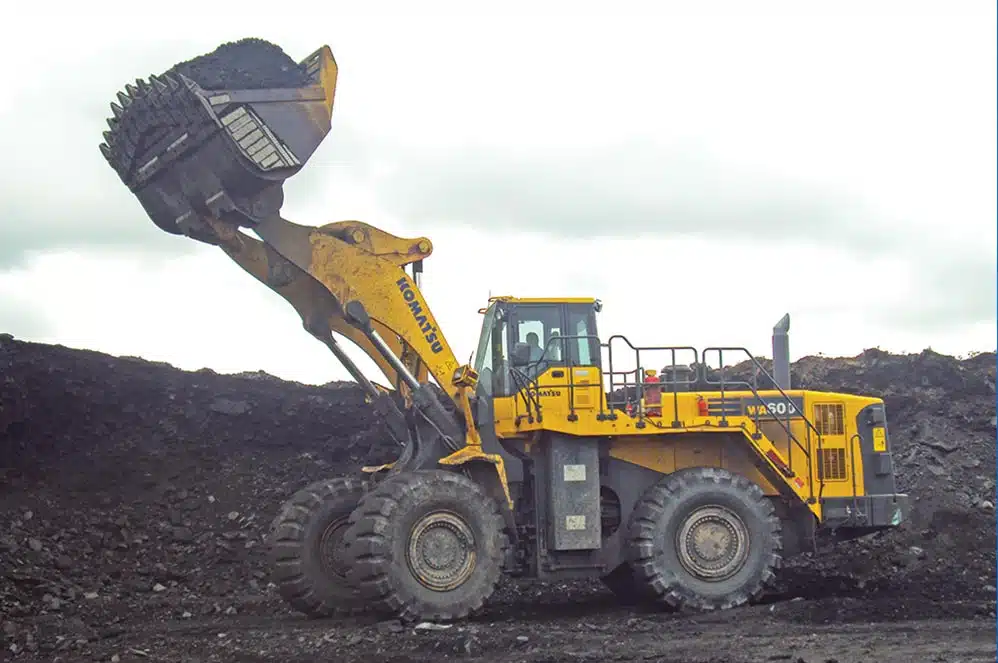

Komatsu WA600-6R Wheel Loader

Connect With Us:

Download Brochure

Key Highlights

Engine Make

Max Torque

Fuel Tank

Hydraulic System

Min. Ground Clearance

Payload

Steering Angle

Drive Type

Wheelbase

Tyres

Max. Breakout Force

Overall Length

Warranty

AC Cabin

GPS

Features

Exceptional Performance & Fuel Efficiency

Exceptional Performance & Fuel Efficiency

Enhanced Loading Capabilities

Enhanced Loading Capabilities

Operator Comfort & Control

Operator Comfort & Control

Environmental Compatibility

Environmental Compatibility

Built for Reliability

Built for Reliability

Simplified Maintenance & Monitoring

Simplified Maintenance & Monitoring

Exceptional Performance & Fuel Efficiency

Enhanced Loading Capabilities

Operator Comfort & Control

Environmental Compatibility

Built for Reliability

Simplified Maintenance & Monitoring

Specifications

ENGINE

POWER TRAIN

BRAKES

STEERING SYSTEM

AXLE AND FINAL DRIVE

SPEED

HYDRAULIC SYSTEM

SERVICE REFILL CAPACITIES

DIMENSIONS

PERFORMANCE

Frequently Asked Question

01. What is the Komatsu WA600-6R wheel loader price in India?

02. Where can I buy the Komatsu WA600-6R wheel loader in India at the best price?

03. What is the engine power of the Komatsu WA600-6R wheel loader?

04. What is the operating weight of the Komatsu WA600-6R wheel loader?

05. What is the fuel tank capacity of the Komatsu WA600-6R wheel loader?

06. What is the bucket capacity of the Komatsu WA600-6R wheel loader?

07. What is the dump height of the Komatsu WA600-6R wheel loader?

08. What is the warranty period of Komatsu WA600-6R wheel loader?

09. How many gears are available in the Komatsu WA600-6R wheel loader?

10. What are the key applications and uses of the Komatsu WA600-6R wheel loader?

11. Where can I find spare parts for the Komatsu WA600-6R wheel loader?

Popular Comparisons with Komatsu WA600-6R

Are you interested in buying Komatsu WA600-6R Wheel Loader

Products

Related Wheel Loader

Engine

Cummins 140 HP

Bucket

1.5 - 3.5 m³

Weight

11400 kg

₹ 54-56 Lakhs*

₹ 54-56 Lakhs *

₹ 54-56 Lakhs *

Engine

Cummins 140 HP

Bucket

₹ 54-56 Lakhs^*

₹ 54-56 Lakhs ^*

₹ 54-56 Lakhs ^*

₹ 53-55 Lakhs^*

₹ 53-55 Lakhs ^*

₹ 53-55 Lakhs ^*

Price Available Soon^*

Price Available Soon ^*

Price Available Soon ^*
