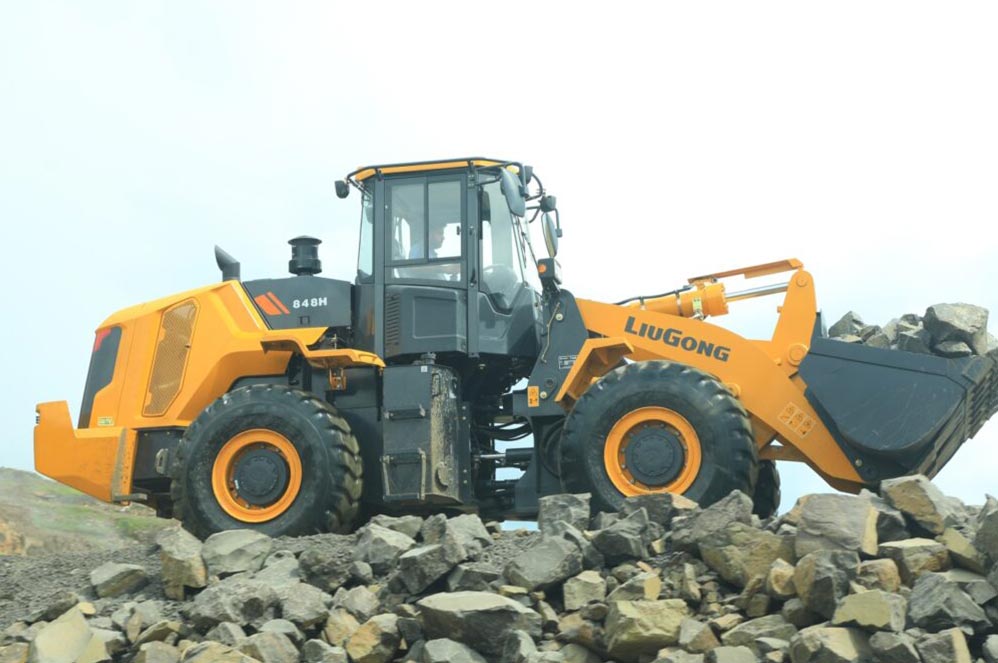

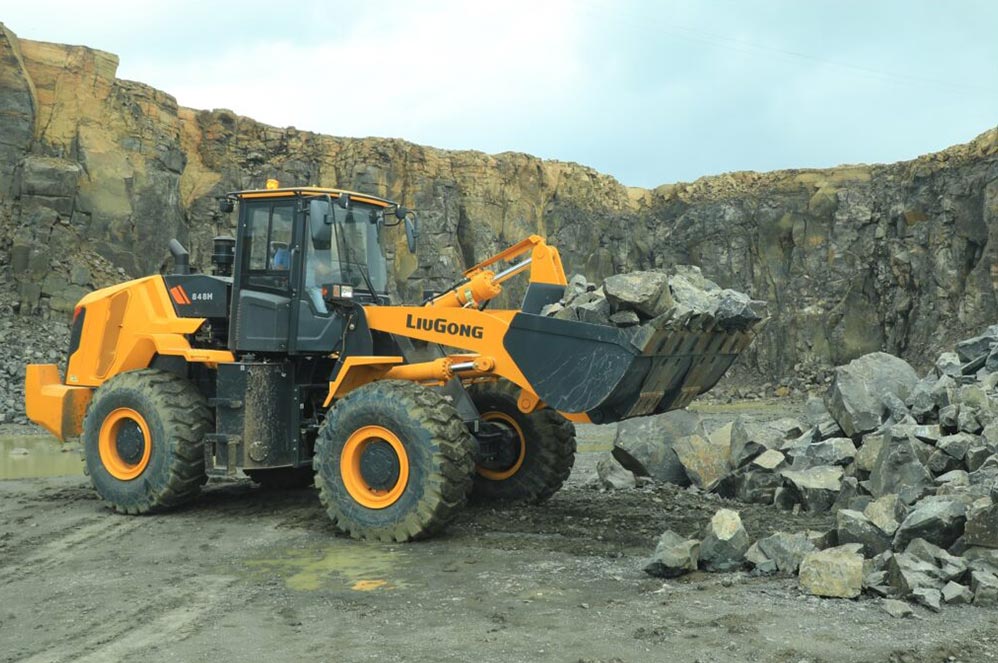

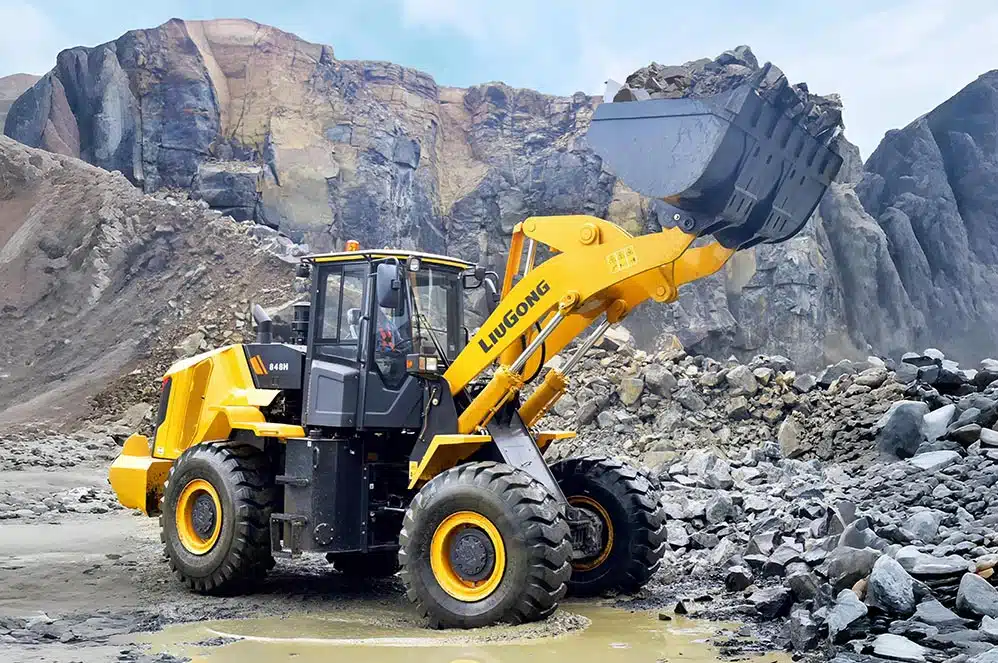

    Liugong 848H Wheel Loader

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    • Brand

      LiuGong

    • Type

      Medium (15-30 Ton)

    • Operating Cost

      Price Available Soon

    • Ex-Showroom Price

      Price Available Soon

    • Engine

      Yuchai 220 HP

    • featIcon2 (1) alt
      Bucket

      2.8 m³

    • icon alt1
      Weight

      16870 kg

    • Fwd. Speed

      40 km/h

    • dumping height loader
      Dump Height

      3081 mm

    • tipping load
      Tipping Load

      10300 kg

    Quick Overview:

    The Liugong 848H Wheel Loader provides enhanced lifting capabilities, making it ideal for India’s large-scale material handling projects.

    Connect With Us:

    Get the best price for the Liugong 848H wheel loader from authorized dealers. Contact us now for exclusive deals!

    Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

    Key Highlights

    Engine Make

    Yuchai YCK09220-B460

    Max Torque

    1100 Nm @ 1400 rpm

    Fuel Tank

    280 L

    Hydraulic System

    332 L/min

    grounding
    Min. Ground Clearance

    423 mm

    desi machines payload
    Payload

    4500 kg

    360 degree
    Steering Angle

    ±38°

    Drive Type

    4-wheel drive (4WD)

    Wheelbase

    3250 mm

    Tyres

    23.5-25-16PR

    down
    Max. Breakout Force

    167 kN

    Overall Length

    8146 mm

    Medal Image
    Warranty

    1 Yr. / 2000 hr.

    air-conditioner-alt
    AC Cabin

    Standard

    GPS Tracking
    GPS

    Standard

    Features

    Performance

    Performance

    • Precisely selection of CEV Stage IV Compliant Engine to ensure the unmatched performance to handle the toughest and heaviest jobs. Offering big capacity buckets large dump height and great stability on operation shown all time favourable features of LiuGong loader to its Customer.

    Efficiency

    Efficiency

    • Perfect match of power trains and implementation units always succeed to deliver high efficiency factors in loaders for various application, and LiuGong has speciality of it.

    Reliability

    Reliability

    • Reliability is factor which cannot come from the brand make but from the product presence and adaptability in the market due to its continuous operating hours and LiuGong has a Expertise over 6 Decades in manufacturing of Wheel loader for toughest applications.

    Comfort

    Comfort

    • Every work get easier & productive if operator feels safety as well as comfort on his job. Our well designed AC Cab offers various features to create best working environment – a comfortable operator is a productive operator.

    Maximum uptime

    Maximum uptime

    • Ground level serviceability give easy access to service touch points and minimize the down time.

    Performance

    • Precisely selection of CEV Stage IV Compliant Engine to ensure the unmatched performance to handle the toughest and heaviest jobs. Offering big capacity buckets large dump height and great stability on operation shown all time favourable features of LiuGong loader to its Customer.

    Efficiency

    • Perfect match of power trains and implementation units always succeed to deliver high efficiency factors in loaders for various application, and LiuGong has speciality of it.

    Reliability

    • Reliability is factor which cannot come from the brand make but from the product presence and adaptability in the market due to its continuous operating hours and LiuGong has a Expertise over 6 Decades in manufacturing of Wheel loader for toughest applications.

    Comfort

    • Every work get easier & productive if operator feels safety as well as comfort on his job. Our well designed AC Cab offers various features to create best working environment – a comfortable operator is a productive operator.

    Maximum uptime

    • Ground level serviceability give easy access to service touch points and minimize the down time.

    Specifications

    Product specification of Liugong 848H Wheel Loader

    ENGINE

    • Make

      Yuchai YCK09220-B460

    • Type

      RDI Turbochanged, Intercooled Engine Designed and Developed for Liugong Wheel Loaders.

    • Aspiration

      Turbocharged, Intercooled

    • Emission

      CEV stage IV

    • Max. Power

      220 HP (162 kW)@ 2000 rpm

    • Max Torque

      1100 Nm @ 1400 rpm

    • Piston Displacement

      9.41 L

    • No. of Cylinders

      6 Cylinders

    • Battery

      2 x 12V

    • Alternator

      NA

    POWER TRAIN

    • Transmission

      Powershift

    • Drive Type

      4-wheel drive (4WD)

    • Torque Converter

      Twin Turbine, Four Members

    BRAKES

    • Service

      4 wheel applied air over hydraulic with independent circuit for front & rear axle

    • Parking

      Drum brake Mechanical Actuation

    STEERING SYSTEM

    • Type

      Articulated Steering

    • Steering Angle

      ±38°

    AXLE AND FINAL DRIVE

    • Front Axle Type

      NA

    • Rear Axle Type

      NA

    • Oscillation Angle

      ±10°

    SPEED

    • Top Forward Speed

      40 km/h

    • Top Reverse Speed

      17 km/h

    HYDRAULIC SYSTEM

    • System Type

      Load Sensing, Closed Center

    • Pump Type

      Variable Displacement Piston

    • Max. Pump Flow

      332 L/min

    • System Pressure

      170 bar

    SERVICE REFILL CAPACITIES

    • Fuel Tank

      280 L

    • Hydraulic System

      NA

    • Engine Oil

      26 L

    • Cooling System

      50 L

    • Rear Axle Oil

      33 L

    • Front Axle Oil

      33 L

    • Hydraulic Tank

      225 L

    • Transmission Oil

      35 L

    • DEF Tank

      NA

    DIMENSIONS

    • Overall Length With Bucket

      8146 mm

    • Wheel Base

      3250 mm

    • Height Over Cab

      3500 mm

    • Height Over Exhaust

      NA

    • Min. Ground Clearance

      423 mm

    • Width Over Tyres

      2740 mm

    • Wheel Tread

      2150 mm

    • Tyre Size

      23.5-25-16PR

    PERFORMANCE

    • Bucket Capacity

      2.8 m³

    • Bucket Width

      NA

    • Payload

      4500 kg

    • Tipping Load Straight

      12875 kg

    • Tipping Load Full Turn

      10300 kg

    • Max. Breakout Force

      167 kN

    • Operating Weight

      16870 kg

    • Maximum Dump Angle

      45°

    • Bucket Roll Back Angle Full Height

      63°

    • Bucket Roll Back At Carry

      48°

    • Bucket Roll Back At Ground Level

      43°

    • Dumping Height, Fully Raised

      3081 mm

    • Dumping Reach, Fully Raised

      1125 mm

    • Max. Hinge Pin Height

      4114 mm

    • Max. Digging Depth

      50 mm

    • Turning Radius Over Tyres

      6000 mm

    • Turning Radius Over Bucket

      7000 mm

    Frequently Asked Question

    01. What is the Liugong 848H wheel loader price in India?

    Ans.

    The Liugong 848H wheel loader price in India is available on request. To get the latest on-road price of the Liugong 848H based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.

    02. Where can I buy the Liugong 848H wheel loader in India at the best price?

    Ans.

    You can buy the Liugong 848H wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Liugong dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Liugong 848H price, compare dealer quotes, and enjoy expert assistance—all in one place.

    03. What is the engine power of the Liugong 848H wheel loader?

    Ans.

    The Liugong 848H wheel loader is powered by a Yuchai YCK09220-B460 diesel engine, delivering 220 HP (162 kW) @ 2000 rpm.

    04. What is the operating weight of the Liugong 848H wheel loader?

    Ans.

    The operating weight of the Liugong 848H wheel loader is approximately 16870 kg. The operating weight may vary slightly depending on specific configurations and attachments.

    05. What is the fuel tank capacity of the Liugong 848H wheel loader?

    Ans.

    The Liugong 848H wheel loader has a 280 litres diesel fuel tank, providing extended operation time without frequent refueling.

    06. What is the bucket capacity of the Liugong 848H wheel loader?

    Ans.

    The bucket capacity of the Liugong 848H is 2.8 cubic meters (m³).

    07. What is the dump height of the Liugong 848H wheel loader?

    Ans.

    The Liugong 848H wheel loader provides a dump height of 3081 mm, ideal for heavy-duty material dumping tasks.

    08. What is the warranty period of Liugong 848H wheel loader?

    Ans.

    The Liugong 848H wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

    09. How many gears are available in the Liugong 848H wheel loader?

    Ans.

    The Liugong 848H wheel loader features a 4-wheel drive (4WD) system with a Powershift transmission. It offers 2 forward and 1 reverse gear, enabling efficient operation at speeds up to 40 km/h.

    10. What are the key applications and uses of the Liugong 848H wheel loader?

    Ans.

    This robust Liugong 848H loader is built for demanding construction and mining applications, delivering strong breakout force, reliable performance, and operator comfort during extended work hours.

    11. Where can I find spare parts for the Liugong 848H wheel loader?

    Ans.

    You can find genuine spare parts for the Liugong 848H wheeled loader at authorized Liugong dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
