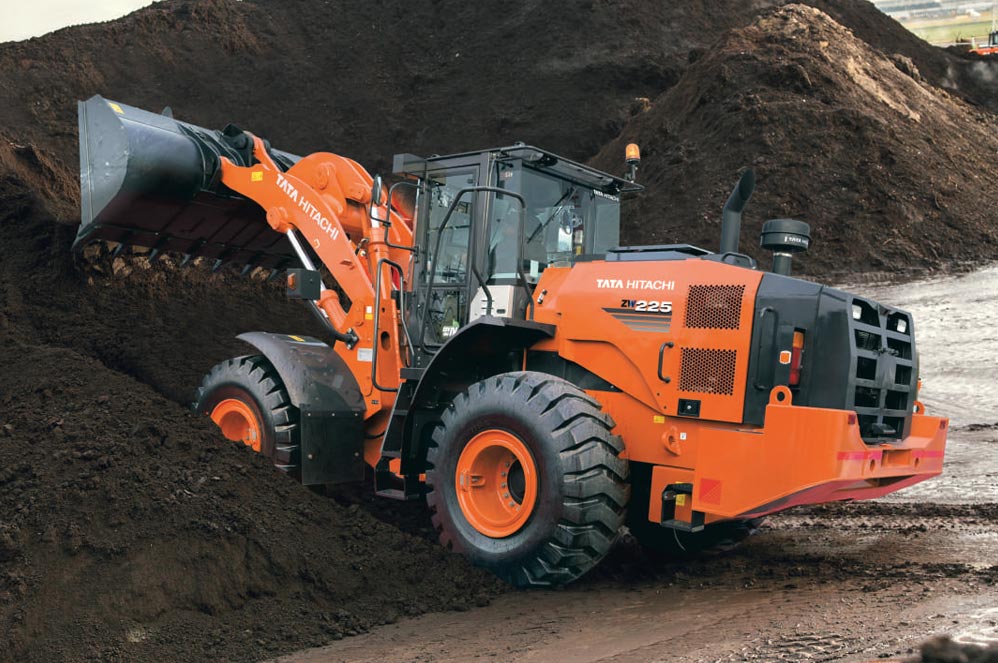

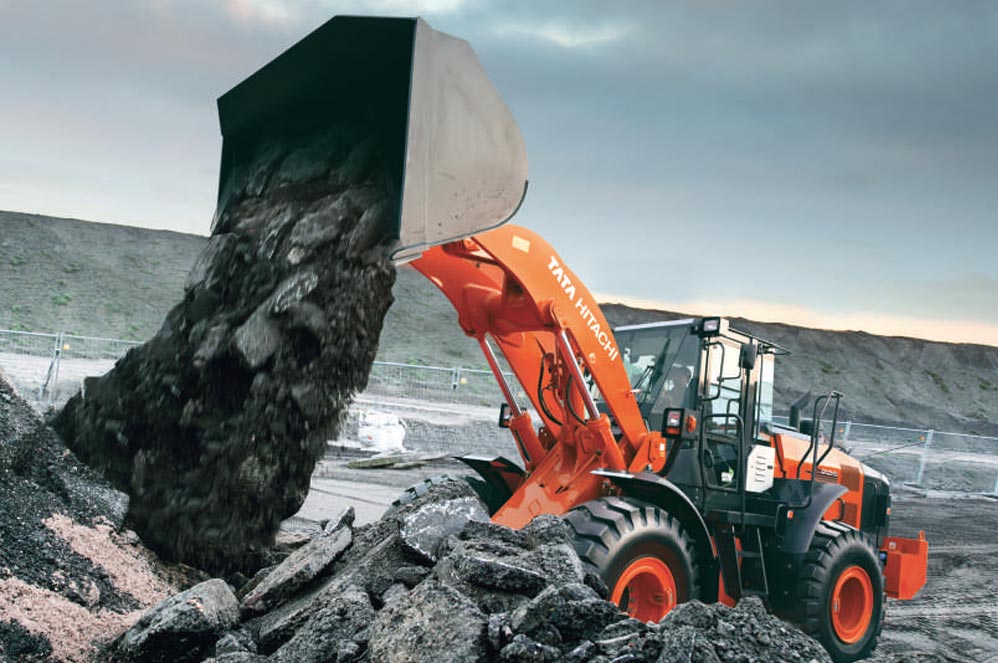

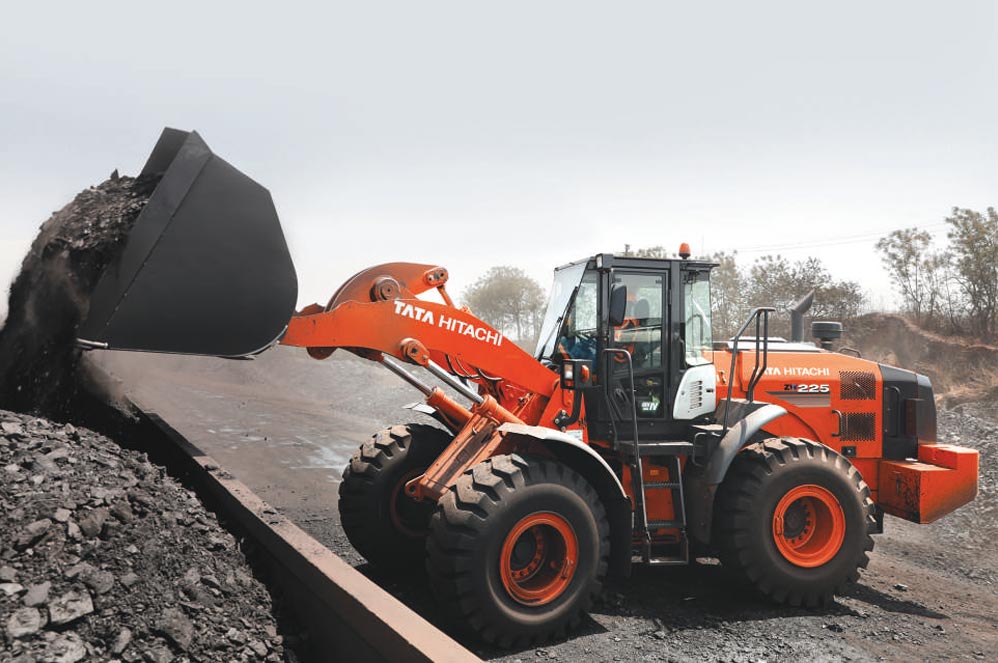

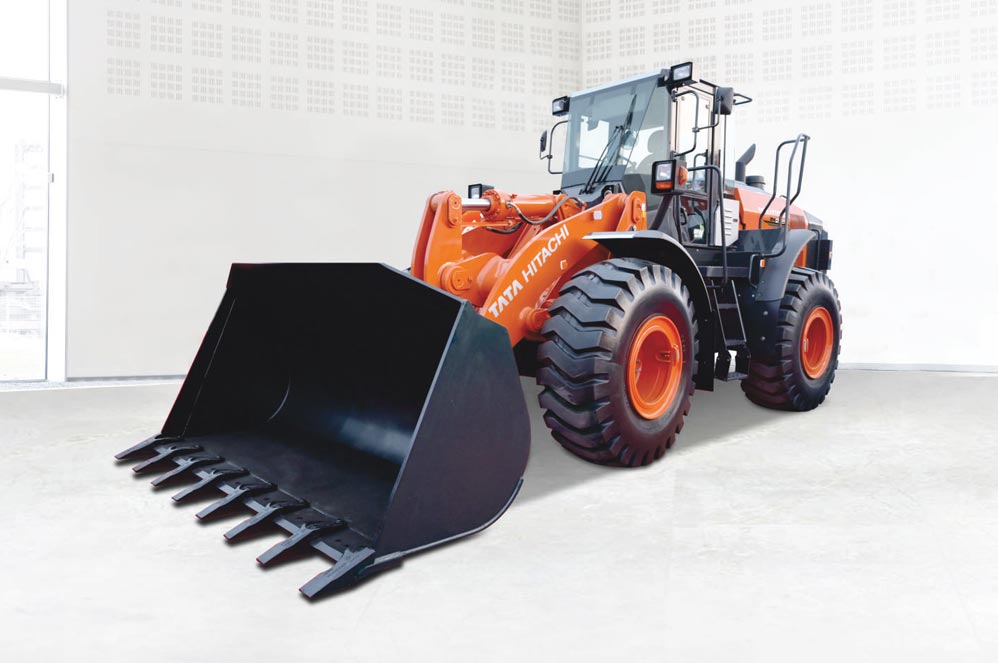

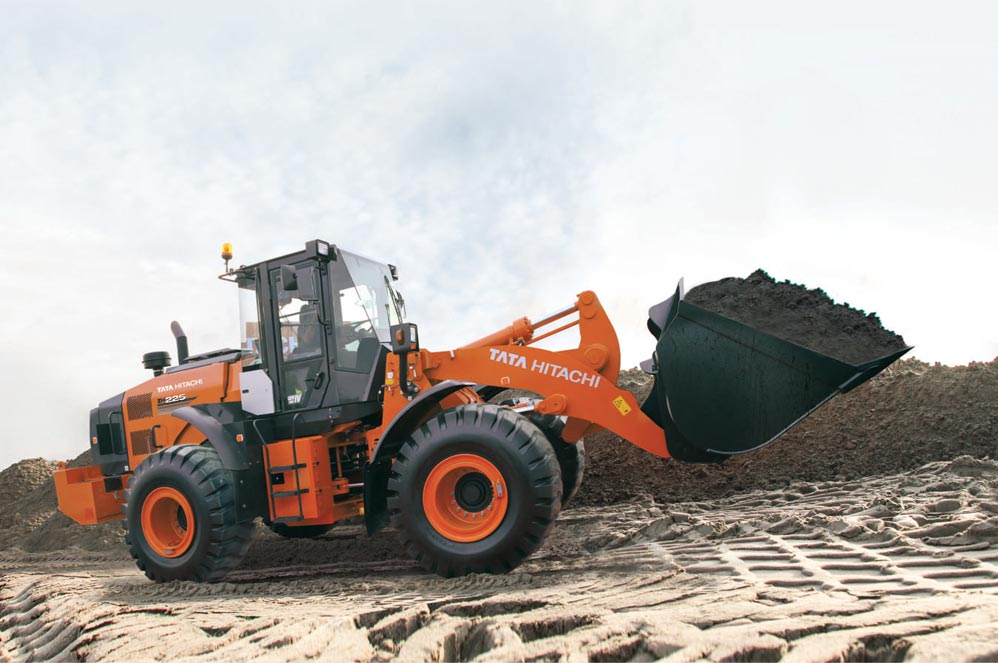

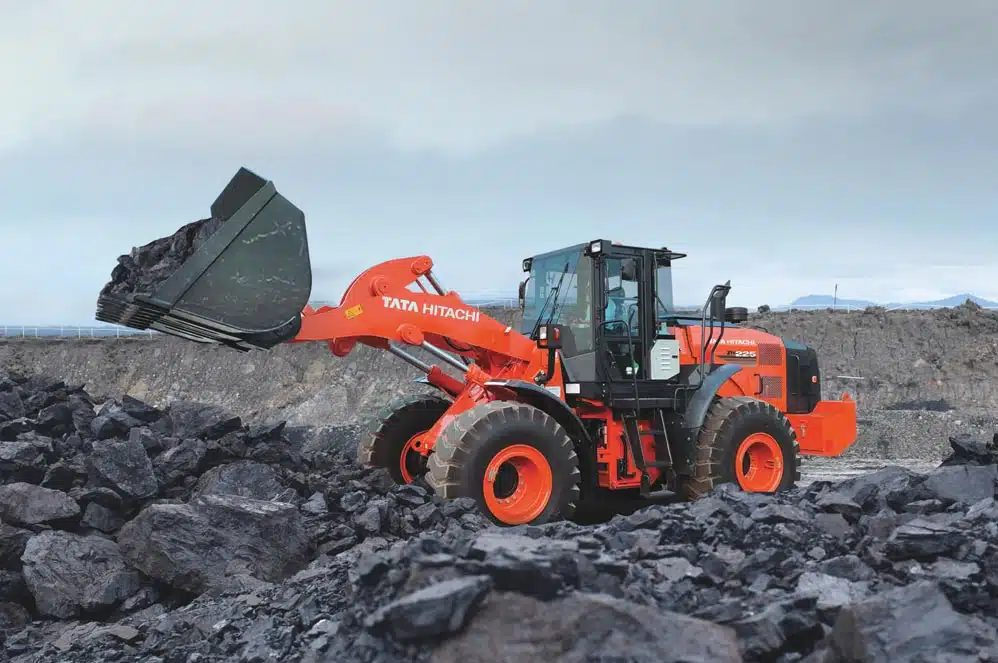

Tata Hitachi ZW225 CEV 5 Wheel Loader

CEV-5 compliant Cummins QSB 6.7 engine with Common Rail Direct Injection (CRDi).

High-power CRDi engine delivers higher peak torque at lower RPM, enhancing performance across applications.

Wastegate turbocharger maintains optimal inlet air pressure for improved engine efficiency.

ECM calibration updates with cybersecurity features ensure reliable and secure operation.

Engine auto idle and auto shut down for enhanced fuel savings.

Equipped with an efficient after-treatment system (DOC, DPF, and SCR) to minimize unburnt Carbon particles and pollutants.

Selective Catalytic Reduction (SCR) system injects urea into exhaust gases to reduce nitrogen oxides (NOx).

Single-unit ATD system - designed for easy maintenance.

Larger 60L DEF

The parallel tandem circuit ensures faster hydraulic operation and smooth material handling by prioritizing bucket movement during the loading operation.

Quick Power function provides a temporary power boost while operating in ECO mode.

Bucket auto-leveler reduces the need for manual repositioning, ensuring efficient loading.

Arm Kickout (with optional Dual Arm Kickout) presets the arm position, enabling faster loading cycles.

Optional Ride Control system enhances ride comfort on rough terrain, boosts machine performance, and minimizes material spillage.

The Clutch Cut-off Switch disconnects power to the wheels before the application of the brake.

Limited Slip Differential (LSD) in front and rear axles improves traction and stability on rough terrain.

The Down Shift Switch (DSS) auto-shifts to one gear lower for increased power.

The 1st Gear Fix Switch ensures better traction and control in heavy-duty operations.

The travel mode offers both Auto and Manual options for optimized performance and control.

Durable and low-maintenance 4-wheel wet disc brakes, safely mounted inboard.

Heavy-duty axles and transmission ensure easy maneuverability and proven performance.

Rigorously tested structures provide extended machine life.

Sturdy, leak-proof fluid tanks offer superior reliability.

Fully enclosed fuel and Diesel Exhaust Fluid (DEF) tanks for added protection.

Parking and neutral interlock prevent accidental operation.

Additional electric pump ensures emergency steering capability.

Additional emergency stop switch can be activated from outside the cabin for safety.

Optional bucket cylinder guard offers enhanced protection for the cylinder.

Optional bottom guard improves protection for the propeller shaft and transmission.

The powerful Cummins engine and new-generation hydraulics deliver higher output with lower fuel consumption.

Common rail fuel injection and a reliable after-treatment system further reduce maintenance expenses.

Extended oil change intervals for engine oil/filters, fuel filters, and transmission oil result in additional cost savings.

The inboard, fully hydraulic braking system with oil-immersed discs ensures a maintenance-free lifespan.

The inboard, fully hydraulic braking system with oil-immersed discs ensures a maintenance-free lifespan.

Variable Displacement Load Sensing Axial Piston Pump optimizes hydraulic flow, boosting performance and fuel efficiency.

The CEV 5 compliant engine features a Diesel Particulate Filter (DPF) that reduces pollutants, is cleanable and reusable, cutting maintenance costs.

Long service intervals and high-quality components make maintenance easy.

The engine air filter is positioned at the rear of the engine compartment, allowing easy ground-level access for maintenance.

The enlarged 60L DEF tank is strategically placed for convenience and safety.

A single battery compartment enables easier maintenance and battery replacement.

The battery disconnect switch is now standard. It enhances safety by preventing electrical accidents and preserving battery energy during long-term storage.

EM3-compliant suspension seat with hand-rest

Heating, Ventilation, and Air Conditioning (HVAC) system

Rear-view camera with recording system

Larger side-mounted rear-view mirrors

12V power outlet for external device charging

Upgraded joystick with Power Boost and FNR switch

Front LED work lights

ROPS & FOPS-certified cabin

Bluetooth for music streaming
