Tata Hitachi
Large (>30 Ton)
Price Available Soon
Price Available Soon
Isuzu 402 HP
4.8 - 8.5 m³
32570 kg
36.4 km/h
3255 mm
20420 kg

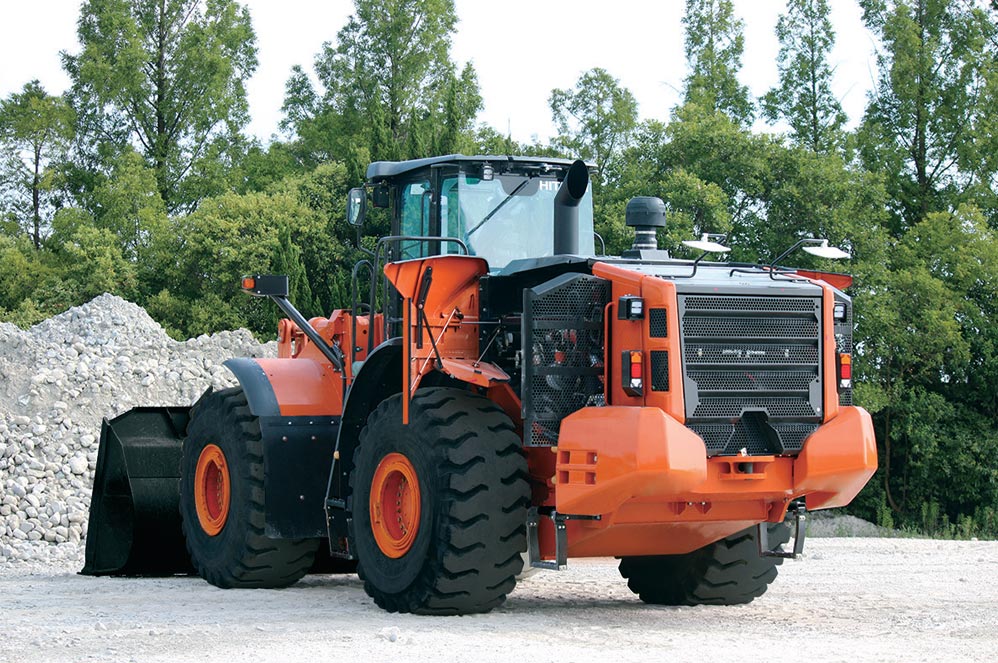

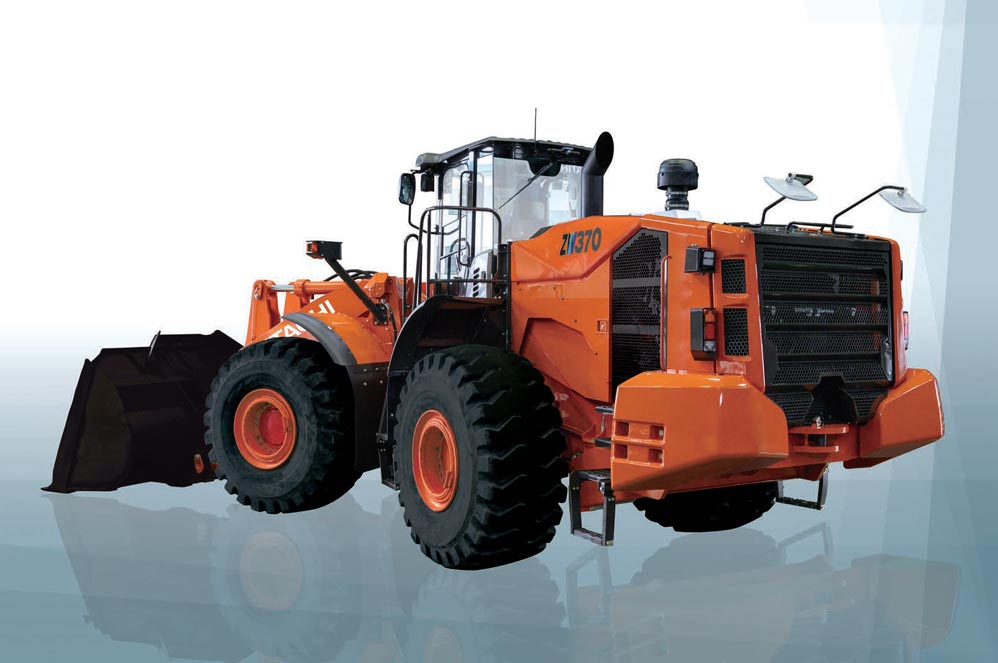

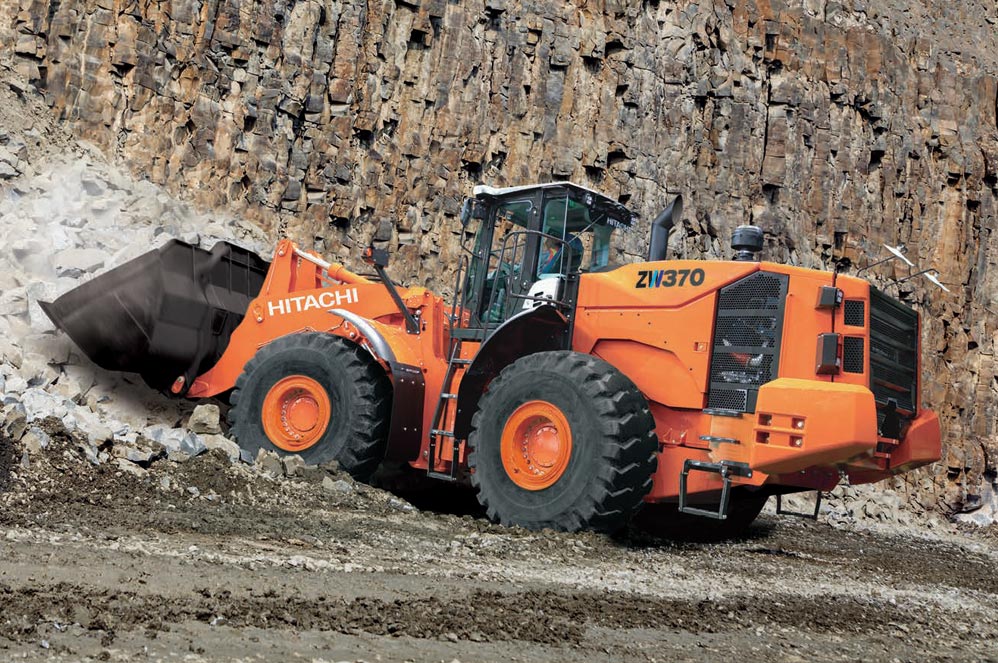

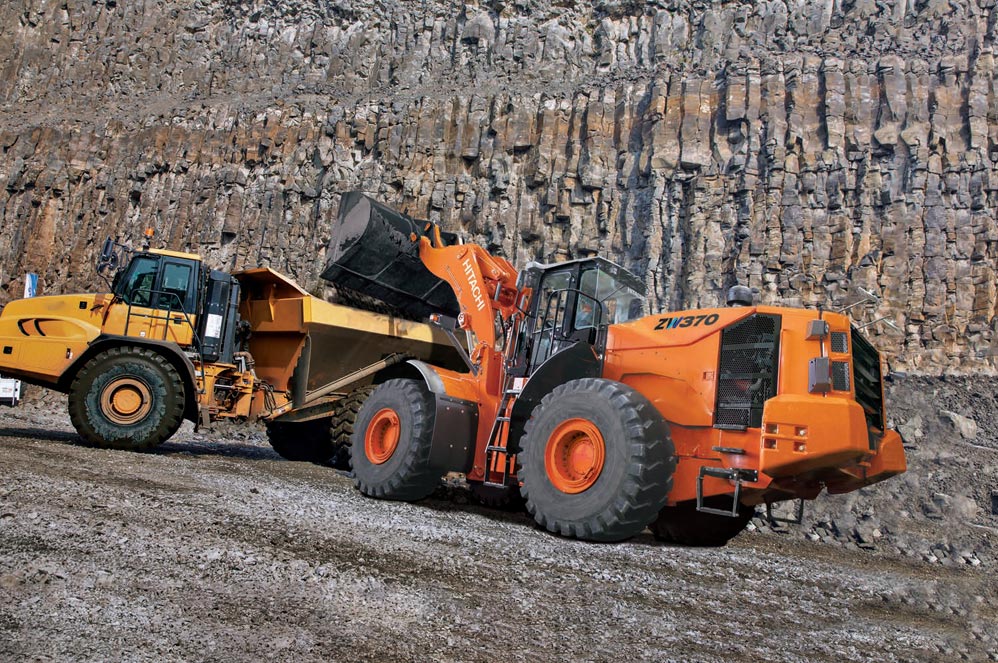

The Tata Hitachi ZW 370-5A Wheel Loader combines power and precision, catering to India’s large-scale infrastructure development needs.
Get the best price for the Tata Hitachi ZW 370-5A wheel loader from authorized dealers. Contact us now for exclusive deals!
Please fil the below form to start the download
Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.
Isuzu “6WG1” diesel engine
1932 Nm @ 1400 rpm
438 L
340 L/min @ 1 800 rpm
440 mm
9500 kg
±37°
4-wheel drive (4WD)
3600 mm
29.5-25-22PR (L3)
217 kN
9890 mm
1 Yr. / 2000 hr.
Standard
Standard
2 Ways to Activate Power Mode – Power mode can be activated by 2 ways and operators can choose either switch depending on the site required.
Active Engine Control System – It helps in achieving economical operation. Detects movements throughout the machine and adjusts engine speed accordingly for smooth and fuel-efficient operation.
Parallel Tandem for Smooth Operation – It carries out simultaneous operations. Boosts the efficiency with smooth loading and excavation.
ECO Mark Indicator for Fuel – Efficient Operation – This function encourages operators to utilize fuel efficiently.
Extra Power with power mode – Standard mode is preselected and sufficient for ordinary work. On the other hand, the power mode gives extra power when needed.
New Levers for Easy Operation – New type of lever suits both fingertip control and grip control.
Speed-Responding Clutch Cut-Off System – Adjustable clutch cut-off timing for smooth and efficient truck loading.
Lift Arm Restriction Valve – Eliminates shaking of the machine to improve operator comfort and avoid load spills.
New transmission – New transmission comes standard with the Auto mode* that can automatically select an optimum gear according to the load, thereby reducing fuel consumption.
Bi-Level Auto Air Conditioner – Bi-level control function: warming at foot space and cooling at overhead.
Panoramic Cab – Near all-round visibility through pillar-less bonded windows, enhancing safety. Adjustable seat and steering wheel to suit the operator, keeping the operator in an optimum position.
Tiltable Steering Wheel – Tiltable steering wheel for comfortable operation.
Angled ladder for safety In order to ensure safety when getting on and off the cab, the angled ladder is placed at a height and width for better accessibility.
AM/FM Radio with 2 Speakers – Auto-tuning feature and 2 speakers stereo system provides excellent sound quality.
Robust Frame – designed with a full box rear frame. This provides a robust structure that is capable of handling the rigours of heavy applications.
Automatic Reversible Cooling Fan to Reduce Dust Deposits (Optional) – Keeps the radiator clean at all times. It automatically self-reverses for 1 minutes every 30 minutes to blow dust off the radiator
Dual Z-bar linkage – provides enough durability when loading rock and quarry. The loads during digging and loading is distributed efficiently.
2 Ways to Activate Power Mode – Power mode can be activated by 2 ways and operators can choose either switch depending on the site required.
Active Engine Control System – It helps in achieving economical operation. Detects movements throughout the machine and adjusts engine speed accordingly for smooth and fuel-efficient operation.
Parallel Tandem for Smooth Operation – It carries out simultaneous operations. Boosts the efficiency with smooth loading and excavation.
ECO Mark Indicator for Fuel – Efficient Operation – This function encourages operators to utilize fuel efficiently.
Extra Power with power mode – Standard mode is preselected and sufficient for ordinary work. On the other hand, the power mode gives extra power when needed.
New Levers for Easy Operation – New type of lever suits both fingertip control and grip control.
Speed-Responding Clutch Cut-Off System – Adjustable clutch cut-off timing for smooth and efficient truck loading.
Lift Arm Restriction Valve – Eliminates shaking of the machine to improve operator comfort and avoid load spills.
New transmission – New transmission comes standard with the Auto mode* that can automatically select an optimum gear according to the load, thereby reducing fuel consumption.
Bi-Level Auto Air Conditioner – Bi-level control function: warming at foot space and cooling at overhead.
Panoramic Cab – Near all-round visibility through pillar-less bonded windows, enhancing safety. Adjustable seat and steering wheel to suit the operator, keeping the operator in an optimum position.
Tiltable Steering Wheel – Tiltable steering wheel for comfortable operation.
Angled ladder for safety In order to ensure safety when getting on and off the cab, the angled ladder is placed at a height and width for better accessibility.
AM/FM Radio with 2 Speakers – Auto-tuning feature and 2 speakers stereo system provides excellent sound quality.
Robust Frame – designed with a full box rear frame. This provides a robust structure that is capable of handling the rigours of heavy applications.
Automatic Reversible Cooling Fan to Reduce Dust Deposits (Optional) – Keeps the radiator clean at all times. It automatically self-reverses for 1 minutes every 30 minutes to blow dust off the radiator
Dual Z-bar linkage – provides enough durability when loading rock and quarry. The loads during digging and loading is distributed efficiently.
Product specification of Tata Hitachi ZW 370-5A Wheel Loader
Make
Isuzu “6WG1” diesel engine
Type
4-cycle water-cooled, direct injection,
Aspiration
Turbocharged, intercooled and cooled EGR
Emission
U.S. EPA Tier 3 and EU Stage IIIA
Max. Power
402 HP (300 kW) @ 1800 rpm
Max Torque
1932 Nm @ 1400 rpm
Piston Displacement
15.68 L
No. of Cylinders
6 Cylinders
Battery
2 x 12V / 140Ah
Alternator
24V / 50A
Transmission
Planetary Power Shift Transmission
Drive Type
4-wheel drive (4WD)
Torque Converter
Three element, single stage, single phase with lock-up clutch (Optional)
Service
Middle mounted fully hydraulic 4 wheel disc brake. Front & rear independent brake circuit
Parking
Spring applied, hydraulically released, located in front axle driveline
Type
Articulated Frame Steering
Steering Angle
±37°
Front Axle Type
Fixed to the front frame
Rear Axle Type
Trunnion support
Oscillation Angle
±12°
Top Forward Speed
36.4 km/h
Top Reverse Speed
20.7 km/h
System Type
Load sensing closed center
Pump Type
Variable displacement axial piston pump
Max. Pump Flow
340 L/min @ 1 800 rpm
System Pressure
314 bar
Fuel Tank
438 L
Hydraulic System
NA
Engine Oil
52 L
Cooling System
76 L
Rear Axle Oil
95 L
Front Axle Oil
95 L
Hydraulic Tank
178 L
Transmission Oil
71 L
DEF Tank
NA
Overall Length With Bucket
9890 mm
Wheel Base
3600 mm
Height Over Cab
3730 mm
Height Over Exhaust
NA
Min. Ground Clearance
440 mm
Width Over Tyres
3220 mm
Wheel Tread
2440 mm
Tyre Size
29.5-25-22PR (L3)
Bucket Capacity
4.8 - 8.5 m³
Bucket Width
3465 mm
Payload
9500 kg
Tipping Load Straight
23430 kg
Tipping Load Full Turn
20420 kg
Max. Breakout Force
217 kN
Operating Weight
31750 - 32570 kg
Maximum Dump Angle
NA
Bucket Roll Back Angle Full Height
NA
Bucket Roll Back At Carry
50°
Bucket Roll Back At Ground Level
NA
Dumping Height, Fully Raised
3255 mm
Dumping Reach, Fully Raised
1480 mm
Max. Hinge Pin Height
4655 mm
Max. Digging Depth
135 mm
Turning Radius Over Tyres
6605 mm
Turning Radius Over Bucket
NA
The Tata Hitachi ZW 370-5A wheel loader price in India is available on request. To get the latest on-road price of the Tata Hitachi ZW 370-5A based on your location, simply fill out the inquiry form. Our team will provide customized pricing and financing options tailored to your region and needs.
You can buy the Tata Hitachi ZW 370-5A wheel loader in India through Desi Machines, the best online platform to compare and purchase construction equipment from verified dealers near you. We connect you with authorized Tata dealers across India and help you get multiple price quotes from different vendors , so you can choose the best deal. Simply fill out the inquiry form to receive customized offers, financing options, and real-time availability. Get the latest Tata Hitachi ZW 370-5A price, compare dealer quotes, and enjoy expert assistance—all in one place.
The Tata Hitachi ZW 370-5A wheel loader is powered by an Isuzu “6WG1” diesel engine, delivering 402 HP (300 kW) @ 1800 rpm.
The operating weight of the Tata Hitachi ZW 370-5A wheel loader ranges from approximately 31750 to 32570 kg. The operating weight may vary slightly depending on specific configurations and attachments.
The Tata Hitachi ZW 370-5A wheel loader has a 438 litres diesel fuel tank, providing extended operation time without frequent refueling.
The bucket capacity of the Tata Hitachi ZW 370-5A is 4.8 – 8.5 cubic meters (m³).
The Tata Hitachi ZW 370-5A wheel loader delivers a dump height of 3255 mm, enhancing material dumping efficiency on large sites.
The Tata Hitachi ZW 370-5A wheel loader in India typically comes with a standard warranty of 1 year or 2000 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.
The Tata Hitachi ZW 370-5A wheel loader features a 4-wheel drive (4WD) system with a Planetary Power Shift Transmission. It offers 3 forward and 3 reverse gears, enabling efficient operation at speeds up to 36.4 km/h.
Designed for heavy construction and mining work, the Tata Hitachi ZW 370-5A provides excellent material handling, high lift capacity, and responsive controls to improve site productivity.
You can find genuine spare parts for the Tata Hitachi ZW 370-5A wheeled loader at authorized Tata Hitachi dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on wheeled loader spare parts.
