BEML BL9H 4×2 Backhoe Loader

Name: BEML BL9H 4x2 Backhoe Loader
Brand: BEML
Rating: 4 (52 reviews)

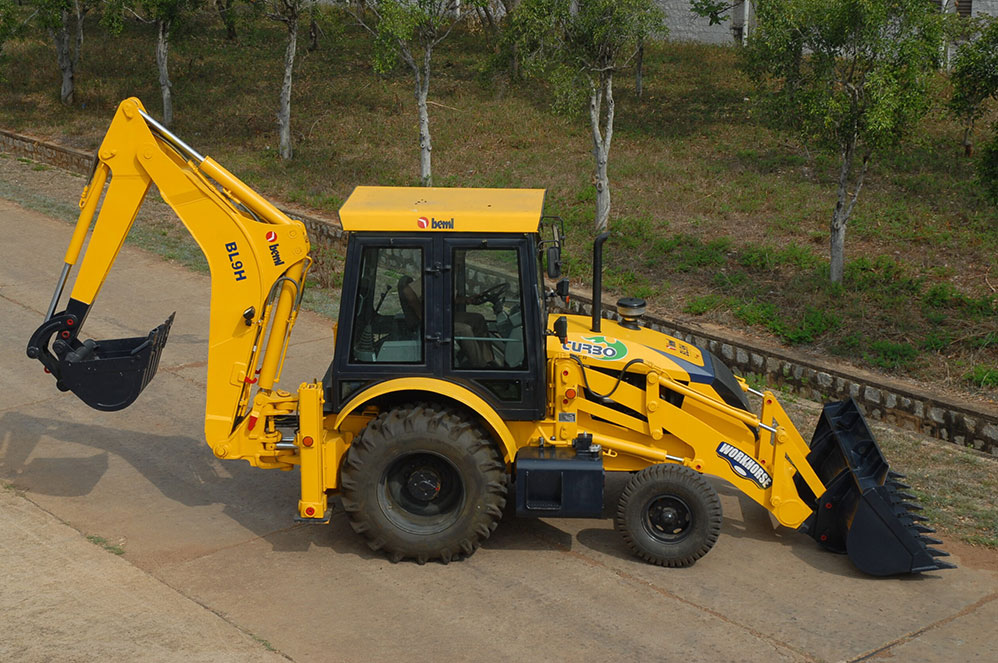

desi-machines-backhoe-loader-beml-bl9h-1

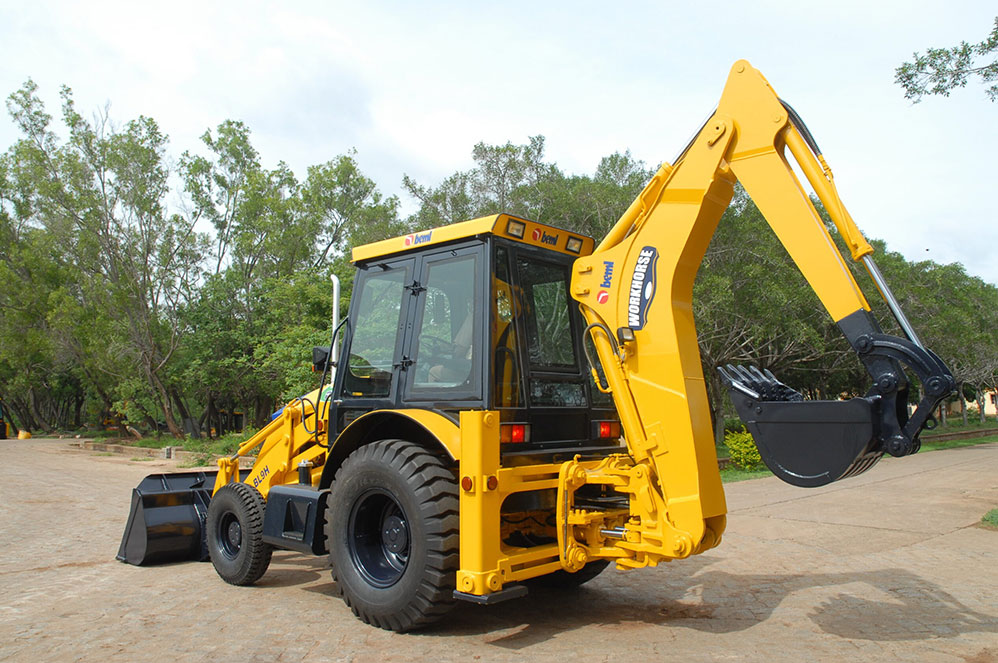

desi-machines-backhoe-loader-beml-bl9h-2

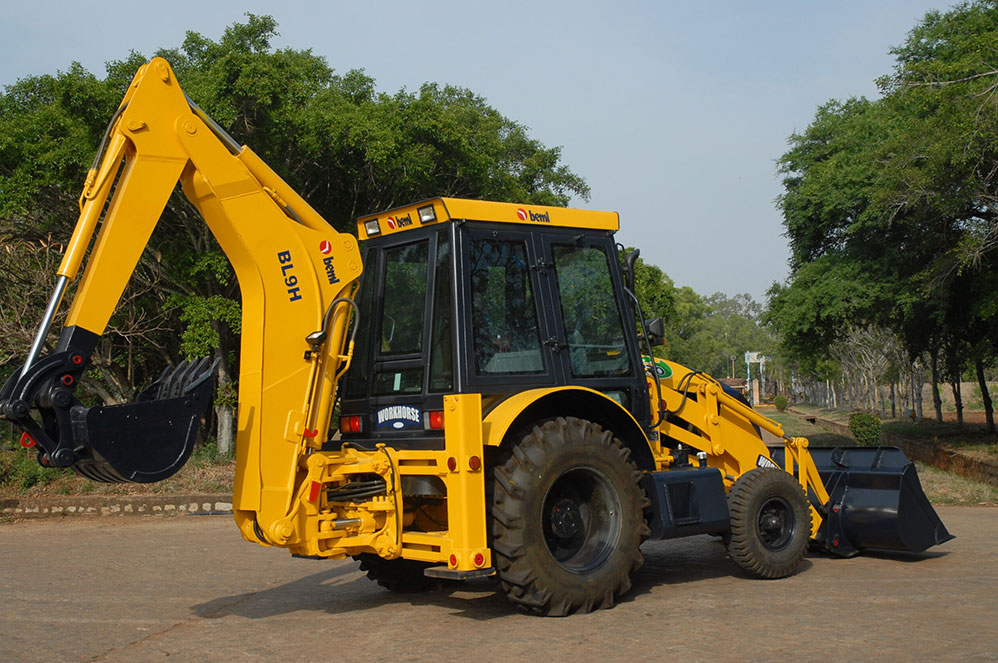

desi-machines-backhoe-loader-beml-bl9h-3

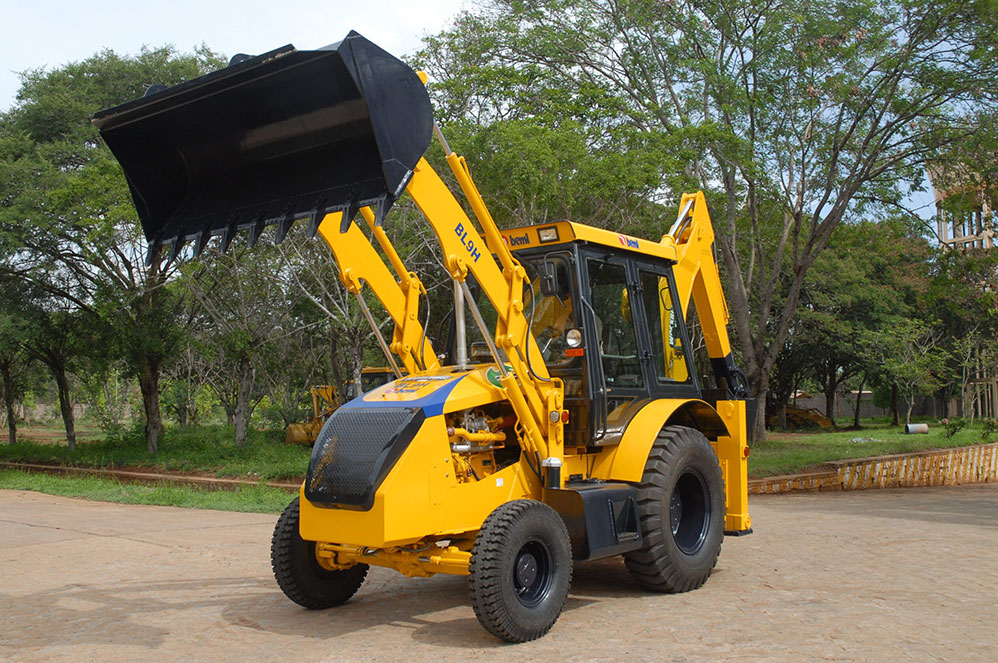

desi-machines-backhoe-loader-beml-bl9h-4

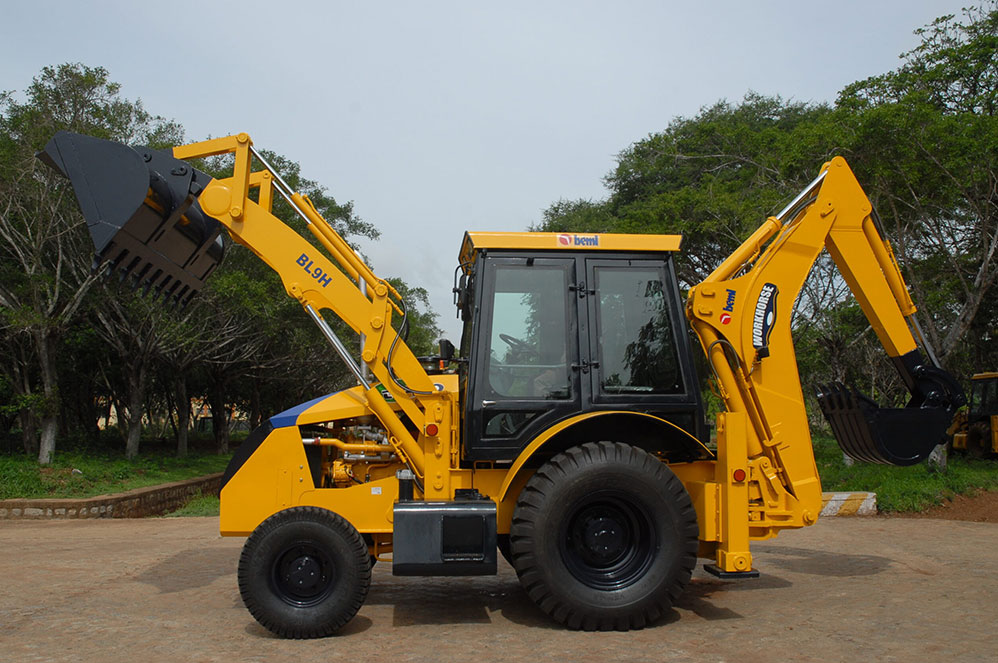

desi-machines-backhoe-loader-beml-bl9h-5

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Brand
BEML
Type
2WD
Operating Cost
Price Available Soon
Ex-Showroom Price
Price Available Soon

Engine
Koel 74 HP
Bucket
0.24 m³
Shovel
1.20 m³
Digging Depth
4585 mm
Dump Height
2700 mm
Weight
7600 Kg

Quick Overview:

BEML BL9H 4×2 is a powerful, fuel-efficient backhoe loader designed for superior digging, loading, and construction performance.

Connect With Us:

Looking for the best price on a BEML BL9H 4×2 backhoe loader? Connect with authorized dealers today for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures displayed on this website are sourced from the respective brands’ official websites and other publicly available resources.

Key Highlights

Engine Make

Koel 4R1190NA1

Fuel Tank

135 L

Max Torque

304 Nm @ 1500 rpm

Max Speed

39 km/hr

Hydraulic System

110 L/min @ 2200 rpm

Max Working Height

5880 mm

Excavator Max Lift Capacity

Loader Load Over Height

Overall Length

6270 mm

Wheel Base

Bucket Digging Force

5557 kgf

Shovel Break Out Force

5894 kgf

Warranty

1 Yr. / 2500 hr.

AC Cabin

Optional

GPS

Not Available

Features

Fuel-Efficient Engine Performance

The BEML BL9H 4x2 comes with a CEV Stage V KOEL diesel engine that ensures excellent fuel efficiency and operational economy.
It delivers 55 kW (74 hp) at 2200 rpm, ideal for consistent performance in infrastructure projects.
With a torque of 304 Nm @1500 rpm, it supports demanding daily workloads efficiently.

Smooth Transmission with 2WD Drive

This 2-wheel drive (2WD) backhoe loader features a Carraro TCB80 transmission with 4 forward and 3 reverse speeds.
Its non-drive steerable front axle is perfect for operations on roads and even terrains.
Maximum forward speed reaches 39 km/h, improving movement between job sites.

Heavy-Duty Axles & Safe Braking System

Equipped with a rigid rear axle featuring 100% differential lock for superior load traction.
Hydraulically actuated wet disc brakes offer effective stopping power on flat or semi-rough surfaces.
Parking brake is hand-operated and provides secure holding when idle.

Spacious Cabin for Operator Comfort

The steel cabin features wide doors, sliding windows, and all-weather safety glass for durability and comfort.
Ergonomically designed control panel reduces operator fatigue during extended operations.
Clear visibility ensures safer handling of the loader and backhoe functions.

Reliable Hydraulic & Loader Performance

Hydraulic gear pump provides 117 lpm at 2200 rpm with a relief pressure of 210 bar for seamless actuation.
Hydraulic gear pump provides 117 lpm at 2200 rpm with a relief pressure of 210 bar for seamless actuation.
Hydraulic gear pump provides 117 lpm at 2200 rpm with a relief pressure of 210 bar for seamless actuation.

Perfect for Road and Urban Infrastructure

Weighing 7,600 kg, the BEML BL9H 4x2 is designed for road construction, logistics, and urban municipal projects.
Its 2WD setup provides better fuel economy and lower maintenance on well-prepared terrains.
Ideal for contractors seeking cost-effective, reliable equipment.

Fuel-Efficient Engine Performance

The BEML BL9H 4x2 comes with a CEV Stage V KOEL diesel engine that ensures excellent fuel efficiency and operational economy.
It delivers 55 kW (74 hp) at 2200 rpm, ideal for consistent performance in infrastructure projects.
With a torque of 304 Nm @1500 rpm, it supports demanding daily workloads efficiently.

Smooth Transmission with 2WD Drive

This 2-wheel drive (2WD) backhoe loader features a Carraro TCB80 transmission with 4 forward and 3 reverse speeds.
Its non-drive steerable front axle is perfect for operations on roads and even terrains.
Maximum forward speed reaches 39 km/h, improving movement between job sites.

Heavy-Duty Axles & Safe Braking System

Equipped with a rigid rear axle featuring 100% differential lock for superior load traction.
Hydraulically actuated wet disc brakes offer effective stopping power on flat or semi-rough surfaces.
Parking brake is hand-operated and provides secure holding when idle.

Spacious Cabin for Operator Comfort

The steel cabin features wide doors, sliding windows, and all-weather safety glass for durability and comfort.
Ergonomically designed control panel reduces operator fatigue during extended operations.
Clear visibility ensures safer handling of the loader and backhoe functions.

Reliable Hydraulic & Loader Performance

Hydraulic gear pump provides 117 lpm at 2200 rpm with a relief pressure of 210 bar for seamless actuation.
Hydraulic gear pump provides 117 lpm at 2200 rpm with a relief pressure of 210 bar for seamless actuation.
Hydraulic gear pump provides 117 lpm at 2200 rpm with a relief pressure of 210 bar for seamless actuation.

Perfect for Road and Urban Infrastructure

Weighing 7,600 kg, the BEML BL9H 4x2 is designed for road construction, logistics, and urban municipal projects.
Its 2WD setup provides better fuel economy and lower maintenance on well-prepared terrains.
Ideal for contractors seeking cost-effective, reliable equipment.

Specifications

Product specification of BEML BL9H 4×2 Backhoe Loader

ENGINE

Model

Koel 4R1190NA1
Type

Naturally Aspirated, 4 Cylinder, Water Cooled, Diesel Engine
Gross Power

74 HP (55 kW) @ 2200 rpm
Max Torque

304 Nm @ 1500 rpm
Displacement

4.76 L
Battery

12 V / 150Ah
Alternator

90A

TRANSMISSION

Type

Carraro, TCB0, Integral torque converter, 4 forward and 3 reverse speeds, optimally matched with engine.

STEERING

Type

Fully hydrostatic power steering system independent of engine speed
Working Pressure

NA

STEERING TURNING CIRCLE

Inner Wheels Braked - Outside Loader Bucket

10000 mm
Inner Wheels Braked - Outside Wheels

NA
Inner Wheels not Braked - Outside Loader Bucket

13000 mm
Inner Wheels not Braked -Outside Wheels

NA

BRAKES

Service

Hydraulically actuated wet multiple disc brake at rear wheels.
Parking

Hand Operated, caliper brake on rear axle.

TYRES

Front

9.0 x 16, 16 PR
Rear

16.9 x 28, 12 PR

SPEED

Forward- 1st gear

NA
Reverse- 1st gear

NA
Forward- 2nd Gear

NA
Reverse- 2nd Gear

NA
Forward- 3rd gear

NA
Reverse- 3rd gear

18 km/hr
Forward- 4th gear

39 km/hr
Reverse- 4th gear

NA

HYDRAULICS

Type

Gear Pump
Maximum Pump Flow

110 L/min @ 2200 rpm
System Pressure

210 bar

AXLES

Rear Axle

On board rigidly fixed to the frame, 100% differential lock with electro-hydraulic control.
Front Axle

Non-Drive, Steerable

SERVICE CAPACITIES

Fuel Tank

135 L
Engine Coolant

14 L
Engine Oil

11.5 L
Hydraulic Tank

90 L
Hydraulic System

NA
Transmission

16 L
Rear Axle

18 L

EXCAVATOR PERFORMANCE

Maximum Digging Depth

4585 mm
Reach-Ground Level to Rear Wheel Centre

NA
Reach-Ground Level to Slew Centre

NA
Reach at Full Height to Slew Centre

NA
Side Reach to Centre Line of Machine

NA
Maximum Working Height

5880 mm
Maximum Load Over Height

4025 mm
Bucket Rotation Angle

180°
Bucket Digging force

5557 kgf
Arm Digging force

3059 kgf
Maximum Lift Capacity

NA
Standard Bucket Capacity

0.24 m³
Standard Bucket Width

NA

LOADER PERFORMANCE

Dump Height

2700 mm
Load Over Height

NA
Pin Height

NA
Pin Forward Reach

NA
Reach at Ground

NA
Maximum Reach at Full Height

4360 mm
Maximum Reach at Full Height - Bucket Dumped

NA
Below Ground Level Dig Depth

150 mm
Rollback at Ground

NA
Dump Angle

45°
Shovel Breakout Force

5894 kgf
Loader Arm Breakout Force

4793 kgf
Maximum Payload

NA
Standard Shovel Capacity

1.20 m³

OVERALL DIMENSIONS & WEIGHT

Machine Weight

7600 Kg
Overall Length

6270 mm
Wheelbase

NA
Slew Centre to Rear Axle Centre

NA
Minimum Ground Clearance

NA
Slew Ground Clearance

580 mm
Height of Cabin

3034 mm
Overall Height

3890 mm
Track width - Rear

2452 mm
Track width - Front

2240 mm
Width Over Bucket

NA

Frequently Asked Question

01. What is the BEML BL9H 4x2 backhoe loader price in India?

Ans.

The exact BEML BL9H 4×2 backhoe loader price in India is currently unavailable. To get the latest and most accurate pricing, please connect with us, and we will help you find the best price for the backhoe loader.

02. Where can I buy BEML BL9H 4x2 backhoe loader in India?

Ans.

You can buy the BEML BL9H 4×2 backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

03. Does the BEML BL9H 4x2 backhoe loader come with financing and insurance options?

Ans.

Yes, the BEML BL9H 4×2 backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

04. What is the mileage of the BEML BL9H 4x2 backhoe loader?

Ans.

The mileage of the BEML BL9H 4×2 backhoe loader typically ranges between 4 and 5 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

05. What is the engine power of BEML BL9H 4x2 backhoe loader?

Ans.

The BEML BL9H 4×2 backhoe loader is powered by a Koel 4R1190NA1 naturally aspirated, 4-cylinder, water-cooled, diesel engine, delivering 74 HP (55 kW) @ 2200 rpm.

06. What is the weight of the BEML BL9H 4x2 backhoe loader?

Ans.

The weight of the BEML BL9H 4×2 backhoe loader is approximately 7600 kg. The weight may vary slightly depending on specific configurations and attachments.

07. What is the fuel tank capacity of the BEML BL9H 4x2 backhoe loader?

Ans.

The BEML BL9H 4×2 backhoe loader has a 135-liter diesel fuel tank, providing extended operation time without frequent refueling.

08. What is the maximum digging depth of the BEML BL9H 4x2 backhoe loader?

Ans.

The BEML BL9H 4×2 backhoe loader has a maximum digging depth of 4585 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

09. What is the loader bucket capacity of the BEML BL9H 4x2?

Ans.

The loader bucket capacity of the BEML BL9H 4×2 is 1.20 cubic meters (m³).

10. What is the backhoe bucket capacity of the BEML BL9H 4x2?

Ans.

The backhoe bucket capacity of the BEML BL9H 4×2 is 0.24 cubic meters (m³).

11. What is the warranty period of the BEML BL9H 4x2 backhoe loader?

Ans.

The BEML BL9H 4×2 backhoe loader in India typically comes with a standard warranty of 1 year or 2500 operating hours, whichever comes first. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

12. How many gears are available in the BEML BL9H 4x2 backhoe loader?

Ans.

The BEML BL9H 4×2 backhoe loader is equipped with a power shuttle synchromesh transmission featuring an integral torque converter. This transmission system provides 4 forward and 4 reverse gears, allowing for smooth and efficient operation across various tasks with a maximum speed of approximately 39 km/h.

13. Where can I find spare parts for the BEML BL9H 4x2 backhoe loader?

Ans.

You can find genuine spare parts for the BEML BL9H 4×2 backhoe loader at authorized BEML dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.

Popular Comparisons with BEML BL9H 4×2

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Manitou

Manitou MBL 745 S

4.5 rating

₹ 30-32 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Manitou

Manitou MBL 745 Ranger

4.5 rating

₹ 32-34 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Mahindra

Mahindra VX

4.5 rating

₹ 23-28 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Mahindra

Mahindra SX IV

4.5 rating

₹ 31-33 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Mahindra

Mahindra SX Smart 50

4.5 rating

₹ 31-33 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

desi-machines-backhoe-loader-escorts-digimax-ii-featured

Escorts Kubota

Escorts Digmax II

4.5 rating

₹ 29-31 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

desi-machines-backhoe-loader-escorts-digimax-ii-xp-featured

Escorts Kubota

Escorts Digmax II XP

4.5 rating

₹ 32-34 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Bobcat

Bobcat B900

4.5 rating

₹ 32-34 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Case

CASE 770 NXe Series

4.5 rating

₹ 22-24 lakh

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

ACE

ACE Phantom 2WD

4.5 rating

Price Available Soon

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

ACE

ACE AX 124 Eco Master

4.5 rating

₹ 23-31 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

JCB

JCB 2DX

4.5 rating

₹ 18-20 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Tata Hitachi

Tata Hitachi Shinrai Pro

4.5 rating

₹ 29-34 Lakhs

2WD

Compare

BEML

BEML BL9H 4×2

4.5 rating

Price Available Soon

2WD

Bull

Bull HD76 2WD

4.5 rating

₹ 30-35 Lakhs

2WD

Compare

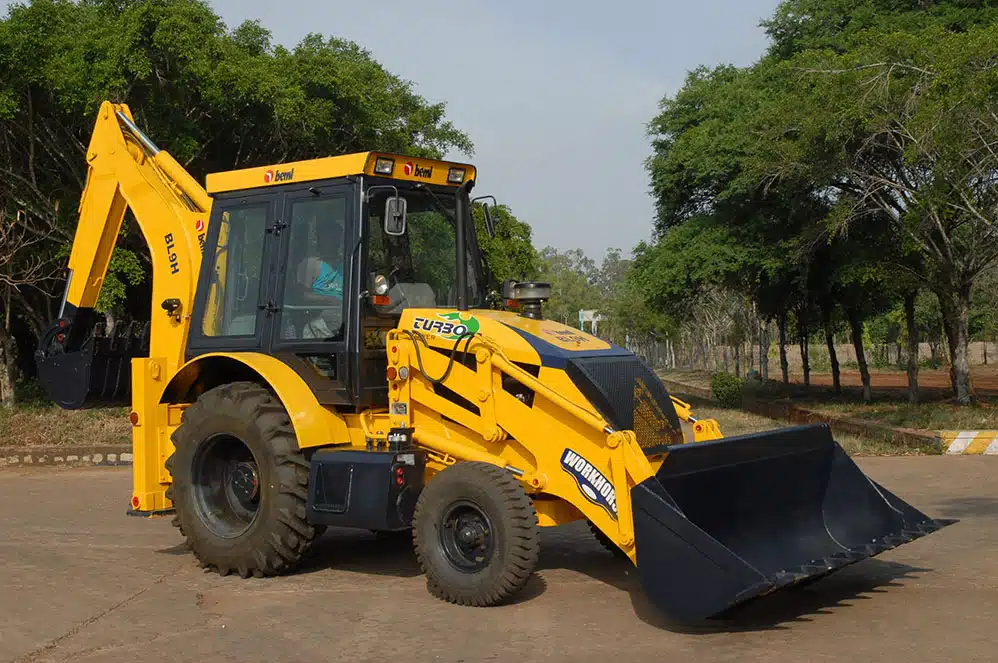

Are you interested in buying BEML BL9H 4×2 Backhoe Loader

Note: Uncheck if you're not interested in finance or insurance deals.

Products

Related Backhoe Loader

BEML BL9H 4×4

Engine

Koel 96 HP
Bucket

0.24 m³
Shovel

1.20 m³

Price Available Soon^*

4WD

BEML BL9H 4×4

Price Available Soon ^*

BEML BL9H 4×4

Price Available Soon ^*

BEML BL9H 4×4 backhoe loader offers powerful performance, superior digging, robust design, and versatility for construction tasks.

Engine

Koel 96 HP
Bucket

0.24 m³
Shovel

1.20 m³
Dig. Depth

4585 mm
Dump Height

2700 mm
Weight

7700 Kg

Compare

About BEML

Established in 1964, BEML is a notable Indian public limited organization proficient in manufacturing equipment for construction, mining, defense, and railways. Its Construction and Mining Equipment division manufactures hydraulic excavators, bulldozers, wheel loaders, and dump trucks for mining, quarrying, and construction industries. BEML is an industry giant for robust, modern machinery and reliable after-sales services. BEML backing up large-scale projects and focusing on sustainability. BEML is an essential player in India’s infrastructural development and contributes outstandingly to the country’s heavy equipment sector with creative and efficient solutions.

Products Portfolio: Excavators, Backhoe Loaders, Motor Grader
