Mahindra SX Smart 50 Backhoe Loader

Name: Mahindra SX Smart 50 Backhoe Loader
Brand: Mahindra CE
Price: 3100000 INR
Rating: 4.7 (76 reviews)

Mahindra Earthmaster SX Smart 50 offers strong digging, easy maneuvering, and optimized performance through smart engineering.

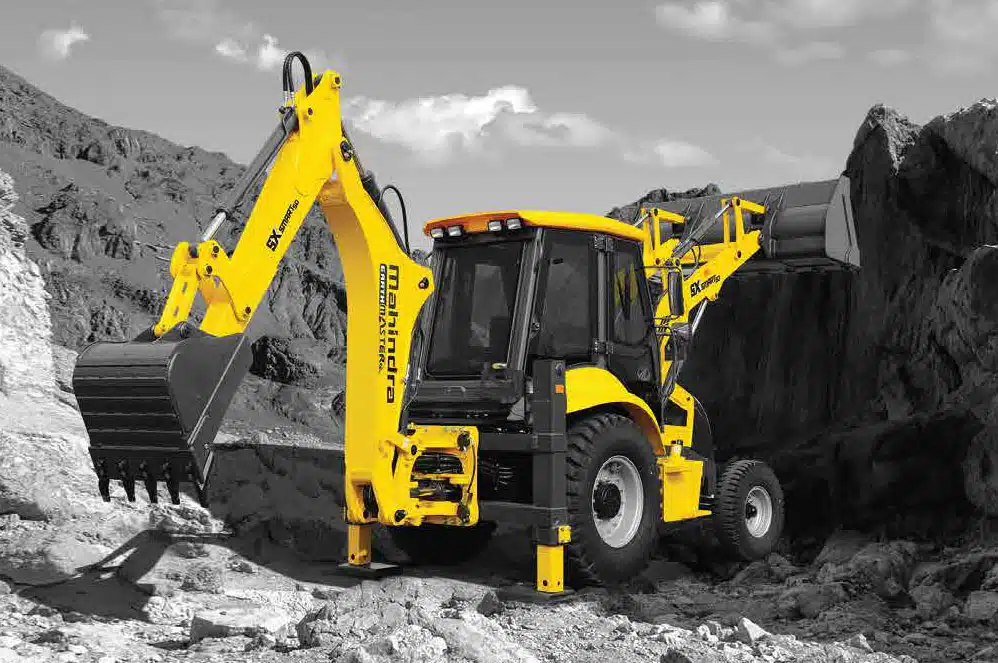

Mahindra EarthMaster SX Smart 50 Backhoe Loader

desi-machines-backhoe-loader-mahindra-roadmaster-sx-smart-50-1

desi-machines-backhoe-loader-mahindra-roadmaster-sx-smart-50-2

desi-machines-backhoe-loader-mahindra-roadmaster-sx-smart-50-3

desi-machines-backhoe-loader-mahindra-roadmaster-sx-smart-50-4

desi-machines-backhoe-loader-mahindra-roadmaster-sx-smart-50-5

Brand
Mahindra CE
Type
2WD
Operating Cost
₹ 31-33 Lakhs
Ex-Showroom Price
₹ 31-33 Lakhs

Engine
Mahindra 49.2 HP
Bucket
0.27 m³
Shovel
1.1 m³
Digging Depth
4854 mm
Dump Height
2708 mm
Weight
7477 Kg

Connect With Us:

Looking for the best price on a Mahindra Earthmaster SX Smart 50 backhoe loader? Connect with authorized dealers today for exclusive deals!

Download Brochure

Note: All images, features, specifications, and brochures on this website are sourced from official brand sites and public resources. Prices are indicative; please confirm exact pricing with the dealer or OEM.

Key Highlights

Engine Make

Mahindra

Fuel Tank

120 L

Max Torque

235 Nm@ 1000-1300 RPM

Max Speed

33 km/hr

Hydraulic System

103 L/min @ 2100 RPM

Max Working Height

5793 mm

Excavator Max Lift Capacity

1403 kg

Loader Load Over Height

3253 mm

Overall Length

Wheel Base

Bucket Digging Force

5104 kgf

Shovel Break Out Force

4867 kgf

Warranty

1 Year

AC Cabin

Optional

GPS

Standard

Features

Bigger Buckets

High Productivity with Bigger Loader (1.1 m3) and backhoe buckets (0.27 m3).
Mahindra Earthmaster backhoe bucket is around 8% bigger than competition.

Structure

Better dig Depth with 2 mm thicker plates than usual for applications where the strength is needed.
More load bearing capacity to front axle with 63 mm thick beam, helps machine to do heavy work in loader application.
Ideal for all-weather condition like sub-zero temperature in the Himalayas, due to high impact resistant structural Grade of steel (350 C) for all critical components

Hydraulics

Better backhoe speed & performance due to higher flow-handling capacity and less pressure losses.
Better Fuel efficiency due to less load on engine with lowest hydraulic refills required.
Lower per-hour maintenance cost due to 3000 hours hydraulic oil change interval. Leading to higher savings.
Improved Performance with Optimised Hoses and Tubes, higher flow capacity backhoe, loader control valve, and optimised hydraulic circuit to minimise pressure losses which is Ideal for rugged Indian site conditions.

Sliding Frame

Less Machine Maintenance with H-frame design which ensures dirt does not accumulate like other machines.
Better Grip and Stability due to its 12-bolt support plate design and balanced weight distribution.

Banana Boom

Better life and impact strength of the boom due to its design like that of Excavators. The construction is with thick plates at the ends of the boom.
More structural strength and rigidity due to its a closed box section design.
Easy to fill Tippers and trolleys it as boom design which never interferes with the body.

Final Drive

Reliable Aggregates which are less prone to failure due to its design which ensures better lubrication in all parts even in incline position, Increasing the life of Final Drive.
Final drive Consists of 3 Sections – 2 hubs and 1 middle section along with Differential separated by Oil Seals.
Oldest - Proven in Indian market power train with Optimised service refill capacity in Power train.

Bigger Buckets

High Productivity with Bigger Loader (1.1 m3) and backhoe buckets (0.27 m3).
Mahindra Earthmaster backhoe bucket is around 8% bigger than competition.

Structure

Better dig Depth with 2 mm thicker plates than usual for applications where the strength is needed.
More load bearing capacity to front axle with 63 mm thick beam, helps machine to do heavy work in loader application.
Ideal for all-weather condition like sub-zero temperature in the Himalayas, due to high impact resistant structural Grade of steel (350 C) for all critical components

Hydraulics

Better backhoe speed & performance due to higher flow-handling capacity and less pressure losses.
Better Fuel efficiency due to less load on engine with lowest hydraulic refills required.
Lower per-hour maintenance cost due to 3000 hours hydraulic oil change interval. Leading to higher savings.
Improved Performance with Optimised Hoses and Tubes, higher flow capacity backhoe, loader control valve, and optimised hydraulic circuit to minimise pressure losses which is Ideal for rugged Indian site conditions.

Sliding Frame

Less Machine Maintenance with H-frame design which ensures dirt does not accumulate like other machines.
Better Grip and Stability due to its 12-bolt support plate design and balanced weight distribution.

Banana Boom

Better life and impact strength of the boom due to its design like that of Excavators. The construction is with thick plates at the ends of the boom.
More structural strength and rigidity due to its a closed box section design.
Easy to fill Tippers and trolleys it as boom design which never interferes with the body.

Final Drive

Reliable Aggregates which are less prone to failure due to its design which ensures better lubrication in all parts even in incline position, Increasing the life of Final Drive.
Final drive Consists of 3 Sections – 2 hubs and 1 middle section along with Differential separated by Oil Seals.
Oldest - Proven in Indian market power train with Optimised service refill capacity in Power train.

Specifications

Product specification of Mahindra SX Smart 50 Backhoe Loader

ENGINE

Model

Mahindra
Type

Naturally Aspirated NEF Engine, 4 Cylinders
Gross Power

49.1 HP (36.1 kW) @ 2200 RPM
Max Torque

235 Nm@ 1000-1300 RPM
Displacement

3.5 L
Battery

12V / 100 Ah
Alternator

90 A

TRANSMISSION

Type

Four speed ( 4 forward, 4 reverse ), Low noise Two wheel Drive ( 2 WD ), synchro shuttle transmission with electrically operated reversing shuttle and torque convertor.

STEERING

Type

Front wheel hydrostatic power steering, with priority function and pressure relief valve. Emergency steering in case of power failure.
Working Pressure

140 bar

STEERING TURNING CIRCLE

Inner Wheels Braked - Outside Loader Bucket

4494 mm
Inner Wheels Braked - Outside Wheels

3091 mm
Inner Wheels not Braked - Outside Loader Bucket

5697 mm
Inner Wheels not Braked -Outside Wheels

4464 mm

BRAKES

Service

Hydraulically actuated, self adjusting maintenance free, oil immersed multi-disc on the rear axle operated by independent foot pedals joined together for normal operation.
Parking

Hand operated mechanically actuated caliper type brakes .

TYRES

Front

9 x 16 - 16 PR
Rear

16.9 x 28 - 12 PR

SPEED

Forward- 1st gear

4.5km/hr
Reverse- 1st gear

4.5km/hr
Forward- 2nd Gear

7.3 km/hr
Reverse- 2nd Gear

7.3 km/hr
Forward- 3rd gear

20.6 km/hr
Reverse- 3rd gear

20.6 km/hr
Forward- 4th gear

33 km/hr
Reverse- 4th gear

HYDRAULICS

Type

Oepn Center, Fixed displacement, Gear Pump
Maximum Pump Flow

103 L/min @ 2100 RPM
System Pressure

210 bar

AXLES

Rear axle

Rigidly mounted drive axle, with outbound planetary final drives, driven by short drive shaft.
Front axle

Centrally pivoted, non-driven unbalanced type axle, with total oscillation of 16°C, with remote greasing facility for the main pin.

SERVICE CAPACITIES

Fuel Tank

120 L
Engine Coolant

17 L
Engine Oil

13.7 L
Hydraulic Tank

50 L
Hydraulic System

100 L
Transmission

19.20 L
Rear Axle

17.10 L

EXCAVATOR PERFORMANCE

Maximum Digging Depth

4854 mm
Reach-Ground Level to Rear Wheel Centre

NA
Reach-Ground Level to Slew Centre

5585 mm
Reach at Full Height to Slew Centre

2774 mm
Side Reach to Centre Line of Machine

6115 mm
Maximum Working Height

5793 mm
Maximum Load Over Height

3852 mm
Bucket Rotation Angle

NA
Bucket Digging force

5104 kgf
Arm Digging force

3210 kgf
Maximum Lift Capacity

1403 kg
Standard Bucket Capacity

0.27 m³
Standard Bucket Width

NA

LOADER PERFORMANCE

Dump Height

2708 mm
Load Over Height

3253 mm
Pin Height

NA
Pin Forward Reach

NA
Reach at Ground

1350 mm
Maximum Reach at Full Height

1115 mm
Maximum Reach at Full Height - Bucket Dumped

NA
Below Ground Level Dig Depth

NA
Rollback at Ground

NA
Dump Angle

NA
Shovel Breakout Force

4867 kgf
Loader Arm Breakout Force

5594 kgf
Maximum Payload

NA
Standard Shovel Capacity

1.1 m³

OVERALL DIMENSIONS & WEIGHT

Machine Weight

7477 kg
Overall Length

NA
Wheelbase

NA
Slew Centre to Rear Axle Centre

NA
Minimum Ground Clearance

NA
Slew Ground Clearance

NA
Height of Cabin

NA
Overall Height

NA
Track width - Rear

NA
Track width - Front

NA
Width Over Bucket

NA

Frequently Asked Question

01. What is the Mahindra Earthmaster SX Smart 50 backhoe loader price in India?

Ans.

The Mahindra Earthmaster SX Smart 50 backhoe loader price in india ranges between ₹ 31-33 lakhs. However, the exact price may vary depending on the location dealer, taxes, and additional features.

02. Where can I buy Mahindra Earthmaster SX Smart 50 backhoe loader in India?

Ans.

You can buy the Mahindra Earthmaster SX Smart 50 backhoe loader from Desi Machines, your trusted platform for construction and heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get the best deals and genuine products. Simply fill out the inquiry form for the backhoe loader you want, or contact us directly for expert assistance and competitive pricing.

03. Does the Mahindra Earthmaster SX Smart 50 backhoe loader come with financing and insurance options?

Ans.

Yes, the Mahindra Earthmaster SX Smart 50 backhoe loader comes with financing and insurance options. Desi Machines offers the best-curated finance and insurance solutions from top providers. Connect with us and our team will help you secure the best deals.

04. What is the mileage of Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

The mileage of the Mahindra Earthmaster SX Smart 50 backhoe loader typically ranges between 4 to 6 km per liter under standard working conditions. However, actual fuel consumption depends on factors such as load capacity, terrain, operator efficiency, and maintenance practices.

05. What is the engine power of Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

The Mahindra Earthmaster SX Smart 50 backhoe loader is powered by a Mahindra diesel engine, delivering 49.2 HP (36.2 kW) @ 2200 rpm.

06. What is the weight of Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

The weight of the Mahindra Earthmaster SX Smart 50 backhoe loader is approximately 7477 kg. The weight may vary slightly depending on specific configurations and attachments.

07. What is the fuel tank capacity of the Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

The Mahindra Earthmaster SX Smart 50 backhoe loader has a 120 litres diesel fuel tank, providing extended operation time without frequent refueling.

08. What is the lifting capacity of Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

The Mahindra Earthmaster SX Smart 50 backhoe loader has a lifting capacity of 1403 kg, making it ideal for versatile applications.

09. What is the maximum digging depth of Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

The Mahindra Earthmaster SX Smart 50 backhoe loader has a maximum digging depth of 4854 mm, providing efficient excavation for various applications. The actual digging depth may vary based on optional attachments and configurations, ensuring versatility for different job site needs.

10. What is the loader bucket capacity of the Mahindra Earthmaster SX Smart 50?

Ans.

The loader bucket capacity of the Mahindra Earthmaster SX Smart 50 is 1.1 cubic meters (m³).

11. What is the backhoe bucket capacity of the Mahindra Earthmaster SX Smart 50?

Ans.

The backhoe bucket capacity of the Mahindra Earthmaster SX Smart 50 is 0.27 cubic meters (m³).

12. What is the warranty period of Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

The Mahindra Earthmaster SX Smart 50 backhoe loader in India typically comes with a standard warranty of 1 year. The warranty covers defects from faulty materials or workmanship, but terms may vary. For the latest details, check with authorized dealers or visit the official brand website.

13. How many gears are available in Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

The Mahindra Earthmaster SX Smart 50 backhoe loader features a 4-speed synchro shuttle transmission with 4 forward and 4 reverse gears.

14. Where can I find spare parts for the Mahindra Earthmaster SX Smart 50 backhoe loader?

Ans.

You can find genuine spare parts for the Mahindra Earthmaster SX Smart 50 backhoe loader at authorized Manitou dealerships, service centers, and trusted suppliers. At Desi Machines, we help you connect with authorized dealers, and our experts assist you in finding the best deals based on your location. Fill out the form now to get the best offers on backhoe loader spare parts.
